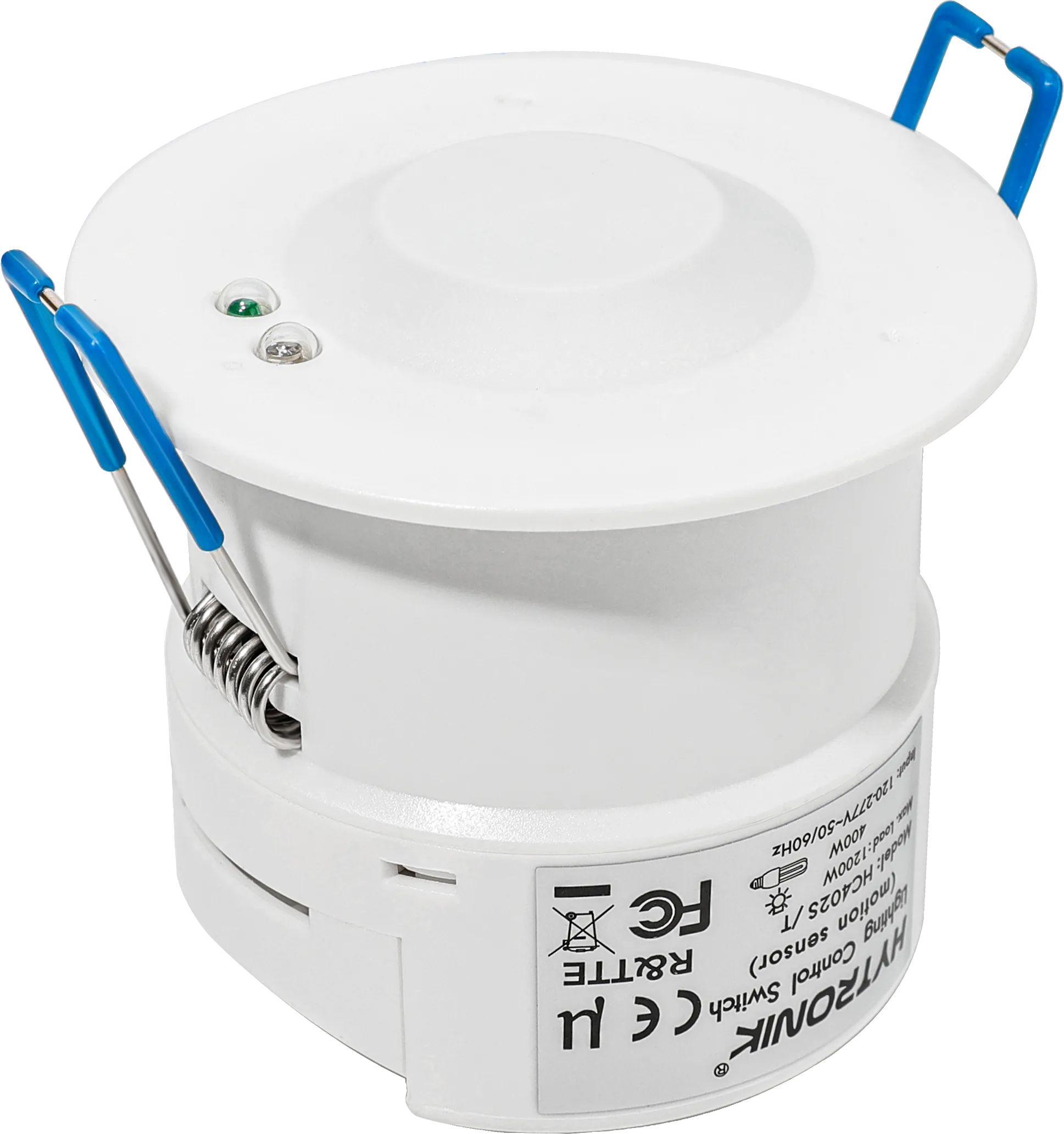

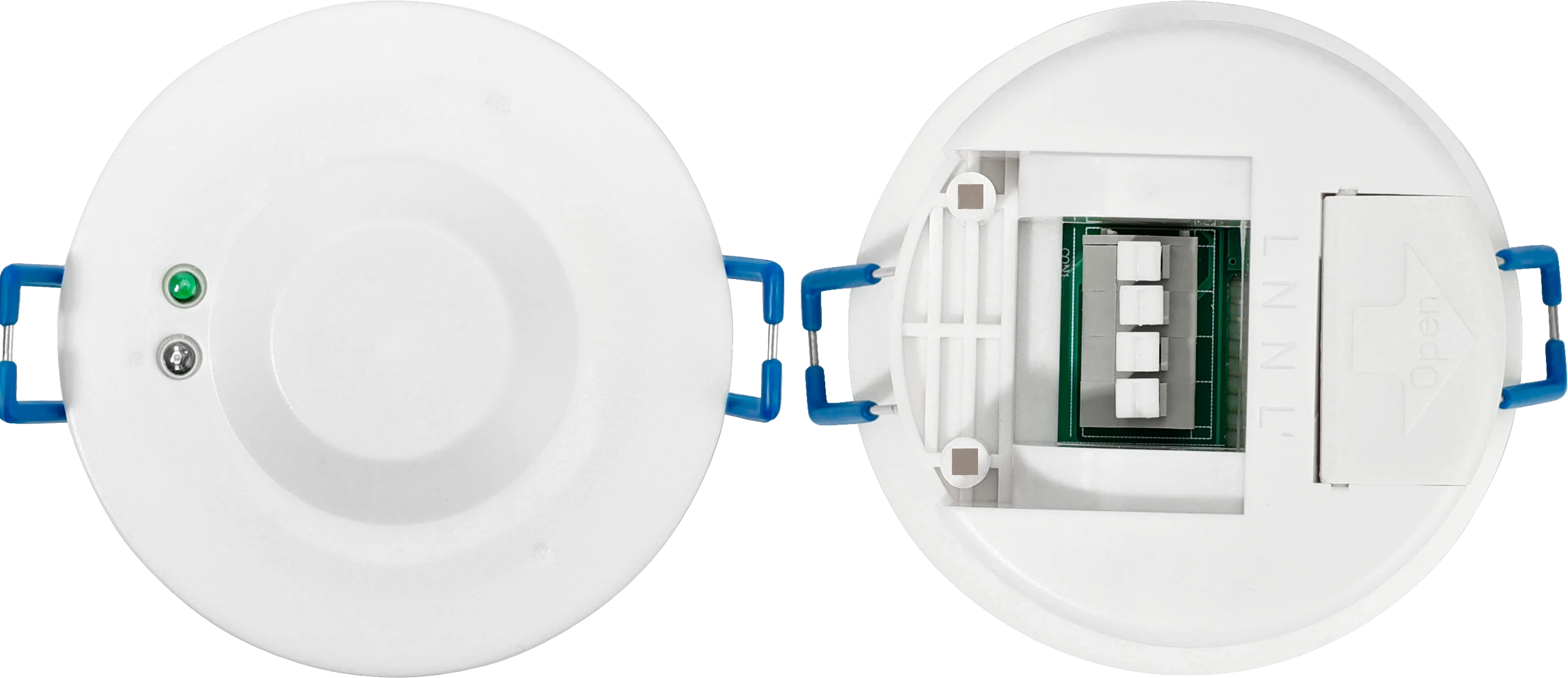

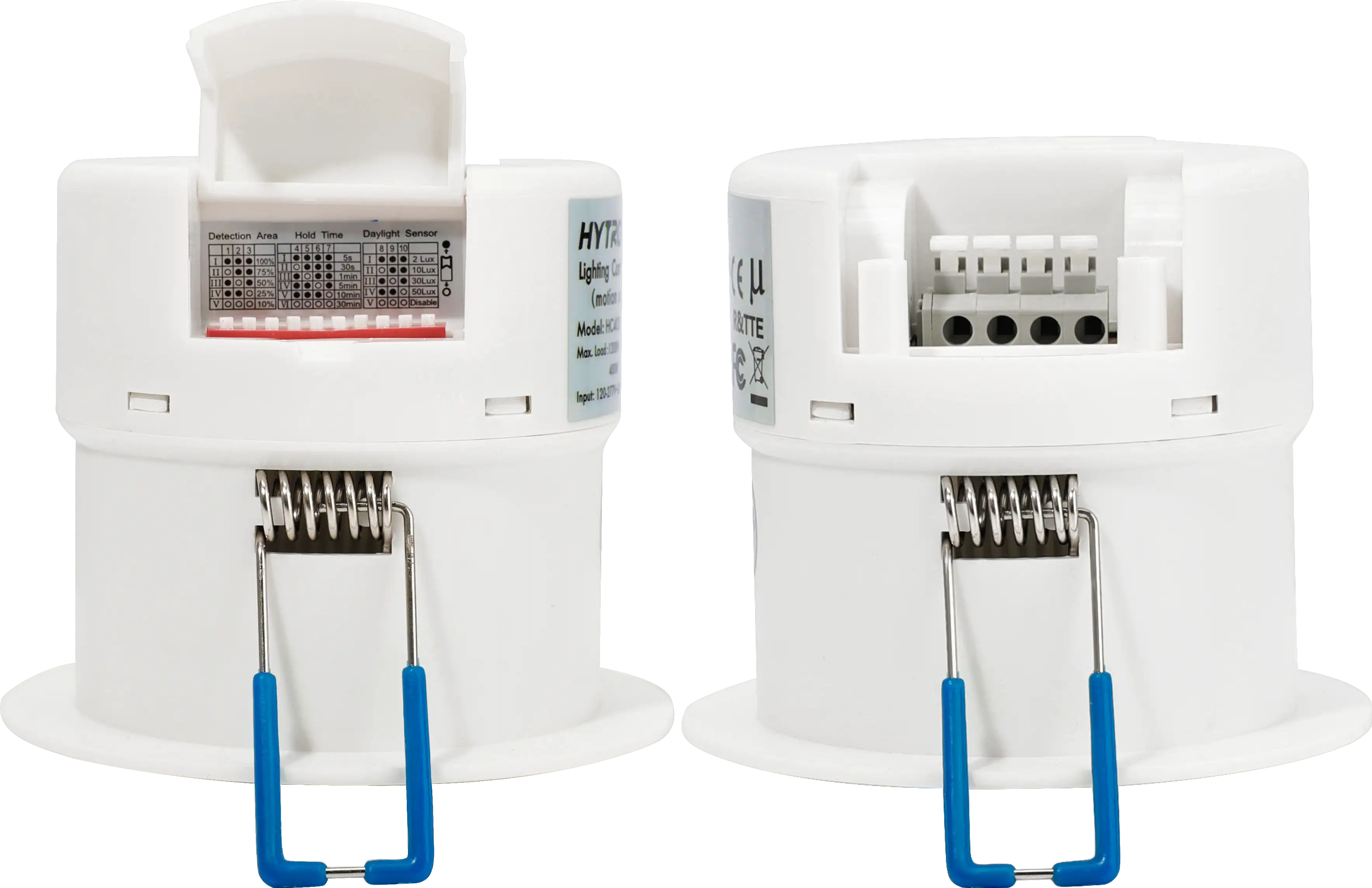

HC402S/T
HF Lowbay | ON/OFF | via DIP-Switches
BENEFITS
- Adaptable: aesthetic and easy flush mount installation
- Autonomous: On/Off occupancy control for up to 1200W
- Easy: Sensor settings via DIP-Switches
APPLICATIONS
- For ceiling mount installation
- Offices, Classrooms
- Common spaces
Product information "HC402S/T"
It is a HF Sensor integrates seamlessly into triac dimmer systems, enabling motion-based On/Off control and adjustable lighting levels from 10% to 100%. It requires no additional wiring and can manage a group of luminaires up to 400W efficiently.
| Ambient temperature max.: | 60 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | DIP-switch |
| Connector Type: | Standard 2 cables |
| Daylight Harvest: | Yes |
| Daylight Sensor Option: | Ordinary Photodiode/Photocell |
| Detection Methods: | Microwave (MW) |
| Detection angle: | 30° - 150° |
| Detection range (DxH): | 12x6 |
| Dimming (Output) Interface: | Relay On/Off |
| HF operating frequency (Ghz): | 5.8Ghz+/-75MHz |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Stand-alone |
| Lens type: | Standard Low-bay |
| Maximum Mounting Height: | 6.0000 m |
| Mounting Height: | Low-bay |
| Operating Voltage: | 220 - 240 VAC 50/60 Hz |
| Product height: | 75.6000 mm |
| Product length: | 85.0000 mm |
| Product width: | 85.0000 mm |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | No |
| Voltage Type: | AC |
| Zhaga: | No |
