Active / New

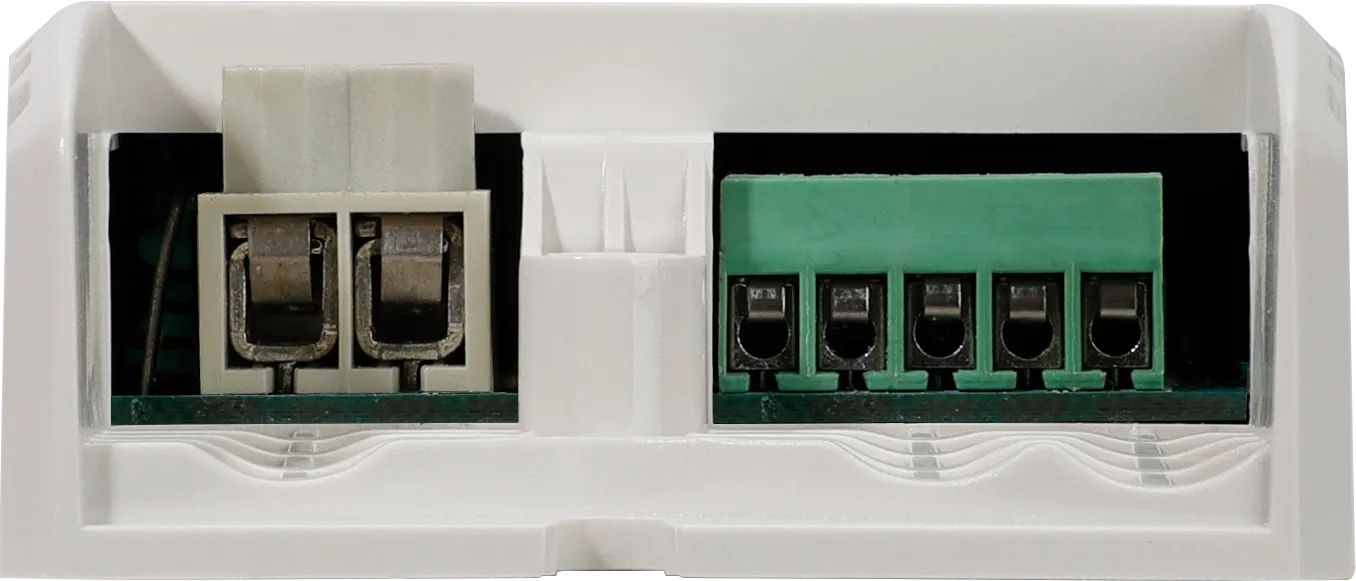

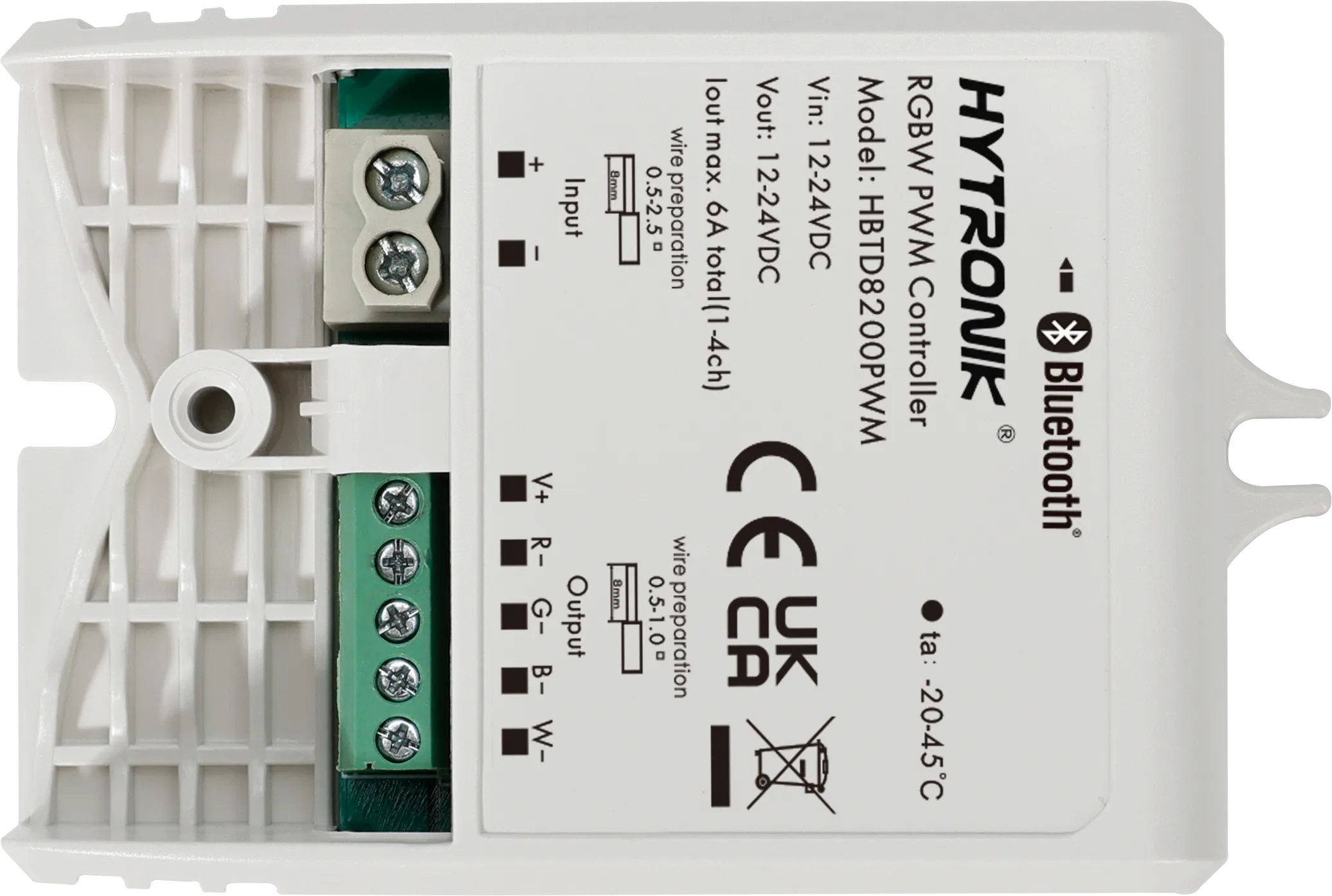

HBTD8200PWM
Bluetooth CV Dimmer | Full Color | Built-in/ Stand alone
BENEFITS
- Compact: 4-channel RGBW Bluetooth dimmer designed for LED strips
- Versatile: 3 Color Dimensions - RGBW + xyY + DUV
- Flexible: Enables full parameter setup and commissioning via app
APPLICATIONS
- Supermarket/Shop
- Entertainment Venues (hotel, bar)
- Lounge
Product information "HBTD8200PWM"
HBTD8200PWM is a compact Bluetooth RGBW dimmer designed for constant voltage lighting systems, providing an easy way to add wireless control and enhance lighting flexibility. It supports smooth PWM dimming, full-spectrum RGBW control, and tunable white adjustment to create a wide range of lighting scenes. Commissioning is quick and intuitive via the Koolmesh App, with no additional control wiring required. Featuring a 12–24V DC input and four independent MOSFET-controlled output channels, it delivers stable and reliable control for constant voltage lighting loads. Ideal for architectural, hospitality, and decorative lighting applications.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Bluetooth Platform: | Nordic nRF52840 |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range (Phone to Device) : | 15-40m |
| Bluetooth system: | Koolmesh |
| Bluetooth transmit power: | 8 dBm |
| Commissioning Methods: | App & Web (Bluetooth) |
| Dimming (Output) Interface: | PWM |
| Efficiency: | 90.0000 % |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Operating voltage range: | 12~24VDC |
| Output Power: | 72/144W |
| Output Voltage: | 12~24VDC |
| Product Status: | Active / New |
| Product height: | 22.0000 mm |
| Product length: | 80.2000 mm |
| Product width: | 53.0000 mm |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Zhaga: | No |
Datasheets
Product datasheet: hbtd8200pwm.pdf
