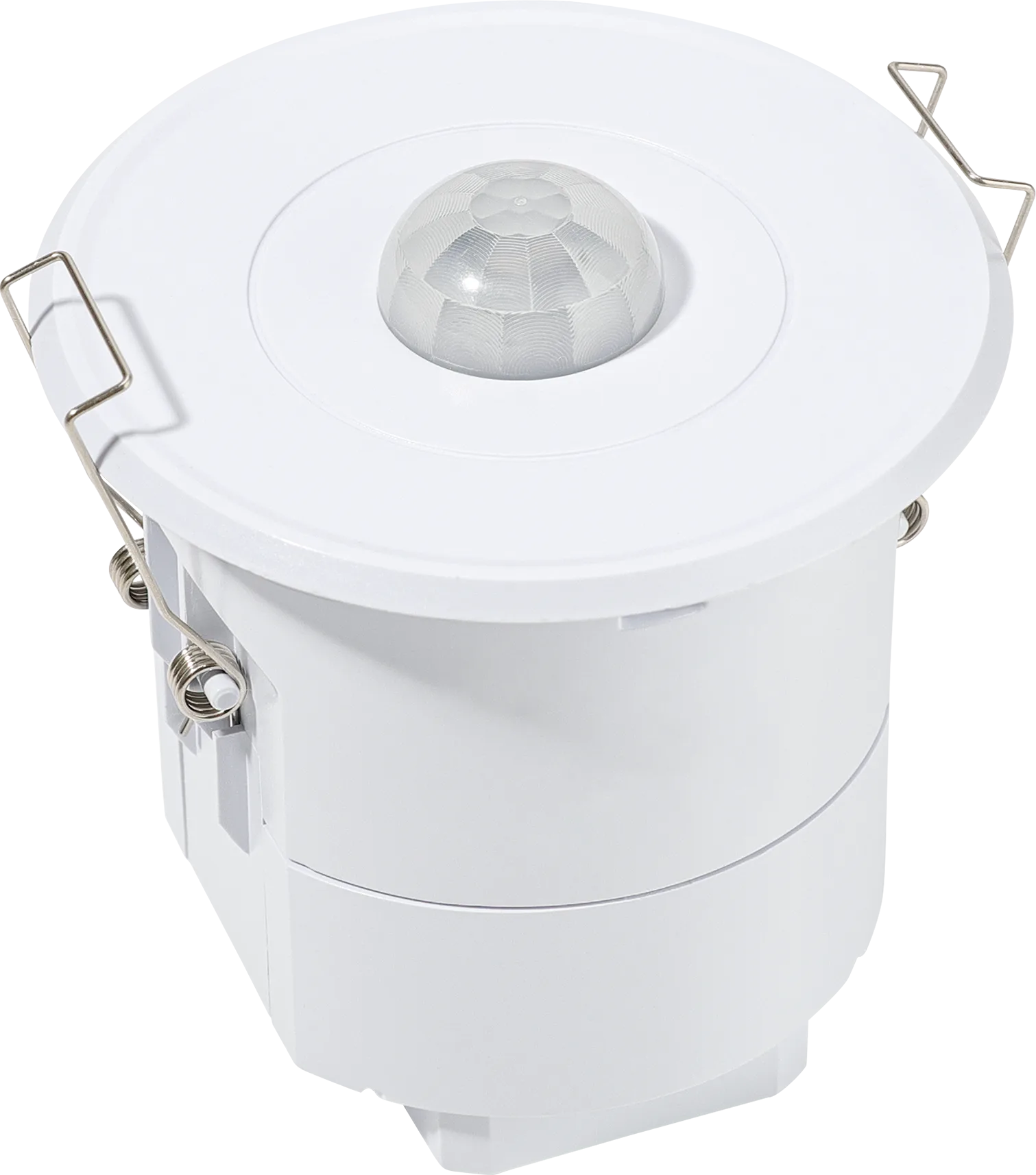

HBIR32/W
PIR Lowbay| Bluetooth DALI 2CH with PSU | Ceiling mounting
BENEFITS
- Flexible: Designed for ceiling or surface mounting
- Independent: Self-powered DALI control
- Cost-Saving: BLE eliminates the need for time-consuming hardwiring
APPLICATIONS
- Standalone installation for ceiling up to 6m
- Classrooms with blackboards and student zones
- Offices with two zones
Product information "HBIR32/W"
HBIR32 is a Bluetooth PIR standalone motion sensor with an 80mA DALI power supply, split into two channels: 50mA for Channel 1 and 30mA for Channel 2. Ideal for indoor spaces like offices and classrooms, it facilitates easy luminaire communication via Bluetooth wireless mesh networking, minimizing installation complexity.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range: | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth technology: | Nordic nRF52832 |
| Bluetooth transmit power: | 4 dBm |
| Commissioning Methods: | App & Web (Bluetooth) |
| Connector Type: | Standard 2 cables |
| Daylight Harvest: | Yes |
| Daylight Sensor Option: | Ordinary Photodiode/Photocell |
| Detection Methods: | Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (DxH): | 18x6 |
| Dimming (Output) Interface: | DALI |
| Features: | Daylight Harvest, Tri-level (Corridor Function) |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Stand-alone |
| Lens type: | Wide range Low-bay |
| Maximum Mounting Height: | 6.0000 m |
| Mounting Height: | Low-bay |
| Mounting hole: | 66.0000 mm |
| Operating Voltage: | 220-240 VAC 50/60 Hz |
| Product height: | 81.0000 mm |
| Product width: | 78.0000 mm |
| Required DALI Current: | 80.0000 mA |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | AC |
| Zhaga: | No |
