Active / Make to Stock

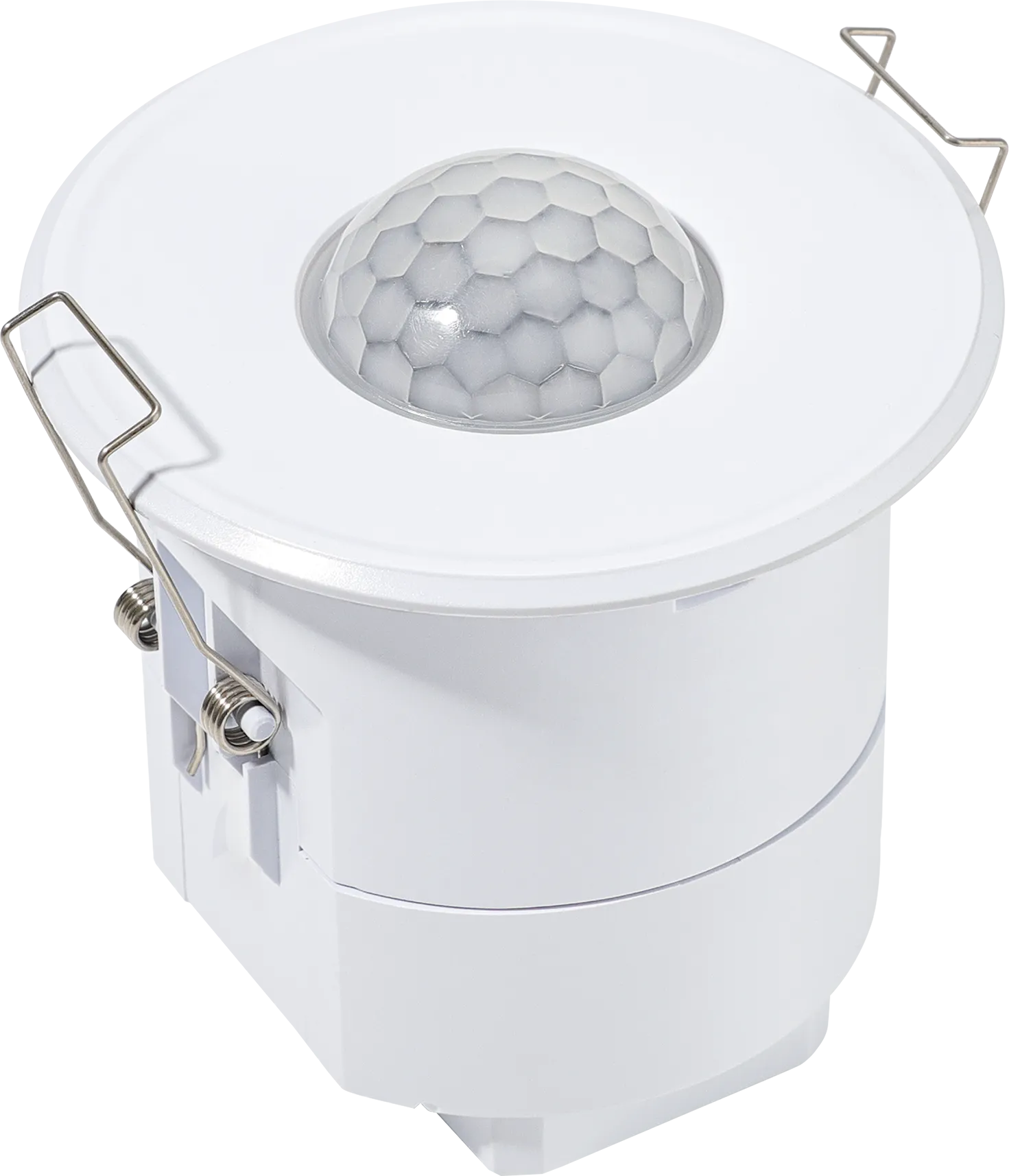

HBIR32/H
Bluetooth Dual-Channel PIR Highbay | Integrated 80mA PSU | Ceiling Mounting
BENEFITS
- Integrated: Built-in 80mA DALI power supply simplifies installation
- Capable: Dual DALI channels increase device connection capacity
- Simple: Wireless setup and commissioning via Koolmesh App
APPLICATIONS
- Remote ceiling or surface mounting (with accessory)

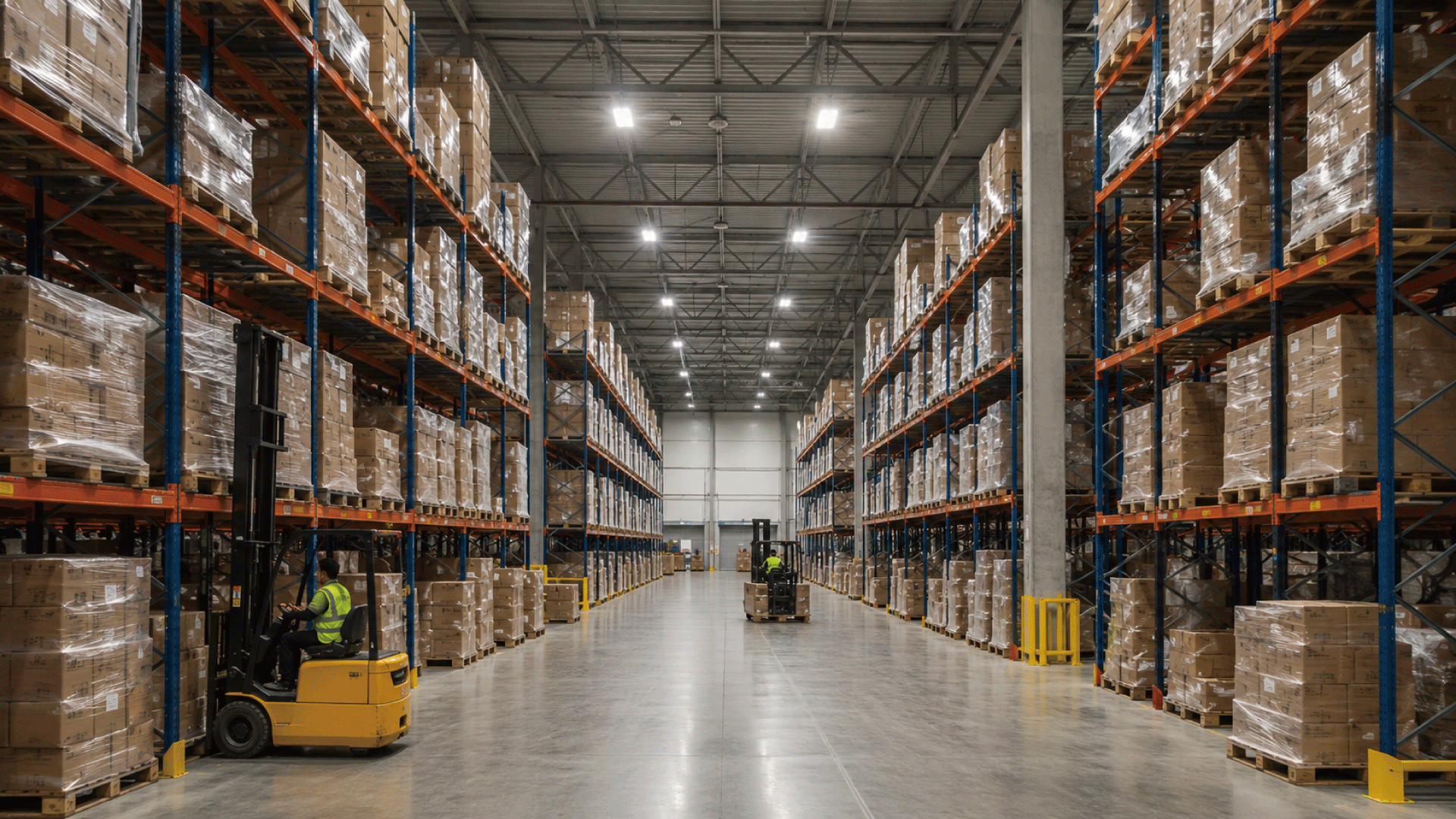

- Warehouse
- Logistics
Product information "HBIR32/H"
HBIR32/H is a Bluetooth dual-channel PIR motion sensor designed for tunable white DALI lighting applications in indoor commercial spaces, featuring a high-bay lens with a typical mounting height of up to 12m for reliable detection in high-ceiling environments. It features two DALI output channels with a built-in 80mA DALI power supply, supporting up to 50mA on Channel 1 and 30mA on Channel 2, enabling flexible tunable white control of DALI luminaires without an additional DALI power supply. Bluetooth Mesh networking enables wireless communication between luminaires without additional control wiring, reducing installation complexity and project costs. Configuration and commissioning can be completed easily via the Koolmesh App.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Bluetooth Platform: | Nordic nRF52832 |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range (Phone to Device) : | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth transmit power: | 4 dBm |
| Commissioning Methods: | App & Web (Bluetooth) |
| DALI max. current channel 1: | 50 mA |
| DALI max. current channel 2: | 30 mA |
| Daylight Harvest: | Yes |
| Detection Methods: | Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (Diameter): | 24x15 |
| Dimming (Output) Interface: | DALI |
| Features: | Daylight Harvest, Tri-level (Corridor Function) |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| IP Rate (facial part): | IP54 |
| Installation Type: | Stand-alone |
| Lens type: | High-bay |
| Maximum Mounting Height: | 15.0000 m |
| Mounting Height: | Mid & High-bay |
| Mounting hole: | 66.0000 mm |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Product Status: | Active / Make to Stock |
| Product height: | 84.5000 mm |
| Product length: | 78.0000 mm |
| Product weight: | 86.0000 g |
| Product width: | 78.0000 mm |
| Push Button Input: | 3 |
| Sensitivity: | 10%/ 30% /50% /75%/ 100% |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | AC |
| Warming-up: | 20 s |
| Zhaga: | No |
Datasheets
Product datasheet: hbir32-h.pdf
Installation Manual
User manual: installation-manual-hbir32-h.pdf
Login
Accessory

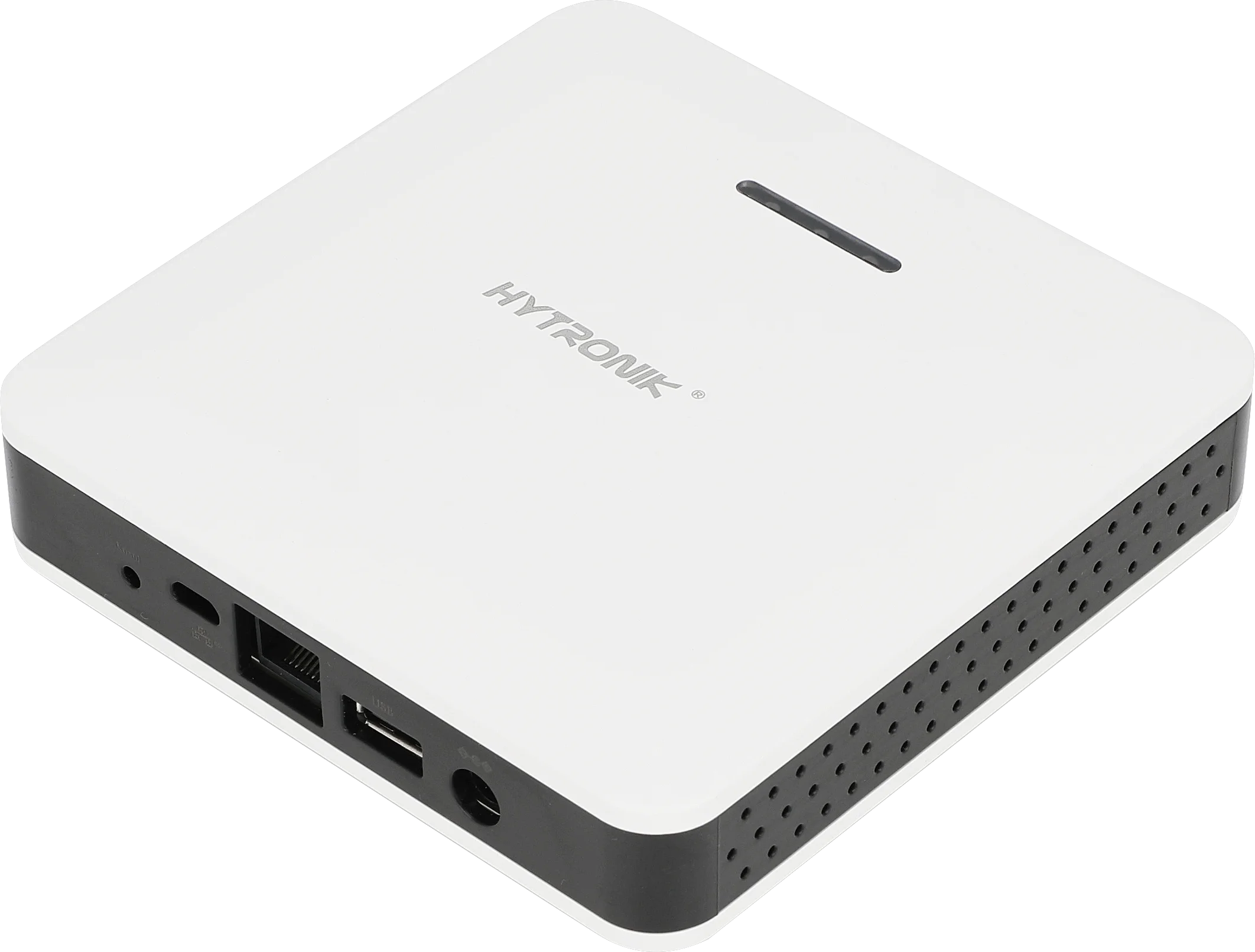

Bluetooth Network Components
