Active / Make to Stock
HBIR29/UH
Bluetooth DALI PIR Highbay | Integrated 80mA PSU | Ceiling mounting
BENEFITS
- Adaptable: Metal surface mount box options
- Versatile: Tri-level dimming + Daylight harvest + Circadian Rhythm
- Simple: Wireless setup and commissioning via Koolmesh App

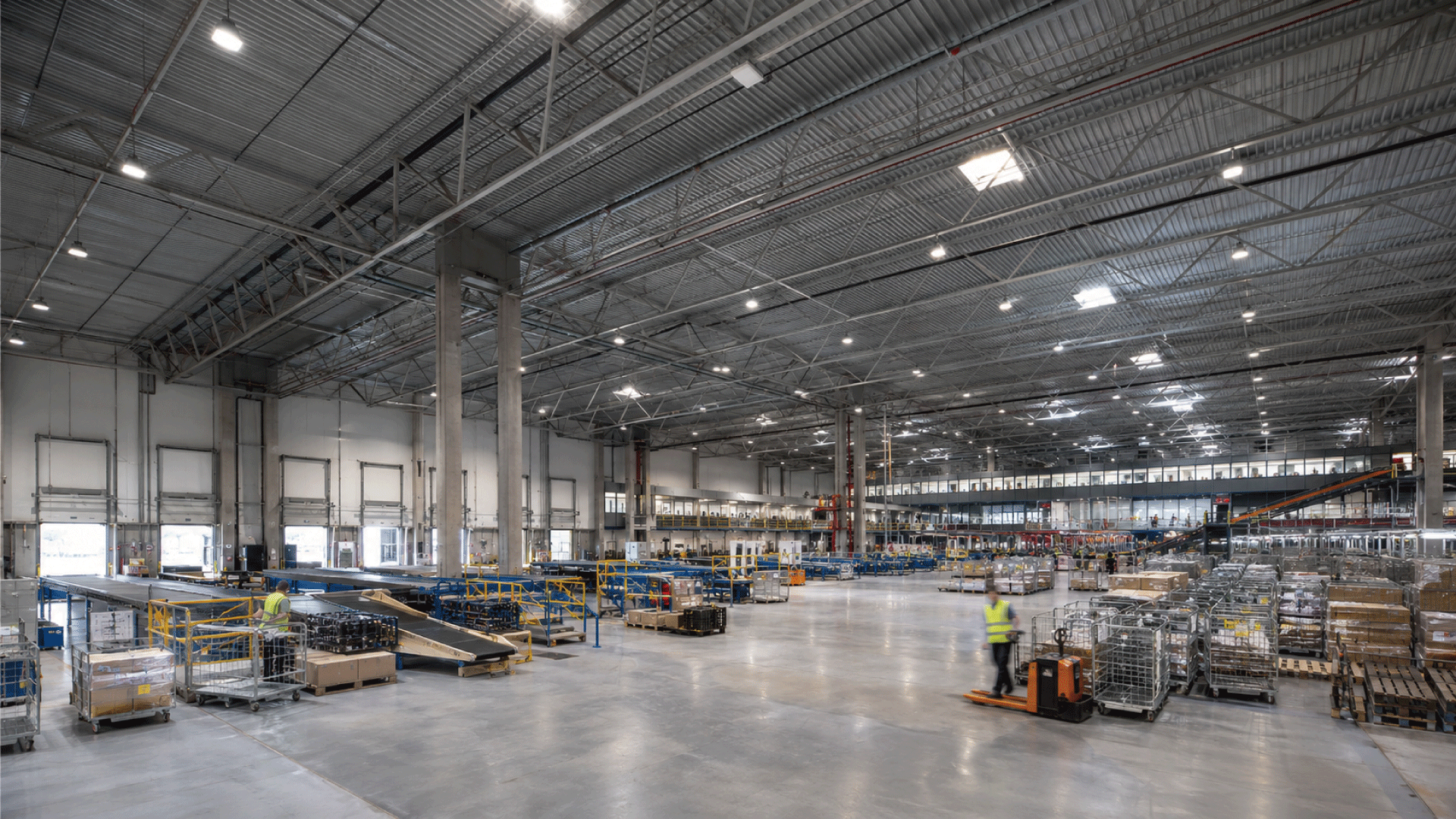

APPLICATIONS
- Ceiling or surface mounting (with accessory)
- Warehouse
- logistics
Product information "HBIR29/UH"

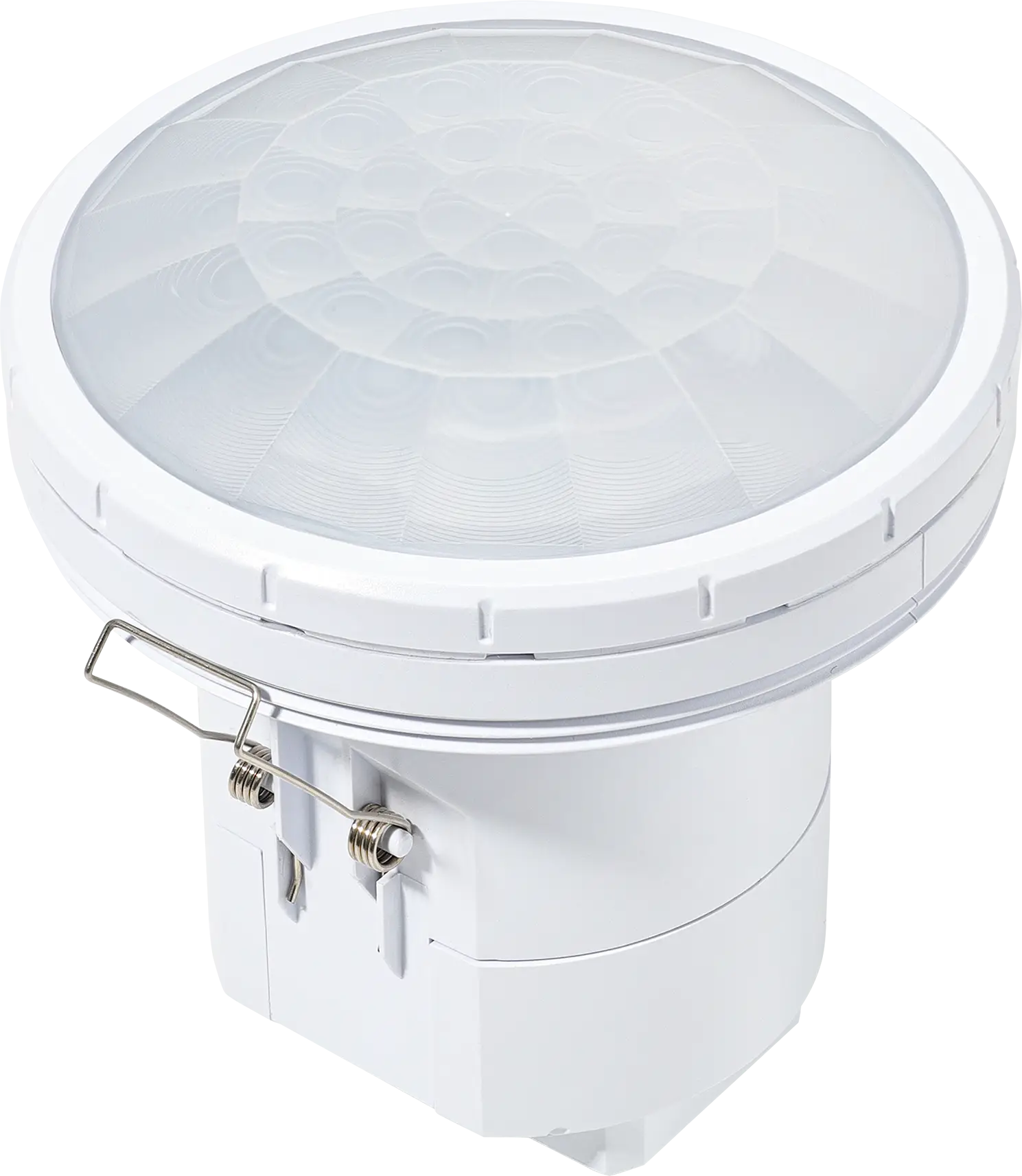

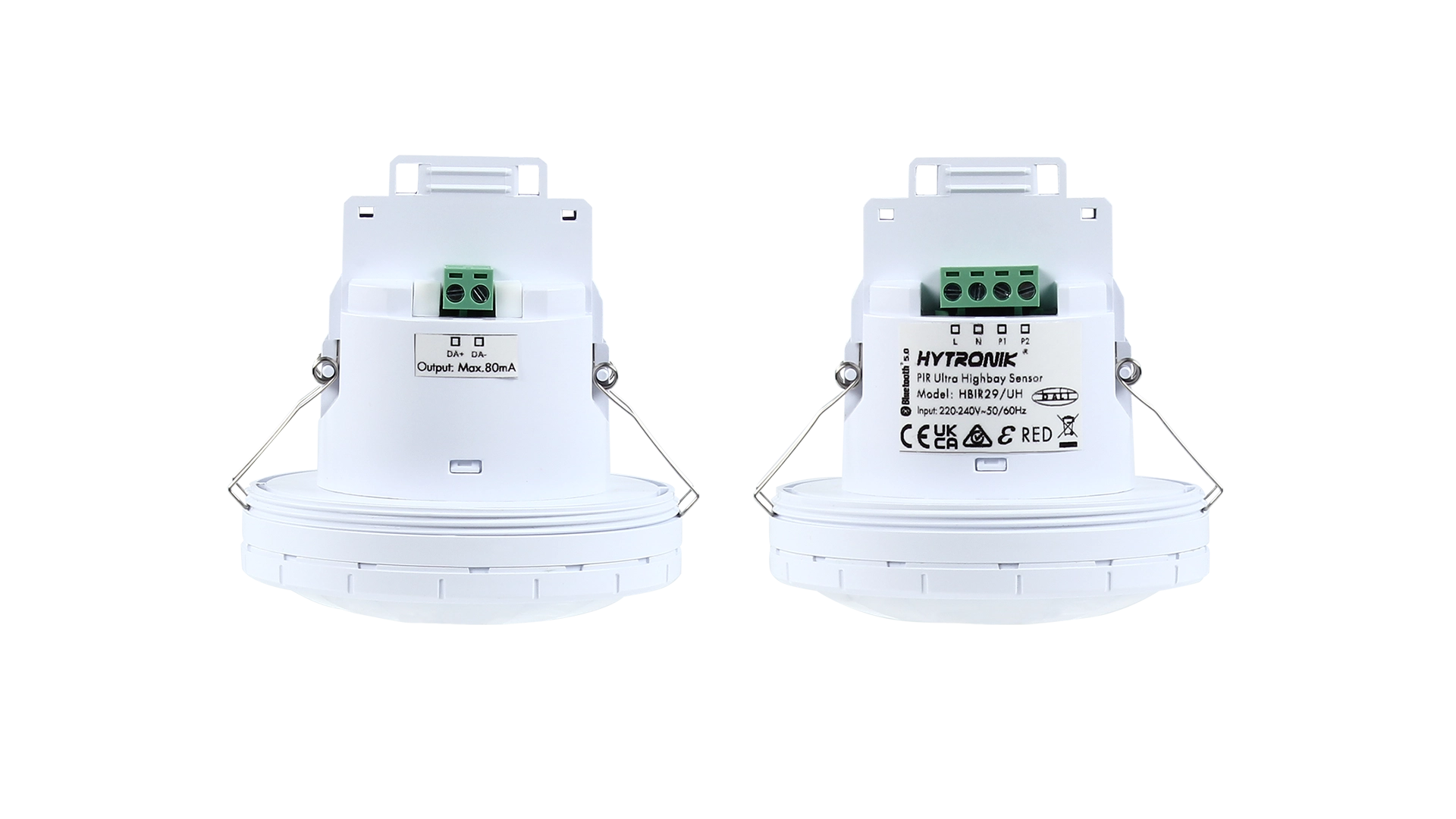

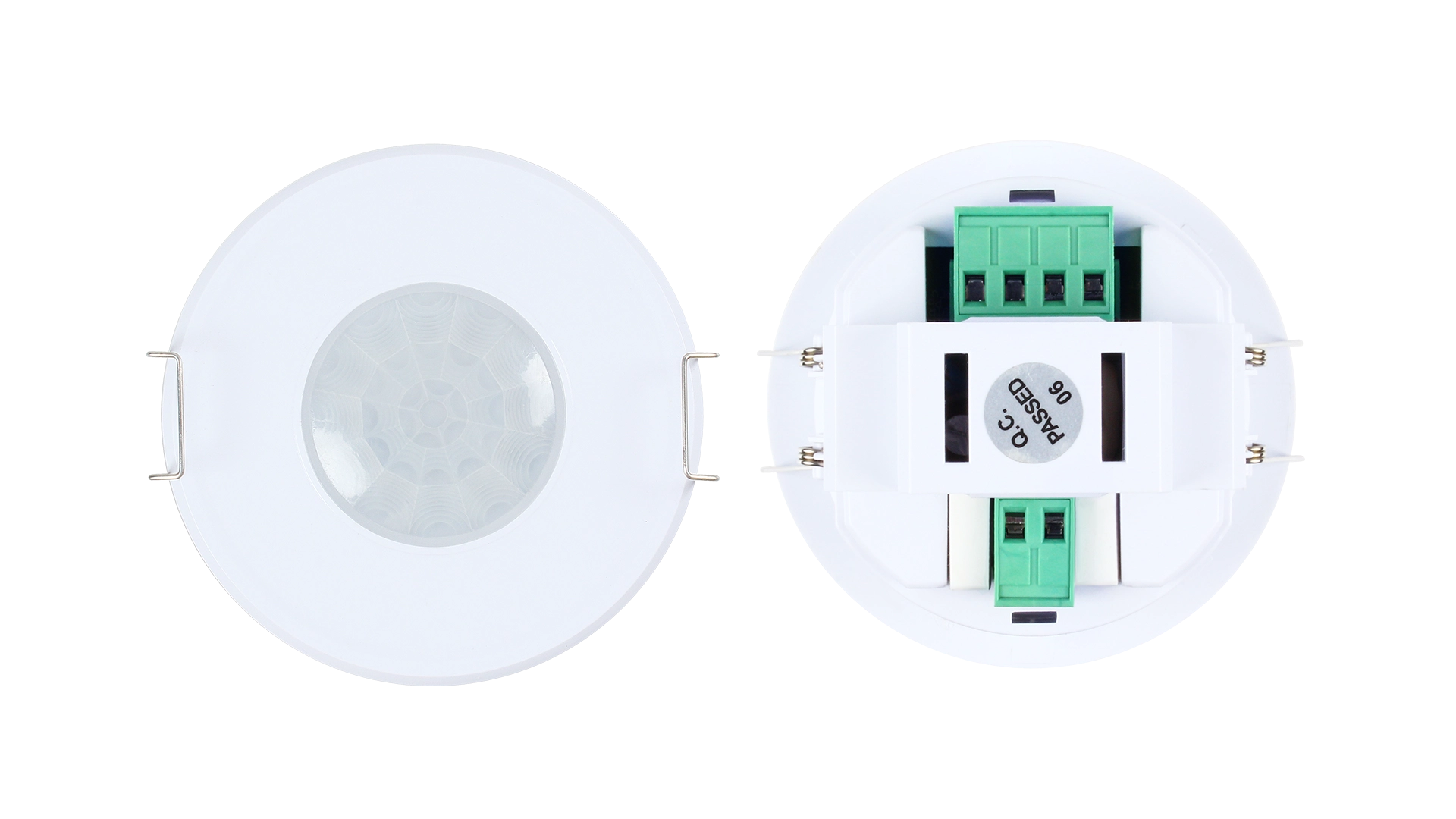

HBIR29/UH is a Bluetooth PIR standalone motion sensor designed for ultra high-bay indoor lighting applications, supporting a typical mounting height of up to 15m. With a built-in 80mA DALI power supply, it enables reliable DALI lighting control in very high-ceiling environments while simplifying system installation. Bluetooth Mesh networking allows wireless communication between devices without additional control wiring, reducing installation complexity and costs. All configuration and commissioning can be completed easily via the Koolmesh App.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Bluetooth Platform: | Nordic nRF52832 |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range (Phone to Device) : | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth transmit power: | 4 dBm |
| Commissioning Methods: | App & Web (Bluetooth) |
| Daylight Harvest: | Yes |
| Detection Methods: | Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (Diameter): | 28×21 |
| Dimming (Output) Interface: | DALI |
| Features: | Daylight Harvest, Tri-level (Corridor Function), Tunable White Control / HCL |
| Human Centric Lightning (HCL): | Yes |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| IP Rate (facial part): | IP54 |
| Installation Type: | Stand-alone |
| Lens type: | Ultra high-bay |
| Maximum Mounting Height: | 21.0000 m |
| Mounting Height: | Ultra High-bay |
| Mounting hole: | 66.0000 mm |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Product Status: | Active / Make to Stock |
| Product height: | 101.0000 mm |
| Product length: | 94.0000 mm |
| Product weight: | 136.0000 g |
| Product width: | 94.0000 mm |
| Push Button Input: | 2 |
| Sensitivity: | 10%/ 30% /50% /75%/ 100% |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | AC |
| Warming-up: | 20 s |
| Zhaga: | No |
Datasheets
Product datasheet: hbir29-uh.pdf
