Active / Make to Stock
HBIR29/R
Bluetooth DALI PIR Midbay | Integrated 80mA PSU | Ceiling mounting
BENEFITS
- Adaptable: Options of blind inserts and metal surface mount boxes
- Versatile: Tri-level dimming + Daylight harvest + Circadian Rhythm
- Simple: Wireless setup and commissioning via Koolmesh App
APPLICATIONS
- Ceiling or surface mounting (with accessory)
- Offices & Classrooms
- Corridors & Staircases
Product information "HBIR29/R"

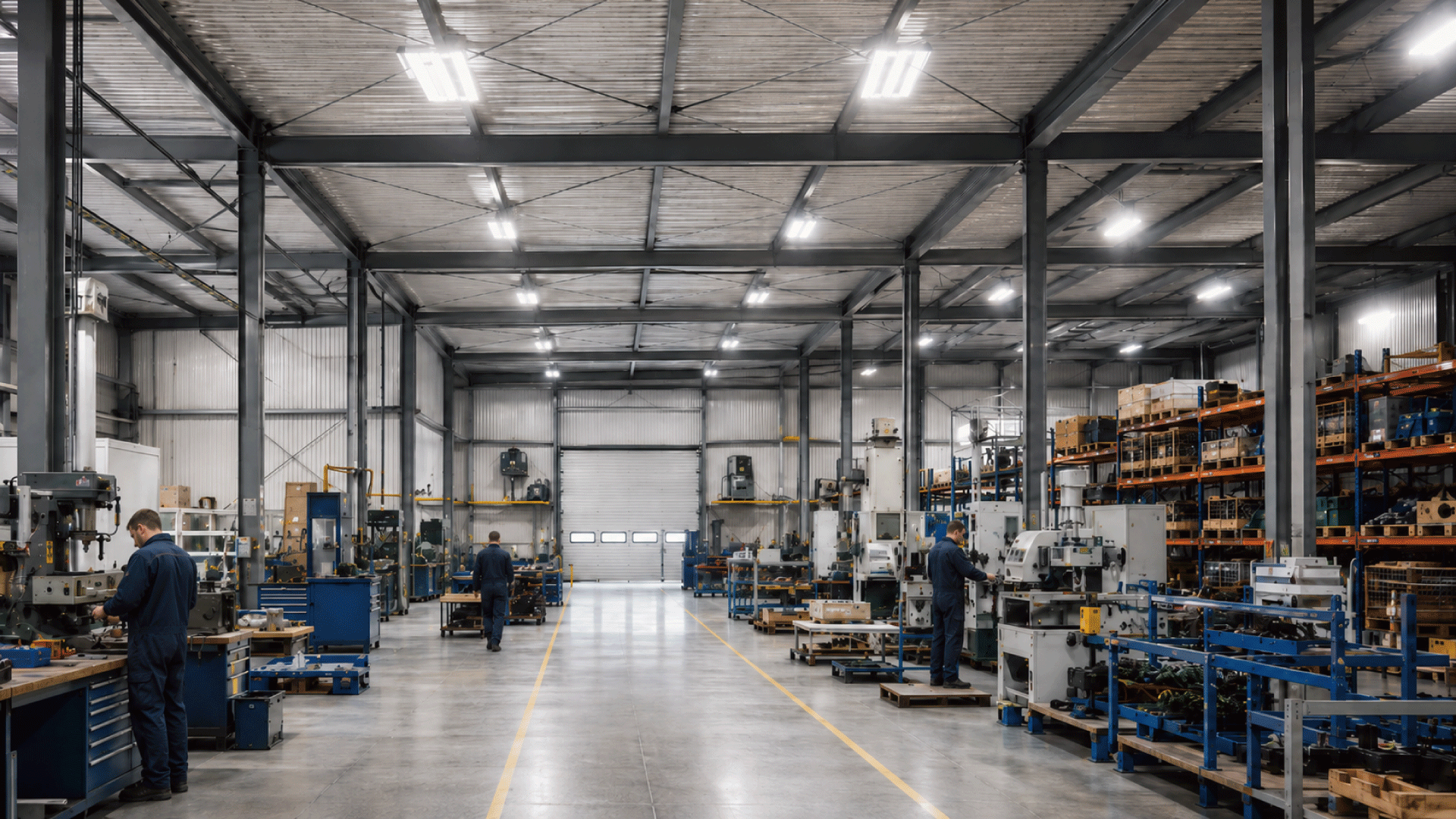

HBIR29/R is a Bluetooth PIR standalone motion sensor designed for midbay indoor lighting applications, supporting a typical mounting height of up to 6m. With a built-in 80mA DALI power supply, it simplifies DALI lighting installation while providing reliable motion detection at higher mounting positions. Bluetooth Mesh networking enables wireless communication between devices without additional control wiring, reducing installation complexity and costs. All configuration and commissioning can be completed easily via the Koolmesh App.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Bluetooth Platform: | Nordic nRF52832 |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range (Phone to Device) : | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth transmit power: | 4 dBm |
| Commissioning Methods: | App & Web (Bluetooth) |
| Daylight Harvest: | Yes |
| Detection Methods: | Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (Diameter): | 10x6 |
| Dimming (Output) Interface: | DALI |
| Features: | Daylight Harvest, Tri-level (Corridor Function), Tunable White Control / HCL |
| Human Centric Lightning (HCL): | Yes |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| IP Rate (facial part): | IP54 |
| Installation Type: | Stand-alone |
| Lens type: | Reinforced Low-bay |
| Maximum Mounting Height: | 6.0000 m |
| Mounting Height: | Mid & High-bay |
| Mounting hole: | 66.0000 mm |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Product Status: | Active / Make to Stock |
| Product height: | 81.6000 mm |
| Product length: | 78.0000 mm |
| Product weight: | 130.0000 g |
| Product width: | 78.0000 mm |
| Push Button Input: | 2 |
| Sensitivity: | 10%/ 30% /50% /75%/ 100% |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | AC |
| Warming-up: | 20 s |
| Zhaga: | No |
Datasheets
Product datasheet: hbir29-r.pdf
