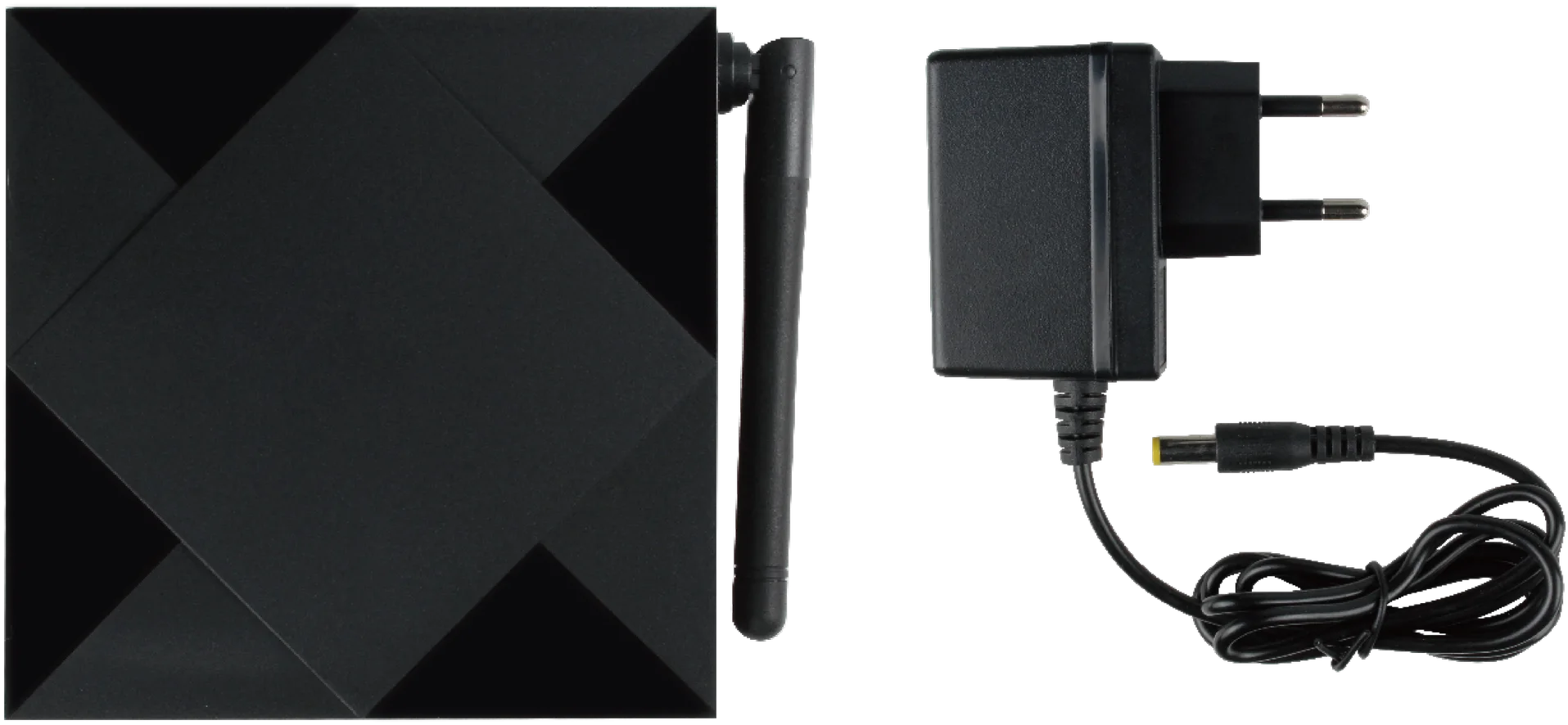

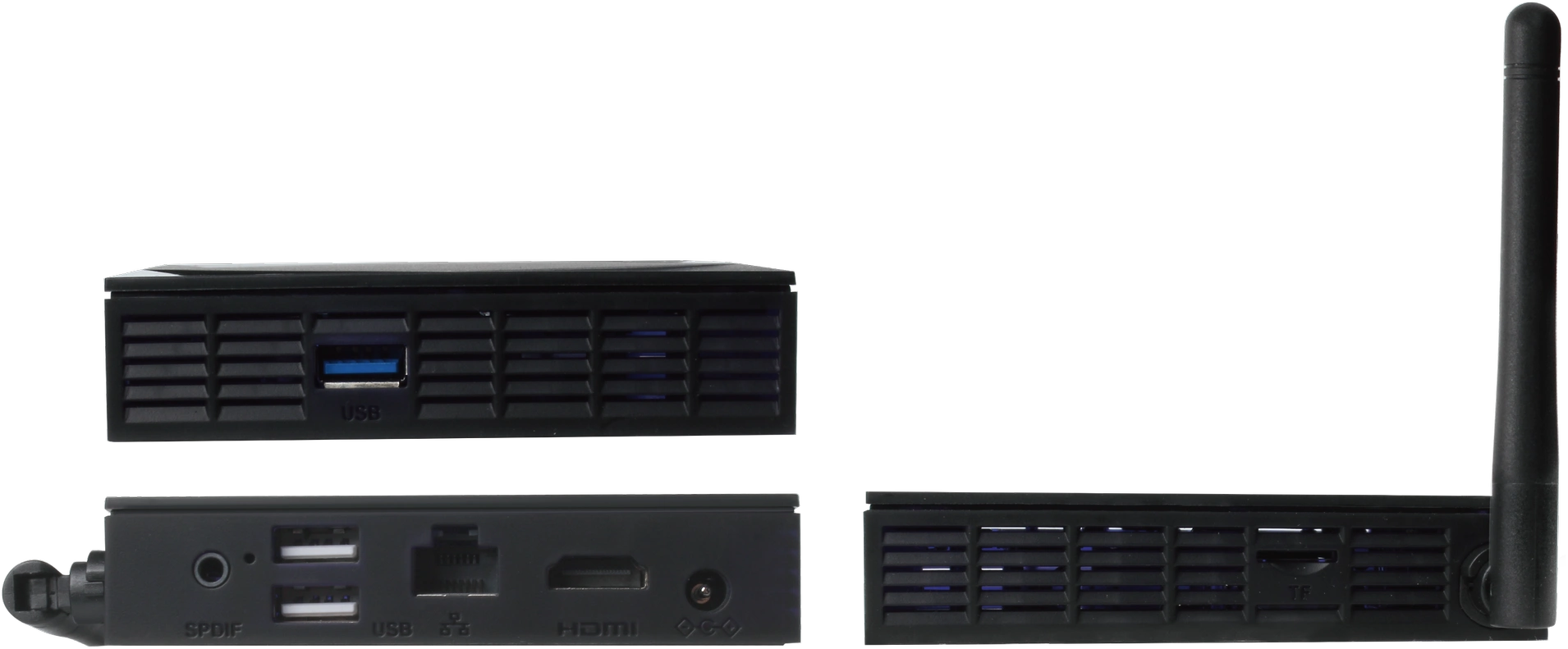

HBGW01
Bluetooth Gateway | Dual-band Wi-Fi | Remote access/monitoring
BENEFITS
- Measuring: Real time synchronization and lighting data collection
- Versatile: Dual-band Wi-Fi and multiple connection options.
- Configuration: Flexible control enabling network customization
APPLICATIONS
- Network cabinets or enclosures
- 1 gateway per bluetooth network
- All types of applications
Product information "HBGW01"
This gateway enables data transmission between Mesh networks and Ethernet with a 100M RJ45 port. It supports dual Wi-Fi (2.4G + 5G) with internal and external antennas. Control it via a mobile/tablet app or PC web platform for easy troubleshooting, remote monitoring, and real-time synchronization. IoT features are also included for enhanced connectivity.
| Ambient temperature max.: | 70 °C |
|---|---|
| Ambient temperature min.: | -35 °C |
| Bluetooth frequency: | 2.4 GHz |
| Bluetooth range (Phone to Device) : | max. 10 |
| Bluetooth system: | Koolmesh |
| Bluetooth transmit power: | 4 dBm |
| Category - System Level Components: | Gateway for Bluetooth System |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Product Status: | Phase-Out / Limited Availability or last orders |
| Product height: | 25.0000 mm |
| Product length: | 105.0000 mm |
| Product weight: | 133.0000 g |
| Product width: | 105.0000 mm |
| Storage temperature max.: | 50 °C |
| Storage temperature min.: | -20 °C |
Datasheets
Product datasheet: hbgw01.pdf
