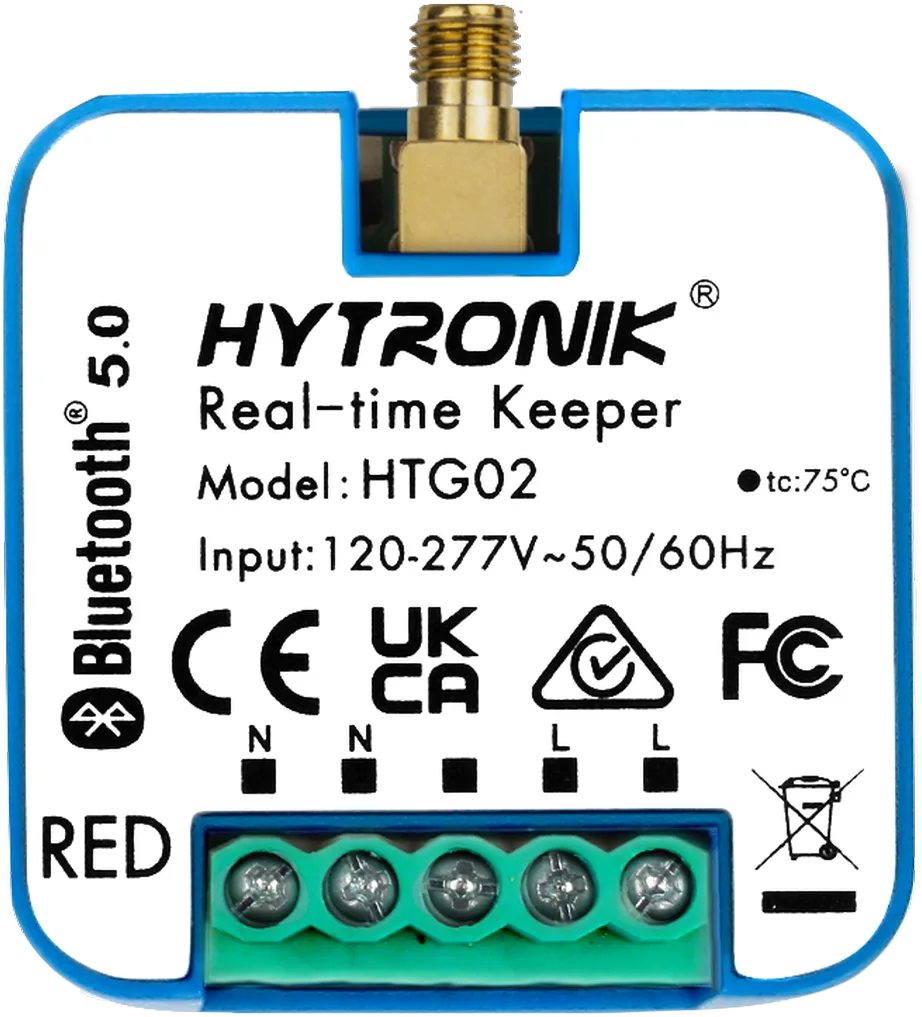

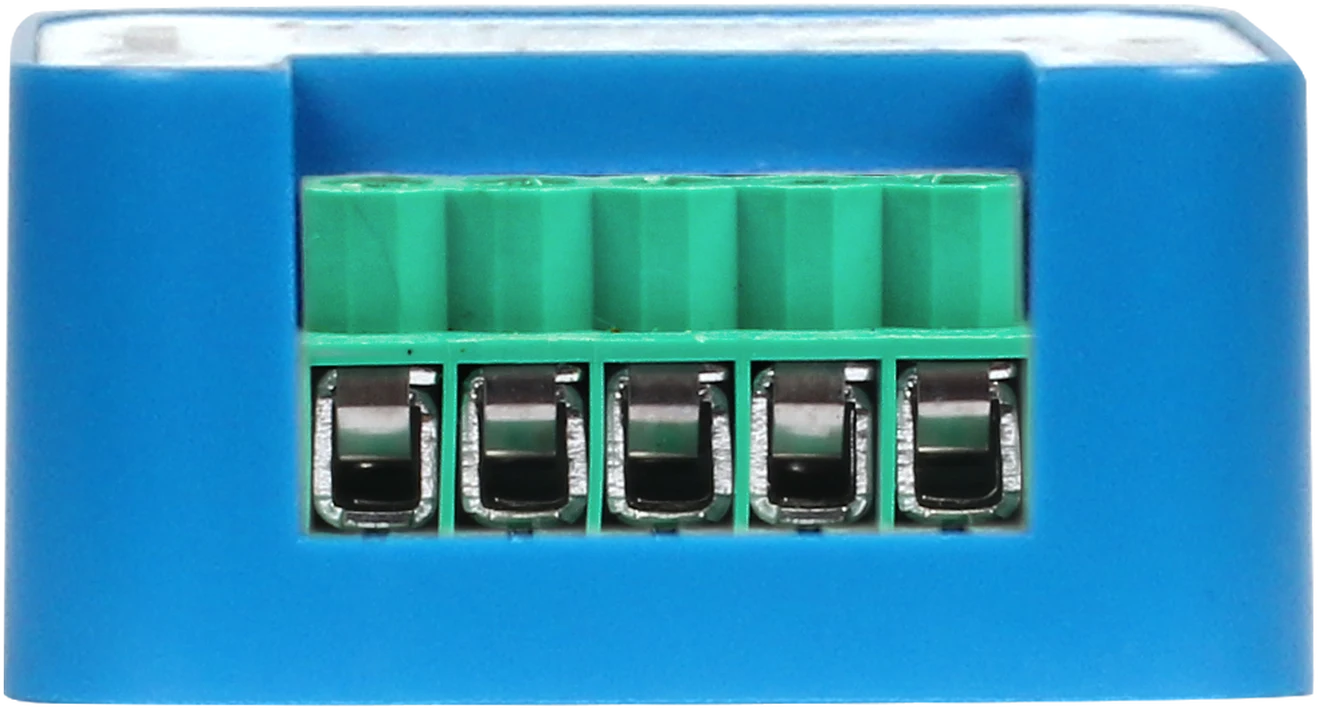

HTG02
Real-time Keeper | Bluetooth Repeater Module | Antenna Option
BENEFITS
- Tiny: Fits in many mounting boxes
- Reinforced: Optional external antennas to improve signal
- Convinient: Accurate timekeeping for up to 10 days during power loss
APPLICATIONS
- Warehouses, manufacturing plants
- Large areas with "signal dead spots"
- Sites with general on/off cycles
Product information "HTG02"
HTG02 is a Bluetooth modules with a real-time chip built in that can keep real time running for up to 10 days during power loss, which is very convenient for Bluetooth system/network where there is constant need for power on/off. When a product group mesh network is created, the entire network takes HTG02 as the authoritative time. The external Bluetooth antenna of HTG02 can be connected for a longer Bluetooth broadcast distance.
| Ambient temperature max.: | 60 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Bluetooth Platform: | Nordic nRF52832 |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range (Phone to Device) : | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth transmit power: | 4 dBm |
| Category - System Level Components: | Real-time Keeper/Repeater Module |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Operating voltage range: | 120-277 VAC |
| Product height: | 22.0000 mm |
| Product length: | 46.0000 mm |
| Product weight: | 41.0000 g |
| Product width: | 46.0000 mm |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -20 °C |
| Tri-level (Corridor function): | No |
Datasheets
Product datasheet: htg02.pdf
