Próximamente / En desarrollo

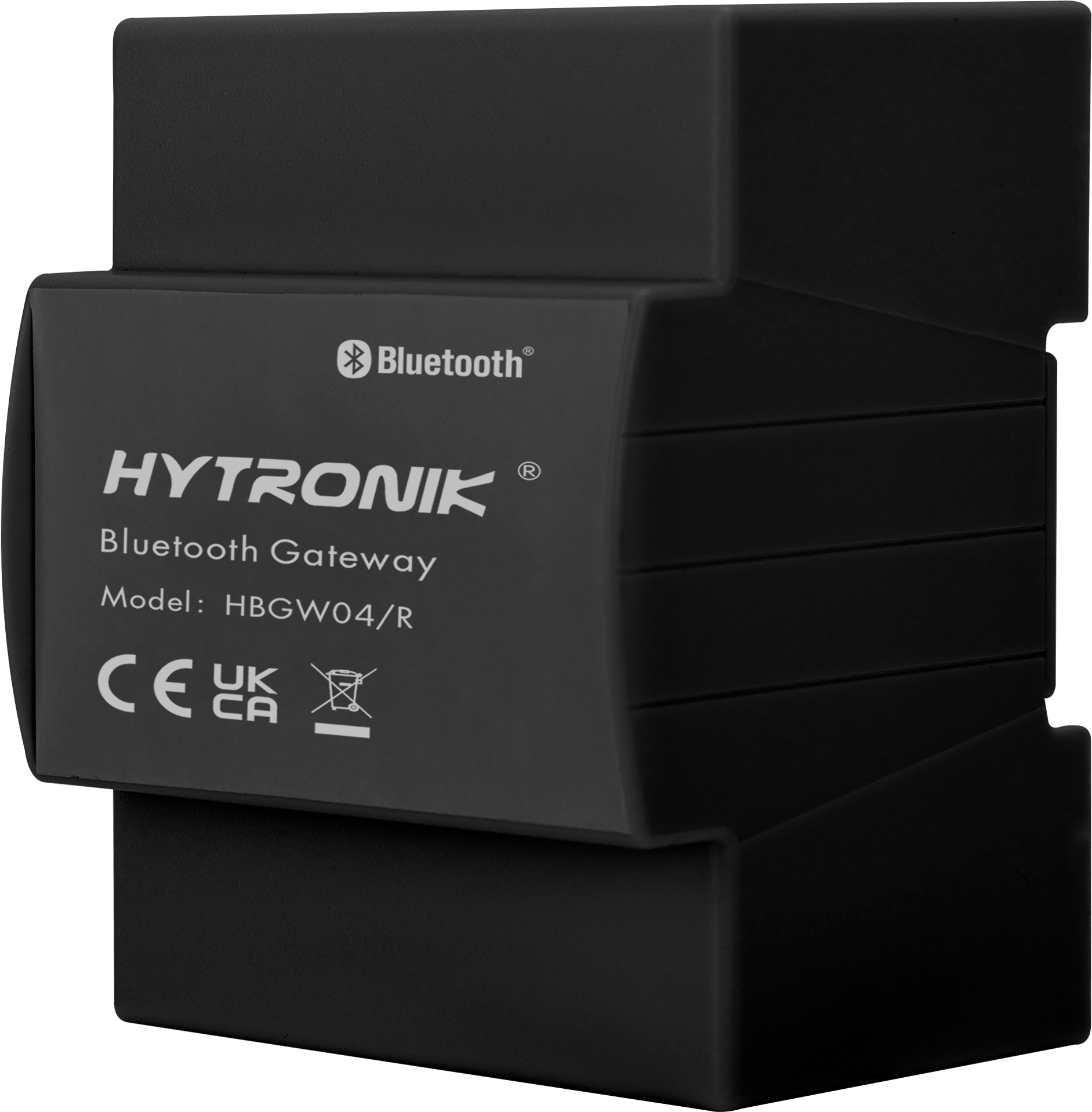

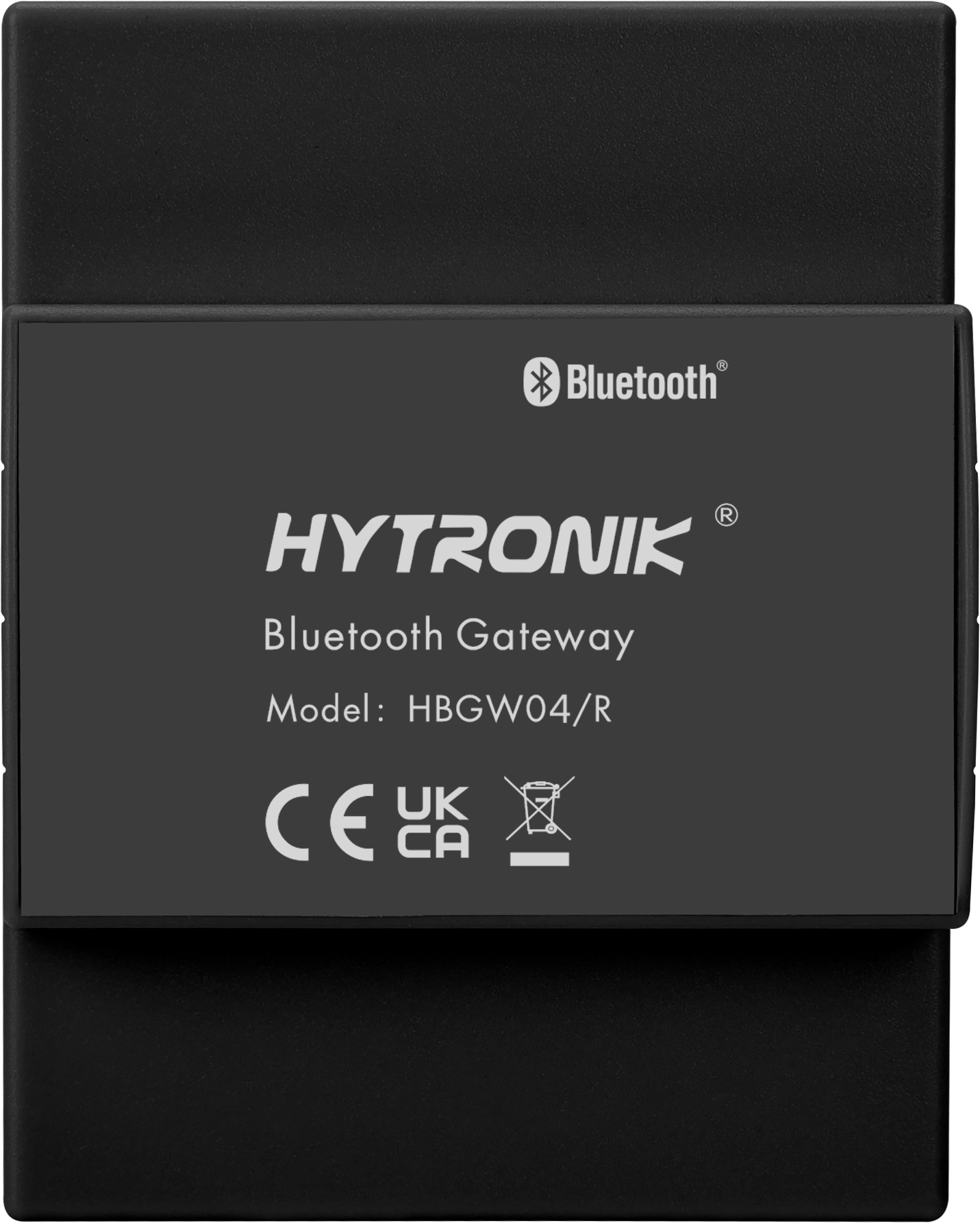

HBGW04/R
Multi-protocolo BMS Gateway | Dual-banda Wi-Fi y Ethernet | Montaje en carril DIN
CARACTERÍSTICAS
- Compact: Standard DIN-rail (DIN 35 mm) installation
- Flexible: Connects BLE Mesh lighting with BACnet, Modbus and MQTT-based BMS
- Efficiency: Transfers lighting status and sensor data to BMS platforms
APLICACIONES
- Existing & New BMS Integration
- Smart Building Projects
- System Deployment & Maintenance
Información sobre el producto "HBGW04/R"
HBGW04/R is a multi-protocol BMS gateway that connects Koolmesh BLE Mesh lighting systems with BACnet/IP, Modbus TCP/IP and MQTT-based building management platforms. It converts lighting devices, sensors, zones and scenes into accessible BMS data points, including lighting status, occupancy, daylight levels and device status, enabling centralized monitoring, control and energy management. By translating Koolmesh lighting data into standard BACnet objects and other supported protocol formats, the gateway enables seamless integration and data exchange with HVAC, energy management and other building systems. Local Web configuration, App-based commissioning and OTA firmware updates simplify system deployment, configuration and ongoing maintenance.
| Alcance del Bluetooth: | 10-50m |
|---|---|
| Estado del producto: | Próximamente / En desarrollo |
| Frecuencia Bluetooth: | 2.4 GHz - 2.483 GHz |
| Grado de protección IP: | IP20 |
| Human Centric Lightning (HCL): | No |
| Humedad máx: | 80 % |
| Humedad mín: | 20 % |
| Potencia de transmisión de Bluetooth: | 19 dBm |
| Temperatura ambiente máx.: | 50 °C |
| Temperatura ambiente mín.: | 0 °C |
| Temperatura de almacenamiento max. : | 60 °C |
| Temperatura de almacenamiento min. : | -10 °C |
| Tri-nivel (Función pasillo): | No |
Fichas técnicas
Ficha técnica del producto: hbgw04-r.pdf
