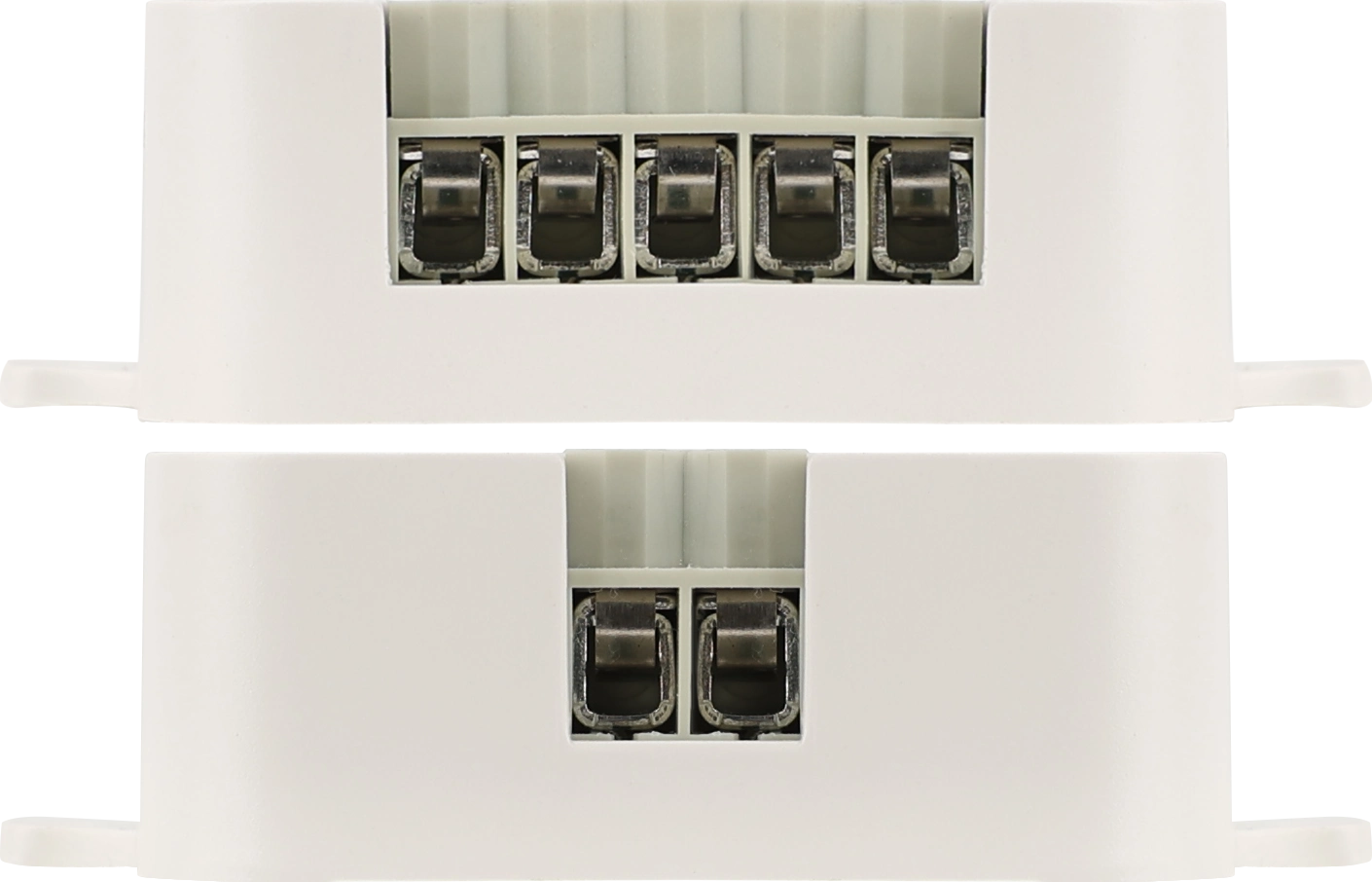

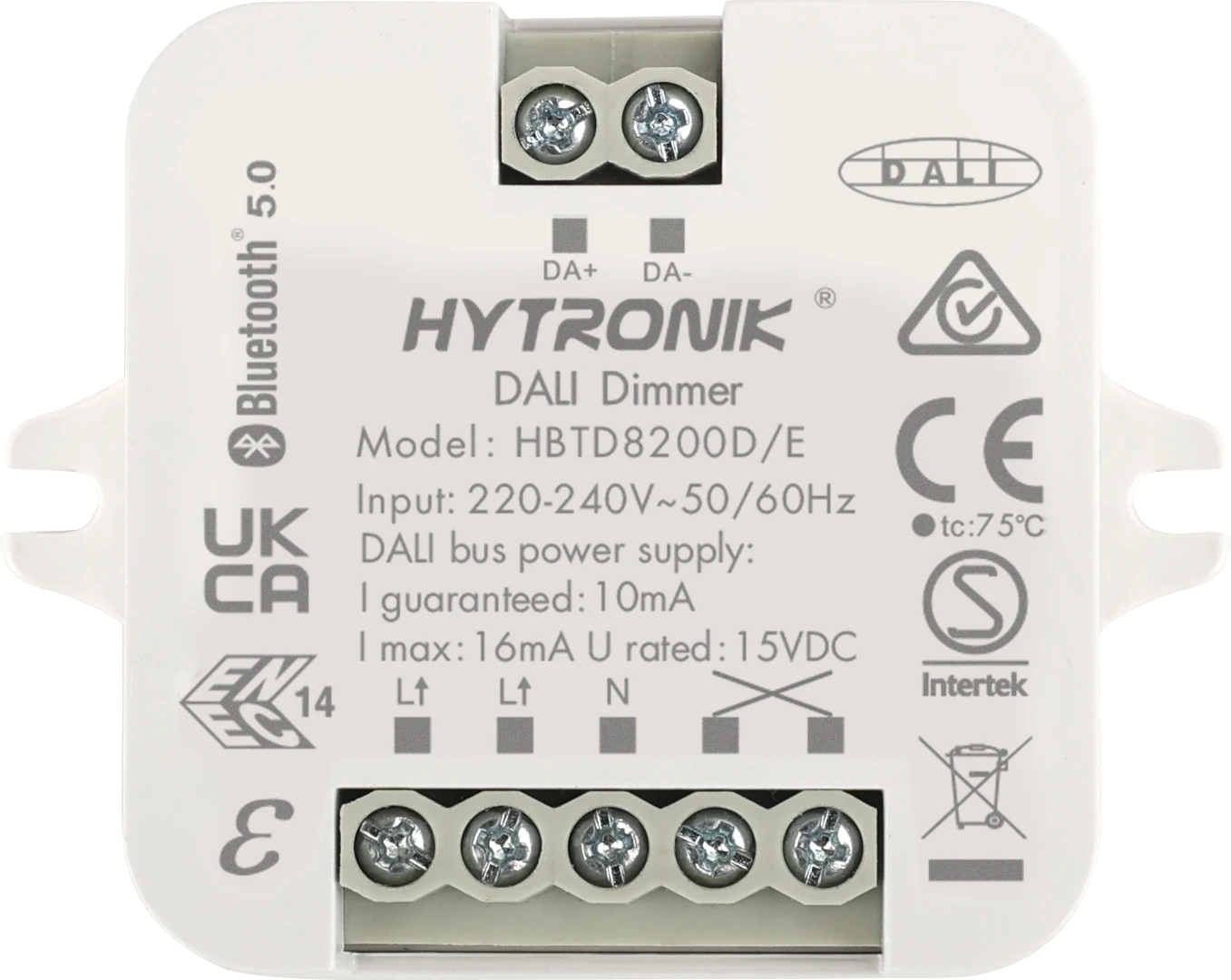

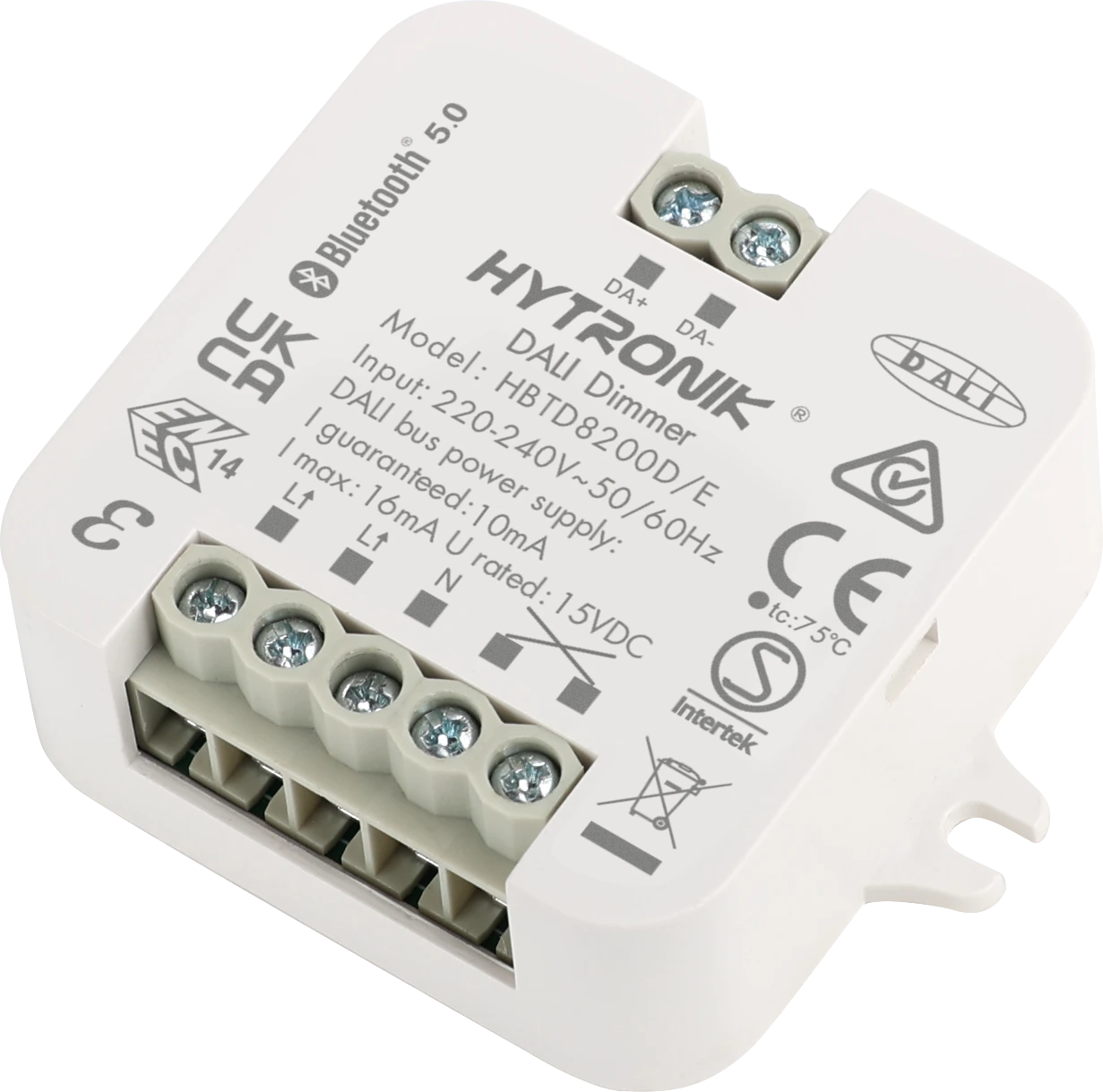

HBTD8200D/E
DALI/Bluetooth Converter | Integrated 16mA PSU | Screw Mounting
CARACTERÍSTICAS
- Small: DALI/Bluetooth converter in a tiny module
- Professional: Powered-DALI
- Easy configuration: Wireless Bluetooth 5.0 SIG-Mesh
APLICACIONES
- Built-in luminaries
- Bluetooth receiver node
- Offices, Classrooms, Industry and Healthcare Spaces
Información sobre el producto "HBTD8200D/E"
HBTD8200D/E are designed as Bluetooth built-in receiver node. It can beused alongside our Bluetooth motion sensor range as Bluetooth receiver node. Or, it can also be used solely as Bluetooth control unit for each luminaire. Whether for home use, commercial or industrial applications, HBTD8200D/E does it all.
| Alcance del Bluetooth: | 10-30m |
|---|---|
| Altura del producto: | 18.0000 mm |
| Anchura del producto: | 58.0000 mm |
| Corriente DALI requerida: | 16.0000 mA |
| Entrada de pulsador: | |
| Frecuencia Bluetooth: | 2.4 GHz - 2.483 GHz |
| Human Centric Lightning (HCL): | No |
| Humedad máx: | 90 % |
| Humedad mín: | 20 % |
| Interfaz de regulación: | DALI-2 |
| Longitud del producto: | 46.0000 mm |
| Max. Temperatura de almacenaje: | 60 °C |
| Peso del producto: | 32.0000 g |
| Potencia de transmisión de Bluetooth: | 4 dBm |
| Protección IP: | IP20 |
| Puesta en marcha: | App y Web (Bluetooth) |
| Sistema Bluetooth: | Koolmesh |
| Temperatura ambiente máx.: | 45 °C |
| Temperatura ambiente mín.: | -20 °C |
| Temperatura min. de almacenamiento: | -20 °C |
| Tipo de aplicación: | Nodo DALI a Bluetooth |
| Tri-nivel (Función pasillo): | No |
| Voltaje de operación: | 220-240VAC 50Hz |
| Voltaje de salida: | 220-240VAC 50/60Hz |
| Zhaga: | No |
