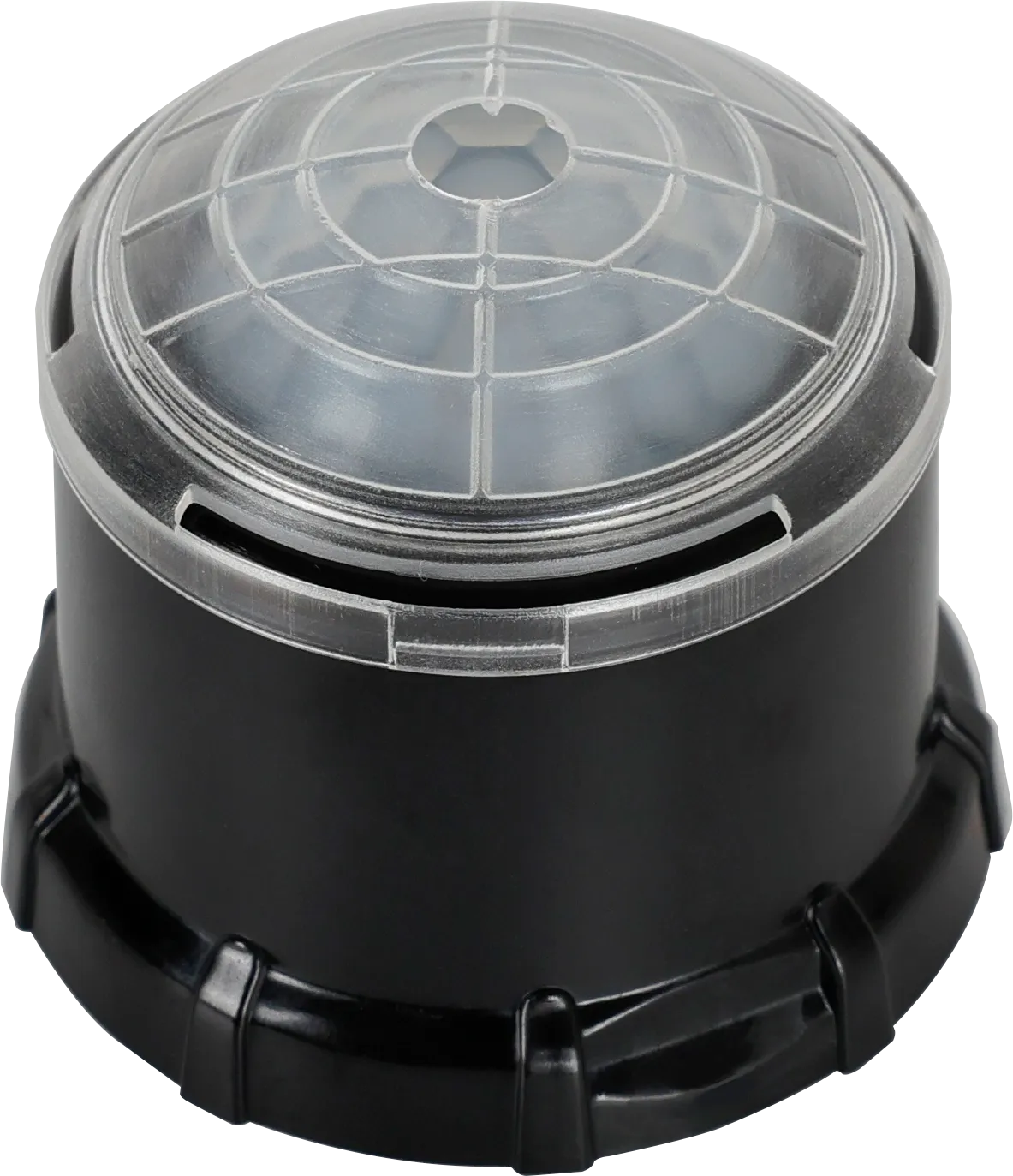

HIR15/BLE
SAM15/BLE

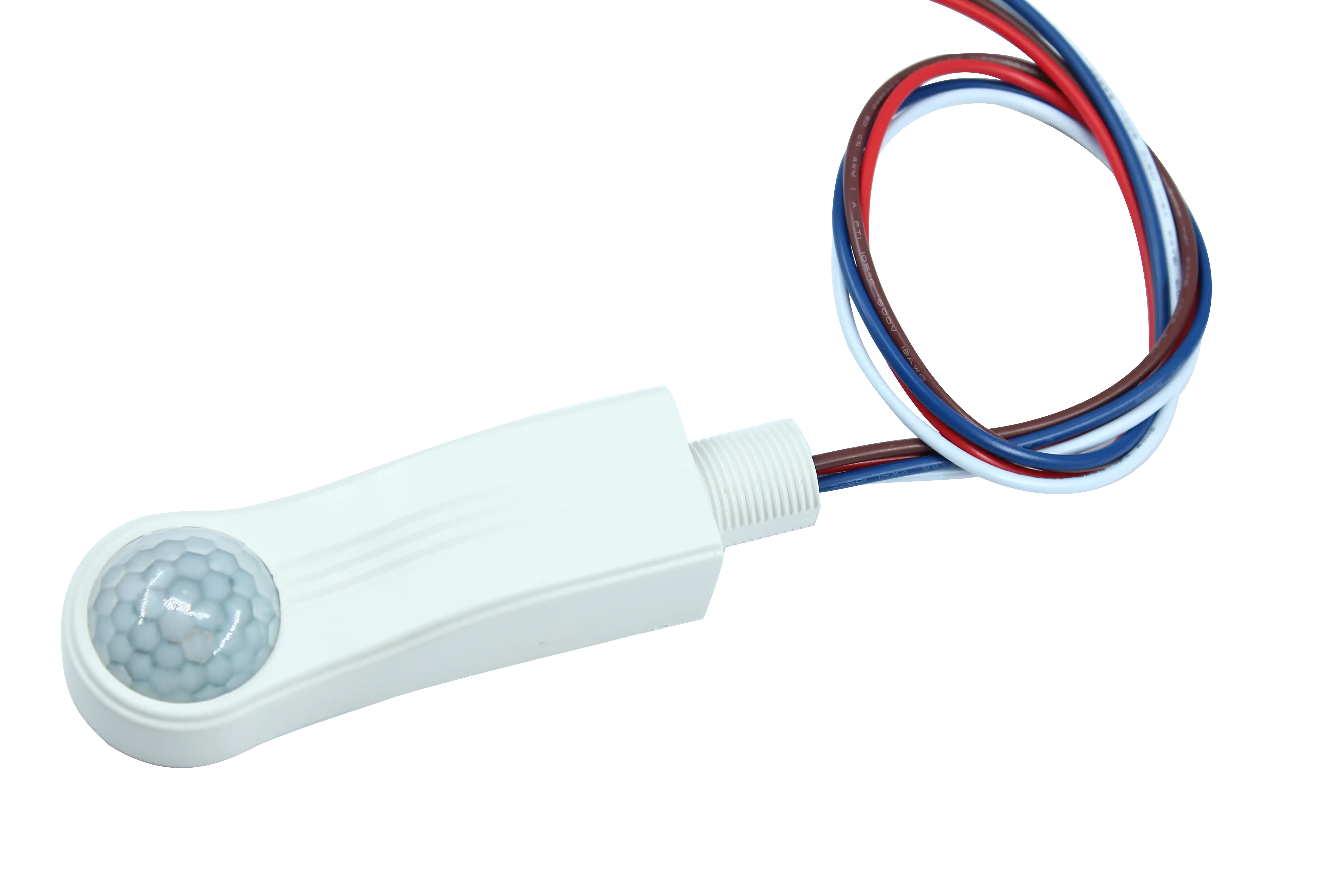

HCD049/BT

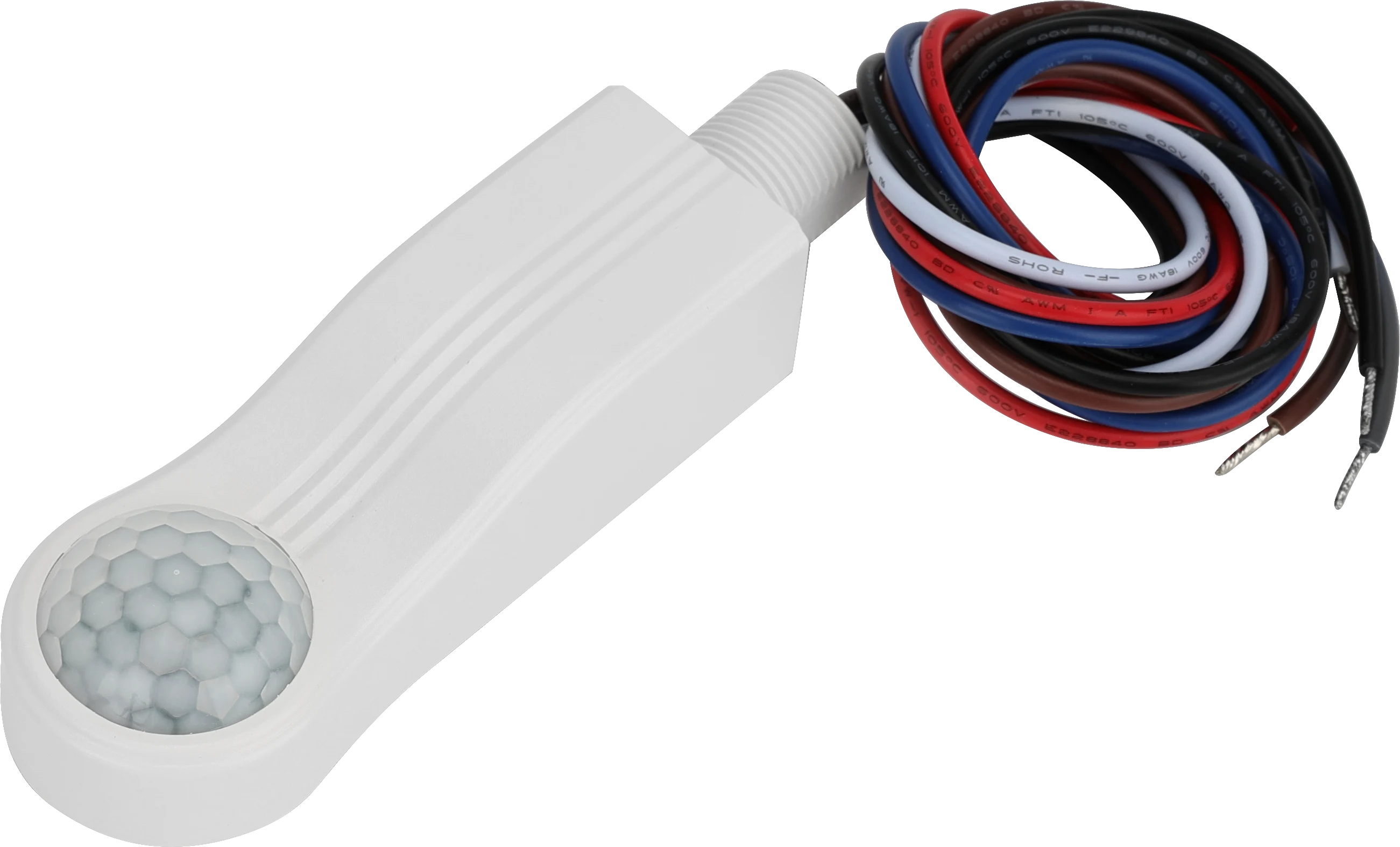

HC049V/BT

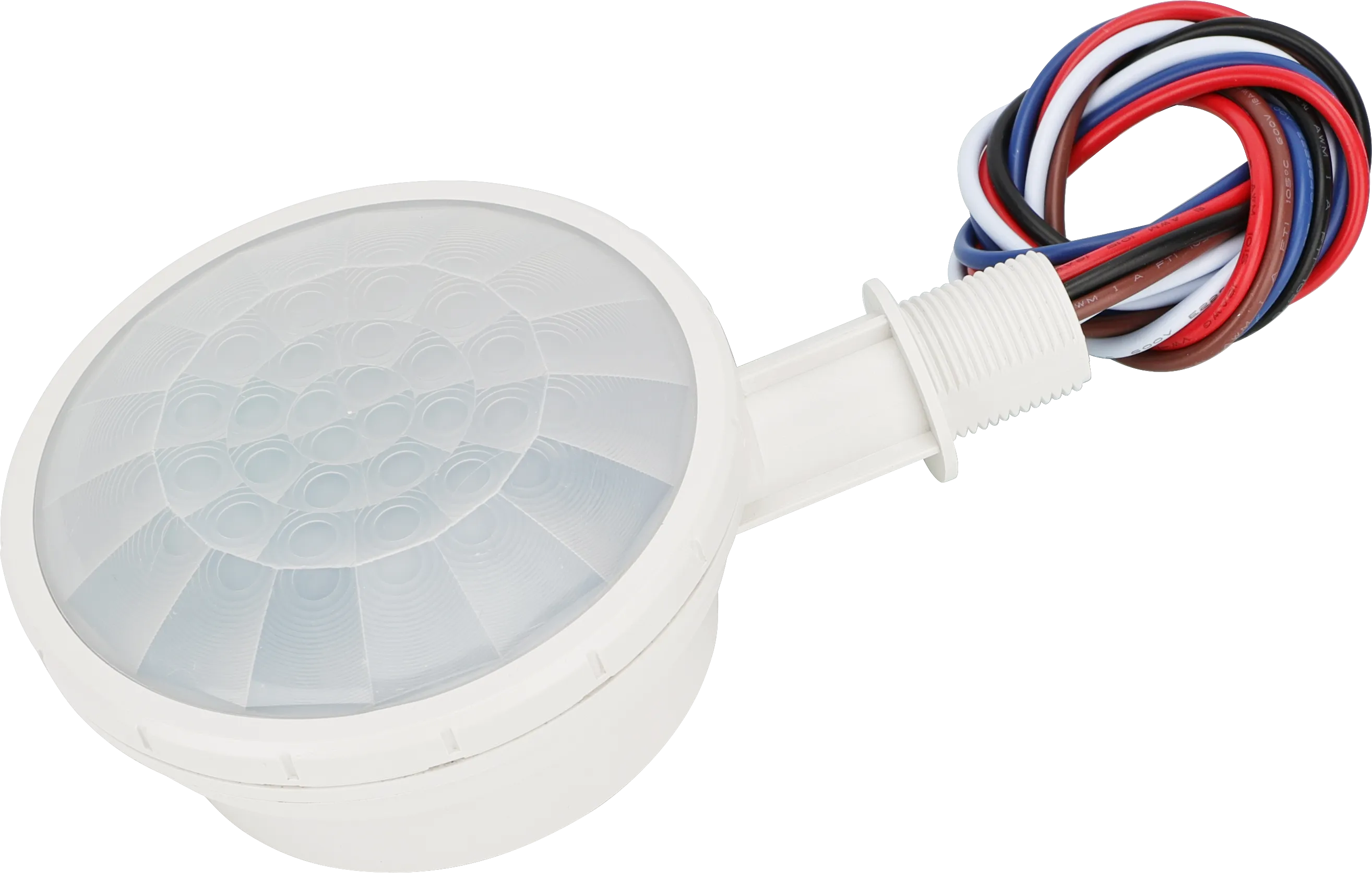

HIM049D/BT

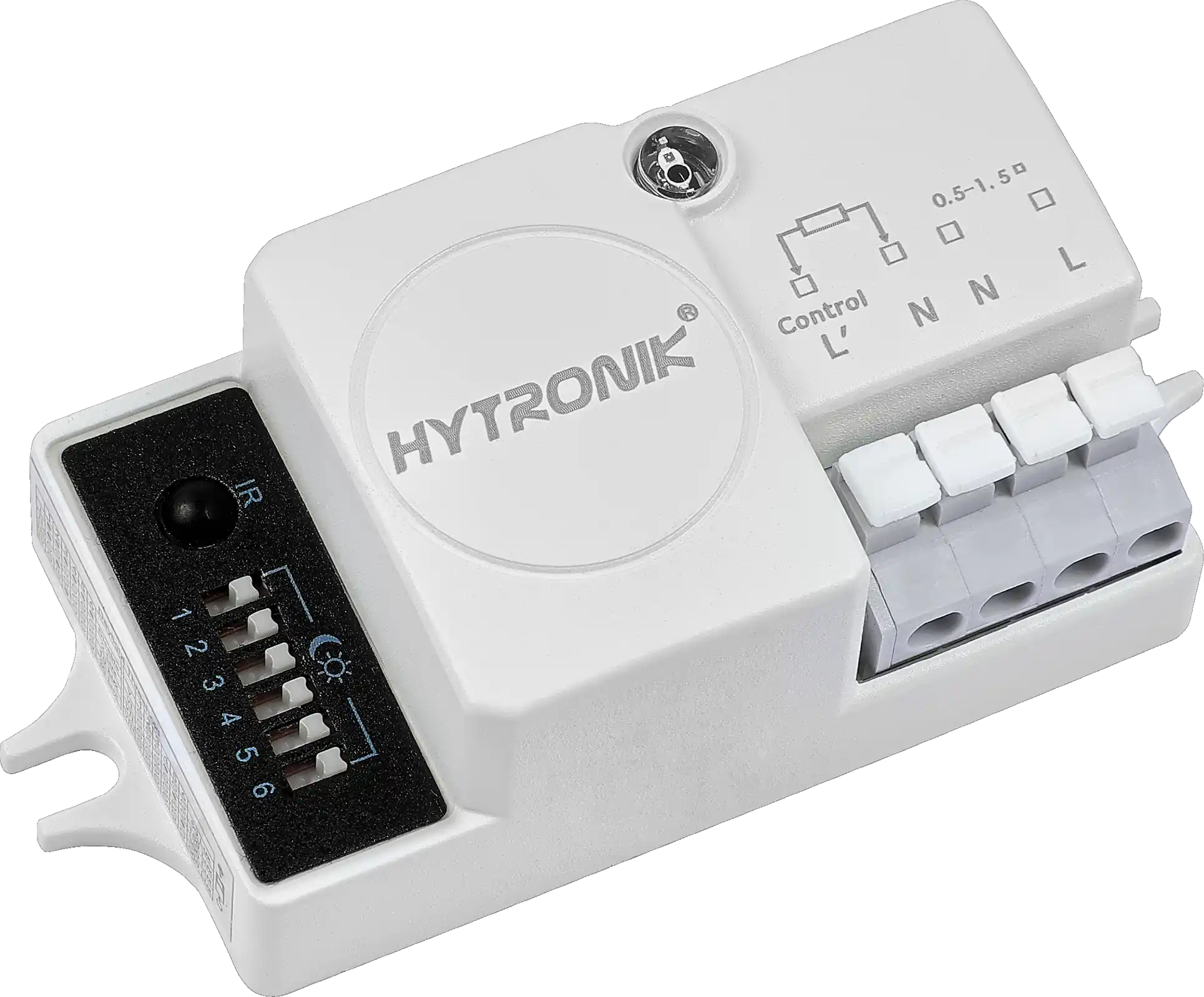

DS05

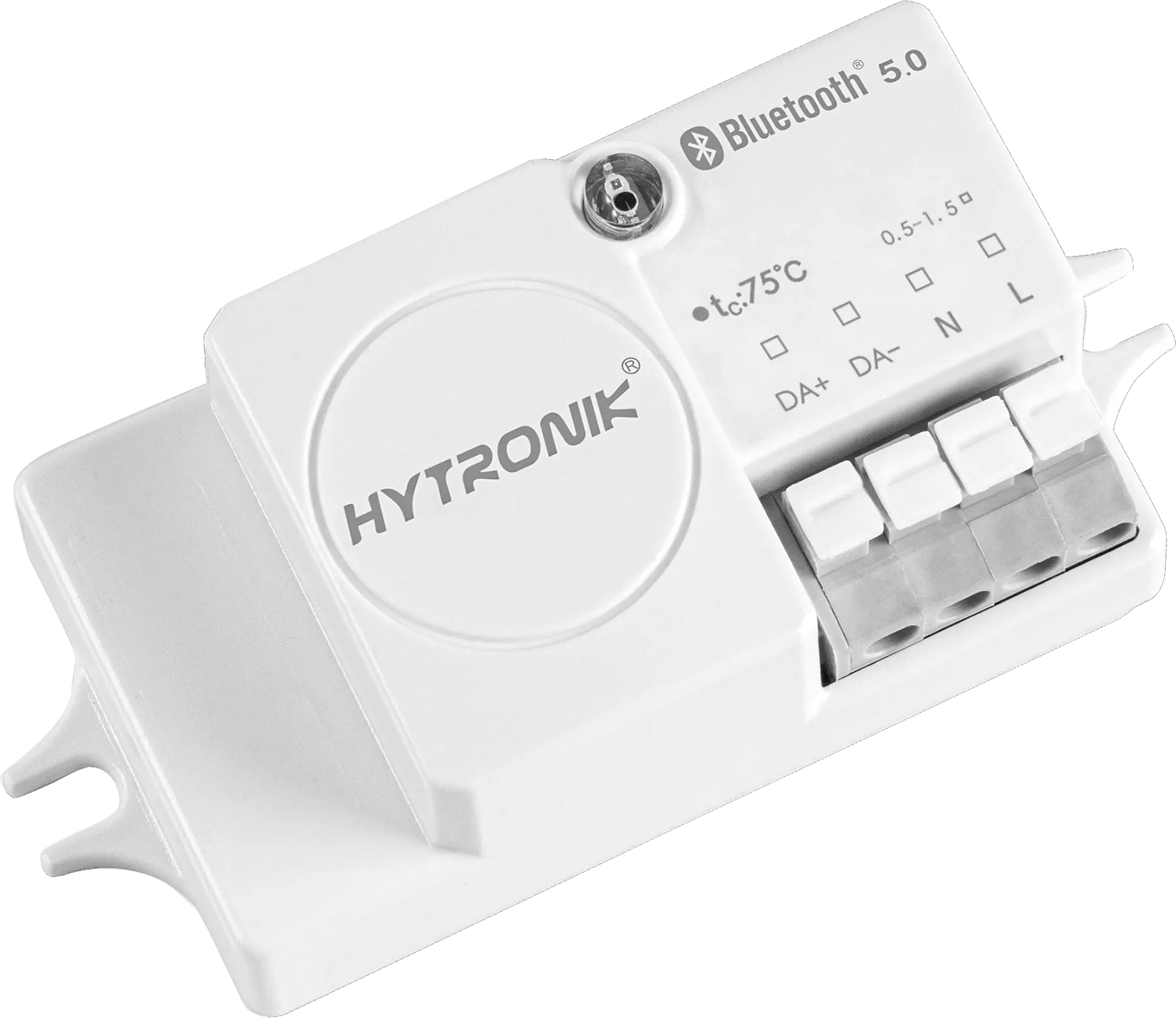

HCD405/BT

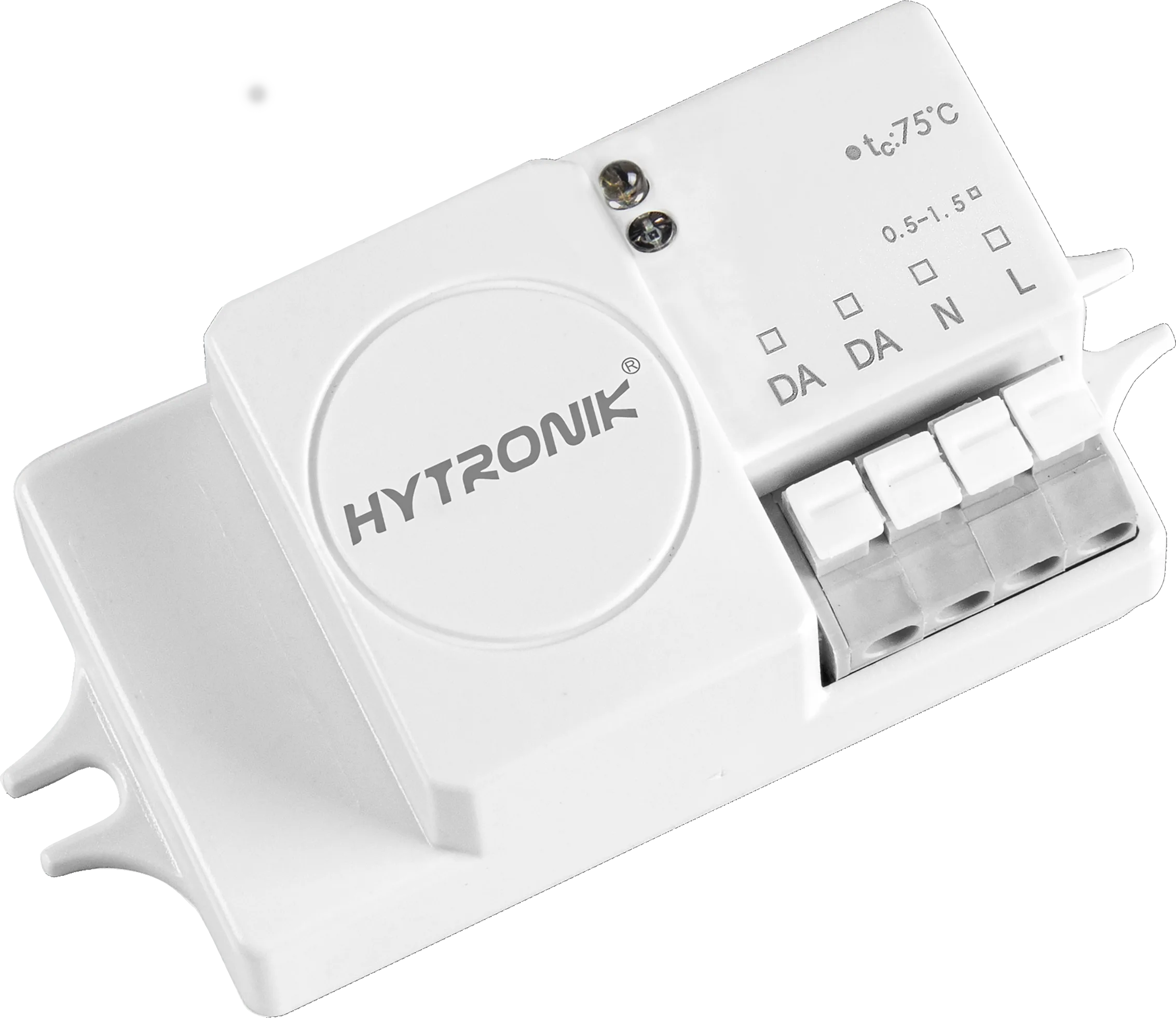

HCD405D2

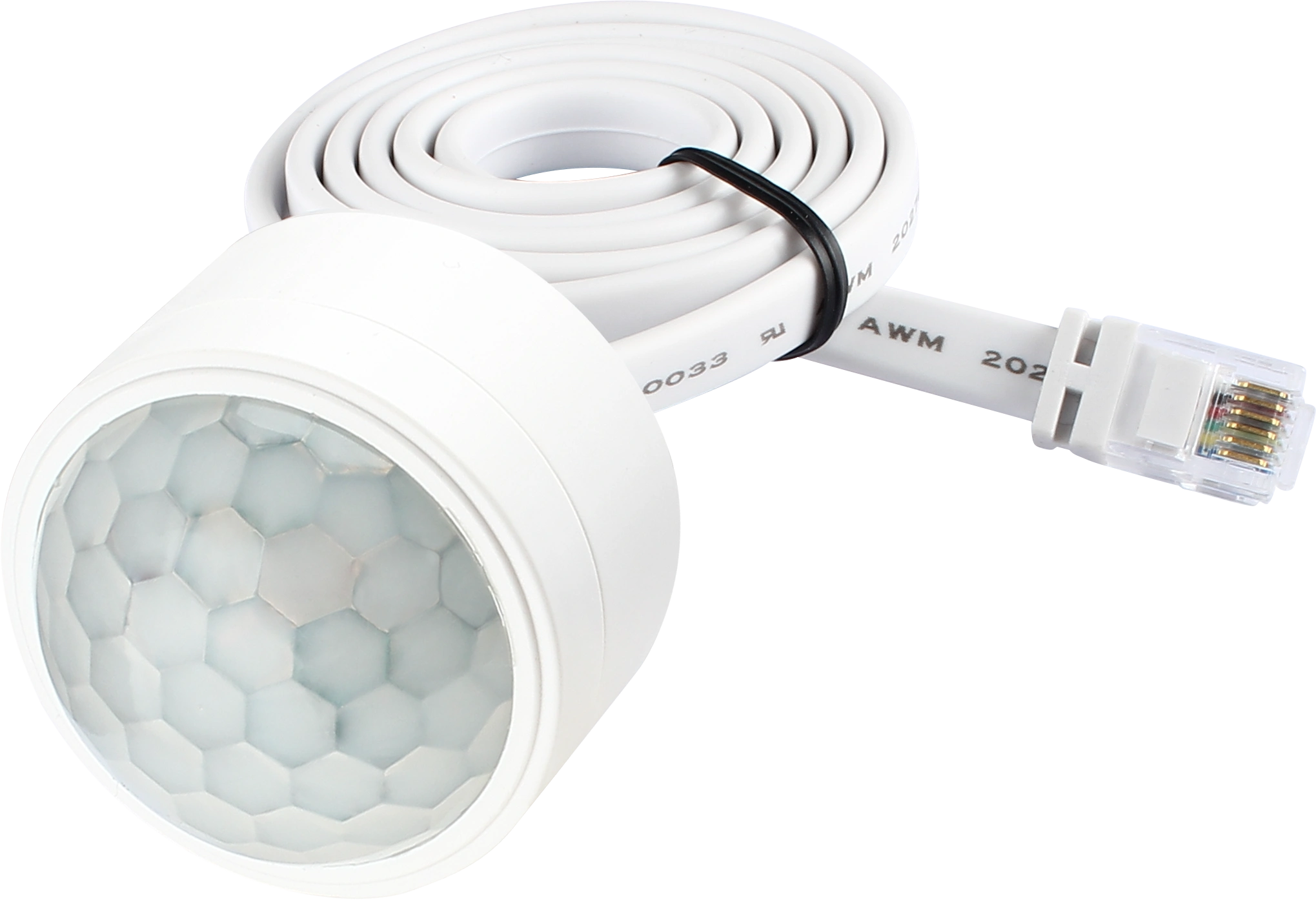

HIR11/S
Sensors
Built into the luminaire, or standalone outside it. Standalone units drive DALI, on/off and 0/1–10V luminaires without opening the fixture, which is often the fastest route on an existing project.
Representative product shown: HIR60
Lighting control that fits your luminaire and your project
Integrating a sensor into a luminaire, or putting control into a lighting project? We help you choose what fits, and we test it before you go into production. DALI-2, D4i, Zhaga Book 18, 0/1–10V and Bluetooth.
And if a client asks for building-system integration, the device, firmware, gateway, mapping and project scope can be reviewed too.
Download the OEM catalogueBuilt to support luminaire manufacturers
From product selection to luminaire integration and compatibility checks, the route is shaped around the OEM development process.
The right sensor for your luminaire
Pick your luminaire type and see the control that already fits it. Working on a lighting project instead? Our technical team helps you choose the same way.
Warehouses and industry

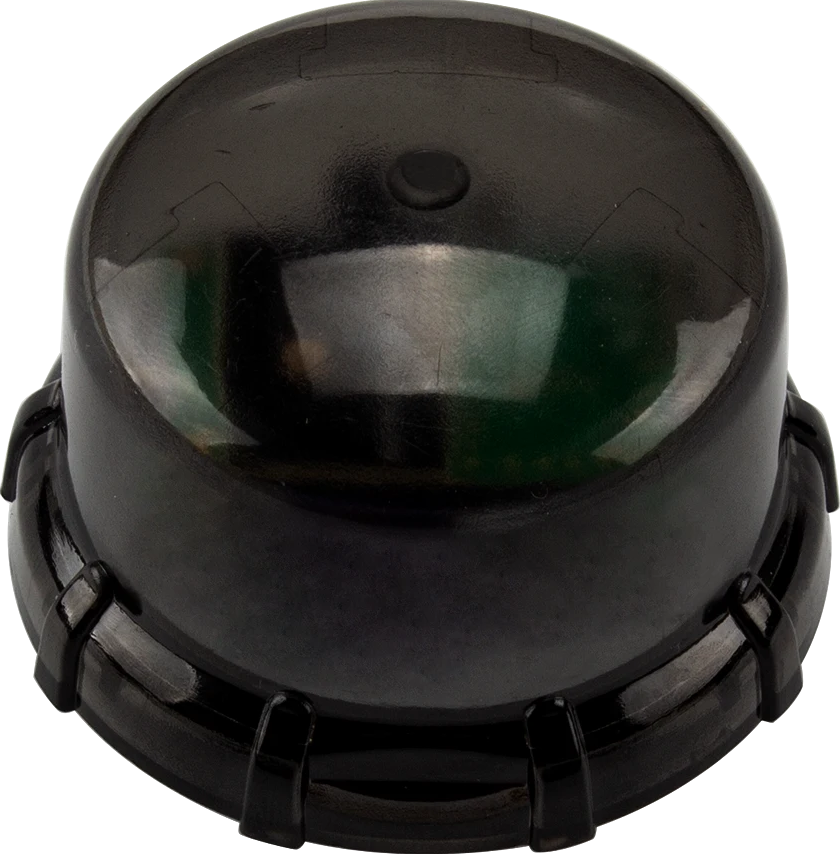

Make your UFO high-bay luminaire Zhaga 18 ready and benefit from easy installation. Simply rotate and click to install motion and daylight sensors such as SAM15 to control the luminaire. It supports 0–10V, DALI-2 and Koolmesh for advanced settings.
- Zhaga Book 18 sensor integration
- IP65 and high-bay applications up to 12 metres
- 0–10V, DALI-2 and Bluetooth
Harsh and moist environments

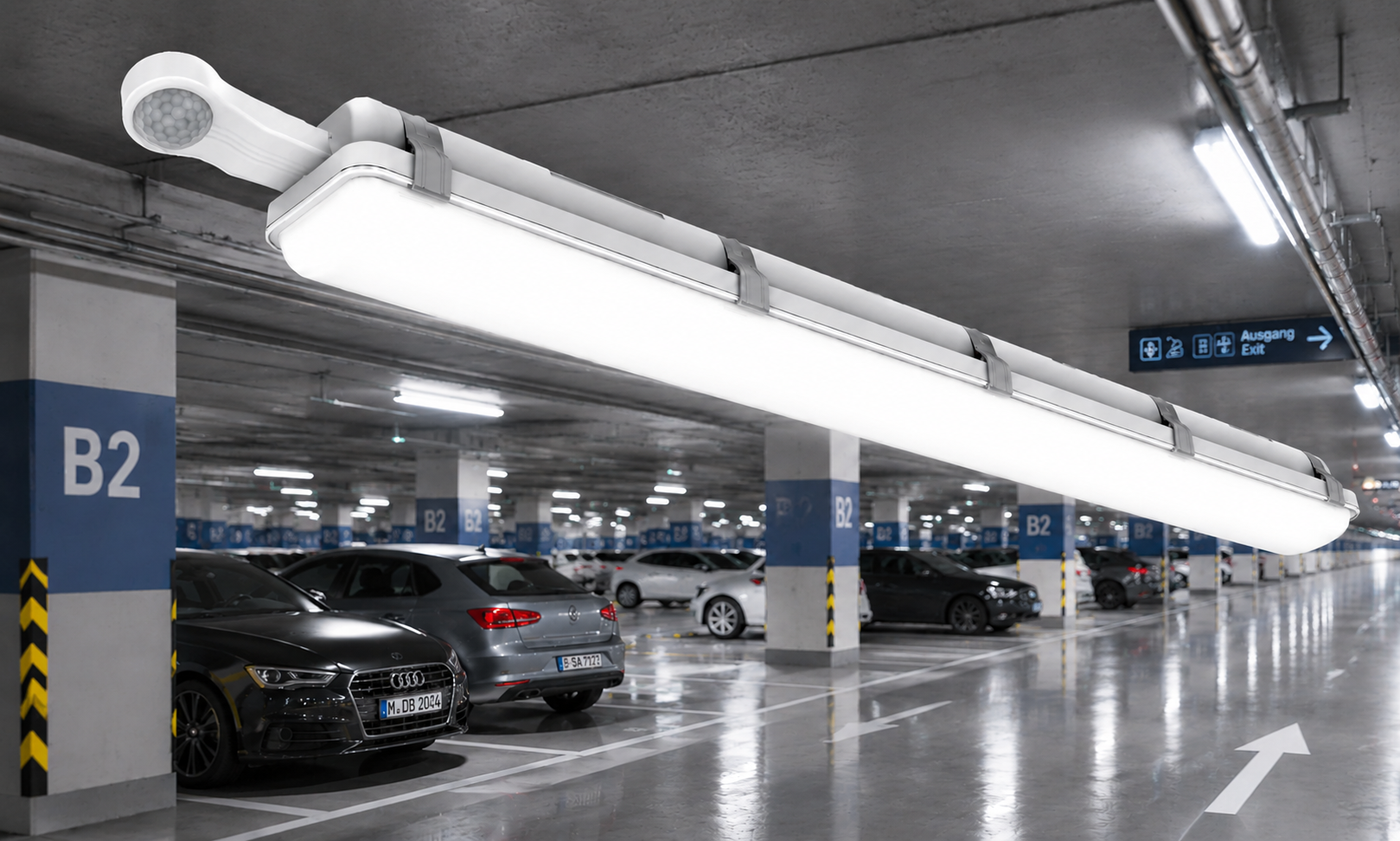

Make an existing waterproof luminaire design more intelligent by attaching the HC049 sensor family. Choose between DALI or 1–10V for dimming, and decide whether to use one sensor per luminaire or control several luminaires with one master sensor.
- Control power supply integrated
- High-bay and IP65 protection
- Group luminaires through Bluetooth

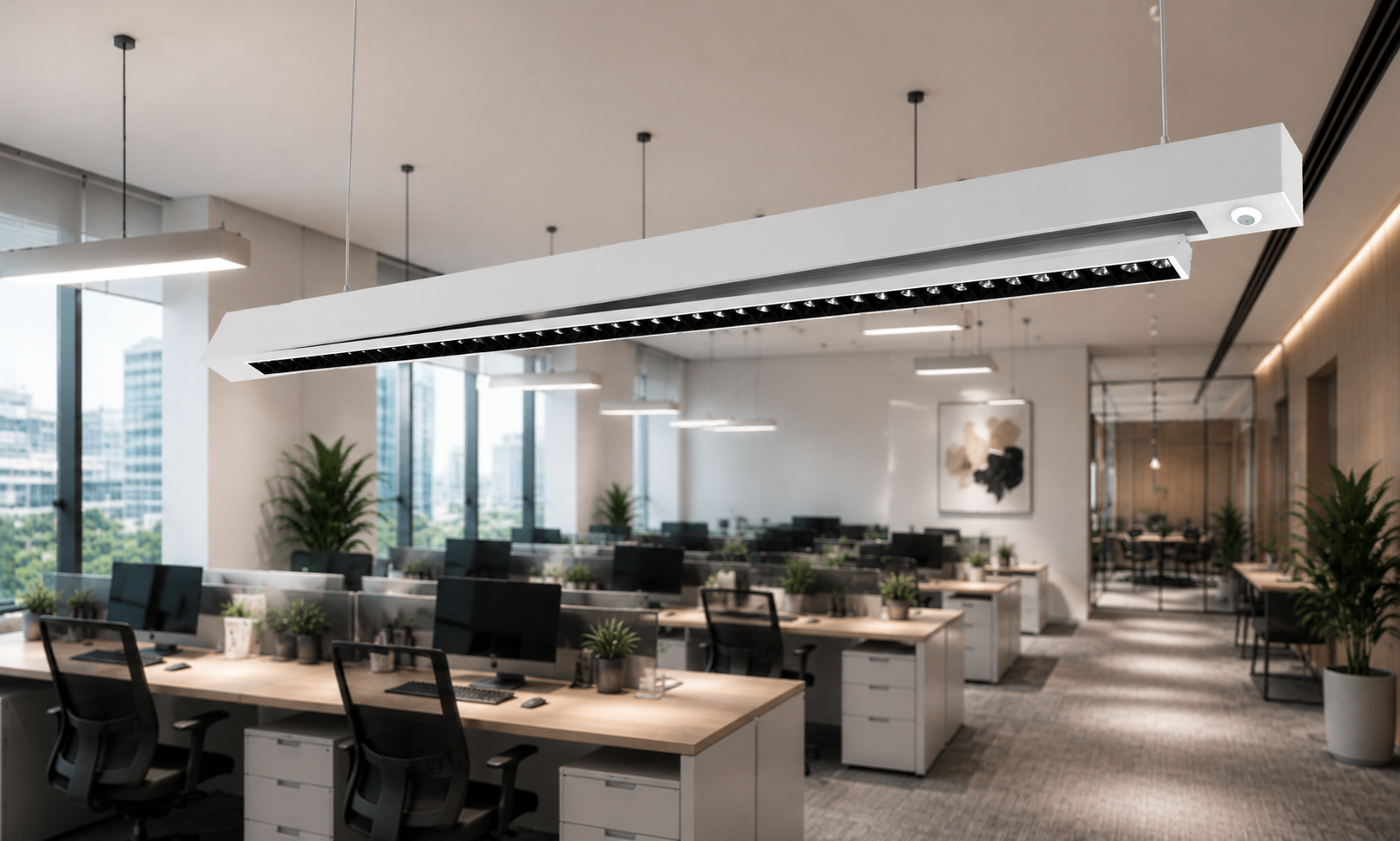

Offices and classrooms
Prepare a linear luminaire with a control body and sensor-ready configuration. Follow the Zhaga Book 20 route for sensor integration or review the available sensor heads to identify an appropriate fit for the design.
- Zhaga Book 20 sensor integration
- Control bodies with attachable sensor heads
- 0–10V, DALI-2/D4i and Bluetooth routes

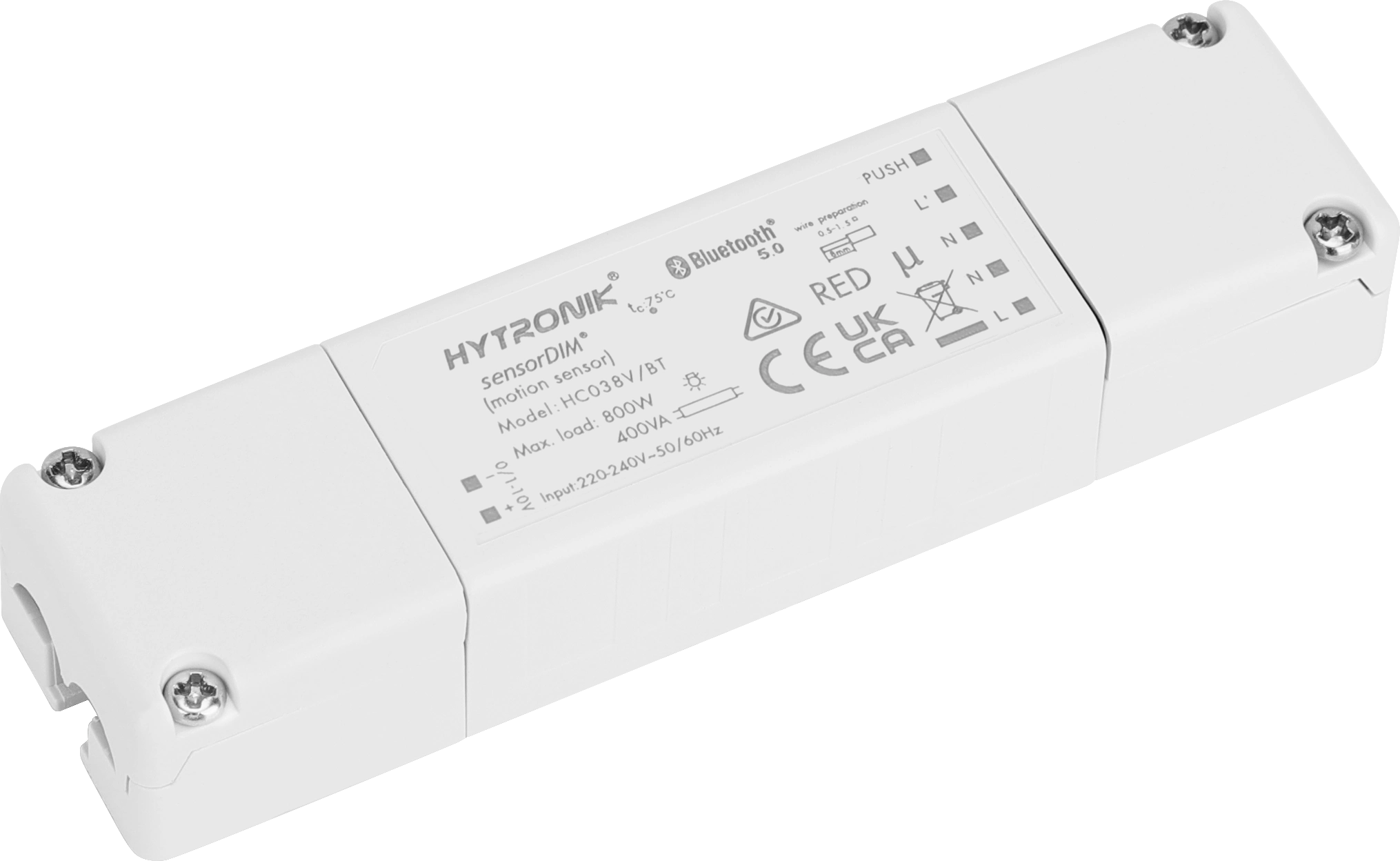

HC038V/BTBluetooth 0/1–10V control body · Attachable heads

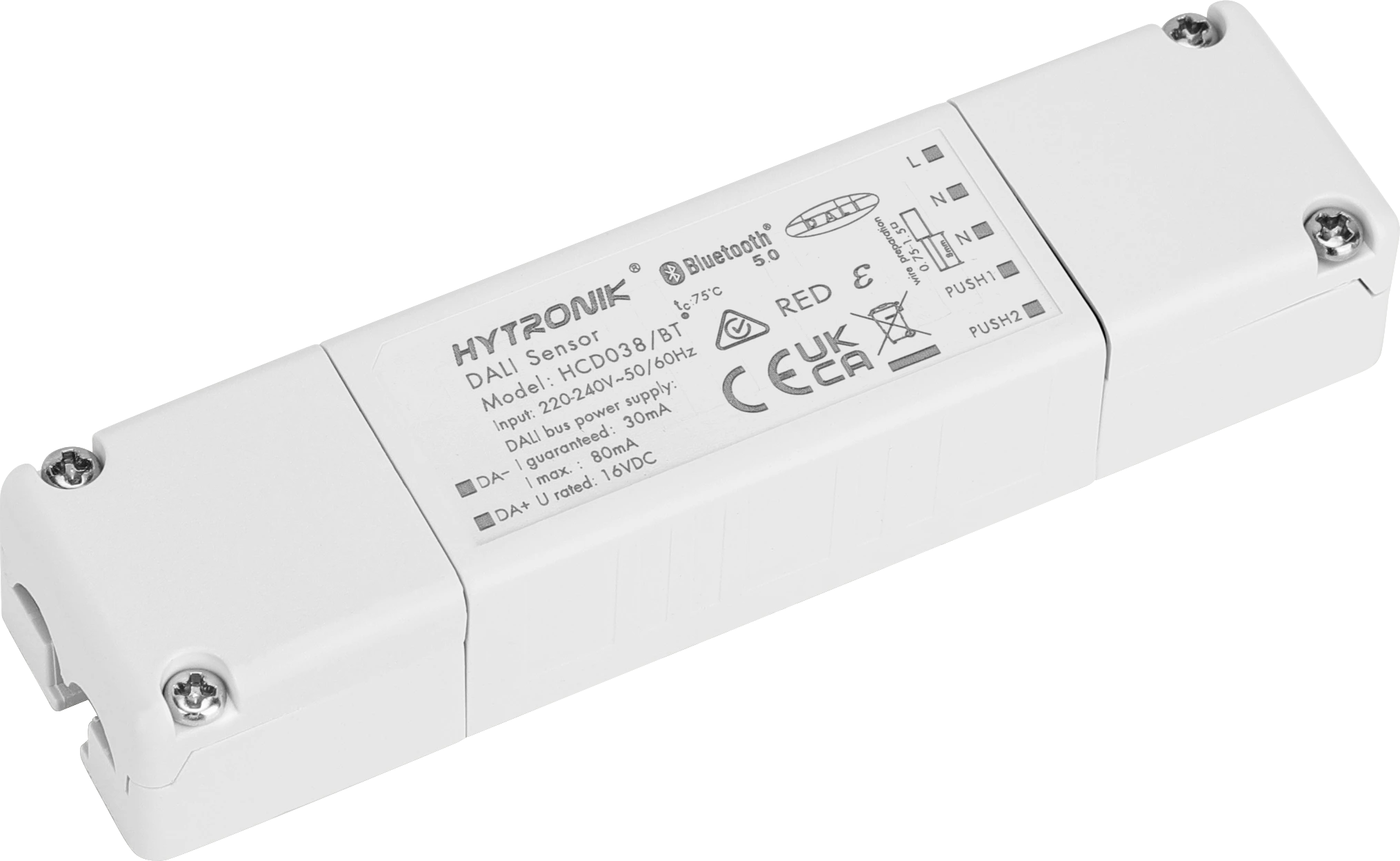

HCD038/BTBluetooth DALI control unit · Built-in PSU

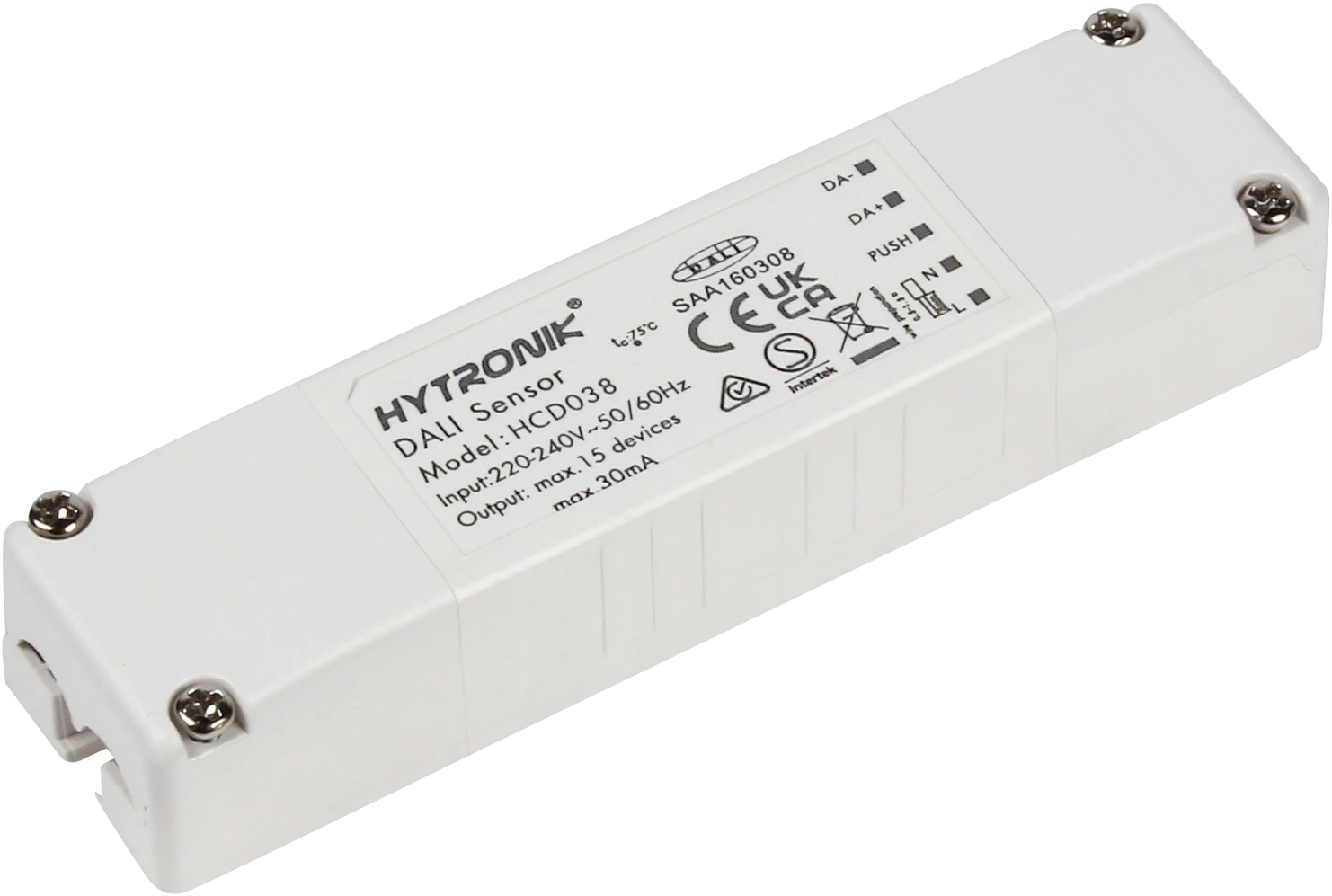

HCD038DALI control unit · Built-in PSU

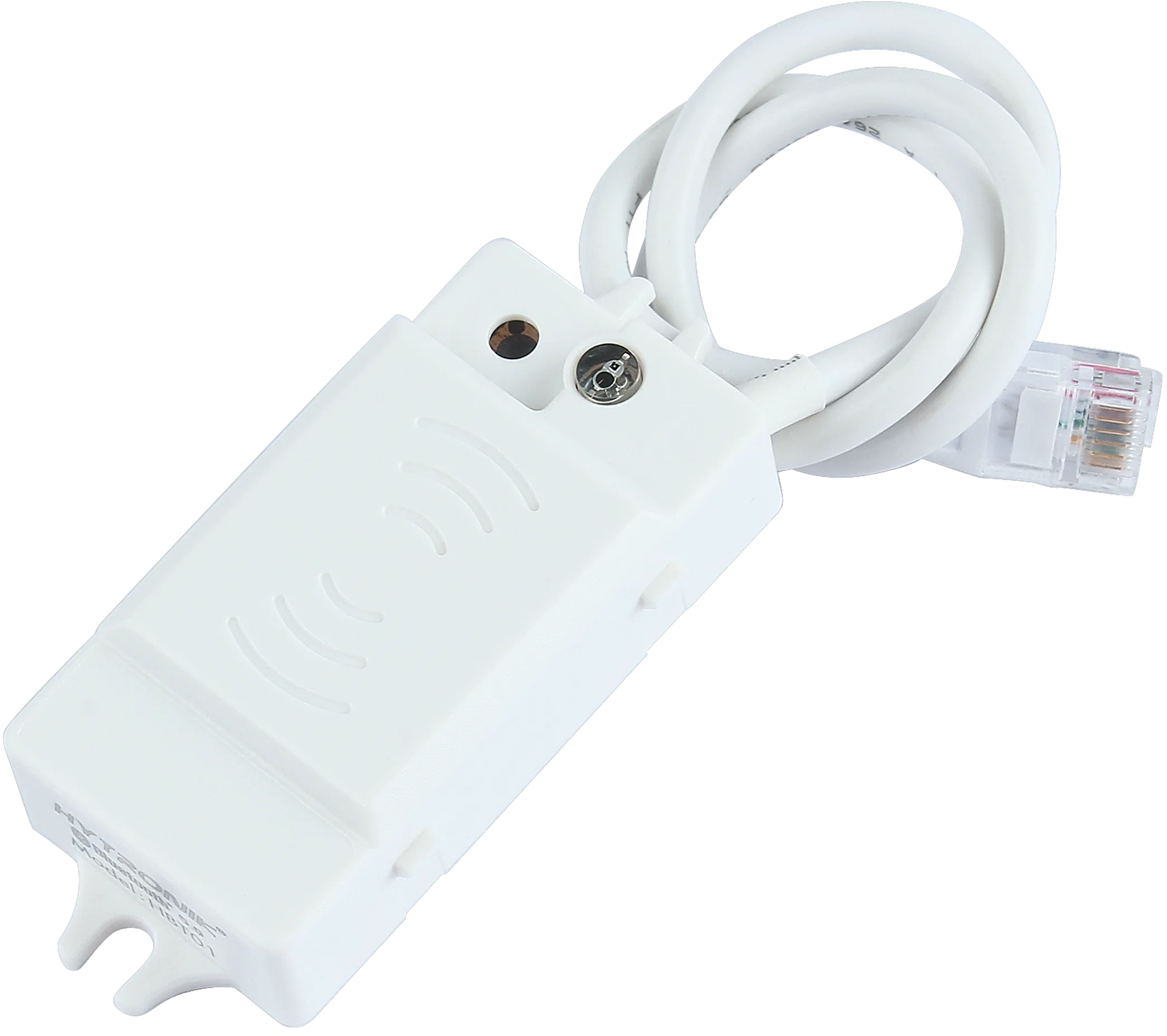

HBT01Bluetooth HF low-bay · RJ12 connection- HIR60PIR low-bay · Bluetooth to DALI · Zhaga Book 20

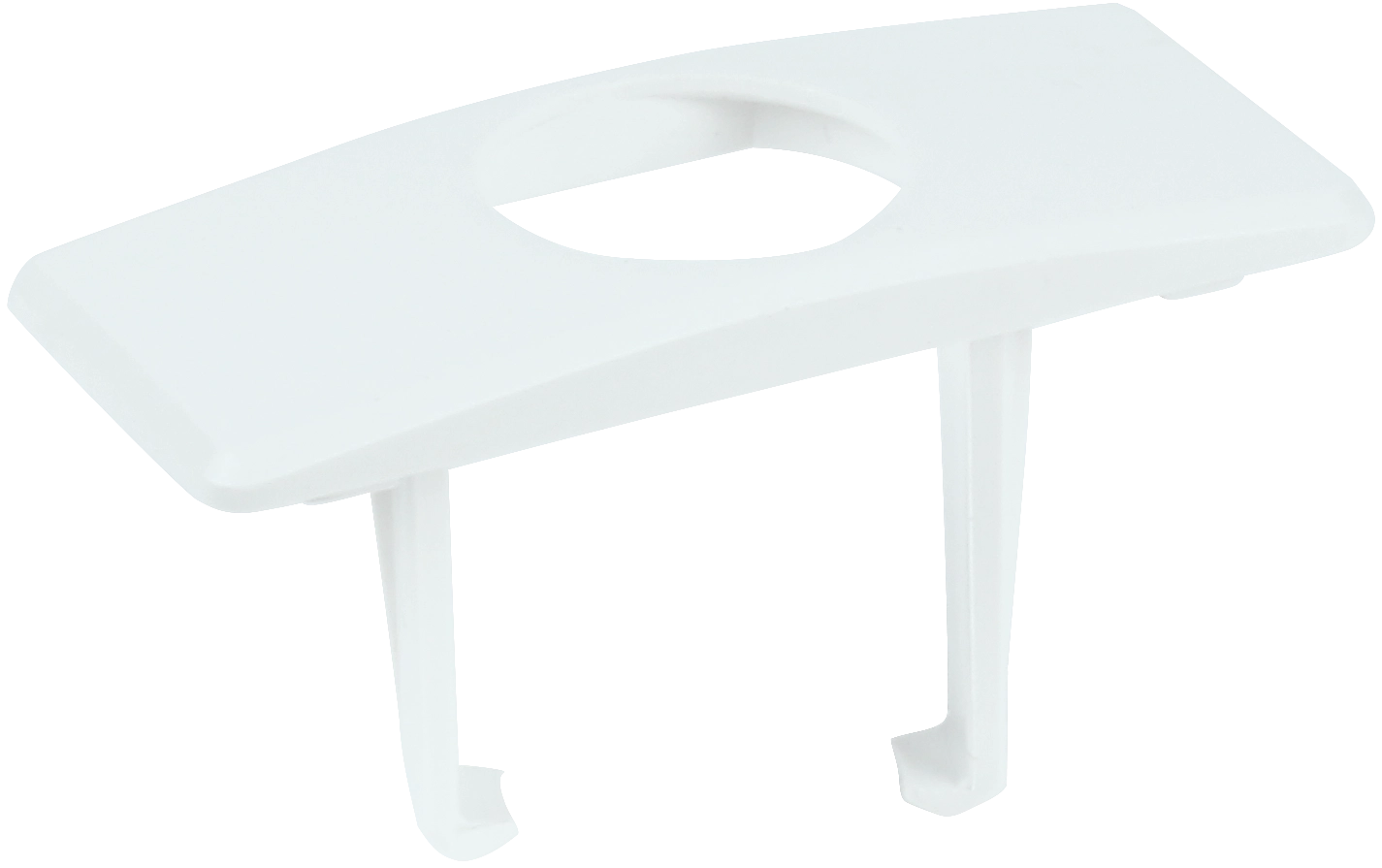

HA04Sensor fixation accessory · Rectangular mounting hole

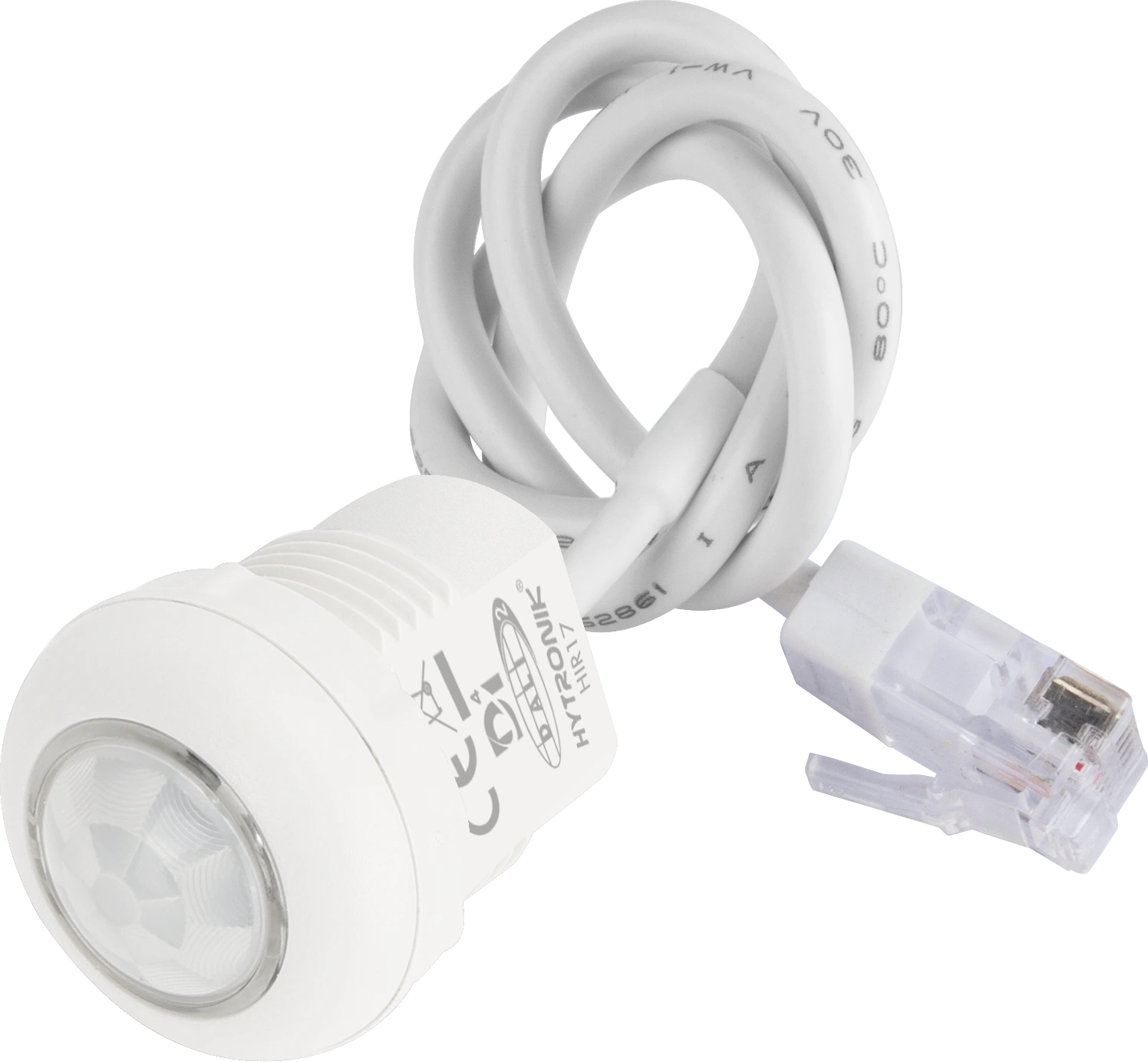

HIR17PIR low-bay · Daylight harvest · RJ12 connection

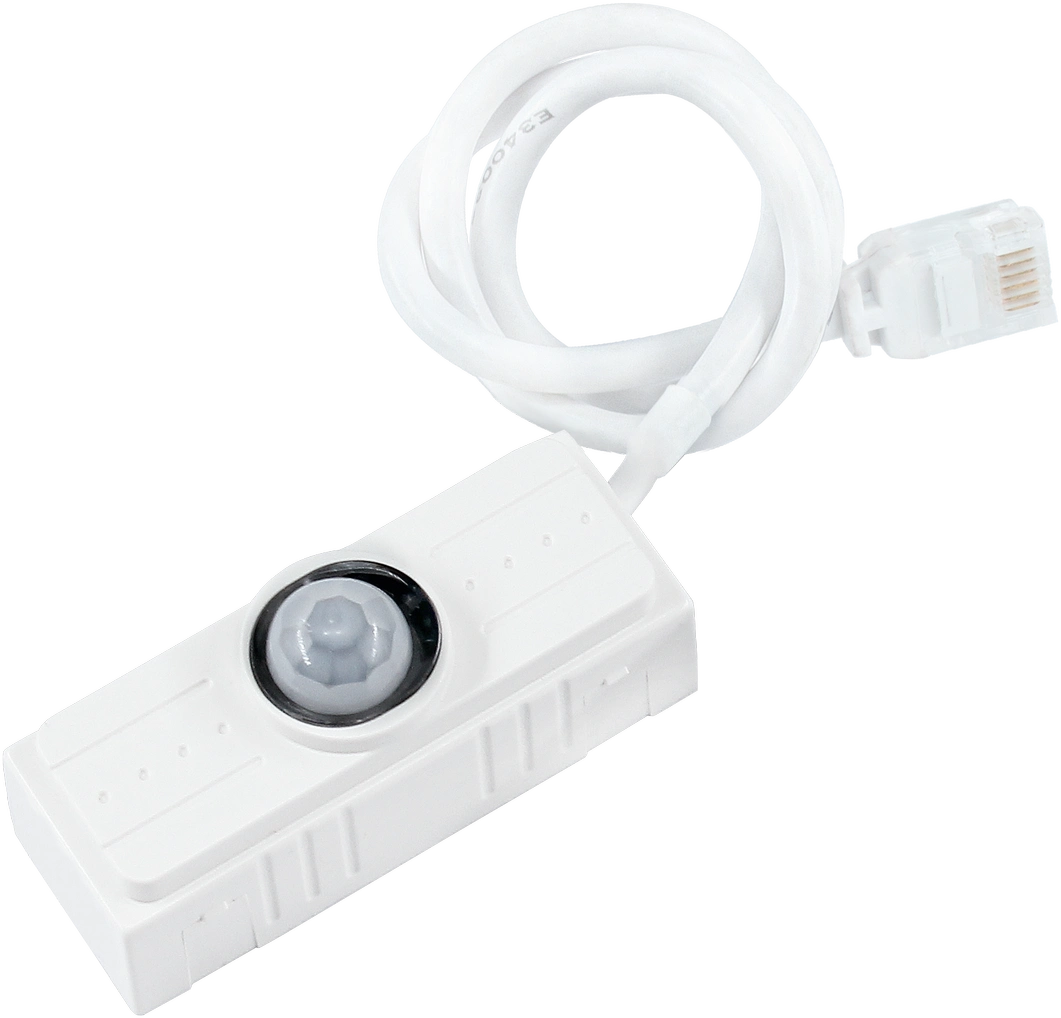

HIR03PIR low-bay · Photocell Advance · RJ12 connection

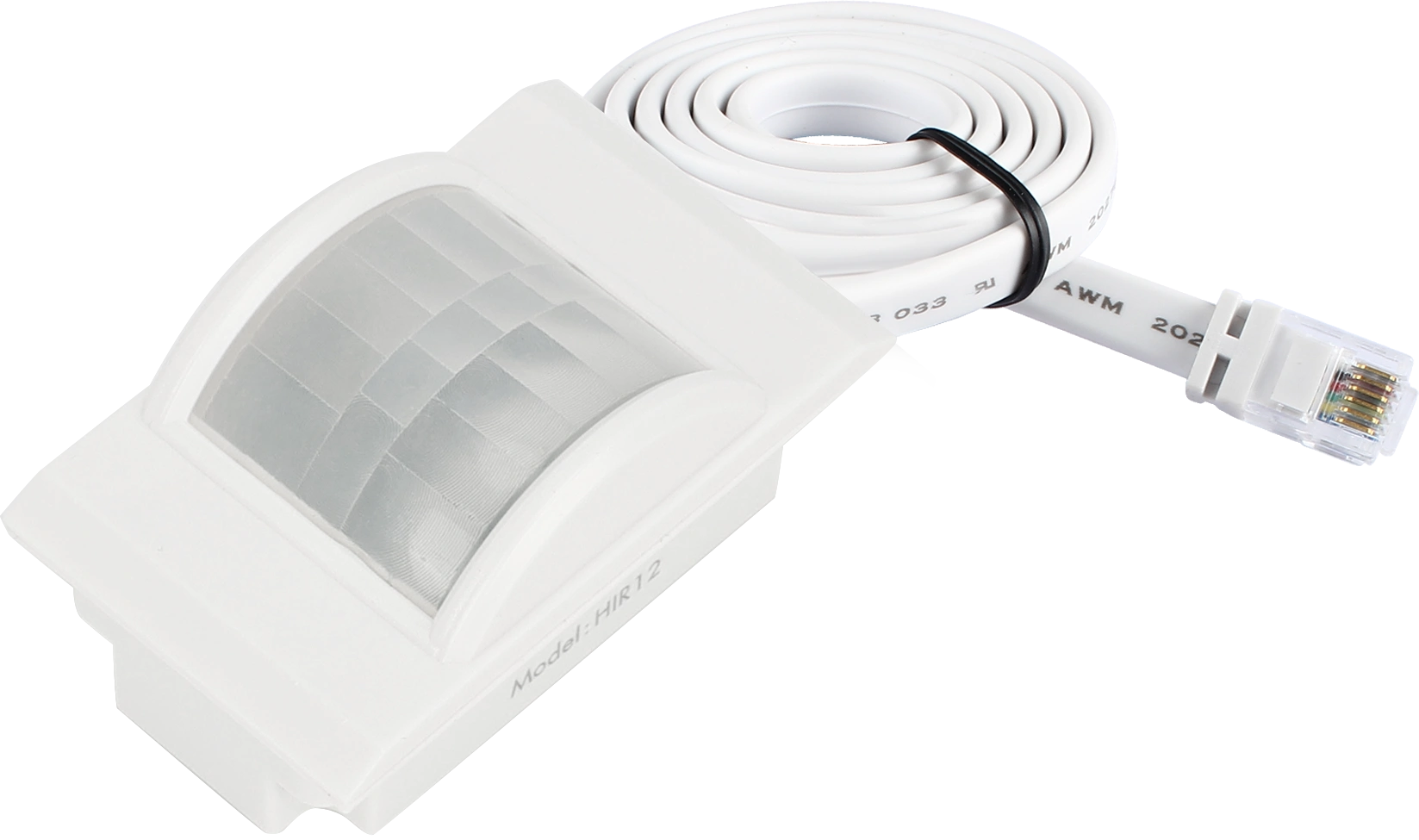

HIR12PIR sensor for linear luminaires

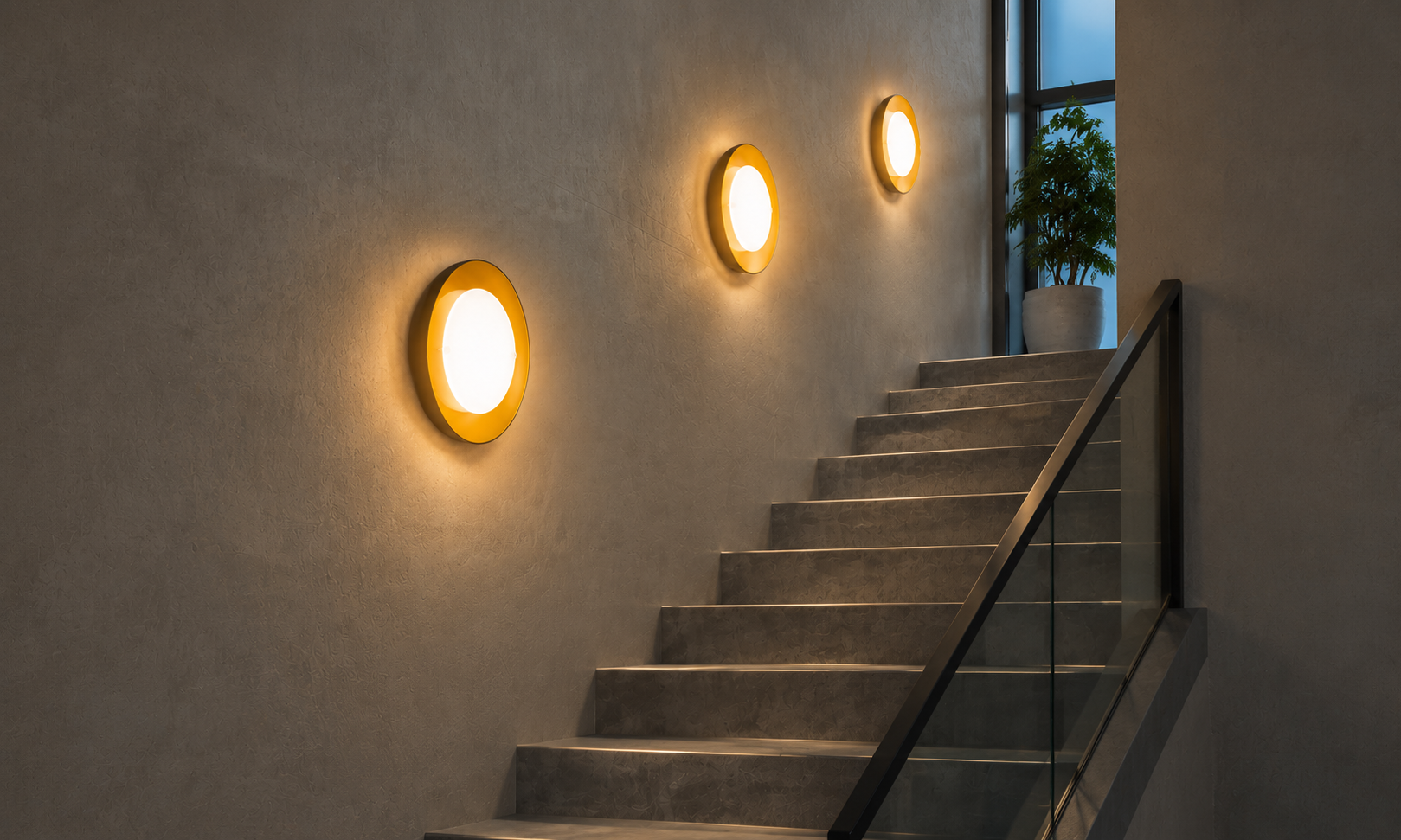

Corridors and residential areas
Enhance a round-luminaire design with a detachable control base and compact sensor heads. Review HF or PIR routes with motion and daylight detection, Bluetooth mesh, remote control, on/off or dimmable control.
- Detachable and flexible control
- Compact sensor-head options
- 0/1–10V, DALI-2 and Bluetooth routes
The compliance your customer will ask you for
Requirements differ by product, interface and project. Use each current product page and datasheet for product-specific status, and confirm the applicable requirements before specification.
How we work with you
A practical route for moving from the luminaire requirement to an agreed product and validation scope.
Integration support
Send us the drawing, specification or sample. We review the sensor, driver and interface against the luminaire architecture.
Flexible formats
Compare built-in, standalone, Zhaga-compatible and modular formats for the product and application.
Interface compatibility
Match the required DALI-2, D4i, 0/1–10V or Bluetooth interface to the selected product and project architecture.
Testing and validation
Define and complete the compatibility, detection-behaviour and control-function checks required before production.
Optional customisation
If your project needs application-specific firmware or private labelling, we can review the requirement as an optional fifth step. Availability, scope, MOQ and lead time are confirmed case by case.
Sensors, controls and drivers for luminaire integration
Each card describes a product family. The named SKU is the representative image only; confirm individual capabilities on the current product page and datasheet.
LED drivers
Constant current and constant voltage, with sensor attachment, DT8 tunable white and built-in Bluetooth.
Representative product shown: HED7030/BT
Controls and dimmers
From on/off and 0/1–10V through to scenes, schedules and circadian rhythm over Bluetooth.
Representative product shown: HCD038/BT
Emergency
Integrate EM converters and LED-drivers with EM integrated as well as Bluetooth and DALI solutions.

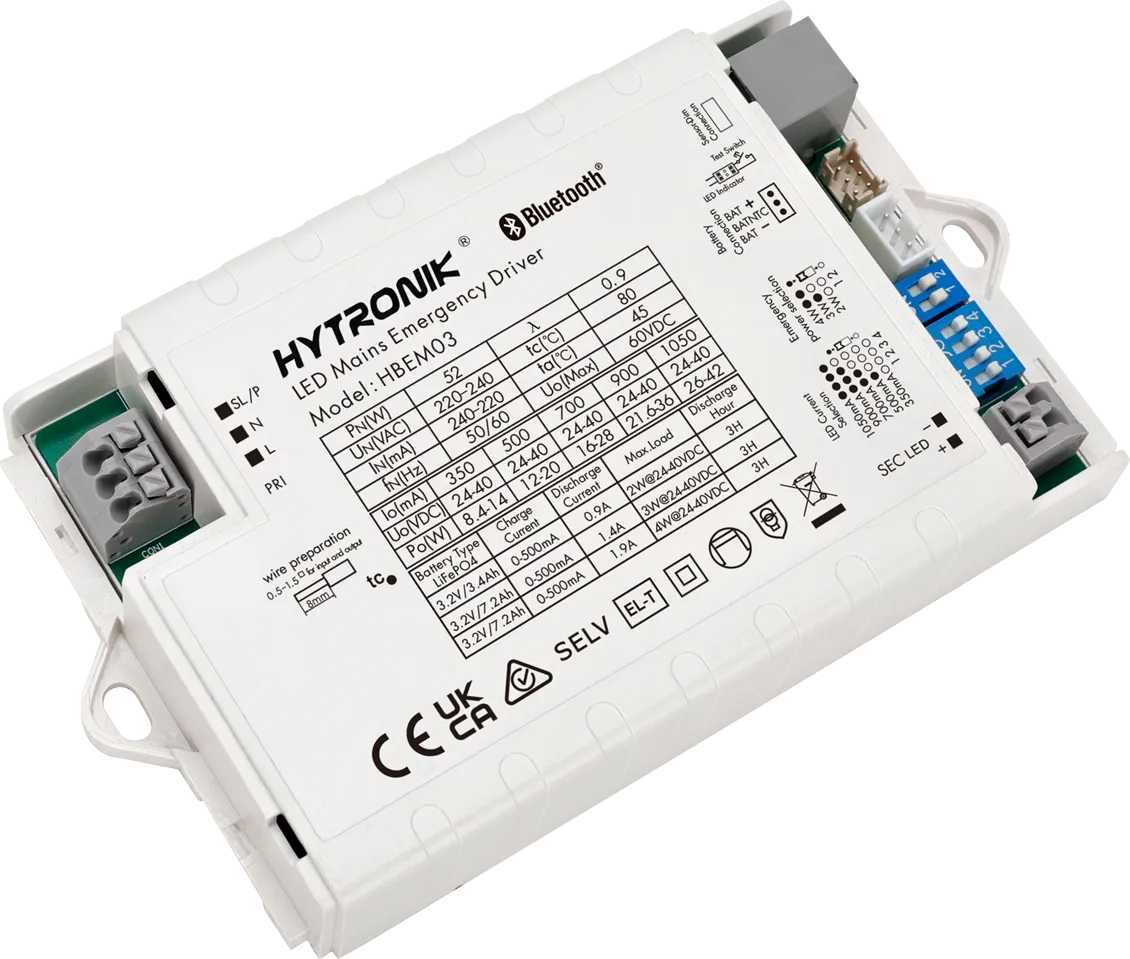

Representative product shown: HBEM03

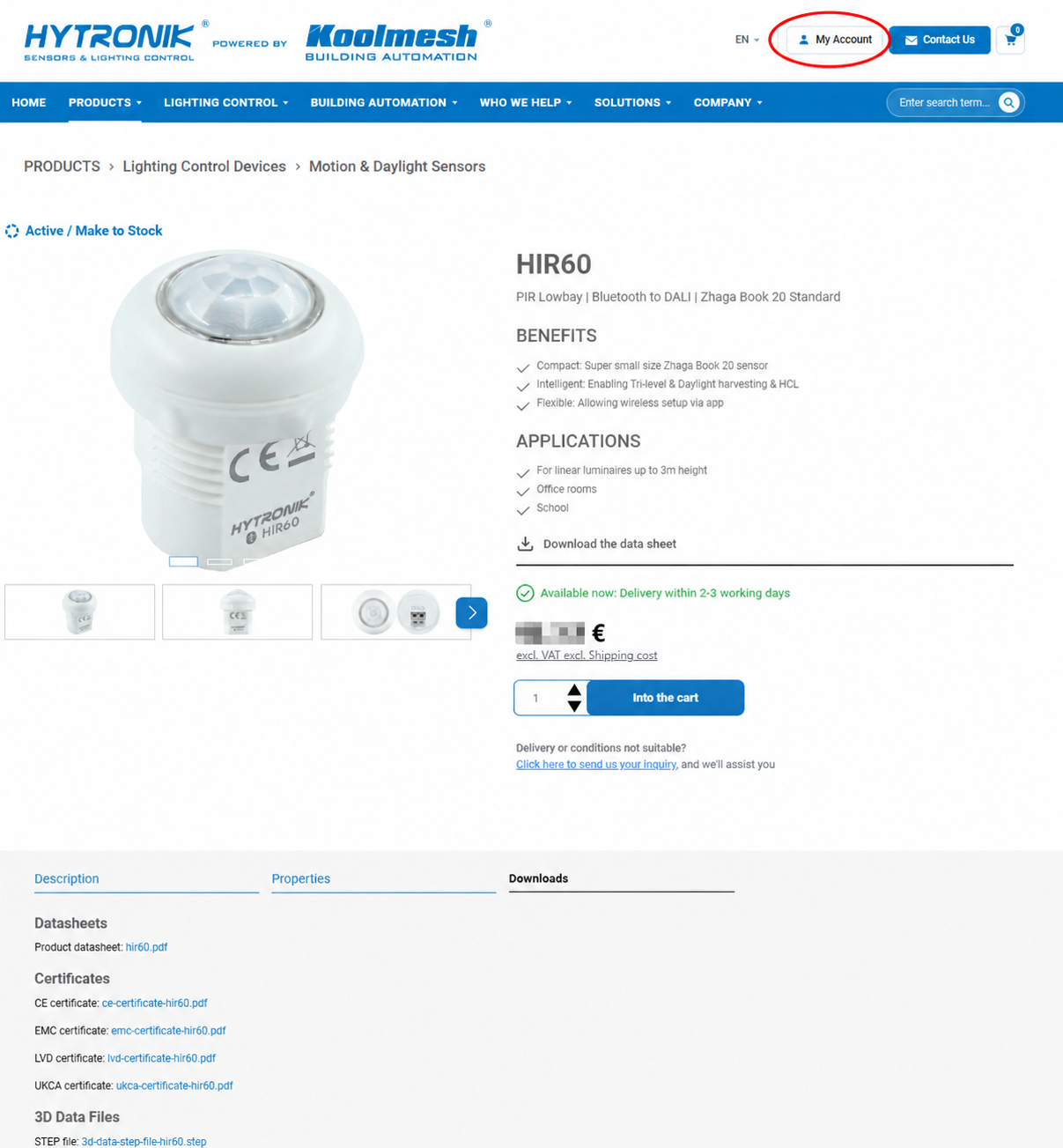

Your prices, availability and technical documents, on the website
As an OEM customer you get your own account. Inside you see your agreed prices, live availability, and the technical documentation behind those standards: certificates, mechanical drawings and wiring diagrams for every product you work with. No email chain to ask what something costs or whether it is in stock.
Send us your details, we validate the account, and you are in. Use the Log in button at the top of the page.
When the client asks for BMS integration
Some projects require selected lighting, sensing or device data to be shared with a building-management system. The public HBGW04/R route supports BACnet/IP, Modbus TCP/IP and MQTT interfaces.
Available data, writable points, mapping, device and firmware compatibility, gateway configuration and responsibilities must be confirmed for the project.
See how lighting data reaches building systems
Everything in one document
The full OEM range, with interfaces, formats and dimensions. Download it, share it with your engineering team, and come back to us when you know what you need.
