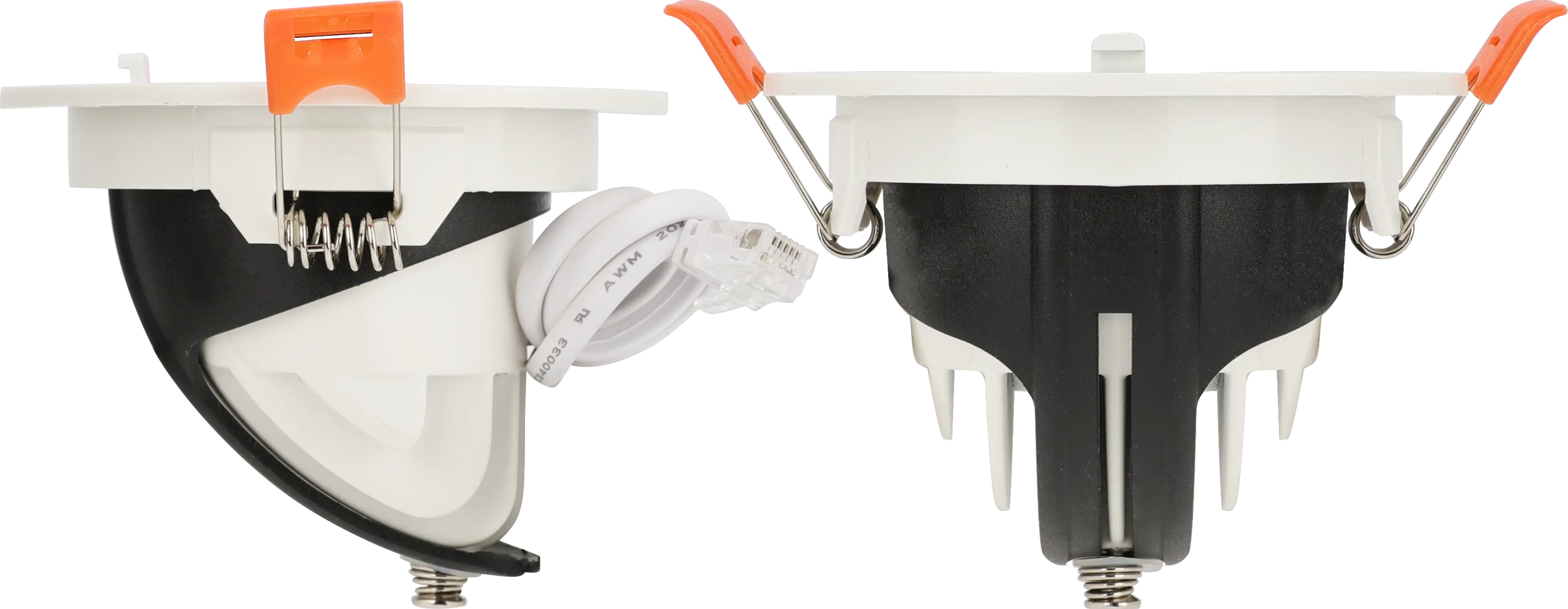

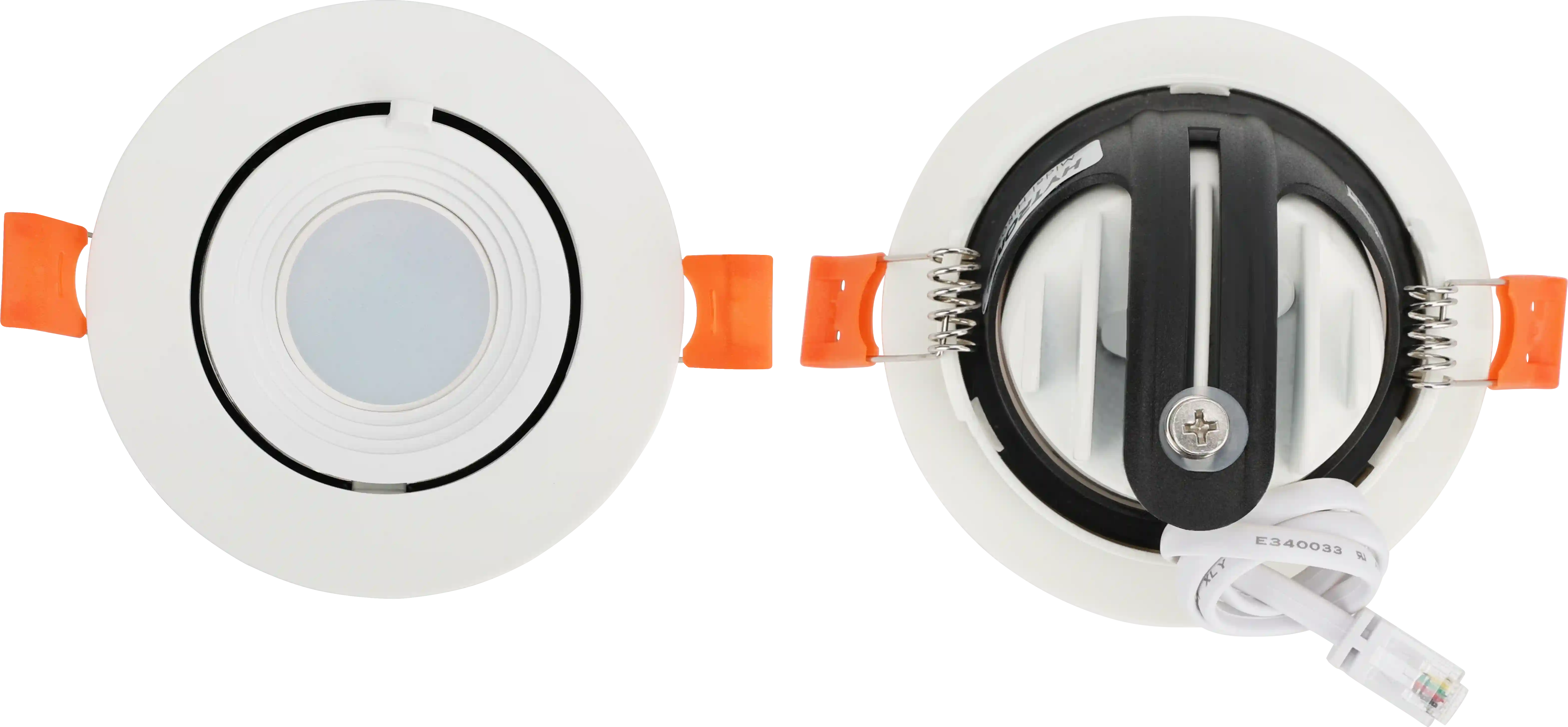

SAM22/AA
HF Lowbay | Ciradian Rhyhm | RJ12 connector to control body
BENEFITS
- Compact: Flush mount plug&play sensor design
- Versatile: Tri-level dimming + Daylight harvest + Ciradian Rhyhm
- Easy configuration: Wireless Bluetooth 5.0 SIG-Mesh
APPLICATIONS
- Adjustable angle detection
- Corridor, Hallway
- Classrooms, Offices
Product information "SAM22/AA"

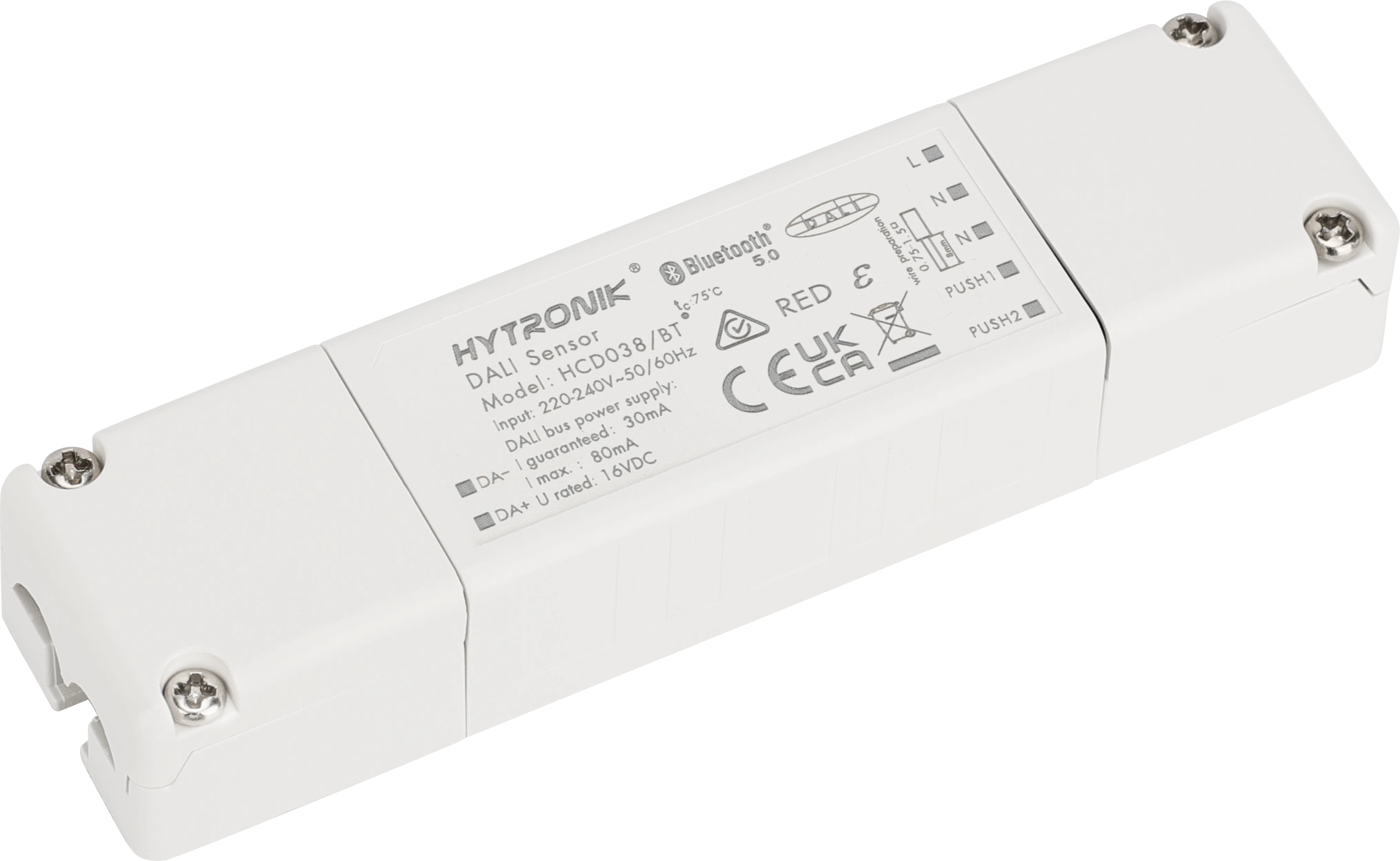

SAM22/A is a HF sensor head. It can work with the linear shaped control base such as HCD038/BT and HCD438/BT. It offers powerful number of Plug’n’Play feature options to expand the flexibility of luminaires design.
| Ambient temperature max.: | 55 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | App & Web (Bluetooth) |
| Connector Type: | RJ12 |
| Daylight Harvest: | Yes |
| Daylight Sensor Option: | Photodiode/Photocell |
| Detection Methods: | Microwave (MW) |
| Detection angle: | 30° - 150° |
| Detection range (Diameter): | 12x3 |
| Features: | Daylight Harvest, Tri-level (Corridor Function) |
| HF operating frequency (Ghz): | 5.8Ghz+/-75MHz |
| Human Centric Lightning (HCL): | Yes |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Built-in, Plug & Play Sensor Heads |
| Maximum Mounting Height: | 6.0000 m |
| Mounting Height: | Low-bay |
| Mounting hole: | 74.0000 mm |
| Operating voltage range: | 5 VDC |
| Product height: | 70.0000 mm |
| Product length: | 90.0000 mm |
| Product weight: | 117.0000 g |
| Product width: | 90.0000 mm |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | DC |
| Warming-up: | 20 s |
| Zhaga: | No |
Datasheets
Product datasheet: sam22-aa.pdf
Login

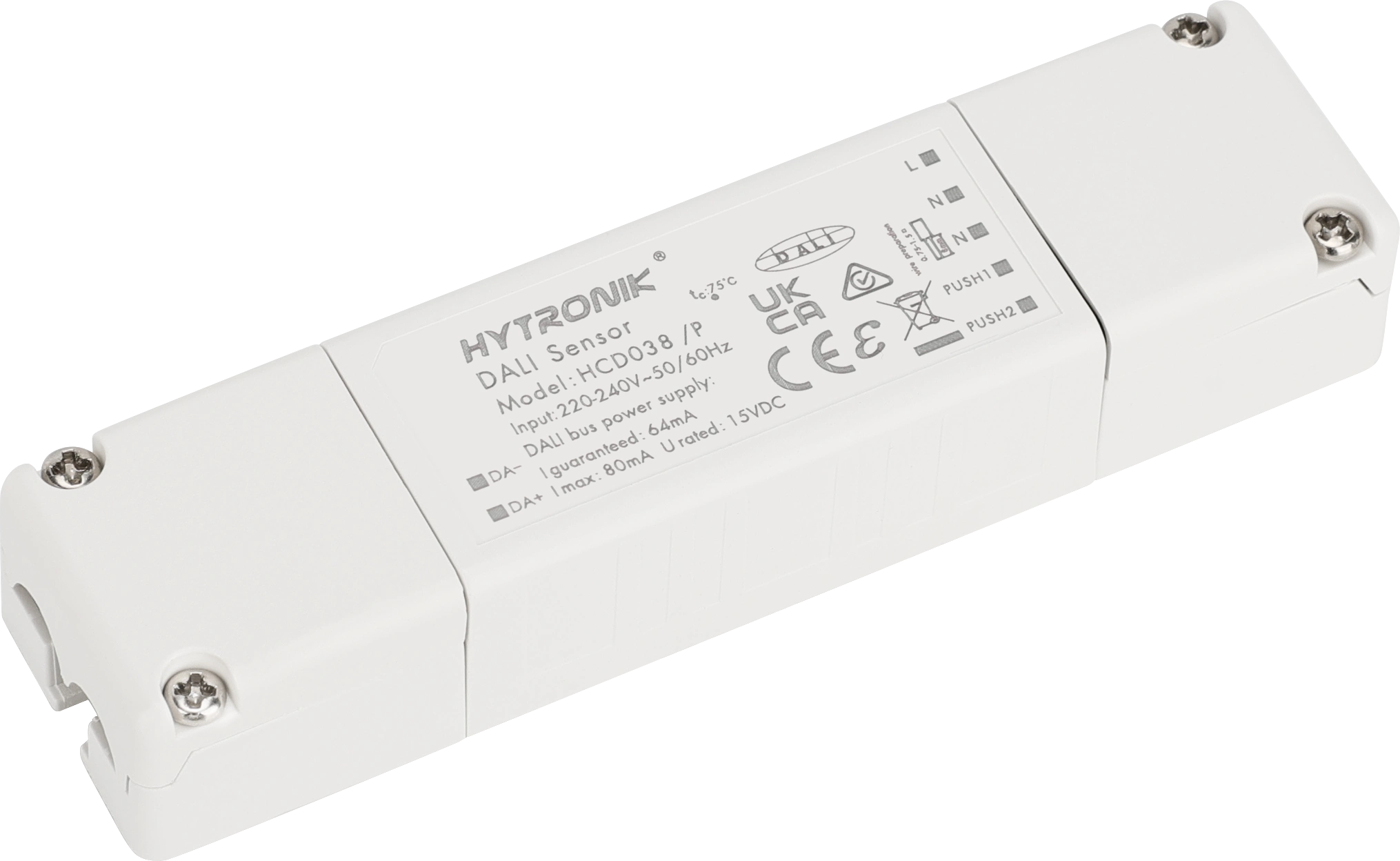

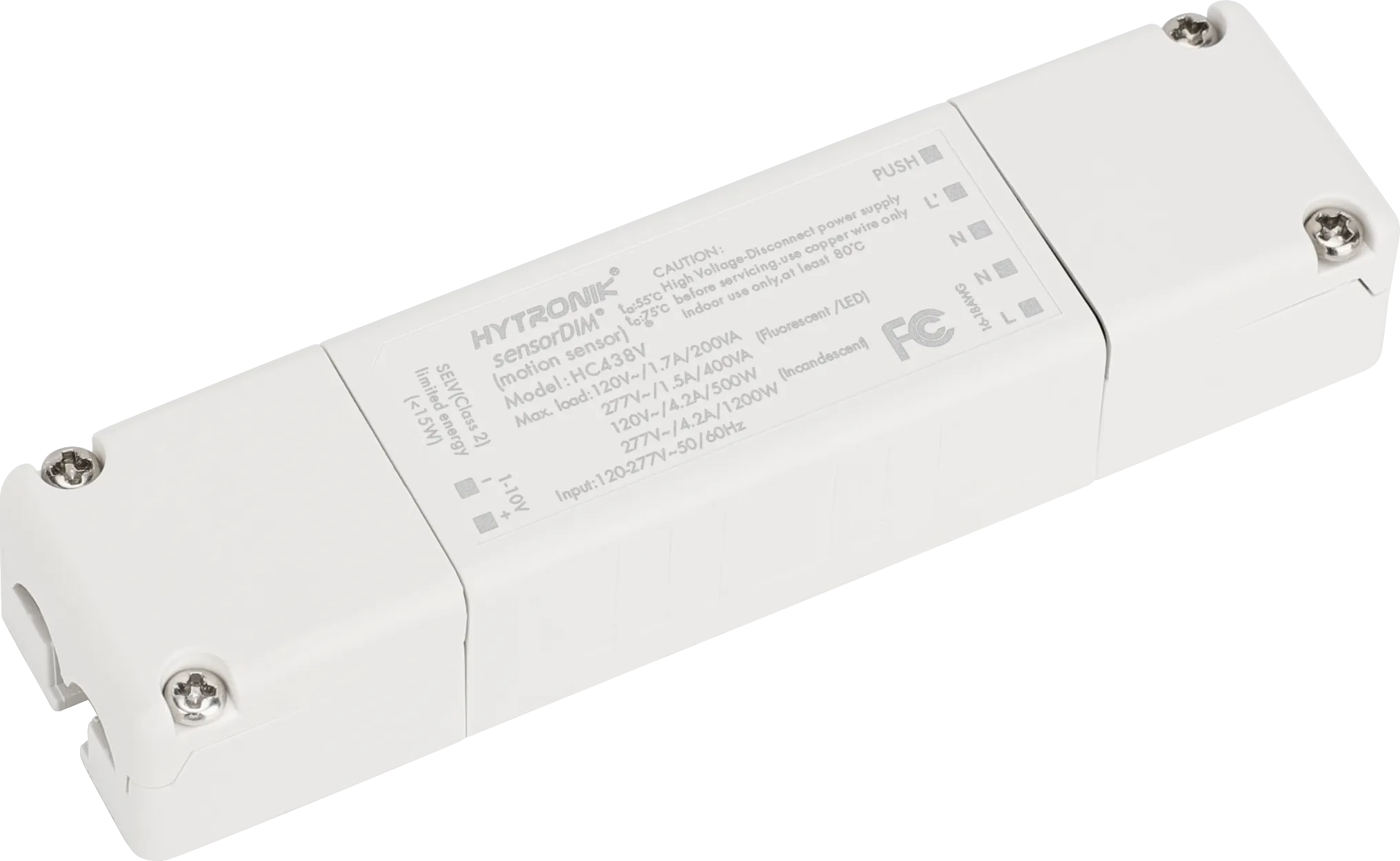

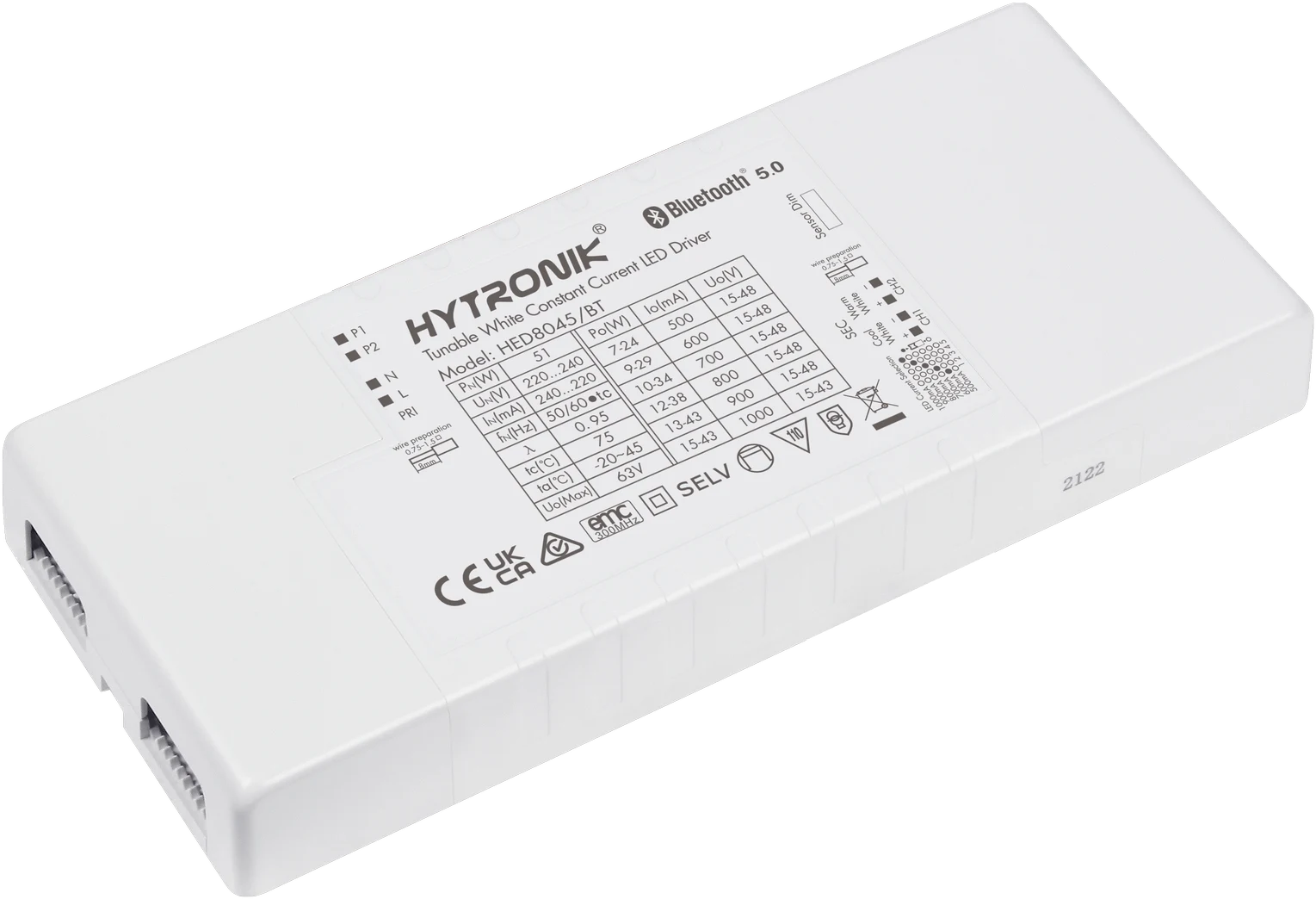

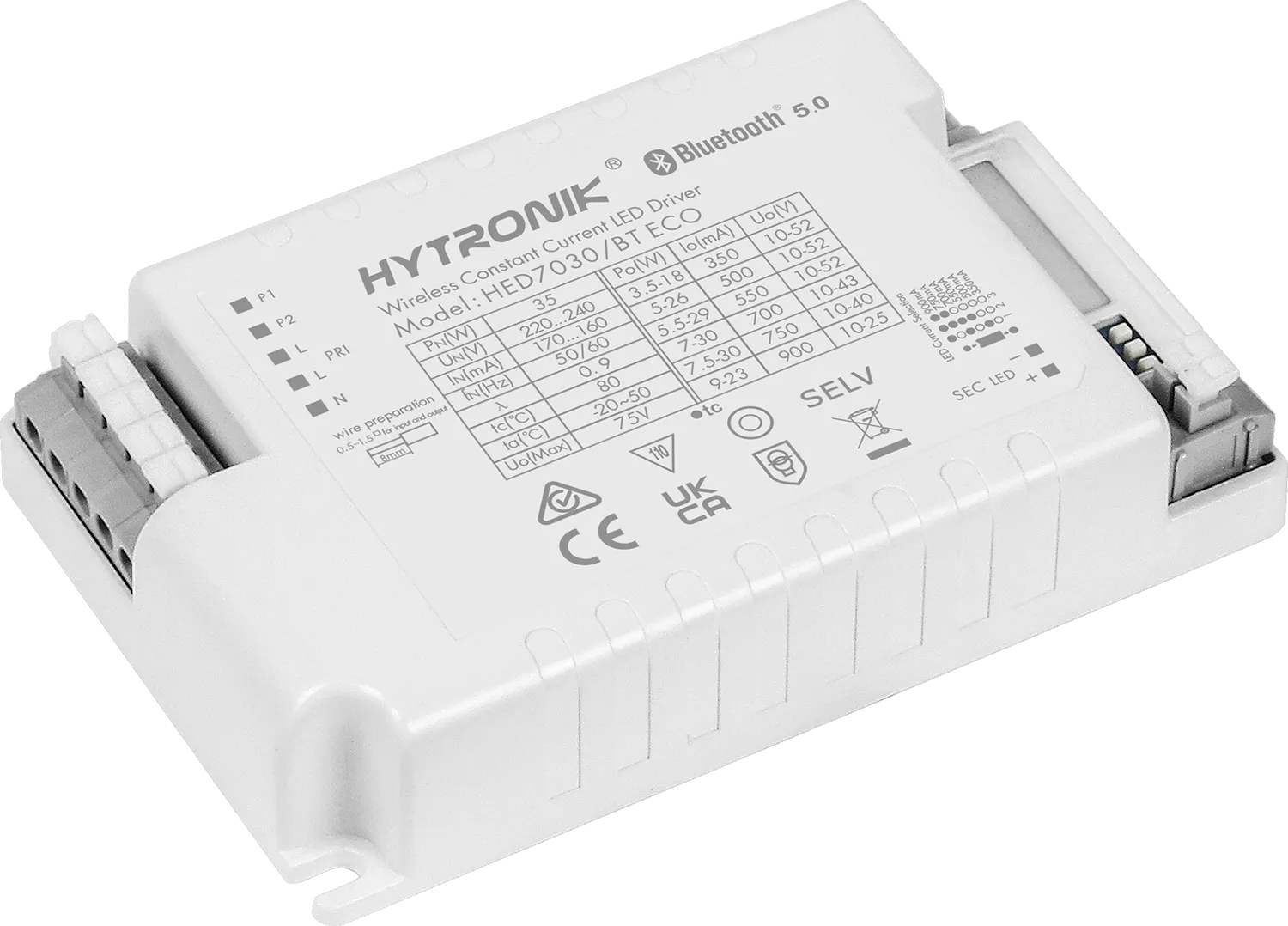

Compatible products (for full functionality)
