Active / Make to Stock
SAM15/BLE
Bluetooth HF Highbay Sensor | DALI-2/D4i | Zhaga Book 18 Standard
BENEFITS
- Standardized: Zhaga Book 18 with IP65 for reliable highbay integration
- All-in-one: Occupancy, Daylight and Circadiam Rhythm, Photocell Advance
- Wireless: Bluetooth Mesh enabling flexible wireless commissioning
APPLICATIONS

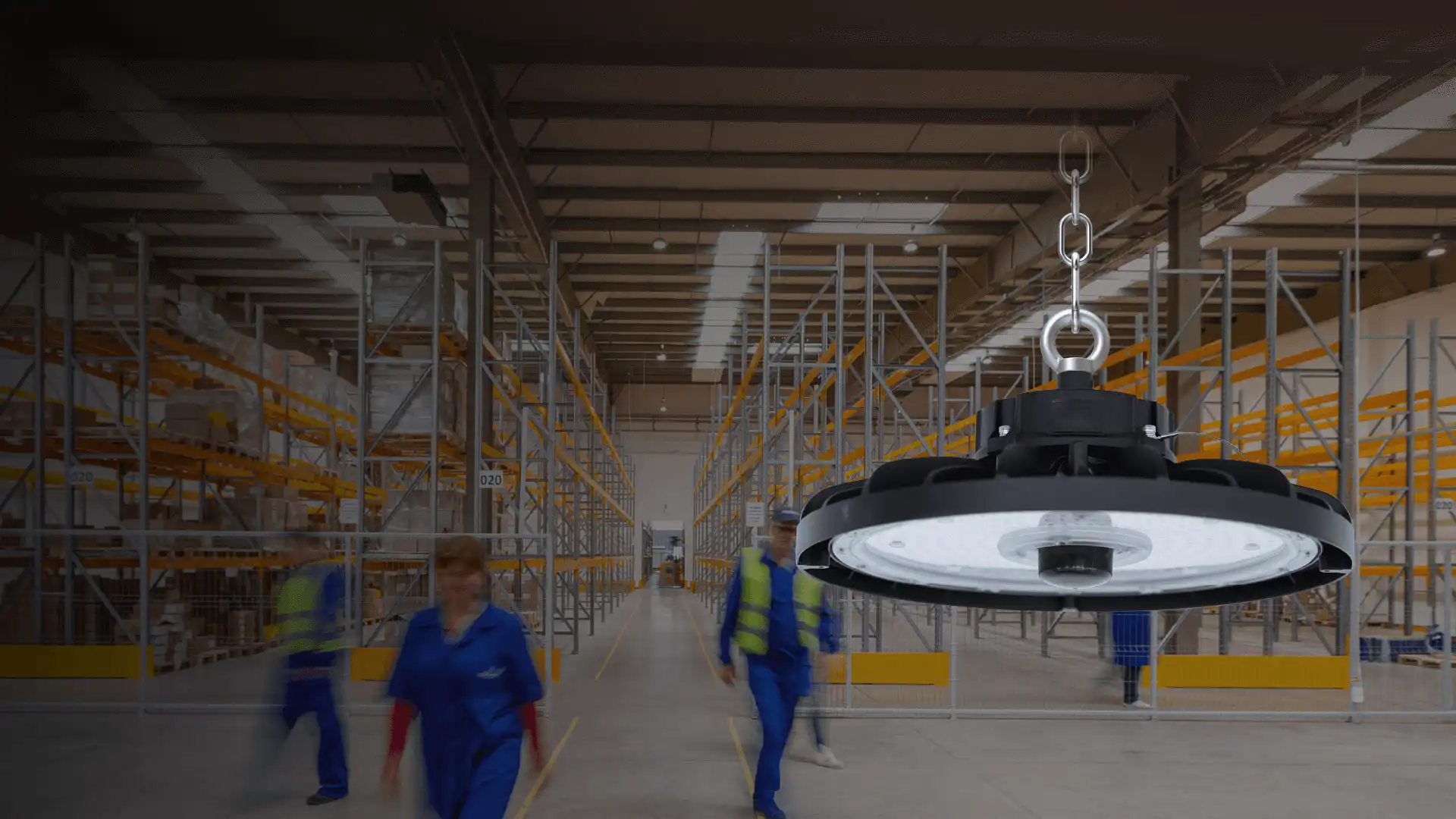

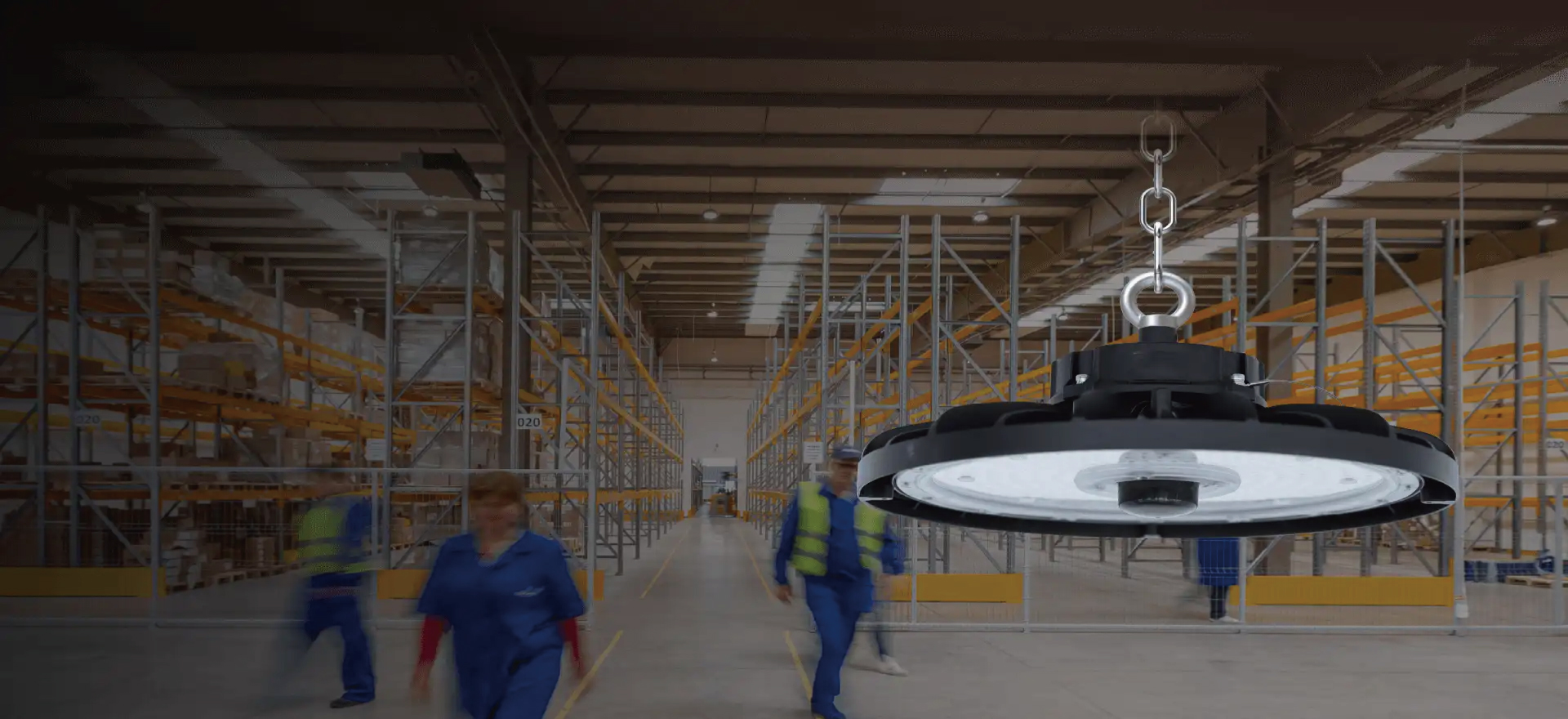

- For highbay luminaire up to 15m height
- Warehouse/ Logistic
- Outdoor/Street lights

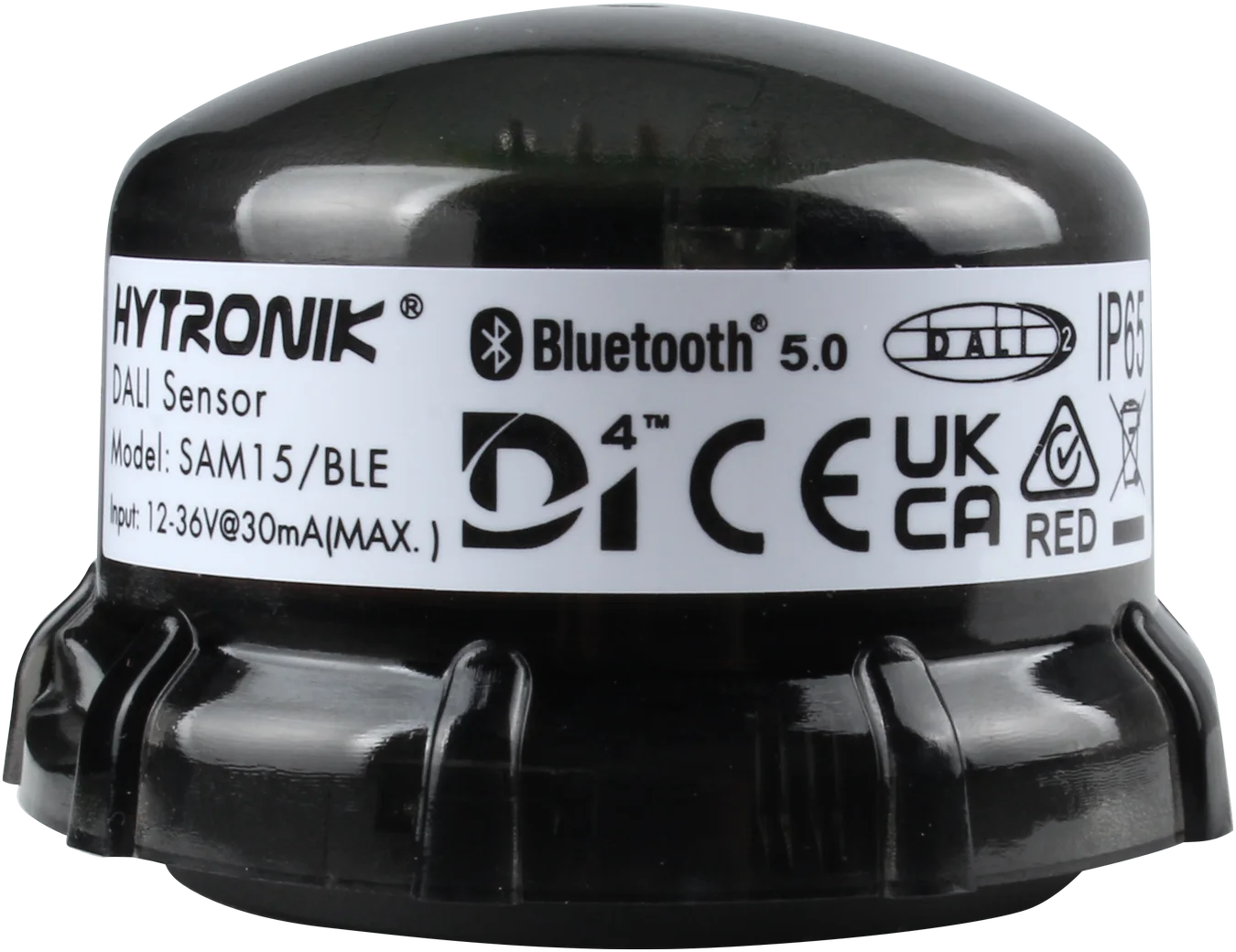

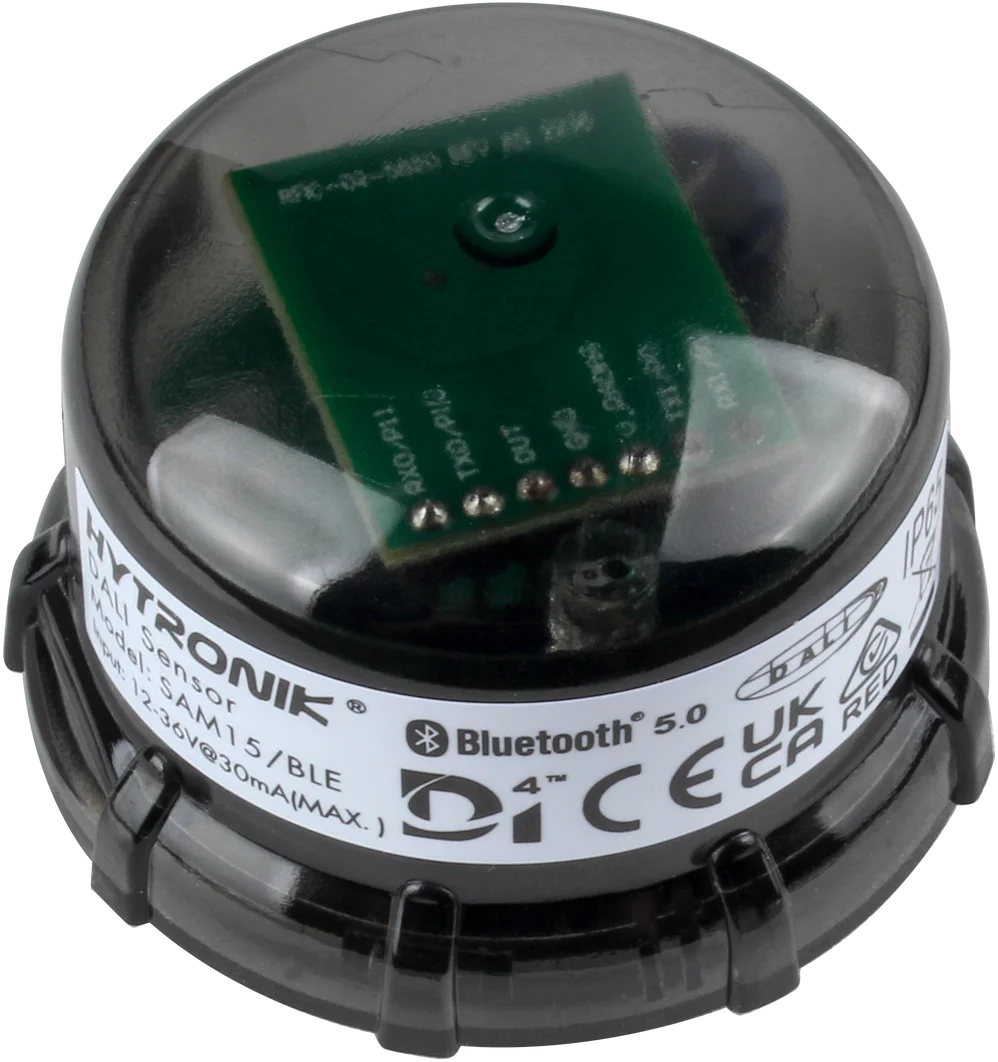

Product information "SAM15/BLE"
SAM15/BLE is a Bluetooth high-bay HF motion sensor designed for industrial and outdoor lighting applications. It supports motion detection, daylight harvesting, and dimming for intelligent and energy-efficient lighting management. Featuring Photocell Advance technology with dual photocells, it can differentiate natural and artificial light for more accurate daylight sensing. With Zhaga Book 18 compliance, D4i certification, an IP65 rating, and a mounting height of up to 15m, it delivers reliable performance for high-bay environments. All configuration and commissioning can be completed easily via the Koolmesh App.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Bluetooth Platform: | Nordic nRF52832 |
| Bluetooth frequency: | 2.4 GHz |
| Bluetooth range (Phone to Device) : | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth transmit power: | 4 dBm |
| Commissioning Methods: | App & Web (Bluetooth) |
| Connector Type: | Zhaga book 18 |
| DALI-2 D4i type: | Typ D |
| Daylight Harvest: | Yes |
| Daylight Sensor Option: | Photocell Advance |
| Detection Methods: | Microwave (MW) |
| Detection angle: | 360° |
| Detection range (Diameter): | 20×15 |
| Dimming (Output) Interface: | DALI/DALI-2 |
| Features: | D4i, Daylight Harvest, Tri-level (Corridor Function) |
| HF operating frequency (Ghz): | 5.8Ghz+/-75MHz |
| Human Centric Lightning (HCL): | Yes |
| Humidity max: | 90 % |
| Humidity min: | 20 % |
| IP Rate: | IP65 |
| Installation Type: | Built-in, Zhaga |
| Maximum Mounting Height: | 15.0000 m |
| Mounting Height: | Mid & High-bay |
| Operating voltage range: | 12-36 VDC |
| Product Status: | Active / Make to Stock |
| Product height: | 35.0000 mm |
| Product length: | 50.8000 mm |
| Product weight: | 34.0000 g |
| Product width: | 43.5000 mm |
| Required DALI Current: | 2.0000 mA |
| Sensitivity: | 10%/ 30% /50% /75%/ 100% |
| Storage temperature max.: | 55 °C |
| Storage temperature min.: | -35 °C |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | DC |
| Zhaga: | Yes |
Datasheets
Product datasheet: sam15-ble.pdf
Installation Manual
User manual: installation-manual-sam15-ble.pdf
