HIR15P
PIR Highbay | 0-10V dimmable | Adjustable detection range
BENEFITS
- Compact: Small IP65 0-10V
- All-in-one: Occupancy, Daylight and Circadiam Rhythm
- User-friendly: All sensor settings via IR controller
APPLICATIONS

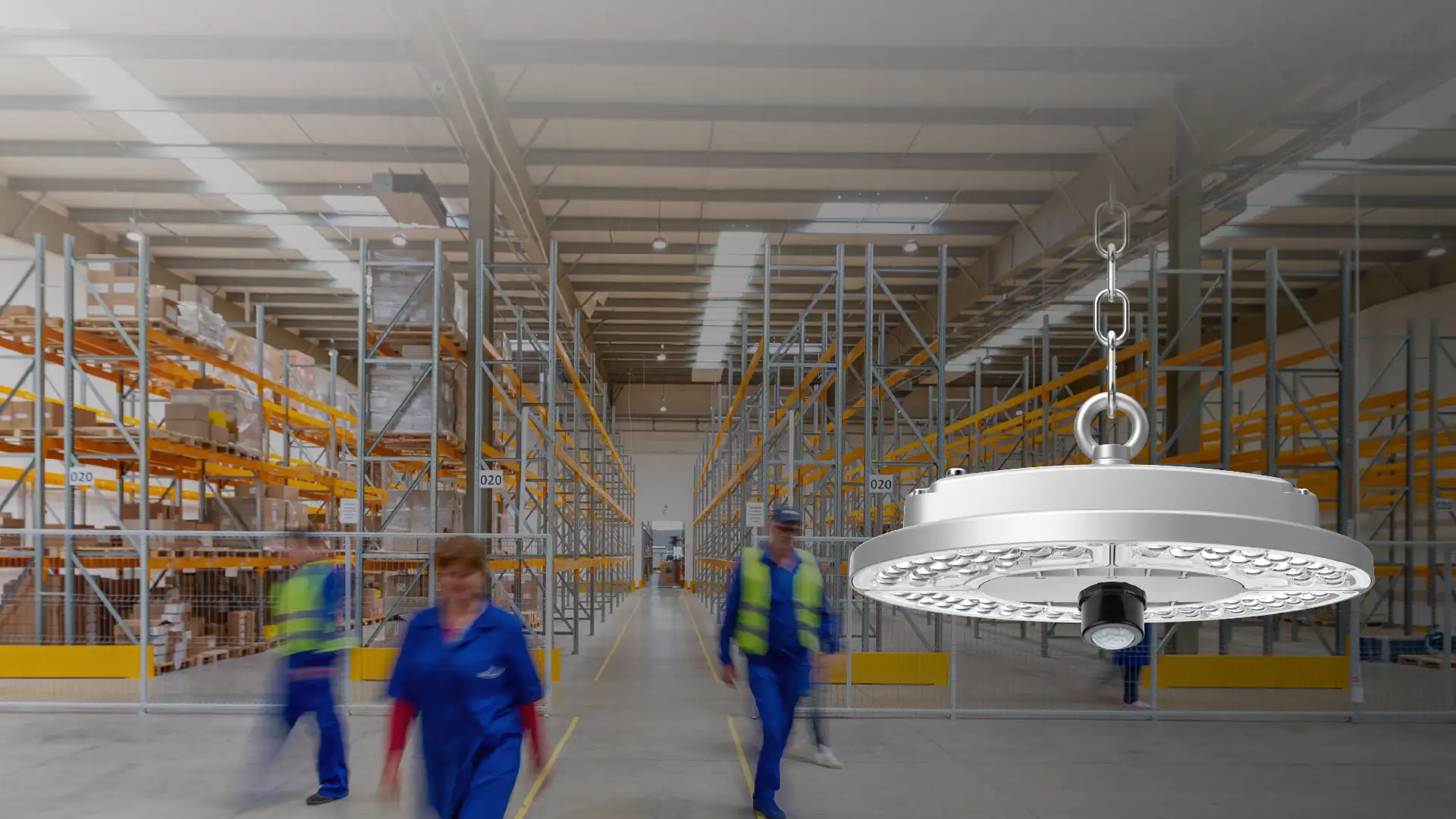

- UFO luminaires with a height of up to 15m
- Warehouse/ Logistic
- Outdoor/Street lights
Product information "HIR15P"

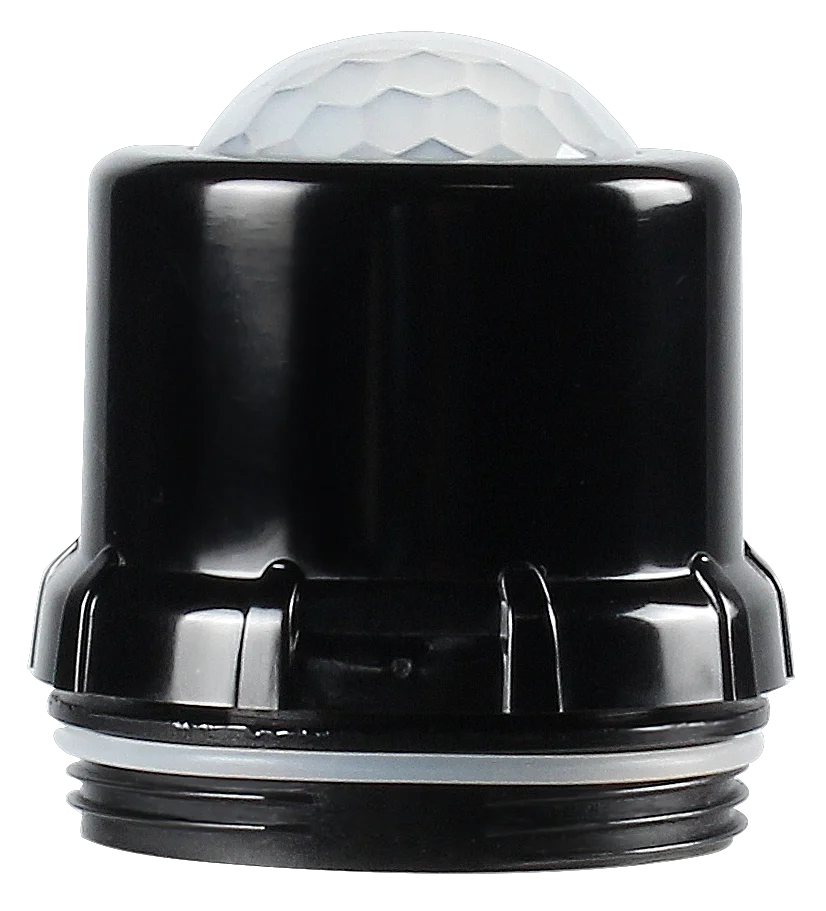

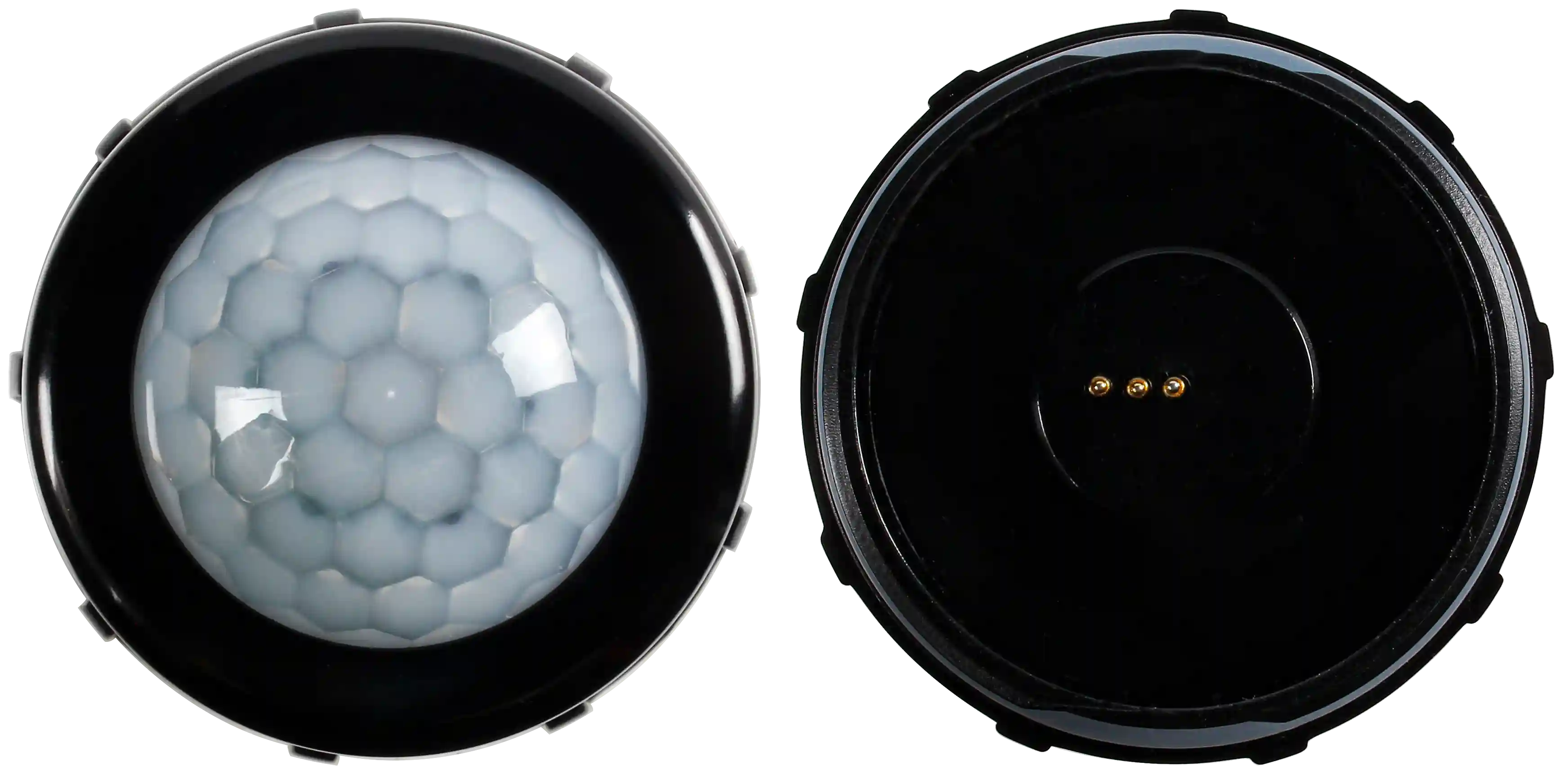

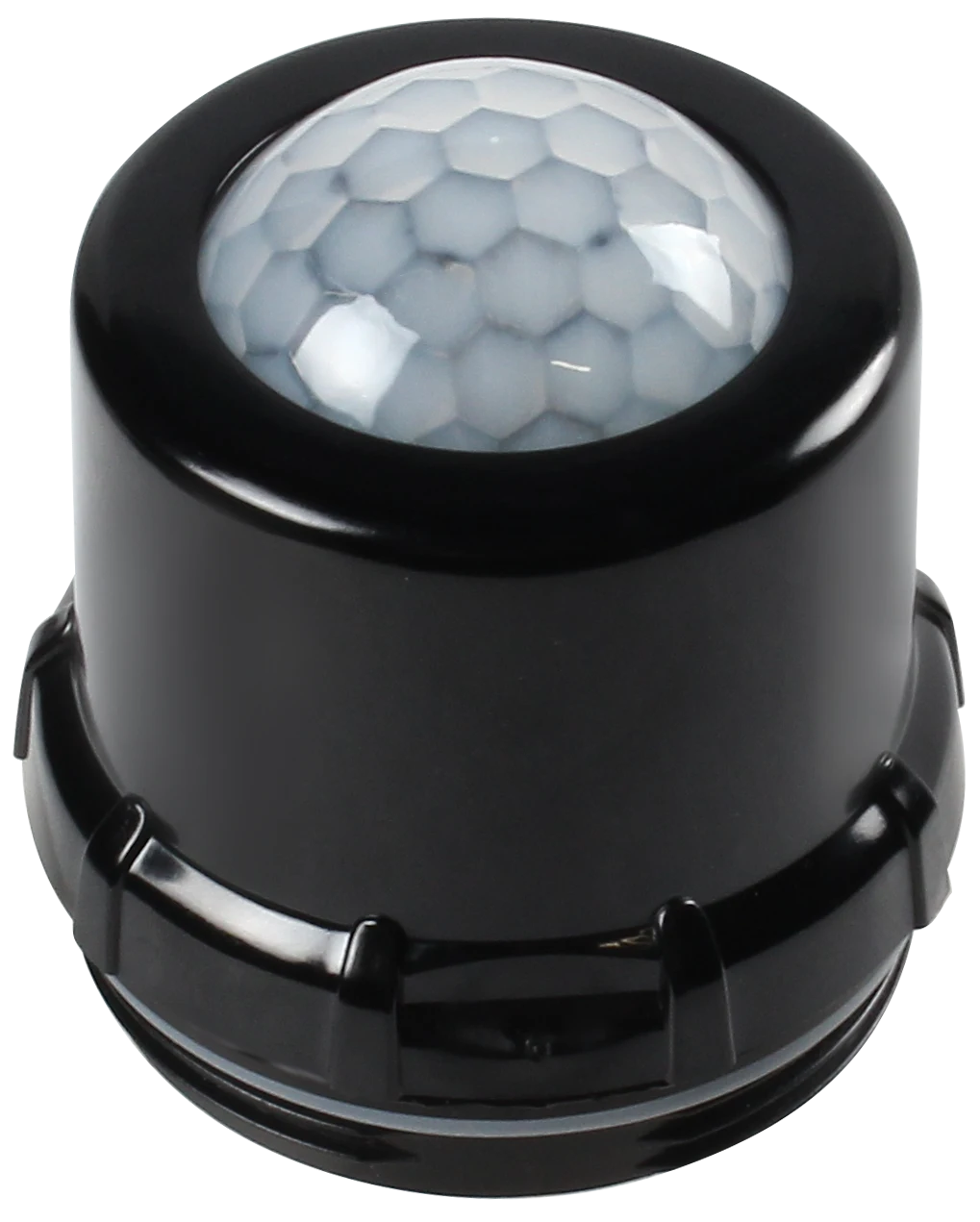

HIR15P is a 0-10V PIR motion sensor with a robust IP65 design, suitable for high-bay applications up to 12 m. Ideal for indoor use in warehouses and other commercial or industrial areas, it also features a removable shielding cap for flexible detection area adjustment.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | IR Remote Controller |
| Connector Type: | Standard 2 cables |
| Daylight Sensor Option: | Photocell Advance |
| Detection Methods: | Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (Diameter): | 20x12 |
| Dimming (Output) Interface: | 0-10V |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP65 |
| Installation Type: | Conduit screws |
| Lens type: | High-bay |
| Maximum Mounting Height: | 15.0000 m |
| Mounting Height: | Mid & High-bay |
| Mounting hole: | 50.4000 mm |
| Output Voltage: | 0-10 V |
| Product height: | 54.6000 mm |
| Product length: | 43.0000 mm |
| Product weight: | 38.0000 g |
| Product width: | 43.0000 mm |
| Push Button Input: | 0 |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | No |
| Voltage Type: | DC |
| Warming-up: | 20 s |
| Zhaga: | No |
Datasheets
Product datasheet: hir15p.pdf
