HIR15/BLE
PIR Highbay | Bluetooth to DALI | Zhaga Book 18 Standard
BENEFITS
- Standardized: Zhaga Book 18 interface with IP65 for reliable integration
- Power Supply: Integrated 10mA DALI-2 bus supply
- Wireless: App based commissioning for fast setup
APPLICATIONS

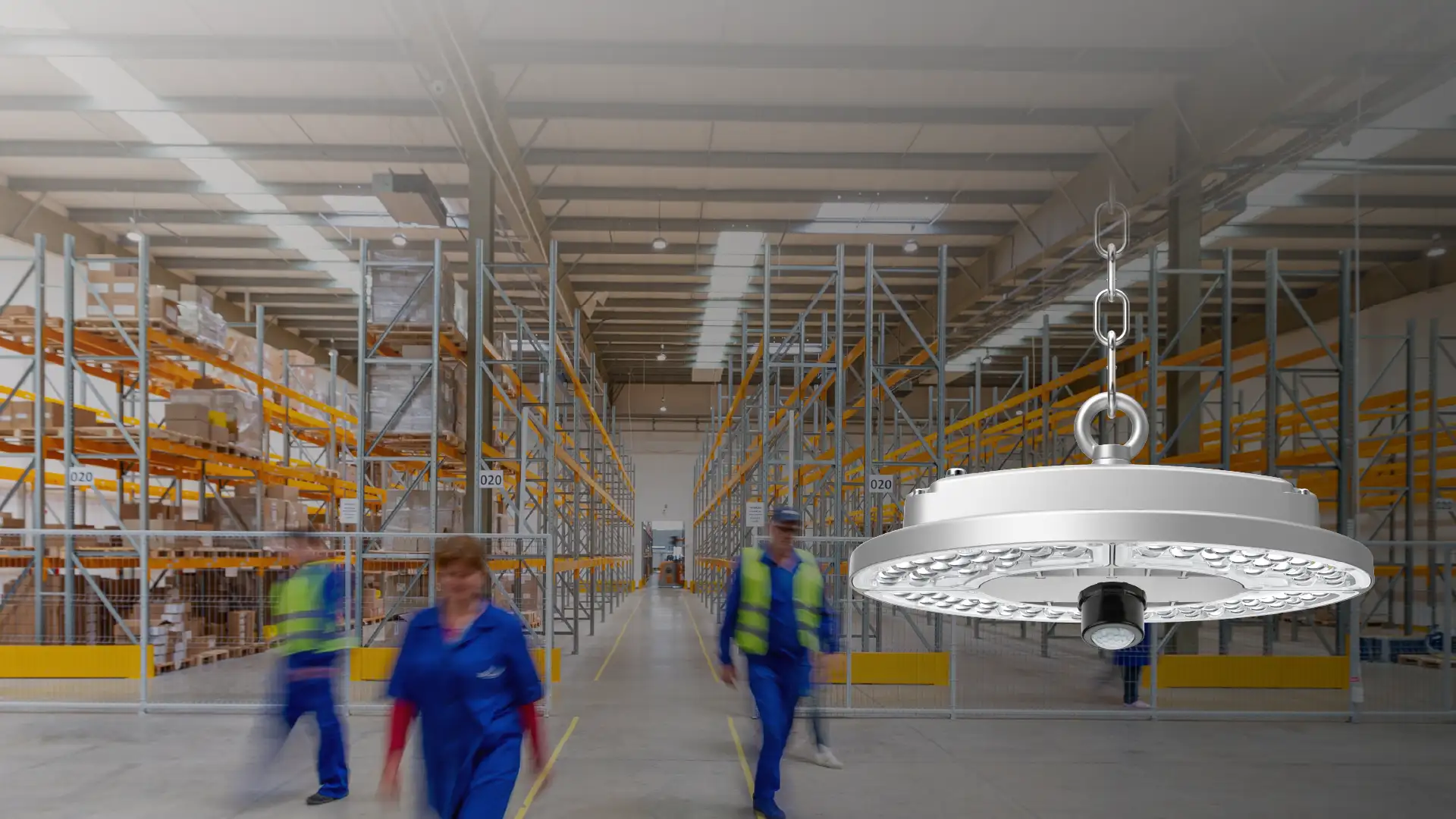

- For highbay luminaire up to 15m height
- Warehouse/ Logistic
- Outdoor/Street lights
Product information "HIR15/BLE"

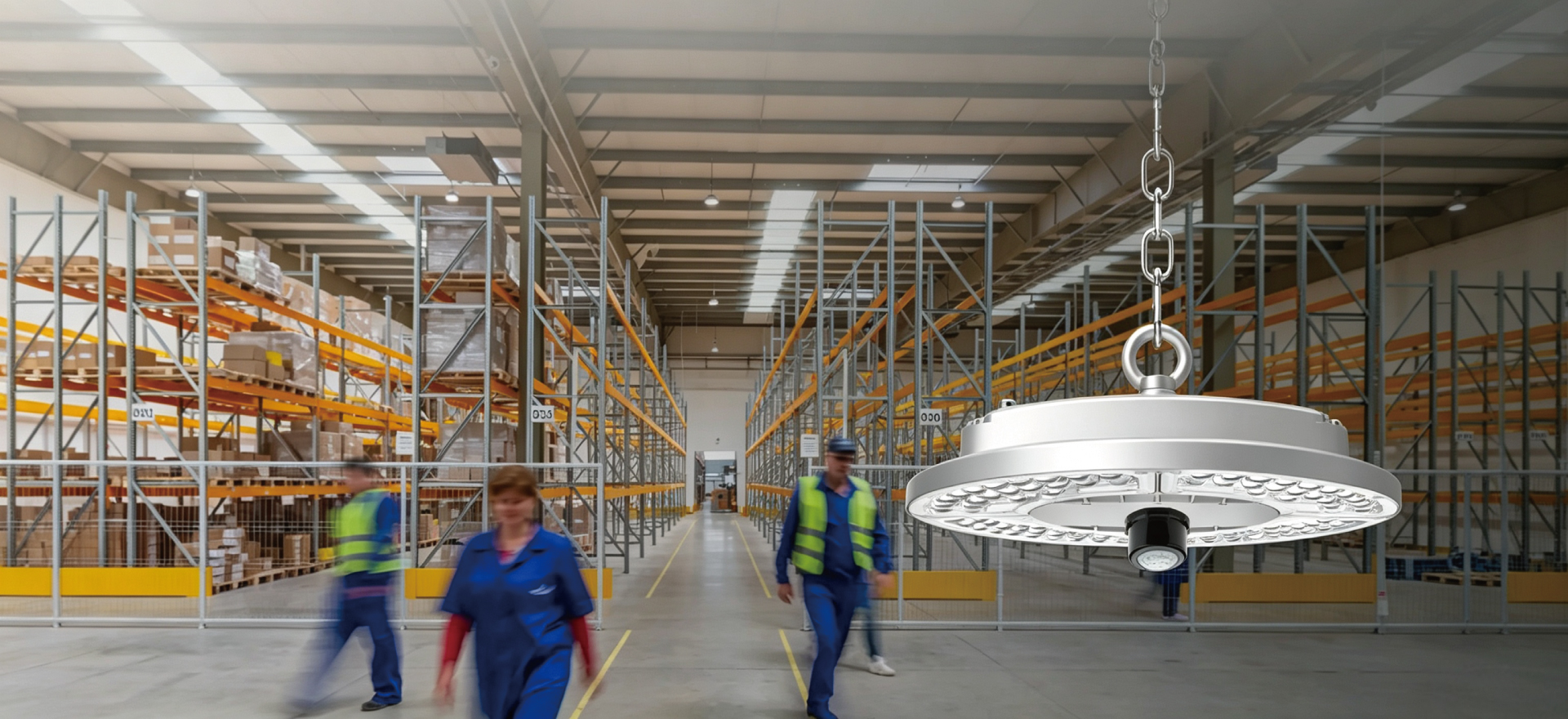

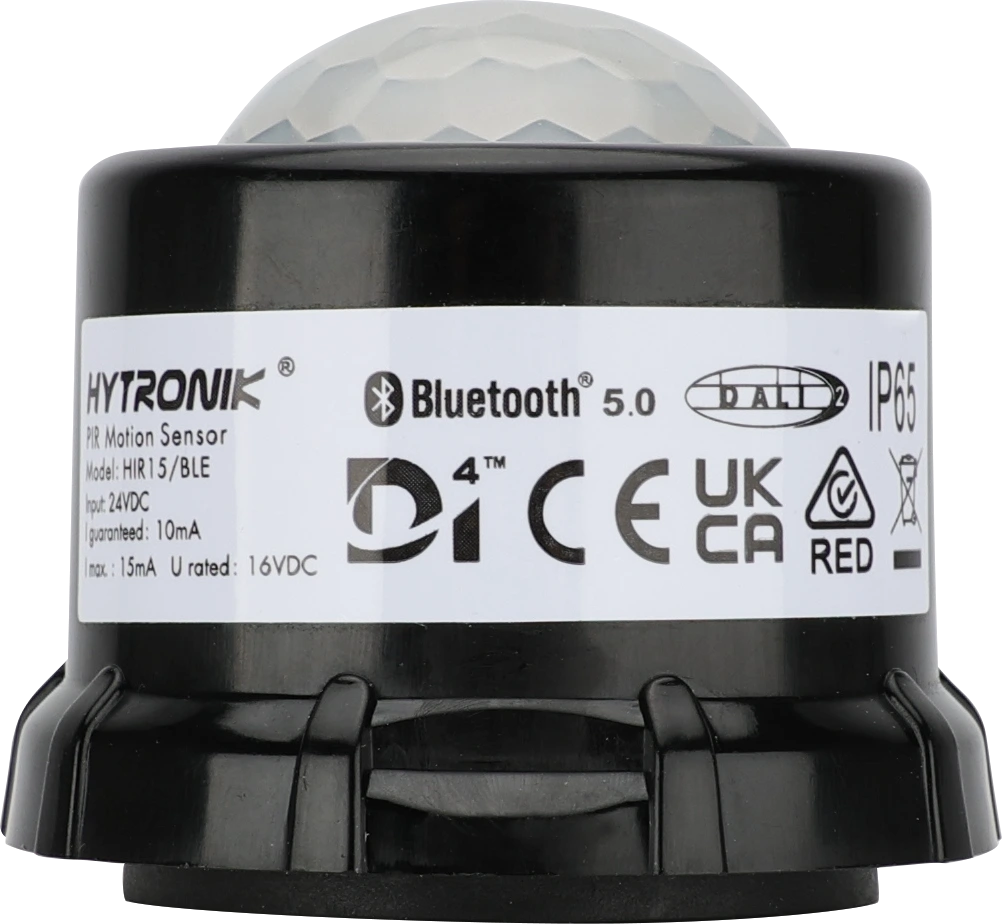

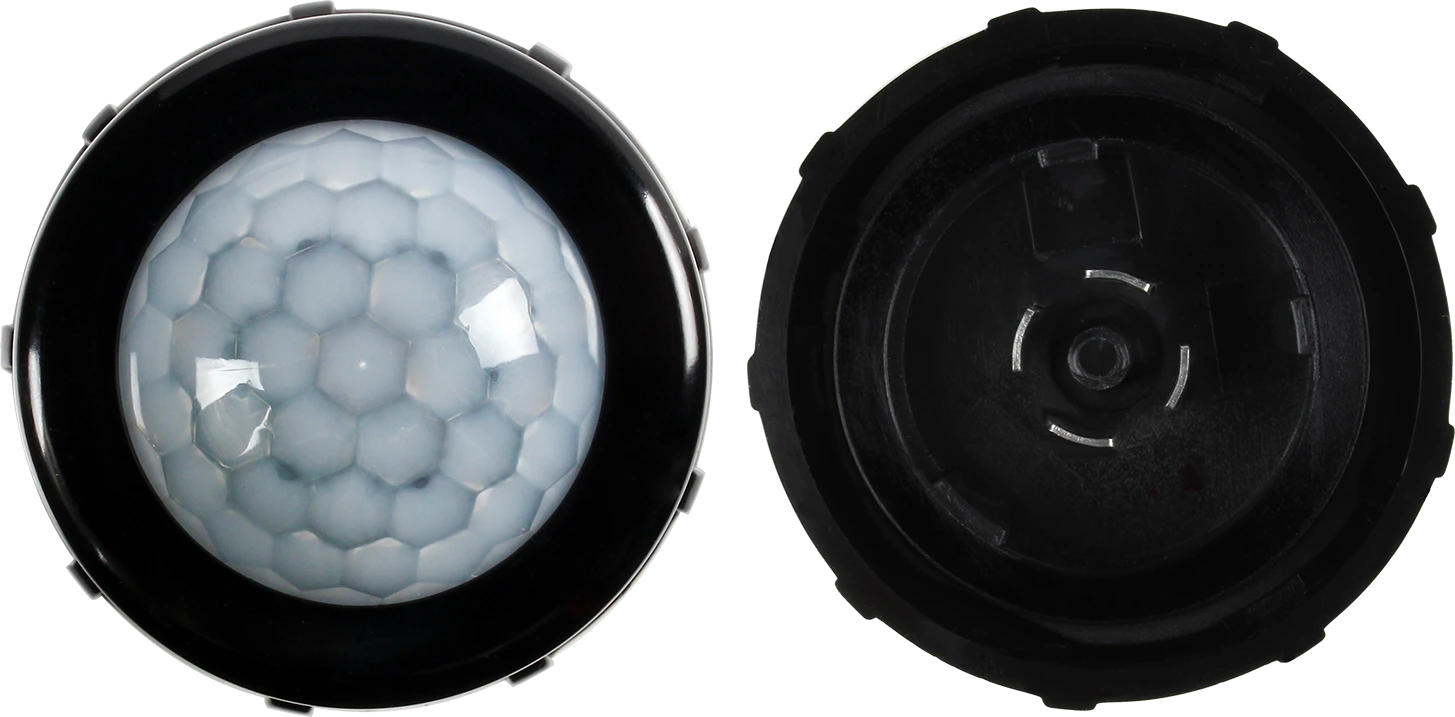

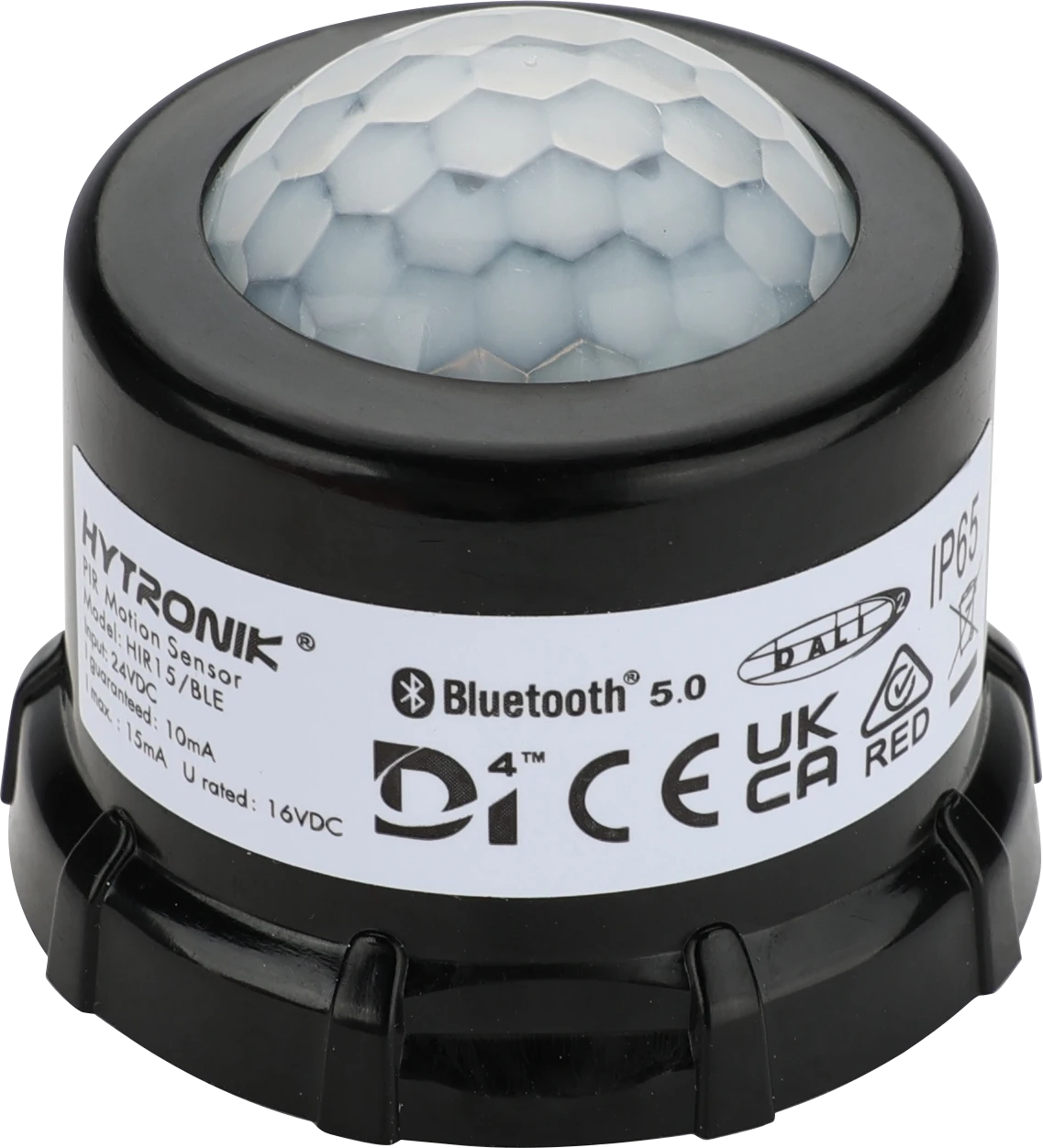

The HIR15/BLE is a Zhaga Book 18 compliant Bluetooth PIR motion sensor with D4i certification. It is designed to work with D4i drivers and additionally features an integrated DALI bus power supply that feeds the DALI bus when the driver does not provide one; the sensor requires a 24 V auxiliary supply to operate. It supports dimming, tunable white and daylight harvesting. Thanks to its advanced photocell (Photocell Advance – Natural Light), it distinguishes natural light from artificial light and dims in open loop according to the available daylight. With IP65 protection and a maximum mounting height of 15 m, it is ideal for industrial applications. Bluetooth Mesh technology enables wireless control and fast commissioning via the Koolmesh app.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Bluetooth Platform: | Nordic nRF52832 |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range (Phone to Device) : | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth transmit power: | 4 dBm |
| Commissioning Methods: | App & Web (Bluetooth) |
| Connector Type: | Zhaga book 18 |
| DALI-2 D4i type: | Typ D |
| Daylight Harvest: | Yes |
| Daylight Sensor Option: | Photocell Advance |
| Detection Methods: | Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (Diameter): | 24x15 |
| Dimming (Output) Interface: | DALI/DALI-2 |
| Features: | Daylight Harvest, Tri-level (Corridor Function), Tunable White Control / HCL |
| Human Centric Lightning (HCL): | Yes |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP65 |
| Installation Type: | Built-in, Zhaga |
| Lens type: | High-bay |
| Maximum Mounting Height: | 15.0000 m |
| Mounting Height: | Mid & High-bay |
| Operating voltage range: | 24VDC |
| Product Status: | Active / Make to Stock |
| Product height: | 43.8000 mm |
| Product length: | 50.4000 mm |
| Product weight: | 40.0000 g |
| Product width: | 50.4000 mm |
| Required DALI Current: | 2.0000 mA |
| Sensitivity: | 10%/ 30% /50% /75%/ 100% |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -25 °C |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | DC |
| Zhaga: | Yes |
