HC501S
HF Lowbay | ON/OFF | Photodiode
BENEFITS
- Compact: Super mini compact size - ON/OFF Sensor
- Autonomous: with 12-48VDC input
- Simple: Sensor settings via Dip-Switch
APPLICATIONS
- For round shape luminaire with a height of up to 6m
- Office / Meeting rooms
- Schools / Classroom
Product information "HC501S"

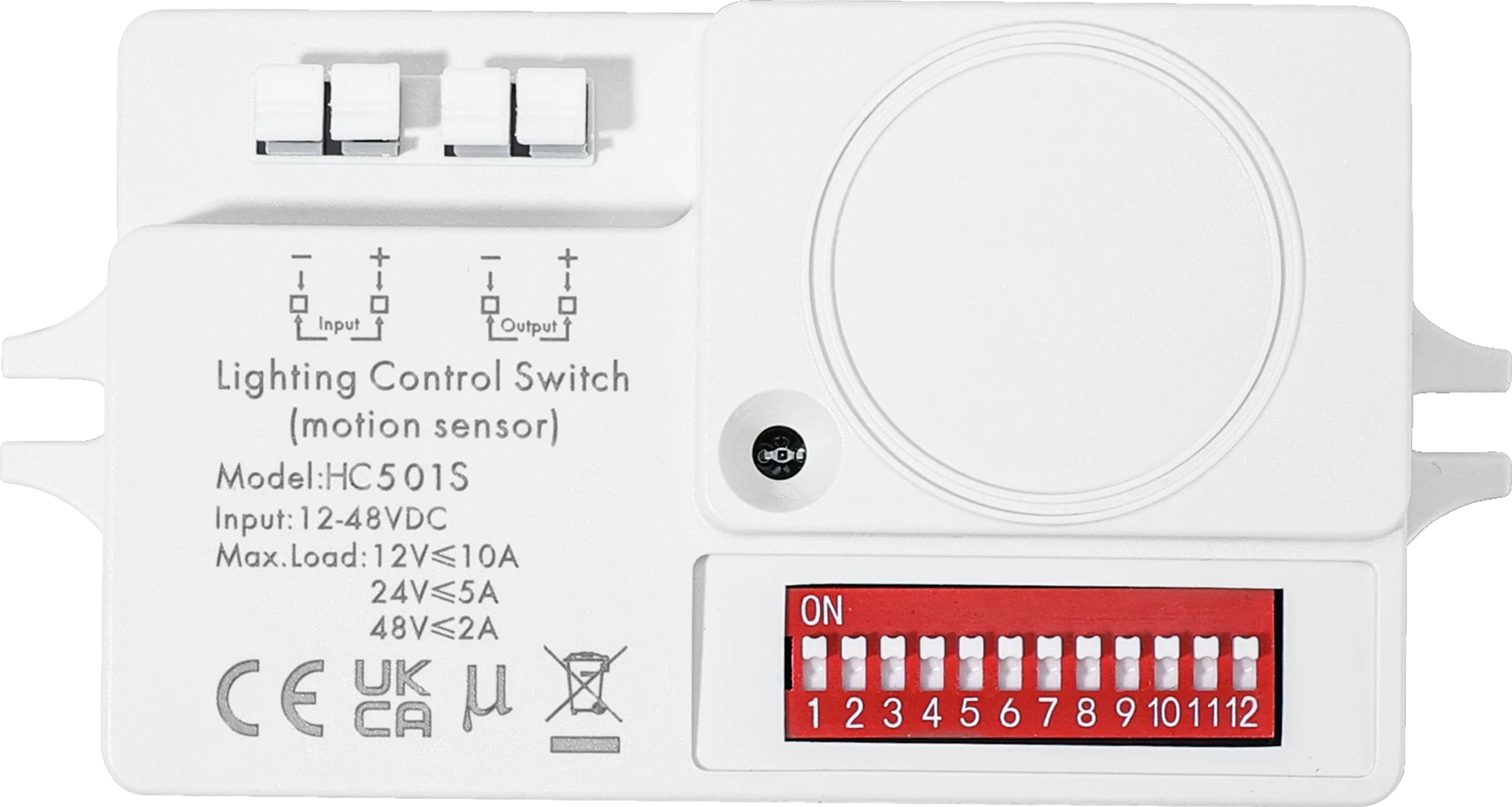

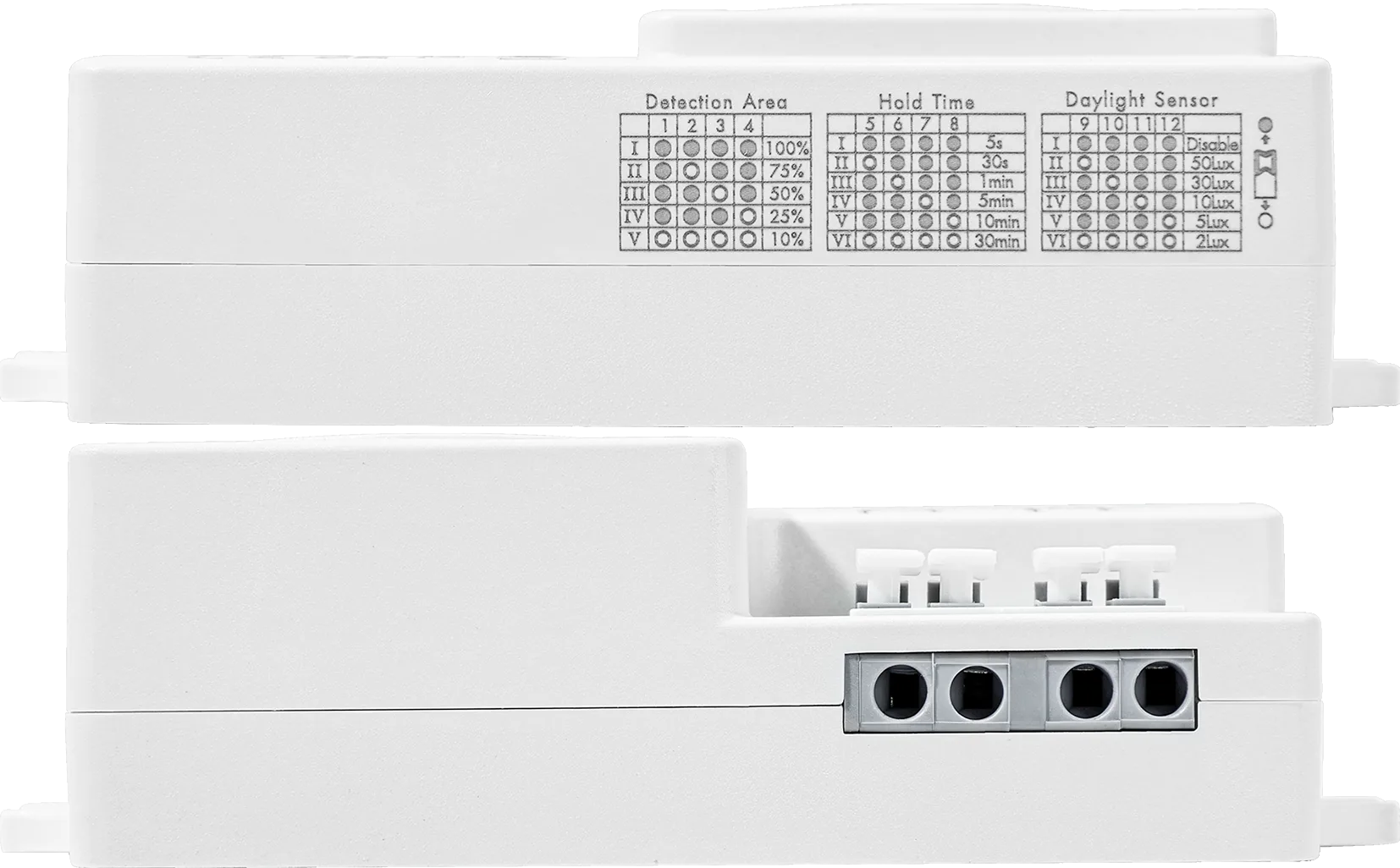

HC501S is a built-in sensor with On/Off control and relay output. It includes a daylight sensor (Photodiode PD) and Active Lux Switching technology. Suitable for installations up to 6m in height with a max detection range of Ø = 12m. Sensor settings are adjustable via DIP-Switches.
| Ambient temperature max.: | 70 °C |
|---|---|
| Ambient temperature min.: | -35 °C |
| Commissioning Methods: | DIP-switch |
| Connector Type: | Standard 2 cables |
| Daylight Harvest: | No |
| Daylight Sensor Option: | Photodiode/Photocell |
| Detection Methods: | Microwave (MW) |
| Detection angle: | 30° - 150° |
| Detection range (Diameter): | 12x6 |
| Dimming (Output) Interface: | Relay On/Off |
| Features: | Daylight Harvest |
| HF operating frequency (Ghz): | 5.8Ghz+/-75MHz |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Built-in |
| Mounting Height: | Low-bay |
| Mounting hole: | 4.2000 mm |
| Operating Voltage: | 12-48VDC |
| Output Voltage: | 12V@≤10A, 48V@≤2A |
| Product height: | 19.3000 mm |
| Product length: | 103.0000 mm |
| Product weight: | 45.0000 g |
| Product width: | 52.4000 mm |
| Storage temperature max.: | 50 °C |
| Storage temperature min.: | -20 °C |
| Tri-level (Corridor function): | No |
| Voltage Type: | DC |
| Zhaga: | No |
Datasheets
Product datasheet: hc501s.pdf
