HC049V/BT
PIR Highbay | Bluetooth with 0/1-10V | Batten-fit/Bolt-on mount
BENEFITS
- Adaptable: Removable shielding accessory for different detection ranges
- All in one: 0/1-10V + Tri-level + Daylight harvest
- Easy: Motion and Daylight harvest configuration via Koolmesh app
APPLICATIONS
- Batten-fit/Bolt-on mount style
- Wireless control integration
- Offices, Classrooms, Industry
Product information "HC049V/BT"

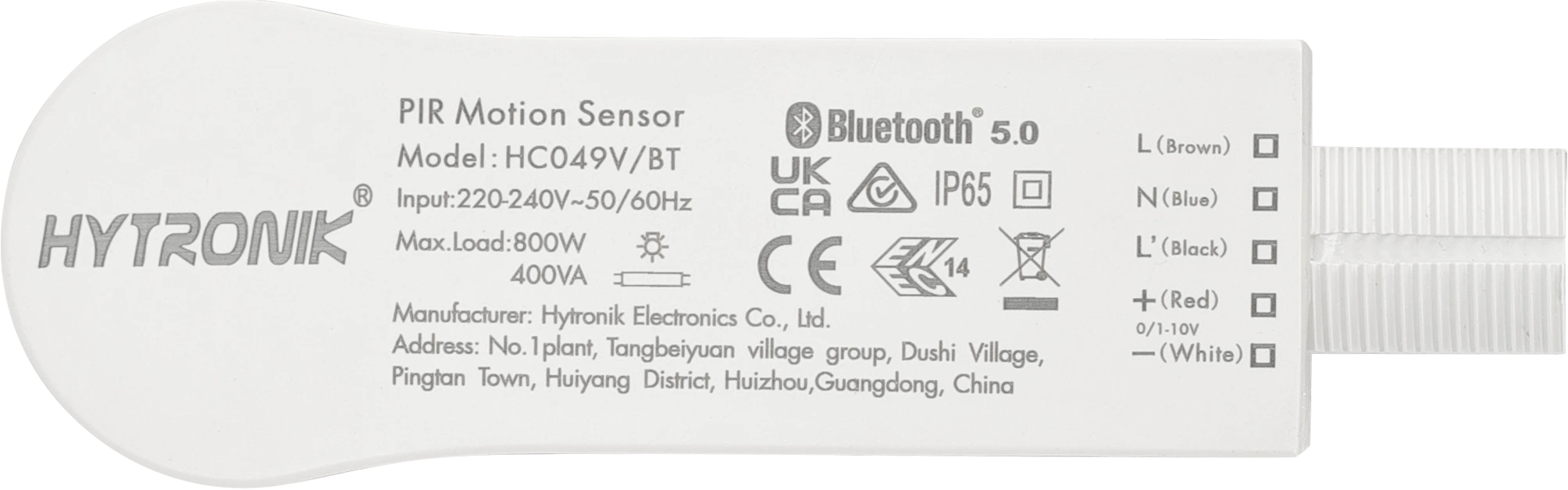

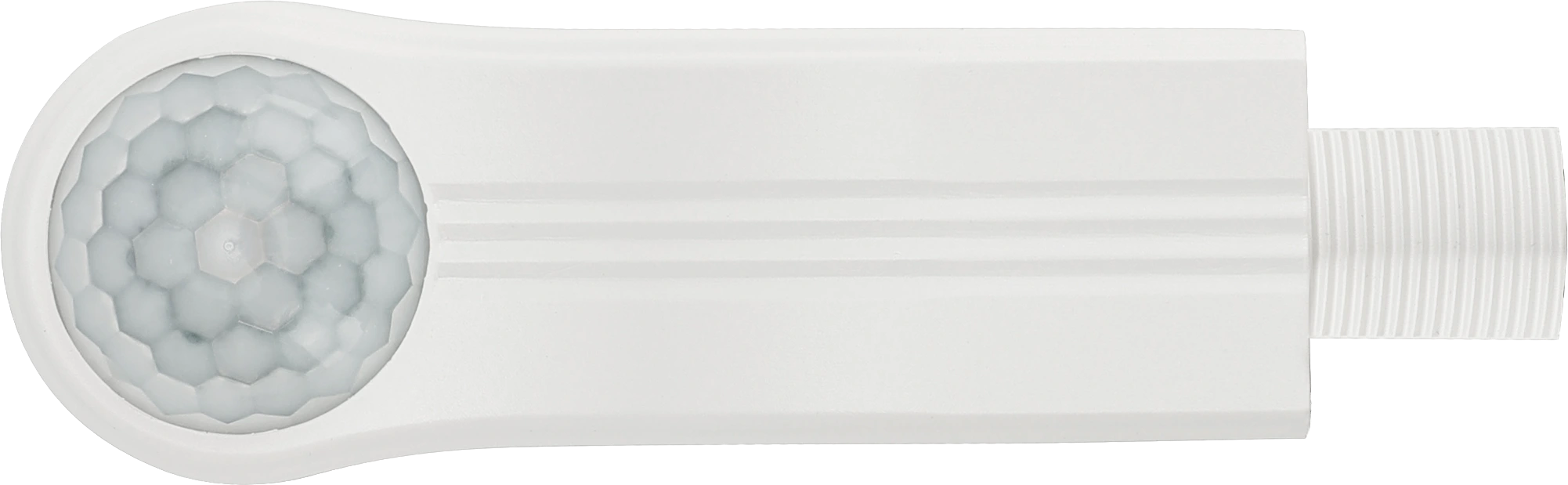

HC049V/BT is a Bluetooth 0/1-10V high-bay PIR motion sensor, with
capability of up to 15m installation height. HC049V/BT has a daylight
sensor built-in, and is specifically designed for mounting onto a batten style
luminaire. It is also designed for professional lighting manufactures who
would like to incorporate wireless control into their luminaires. HC049V/BT

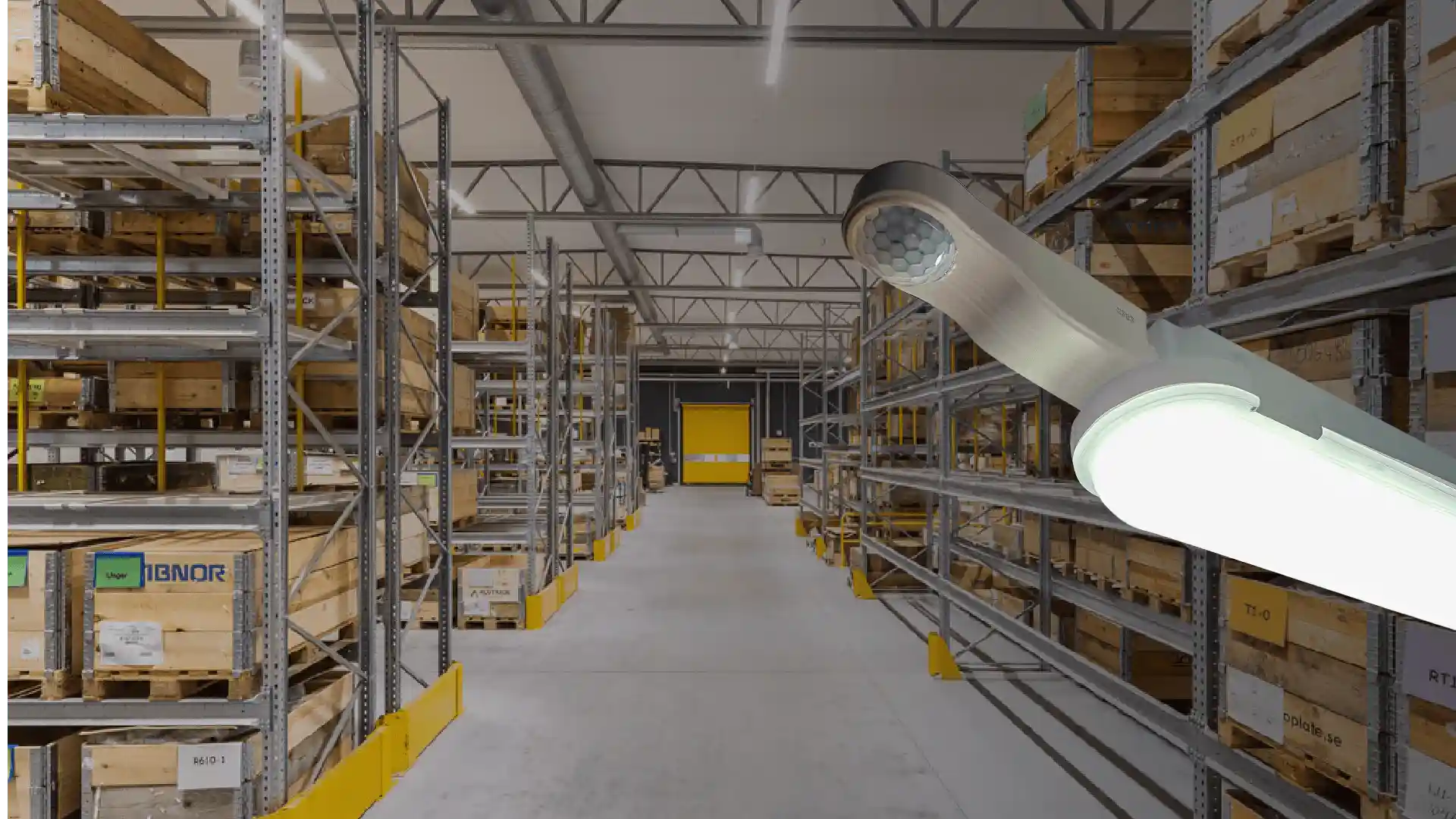

is suitable for any typical indoor applications such as office, classroom, car
park, warehouse and other commercial/industrial areas.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Bluetooth Platform: | Nordic nRF52832 |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range (Phone to Device) : | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth transmit power: | 4 dBm |
| Commissioning Methods: | App & Web (Bluetooth) |
| Connector Type: | Standard 2 cables |
| Daylight Harvest: | Yes |
| Daylight Sensor Option: | Photodiode/Photocell |
| Detection Methods: | Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (Diameter): | 16x15 |
| Dimming (Output) Interface: | 0/1-10V |
| Features: | Daylight Harvest, Tri-level (Corridor Function) |
| Human Centric Lightning (HCL): | Yes |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP65 |
| Installation Type: | Batten Mount |
| Lens type: | High-bay |
| Maximum Mounting Height: | 15.0000 m |
| Mounting Height: | Mid & High-bay |
| Mounting hole: | 40.0000 mm |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Product height: | 28.2000 mm |
| Product length: | 107.0000 mm |
| Product weight: | 106.0000 g |
| Product width: | 34.0000 mm |
| Push Button Input: | 0 |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | AC |
| Warming-up: | 30 s |
| Zhaga: | No |
Datasheets
Product datasheet: hc049v-bt.pdf
