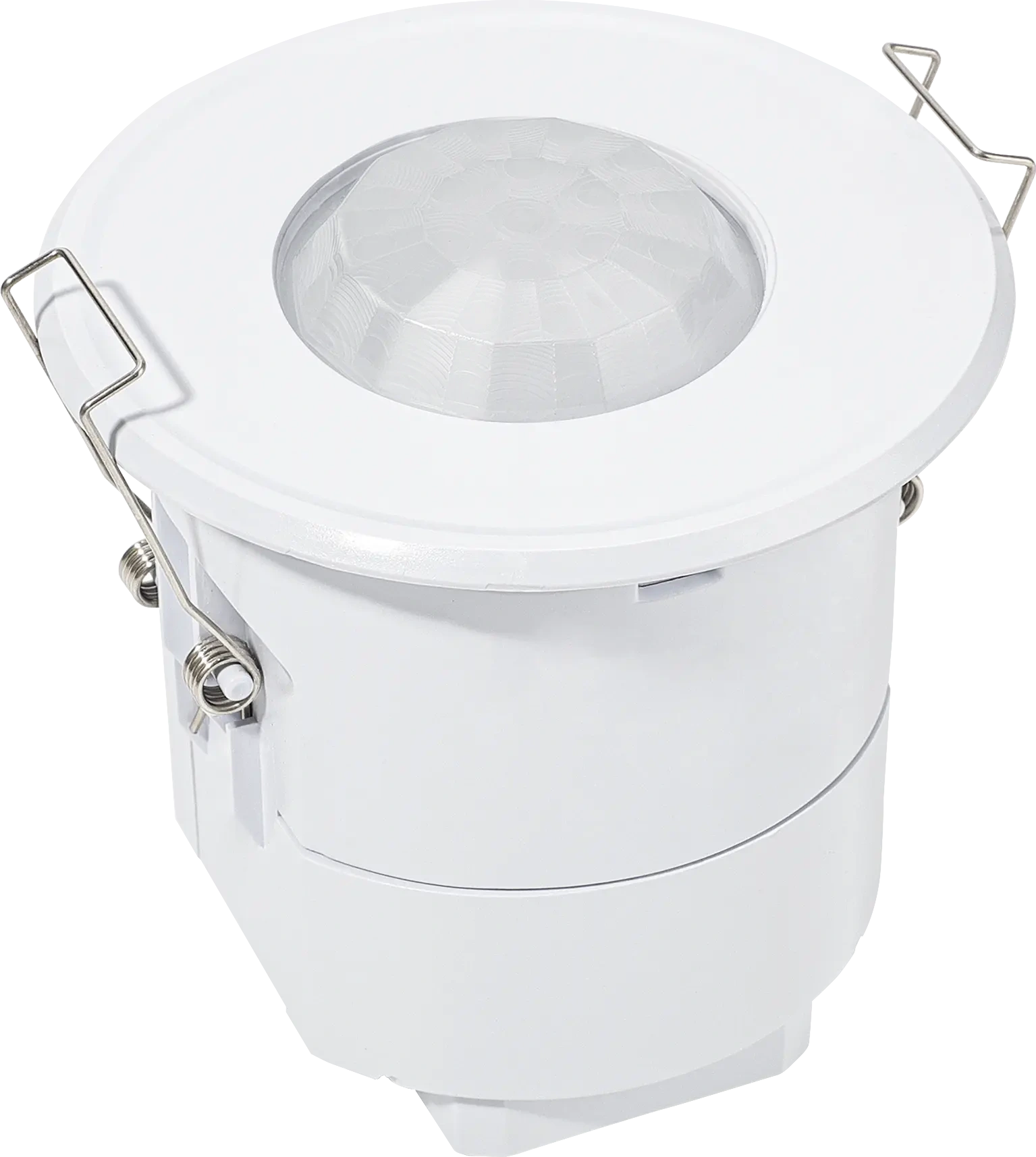

Side view of HBIR32/R PIR Low-bay Bluetooth DALI 2CH with PSU Ceiling mounting

HBIR32/R

Bluetooth Dual-Channel PIR Midbay | Integrated 80mA PSU | Ceiling Mounting

BENEFITS

Integrated: Built-in 80mA DALI power supply simplifies installation
Capable: Dual DALI channels increase device connection capacity
Simple: Wireless setup and commissioning via Koolmesh App

APPLICATIONS

Remote ceiling or surface mounting (with accessory)
Offices & Classrooms
Corridors & Staircases

Download the data sheet

Product information "HBIR32/R"

HBIR32/R is a Bluetooth dual-channel PIR motion sensor designed for tunable white DALI lighting applications in indoor commercial spaces, featuring a reinforced lens with a typical mounting height of up to 6m for reliable detection at higher mounting positions. It features two DALI output channels with a built-in 80mA DALI power supply, supporting up to 50mA on Channel 1 and 30mA on Channel 2, enabling flexible tunable white control of DALI luminaires without an additional DALI power supply. Bluetooth Mesh networking enables wireless communication between luminaires without additional control wiring, reducing installation complexity and project costs. Configuration and commissioning can be completed easily via the Koolmesh App.

Ambient temperature max.:	50 °C
Ambient temperature min.:	-20 °C
Bluetooth Platform:	Nordic nRF52832
Bluetooth frequency:	2.4 GHz - 2.483 GHz
Bluetooth range (Phone to Device) :	10-30m
Bluetooth system:	Koolmesh
Bluetooth transmit power:	4 dBm
Commissioning Methods:	App & Web (Bluetooth)
DALI max. current channel 1:	50 mA
DALI max. current channel 2:	30 mA
Daylight Harvest:	Yes
Detection Methods:	Passive Infrared (PIR)
Detection angle:	360°
Detection range (Diameter):	10x6
Dimming (Output) Interface:	DALI
Features:	Daylight Harvest, Tri-level (Corridor Function)
Human Centric Lightning (HCL):	No
Humidity max:	90 %
Humidity min:	10 %
IP Rate:	IP20
IP Rate (facial part):	IP54
Installation Type:	Stand-alone
Lens type:	Reinforced Low-bay
Maximum Mounting Height:	6.0000 m
Mounting Height:	Mid & High-bay
Mounting hole:	66.0000 mm
Operating voltage range:	220-240 VAC 50/60 Hz
Product Status:	Active / Make to Stock
Product height:	81.6000 mm
Product length:	78.0000 mm
Product weight:	86.0000 g
Product width:	78.0000 mm
Push Button Input:	3
Sensitivity:	10%/ 30% /50% /75%/ 100%
Storage temperature max.:	70 °C
Storage temperature min.:	-40 °C
Tri-level (Corridor function):	Yes
Voltage Type:	AC
Warming-up:	20 s
Zhaga:	No
