HBIR29/2CH/W

PIR Lowbay | Bluetooth DALI with PSU | 2CH

BENEFITS

Adaptable: Lens and blind variants for different detection ranges
2 channels: 50mA DALI for 25 drivers and voltage-free contact
Easy: Motion and Daylight harvest configuration via Koolmesh app

APPLICATIONS

Standalone installation for ceiling up to 6m
Classrooms with blackboards and student zones

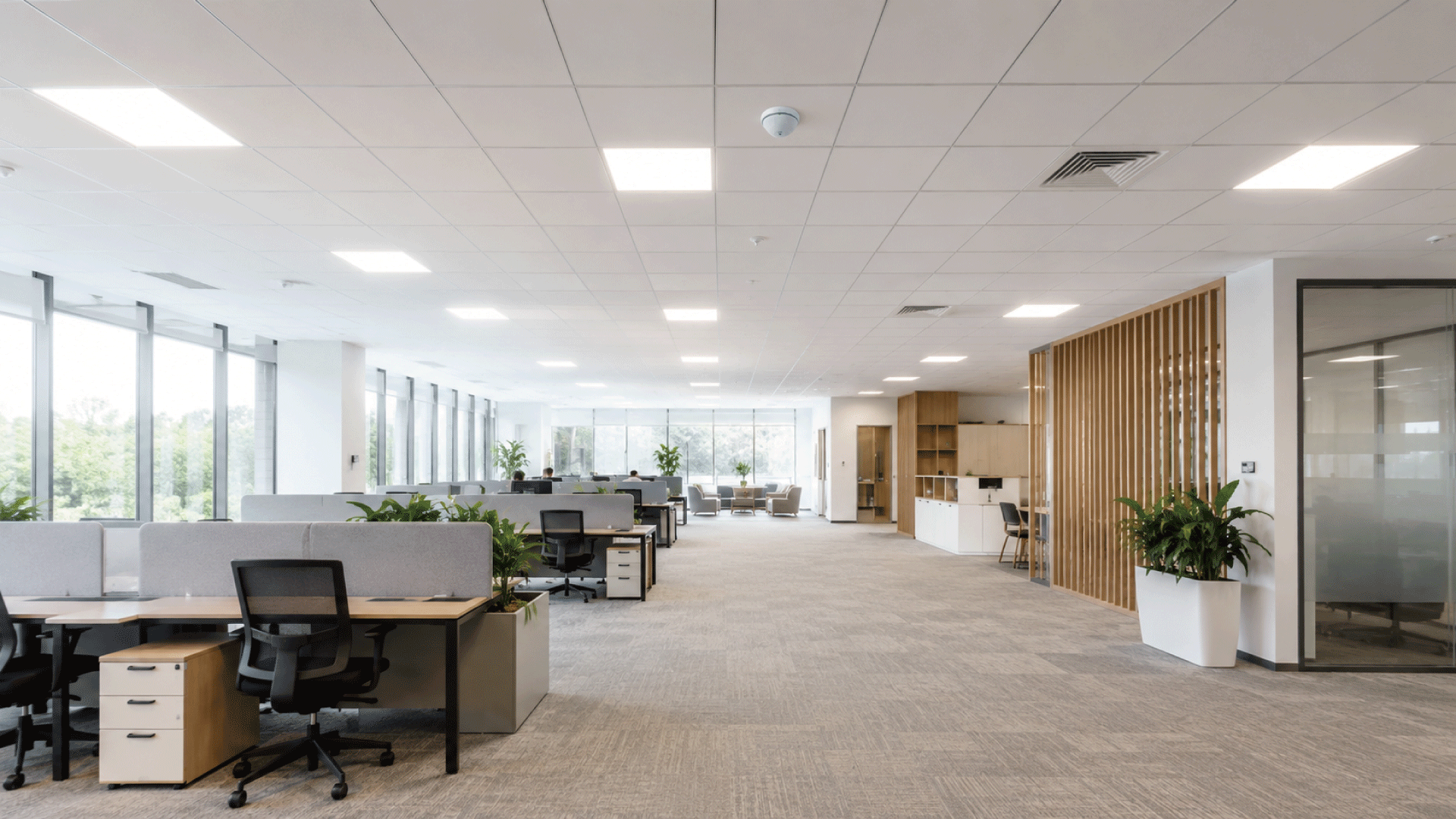

Offices with two zones

Product information "HBIR29/2CH/W"

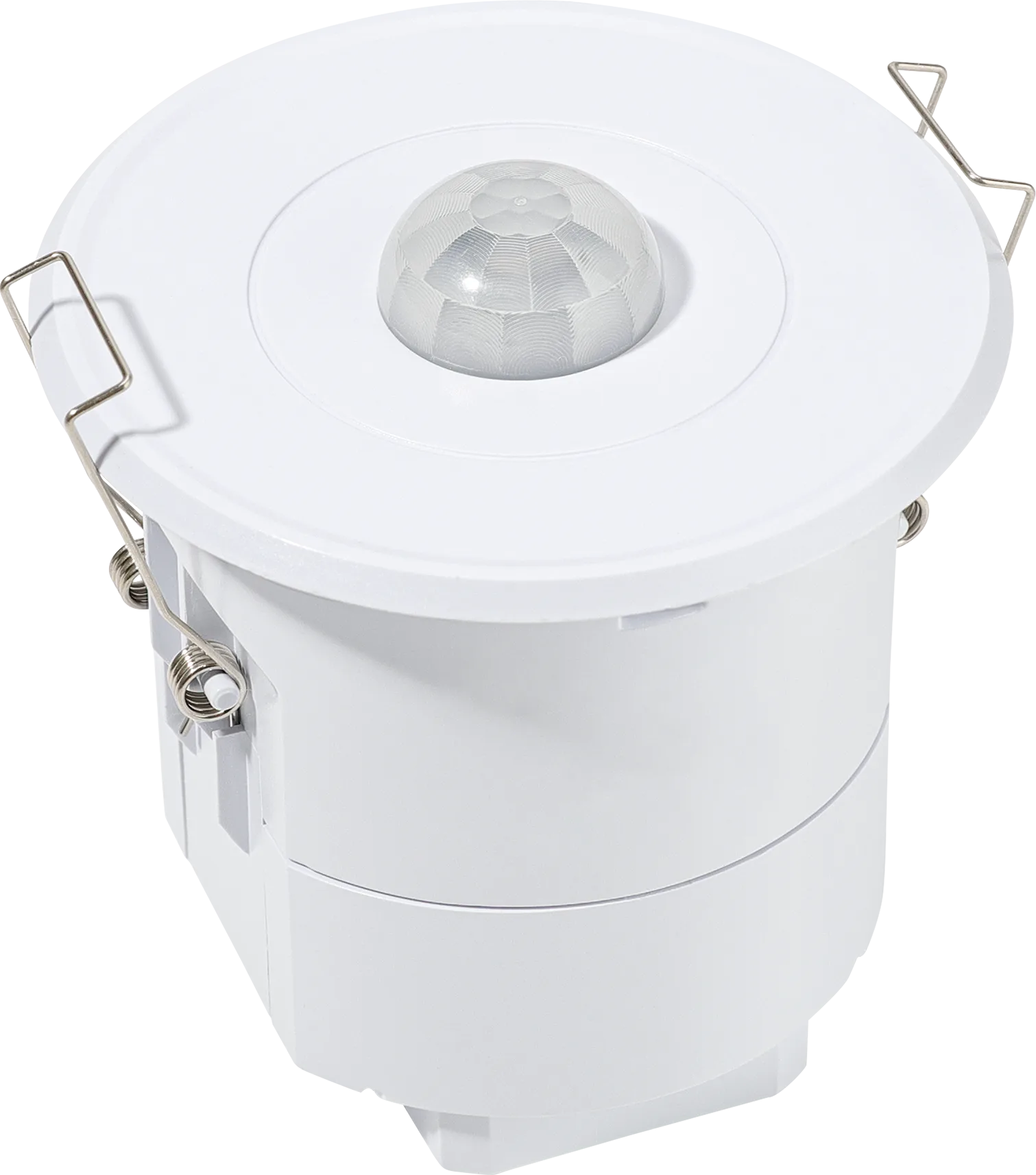

HBIR29/2CH is a Bluetooth PIR standalone motion sensor with two independent channel outputs. It features a DALI channel output (50mA power supply) and a voltage-free contact. Bluetooth mesh networking simplifies luminaire communication, eliminating the need for hardwiring. Setup and commissioning are easily managed via the Koolmesh app.

Ambient temperature max.:	50 °C
Ambient temperature min.:	-20 °C
Bluetooth frequency:	2.4 GHz - 2.483 GHz
Bluetooth range:	10-30m
Bluetooth system:	Koolmesh
Bluetooth technology:	Nordic nRF52832
Bluetooth transmit power:	4 dBm
Commissioning Methods:	App & Web (Bluetooth)
Connector Type:	Standard 2 cables
Daylight Harvest:	Yes
Daylight Sensor Option:	Ordinary Photodiode/Photocell
Detection Methods:	Passive Infrared (PIR)
Detection angle:	360°
Detection range (DxH):	18x6
Dimming (Output) Interface:	DALI & DALI-2
Features:	Daylight Harvest, Tri-level (Corridor Function), Tunable White Control
Human Centric Lightning (HCL):	Yes
Humidity max:	90 %
Humidity min:	10 %
IP Rate:	IP20
Installation Type:	Stand-alone
Lens type:	Wide range Low-bay
Maximum Mounting Height:	6.0000 m
Mounting Height:	Low-bay
Mounting hole spacing:	66.0000 mm
Operating Voltage:	220 - 240 VAC 50/60 Hz
Product height:	81.0000 mm
Product width:	78.0000 mm
Push Button Input:	2
Required DALI Current:	50.0000 mA
Storage temperature max.:	70 °C
Storage temperature min.:	-40 °C
Tri-level (Corridor function):	Yes
Voltage Type:	AC
Warming-up:	20 s
Zhaga:	No
