HBIR29/2CH/R
PIR Lowbay | Bluetooth DALI + Circadian Rhythm | 2CH
BENEFITS
- Adaptable: Lens and blind variants for different detection ranges
- Versatile: Tri-level dimming + Daylight harvest + Ciradian Rhyhm
- Easy: Motion and Daylight harvest configuration via Koolmesh app

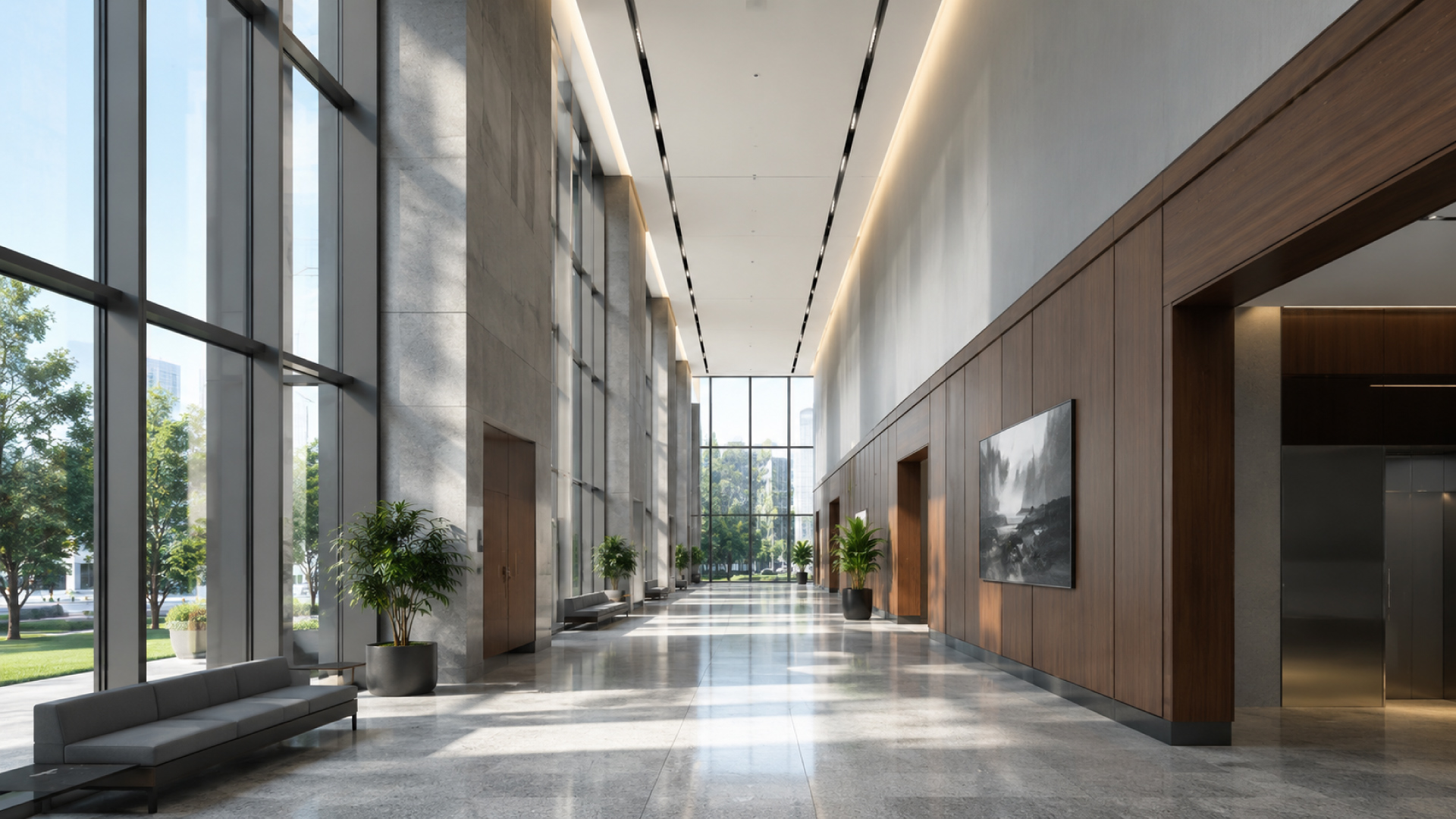

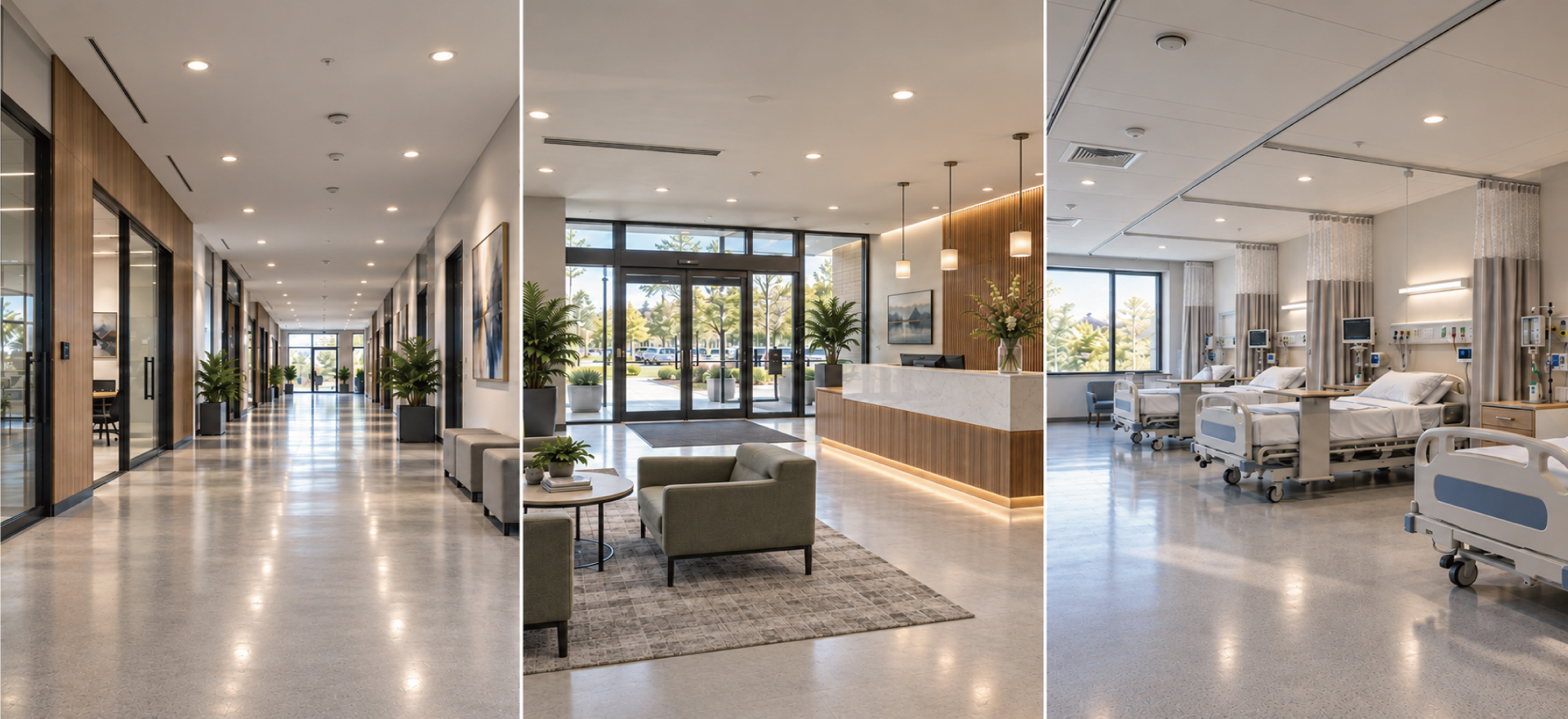

APPLICATIONS
- Standalone installation for ceiling up to 6m
- Office / Meeting rooms
- Schools / Classroom
Product information "HBIR29/2CH/R"
HBIR29/2CH/R is a Bluetooth PIR standalone motion sensor with circadian rhythm and two independent channel outputs. It features a DALI channel output (50mA power supply) and a voltage-free contact. Bluetooth mesh networking simplifies luminaire communication, eliminating the need for hardwiring. Setup and commissioning are easily managed via the Koolmesh app.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range: | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth technology: | Nordic nRF52832 |
| Bluetooth transmit power: | 4 dBm |
| Commissioning Methods: | App & Web (Bluetooth) |
| Connector Type: | Standard 2 cables |
| DALI max. current channel 1: | 50 mA |
| Daylight Harvest: | No |
| Daylight Sensor Option: | Ordinary Photodiode/Photocell |
| Detection Methods: | Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (DxH): | 10x6 |
| Dimming (Output) Interface: | DALI, Volt-free Contact (VFC) |
| Features: | Daylight Harvest, Tri-level (Corridor Function), Tunable White Control |
| Human Centric Lightning (HCL): | Yes |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Stand-alone |
| Lens type: | Reinforced Low-bay |
| Maximum Mounting Height: | 6.0000 m |
| Mounting Height: | Low-bay |
| Mounting hole: | 66.0000 mm |
| Operating Voltage: | 220-240 VAC 50/60 Hz |
| Product height: | 77.6000 mm |
| Product width: | 78.0000 mm |
| Push Button Input: | 2 |
| Required DALI Current: | 50.0000 mA |
| Storage temperature max.: | 90 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | AC |
| Warming-up: | 20 s |
| Zhaga: | No |
