HBIR29/2CH/H
Bluetooth Dual-Channel PIR Highbay | DALI and VFC Output | Ceiling mounting
BENEFITS
- Adaptable: Options of blind inserts and metal surface mount boxes
- Flexible: Integrated DALI PSU and VFC output for extended device control
- Simple: Wireless setup and commissioning via Koolmesh App
APPLICATIONS
- Ceiling or surface mounting (with accessory)

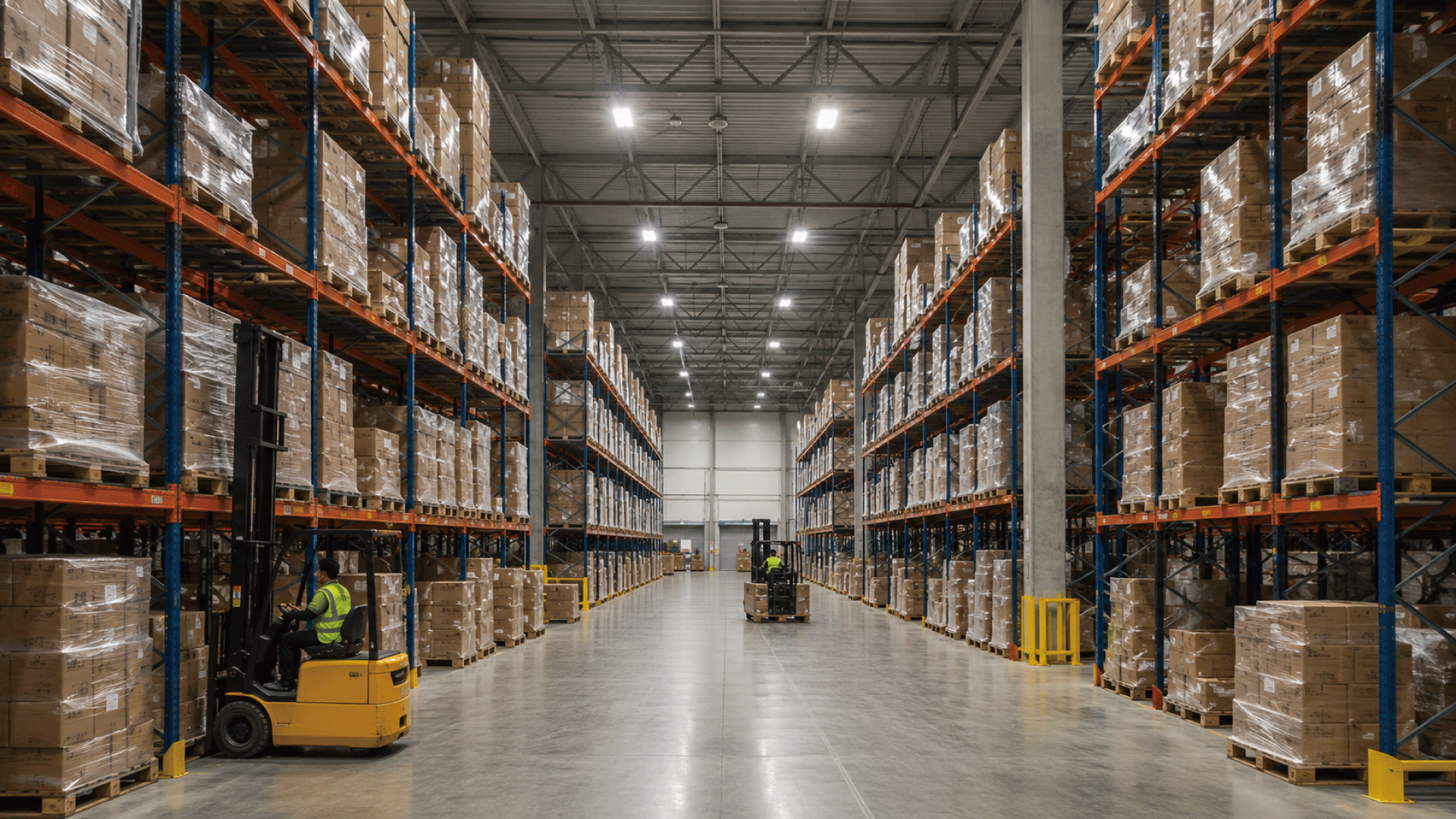

- Warehouse
- Logistics
Product information "HBIR29/2CH/H"
HBIR29/2CH/H is a Bluetooth PIR dual-channel standalone motion sensor designed for highbay indoor lighting applications, supporting a typical mounting height of up to 12m. It provides flexible control through two independent output channels, with Channel 1 featuring DALI control with a built-in 50mA DALI power supply and Channel 2 offering a voltage-free contact (VFC) normally open (NO) output for additional device control. Bluetooth Mesh networking enables wireless communication between devices without additional control wiring, reducing installation complexity and costs, especially for retrofit projects. All configuration and commissioning can be completed easily via the Koolmesh App.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Bluetooth Platform: | Nordic nRF52832 |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range (Phone to Device) : | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth transmit power: | 4 dBm |
| Commissioning Methods: | App & Web (Bluetooth) |
| Daylight Harvest: | Yes |
| Detection Methods: | Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (Diameter): | 24x15 |
| Dimming (Output) Interface: | DALI, Volt-free Contact (VFC) |
| Features: | Daylight Harvest, Tri-level (Corridor Function), Tunable White Control / HCL |
| Human Centric Lightning (HCL): | Yes |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| IP Rate (facial part): | IP54 |
| Installation Type: | Stand-alone |
| Lens type: | High-bay |
| Maximum Mounting Height: | 15.0000 m |
| Max withstandable in-rush current: | 80A@160μs |
| Mounting Height: | Mid & High-bay |
| Mounting hole: | 66.0000 mm |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Product Status: | Active / Make to Stock |
| Product height: | 84.5000 mm |
| Product length: | 78.0000 mm |
| Product weight: | 86.0000 g |
| Product width: | 78.0000 mm |
| Push Button Input: | 2 |
| Sensitivity: | 10%/ 30% /50% /75%/ 100% |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -50 °C |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | AC |
| Warming-up: | 20 s |
| Zhaga: | No |
Datasheets
Product datasheet: hbir29-2ch-h.pdf
