SCB02/BLE
Super Connection Box | Dimming & Switching | GST Types 6-poles x 14 lum. + 4 sensor
BENEFITS
- Robust: 6-poles terminals with 2 selectable channels
- Support: VFC & ELT switch + 8 lum. channel via app
- Efficient: Dimming & switching control for 14 luminaires with 4 SELV sensor
APPLICATIONS
- Low-volt (SELV) application
- Offices
- Clasrooms
Product information "SCB02/BLE"

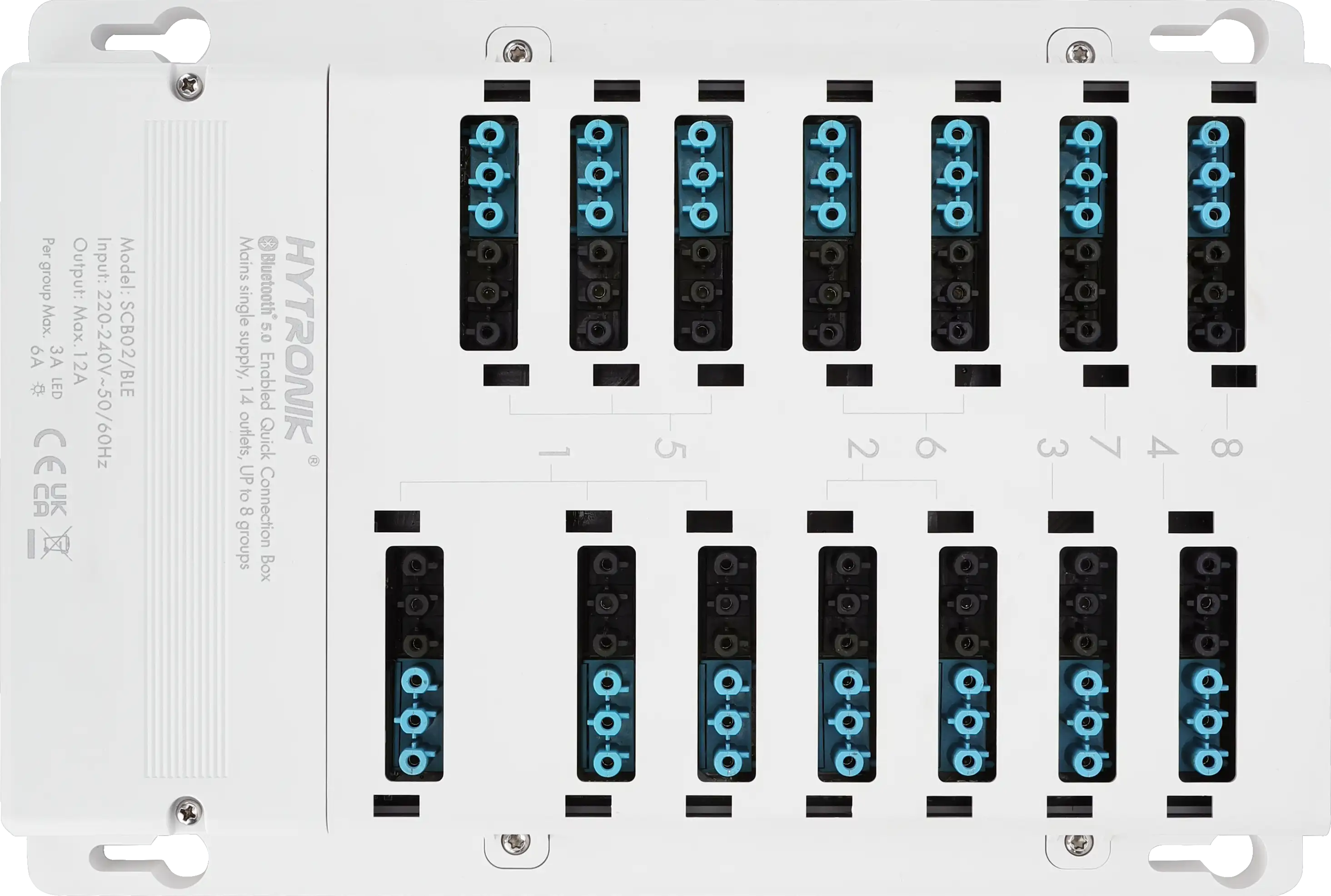

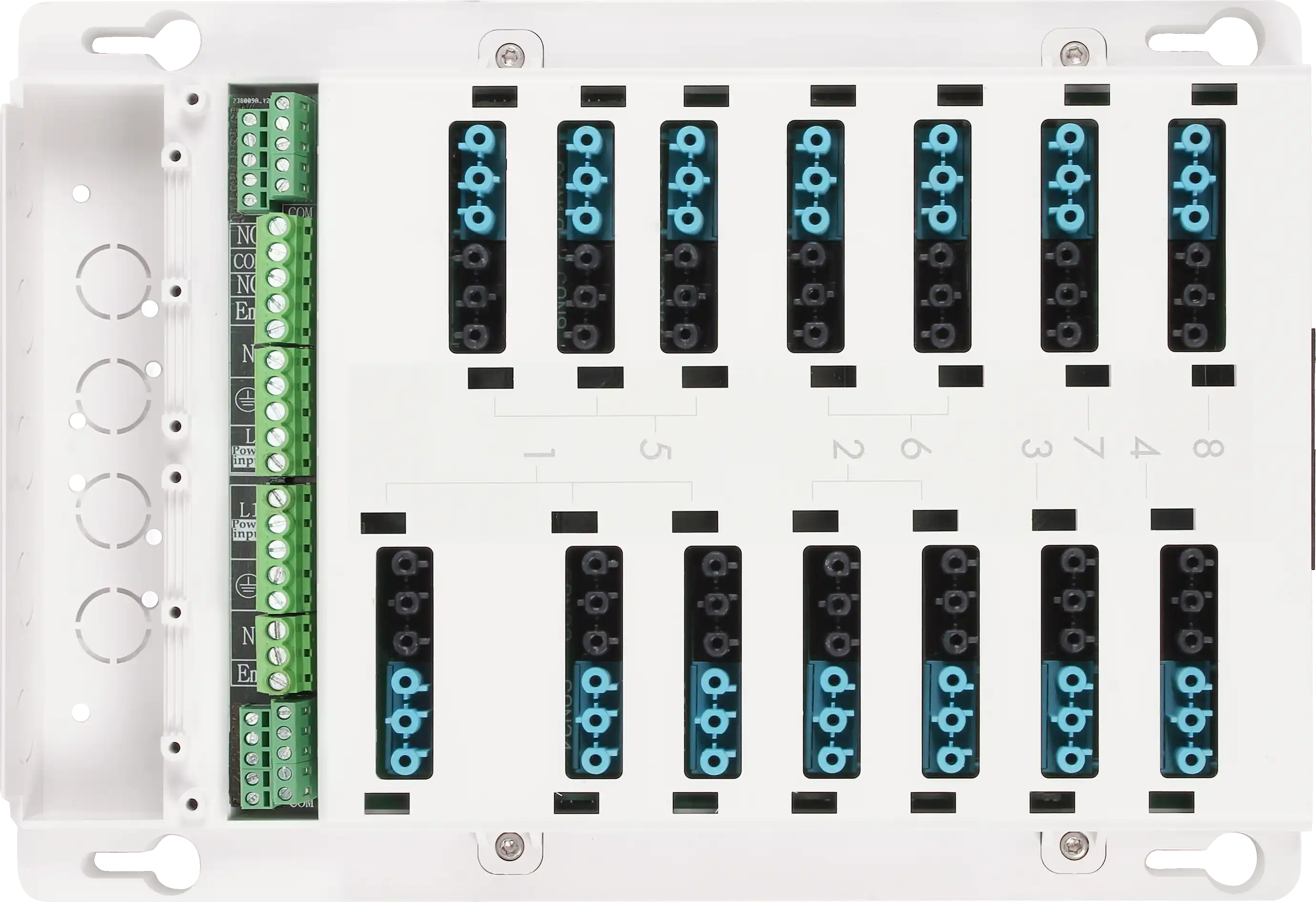

SCB02/BLE is a dual-circuit quick connection box designed for low-voltage (SELV) applications, supporting SELV sensor connections and SELV PUSH/retractive switch operations. It features a GST-type 6-pole terminal base, suitable for DALI dimming and switching applications. It provides 14 luminaire output ports, 4 SELV RJ45 sensor ports, and 10 SELV switch input ports. The box supports up to 8 luminaire channels via the app, along with an additional VFC (volt-free contact) channel and 2 ELT switch channels.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Bluetooth Platform: | Nordic nRF52840 |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range (Phone to Device) : | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth transmit power: | 4 dBm |
| Category - Modular Wiring Systems: | Dual-Circuit Connection Boxes |
| Dimming (Output) Interface: | Volt-free Contact (VFC) |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Mounting hole: | 20.0000 mm |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Output Voltage: | 220~240VAC 50/60Hz |
| Product Status: | Active / Make to Stock |
| Product height: | 47.5000 mm |
| Product length: | 335.0000 mm |
| Product weight: | 1349.0000 g |
| Product width: | 233.0000 mm |
| Push Button Input: | 4 |
| Storage temperature max.: | 60 °C |
| Storage temperature min.: | -20 °C |
| Zhaga: | No |
Datasheets
Product datasheet: scb02-ble.pdf
Installation Manual
User manual: installation-manual-scb02-ble.pdf
