SCB01/BLE
Super Connection Box | DALI Dimming & Switching | Flexible Lighting Control
BENEFITS
- Fast: GST terminal design for quick and reliable wiring
- Flexible: Multiple luminaire outputs and sensor/switch inputs
- Efficient: App-based setup enabling fast commissioning
APPLICATIONS
- Low-volt (SELV) application
- Retrofit Projects
- Office Lighting Projects
Product information "SCB01/BLE"

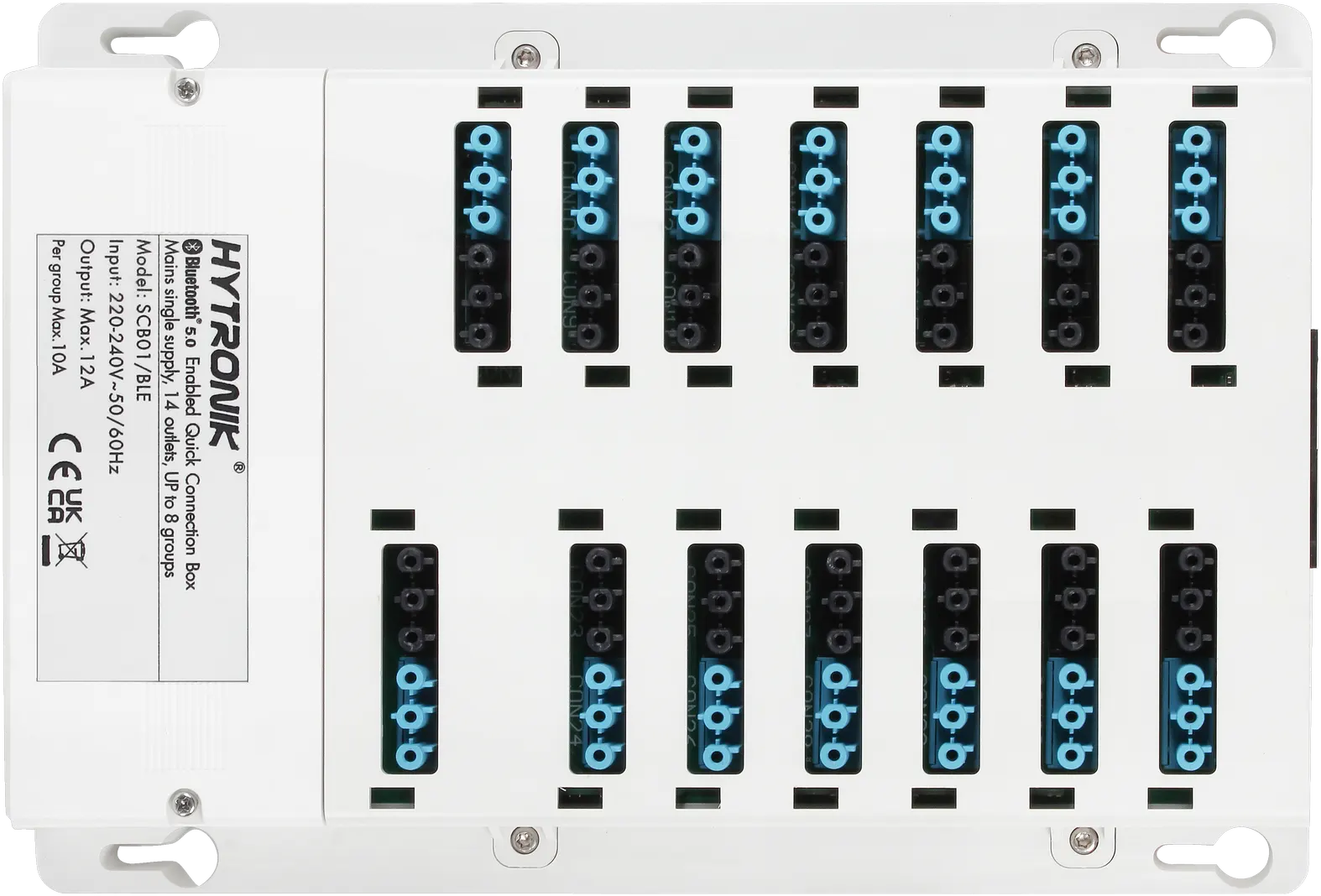

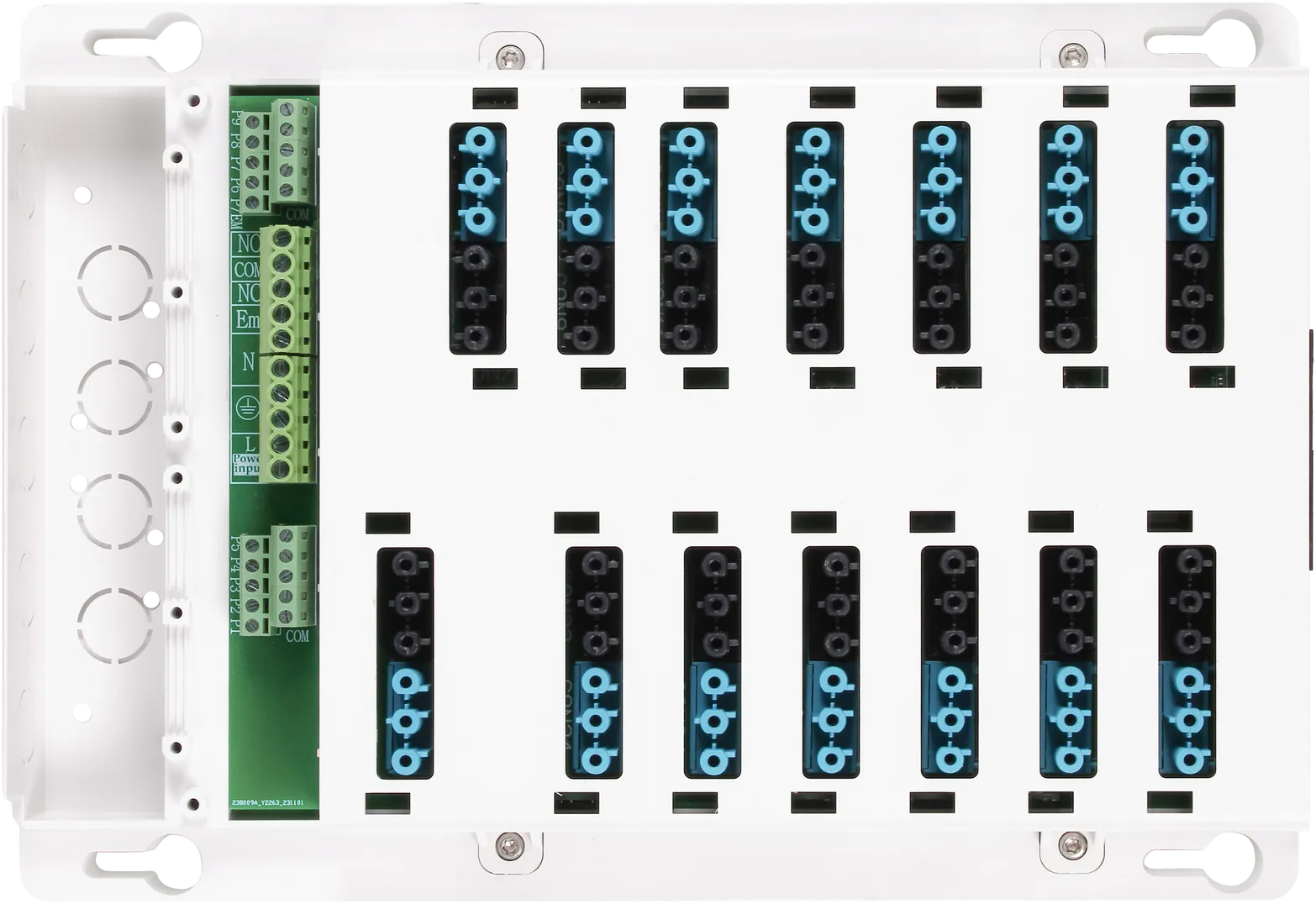

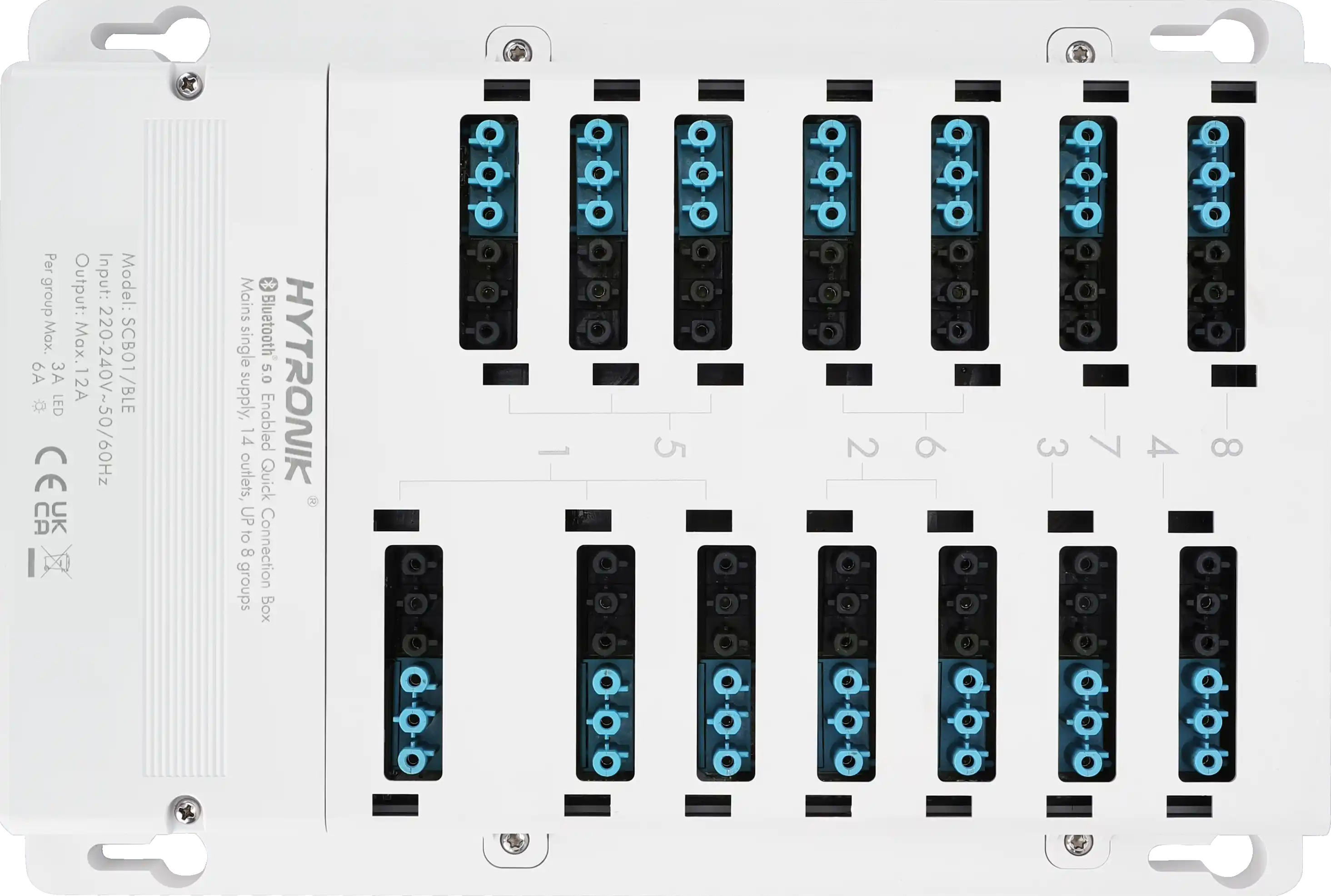

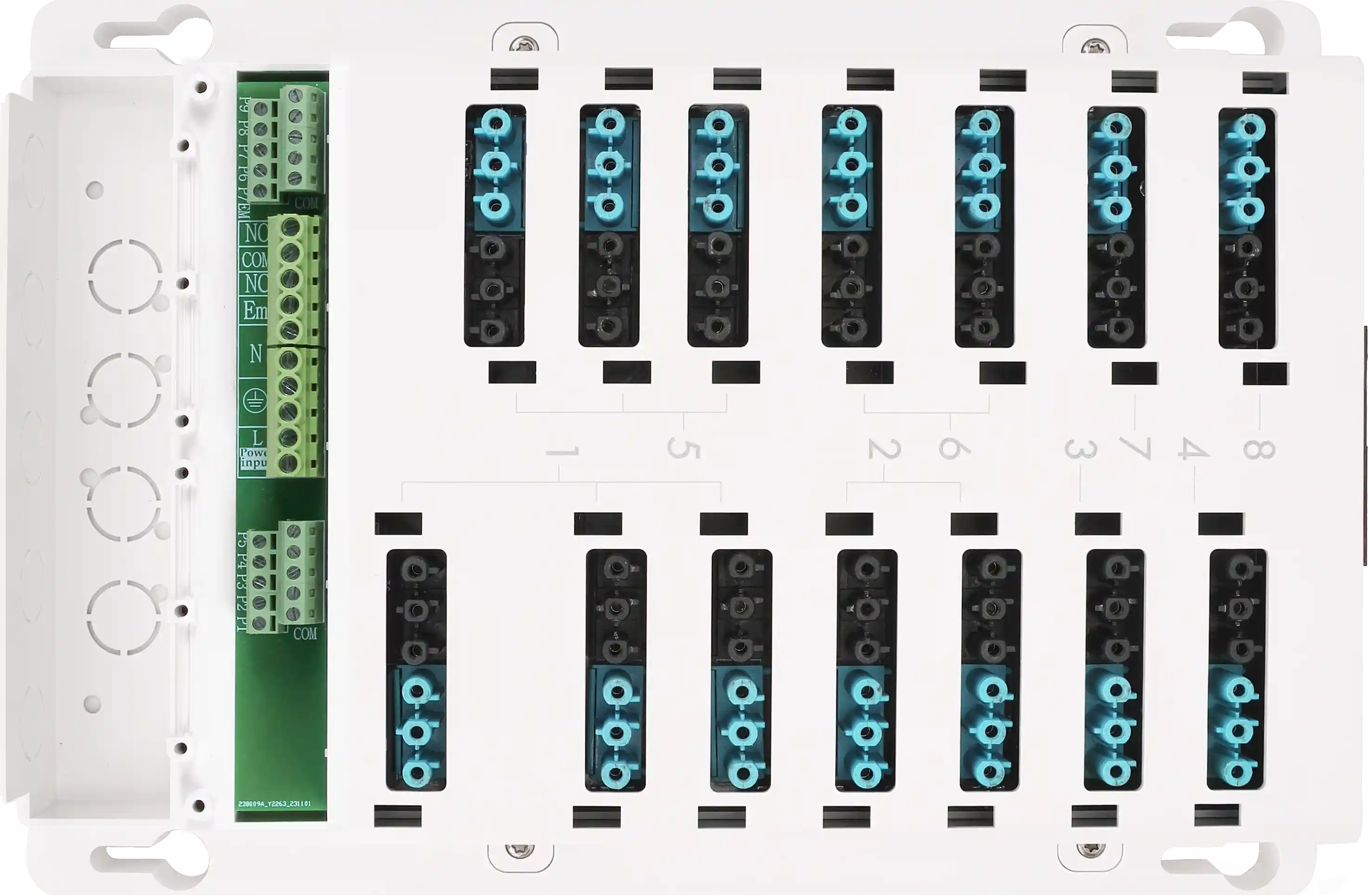

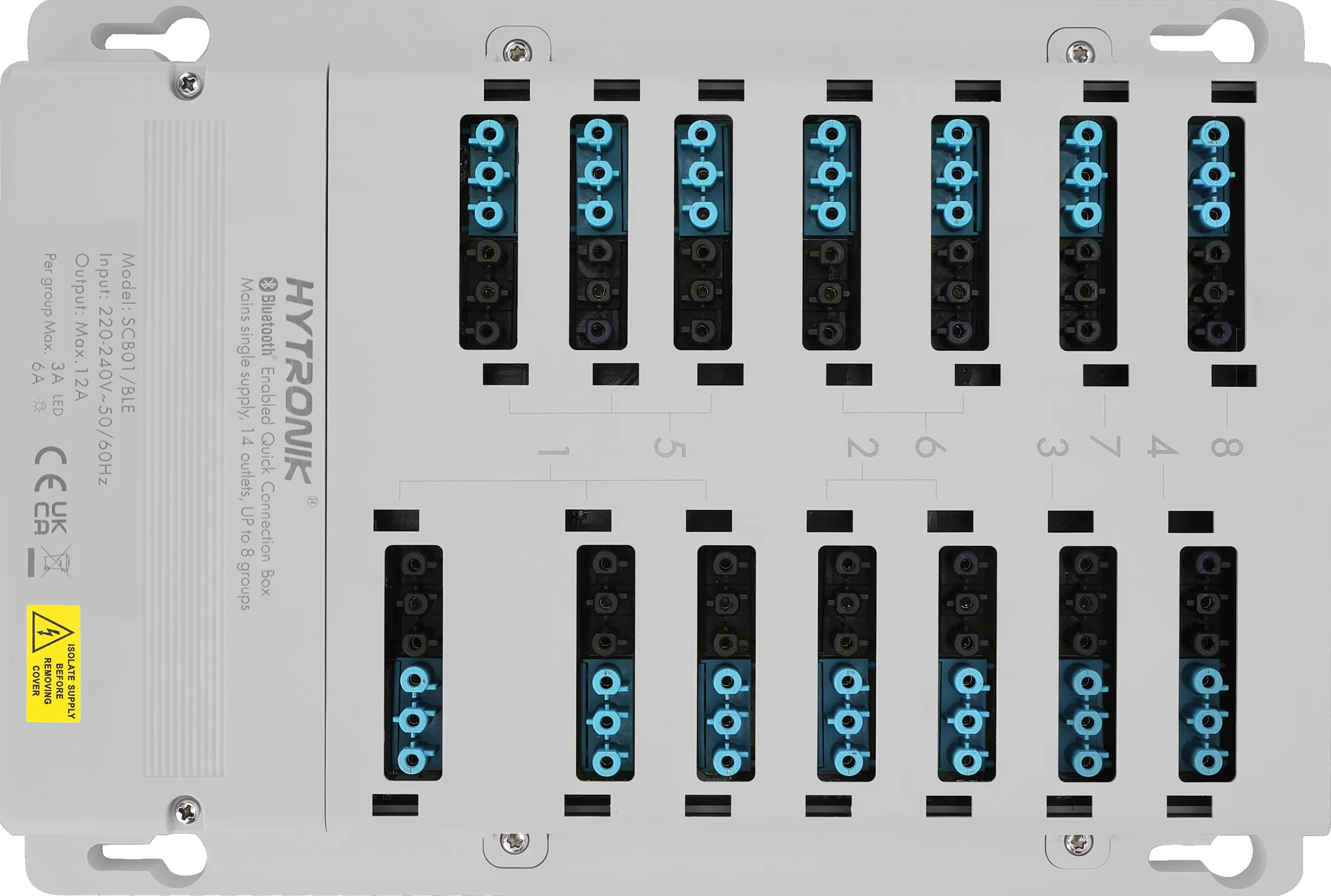

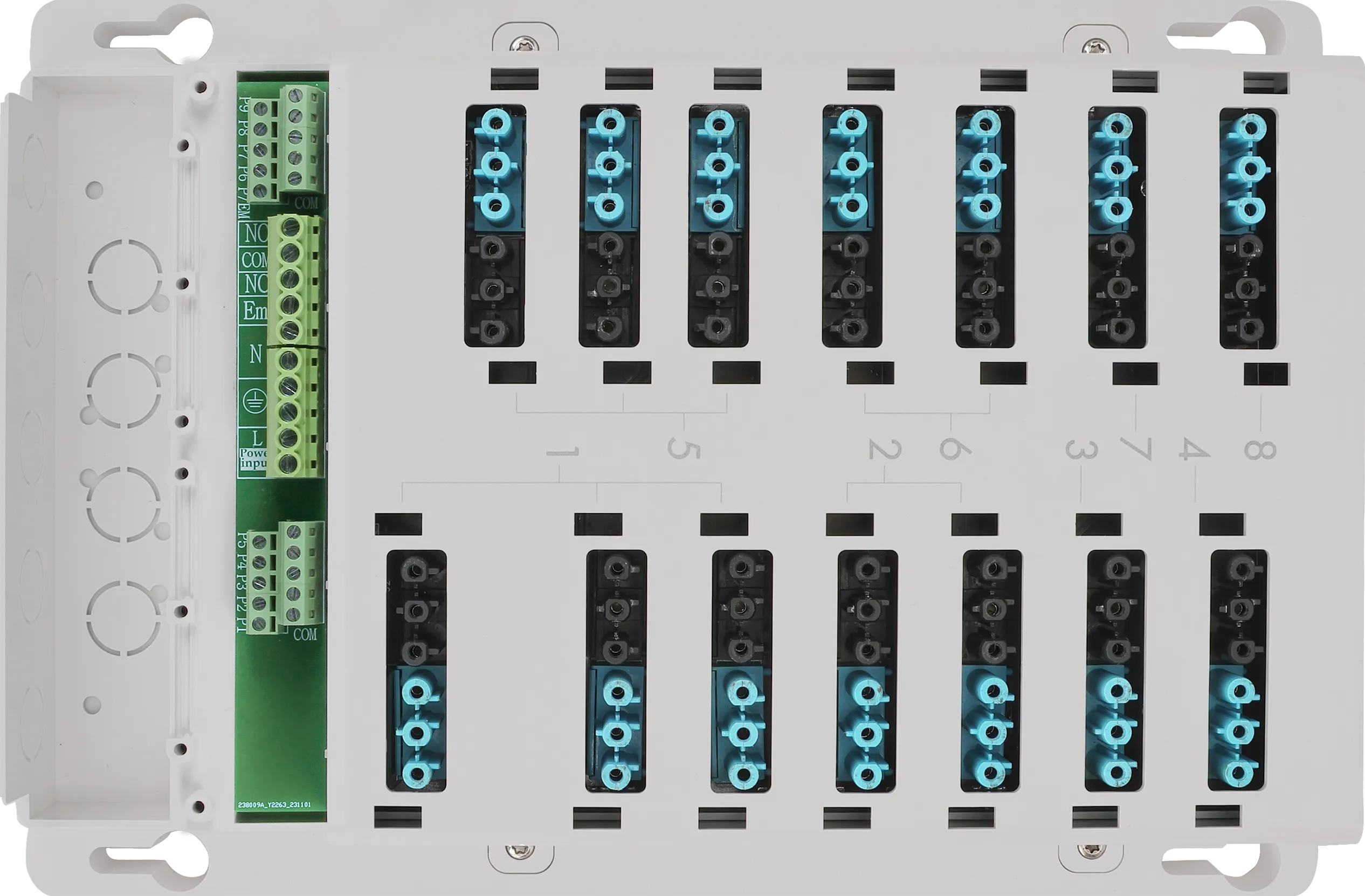

SCB01/BLE is Designed for low-volt (SELV) applcaitions with SELV sensor connection and SELV PUSH/retractive switch.GST type 6-pole terminal base quick connection box for DALI dimming & switching application, 14 luminaire outlets, 4 SELV RJ45 sensor outlets and 10 SELV switch inputs. Support up to 8 luminaire channels via app, and an extra channel for VFC (volt-free contact) and an extra channel for ELT switch.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Bluetooth Platform: | Nordic nRF52840 |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range (Phone to Device) : | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth transmit power: | 4 dBm |
| Category - Modular Wiring Systems: | Single-Circuit Connection Boxes |
| Dimming (Output) Interface: | DALI/DALI-2, Volt-free Contact (VFC) |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Mounting hole: | 20.0000 mm |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Output Voltage: | 220~240VAC 50/60Hz |
| Product Status: | Active / New |
| Product height: | 47.5000 mm |
| Product length: | 335.0000 mm |
| Product weight: | 1345.0000 g |
| Product width: | 233.0000 mm |
| Push Button Input: | 4 |
| Storage temperature max.: | 60 °C |
| Storage temperature min.: | -20 °C |
| Zhaga: | No |
Datasheets
Product datasheet: scb01-ble.pdf
Installation Manual
User manual: installation-manual-scb01-ble.pdf
