Phase-Out / Limited Availability or last orders
SAM8

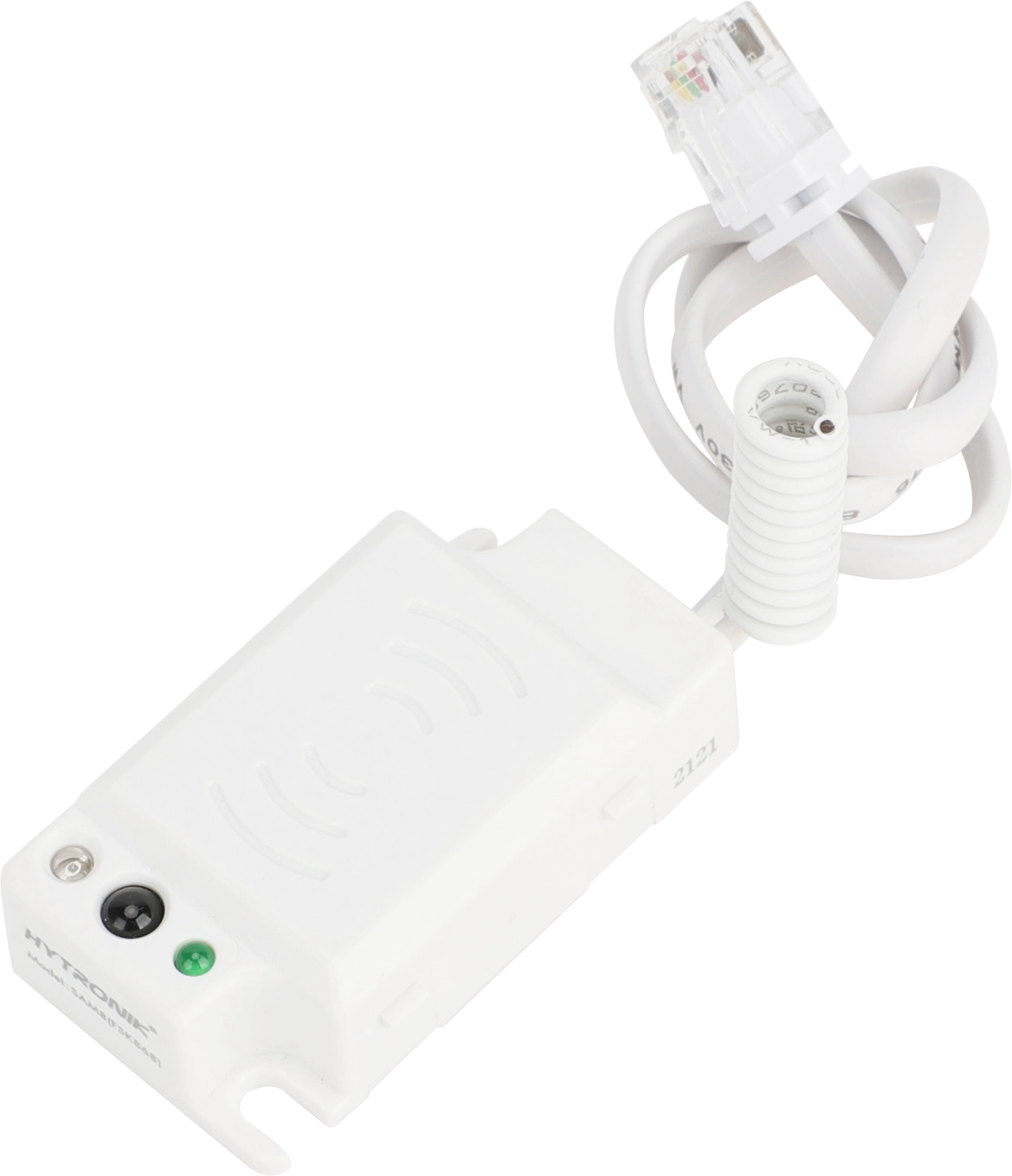

HF Lowdbay | Tri-level dimming | RJ12 connector to control body
BENEFITS
- Compact: Standard rectangular Plug&Play sensor design
- Innovative: Rotary switch for quick RF channel pair
- User-Friendly: With one-key commissioning with IR controller
APPLICATIONS
- Master luminaire with sensor
- Classrooms
- Offices
Product information "SAM8"

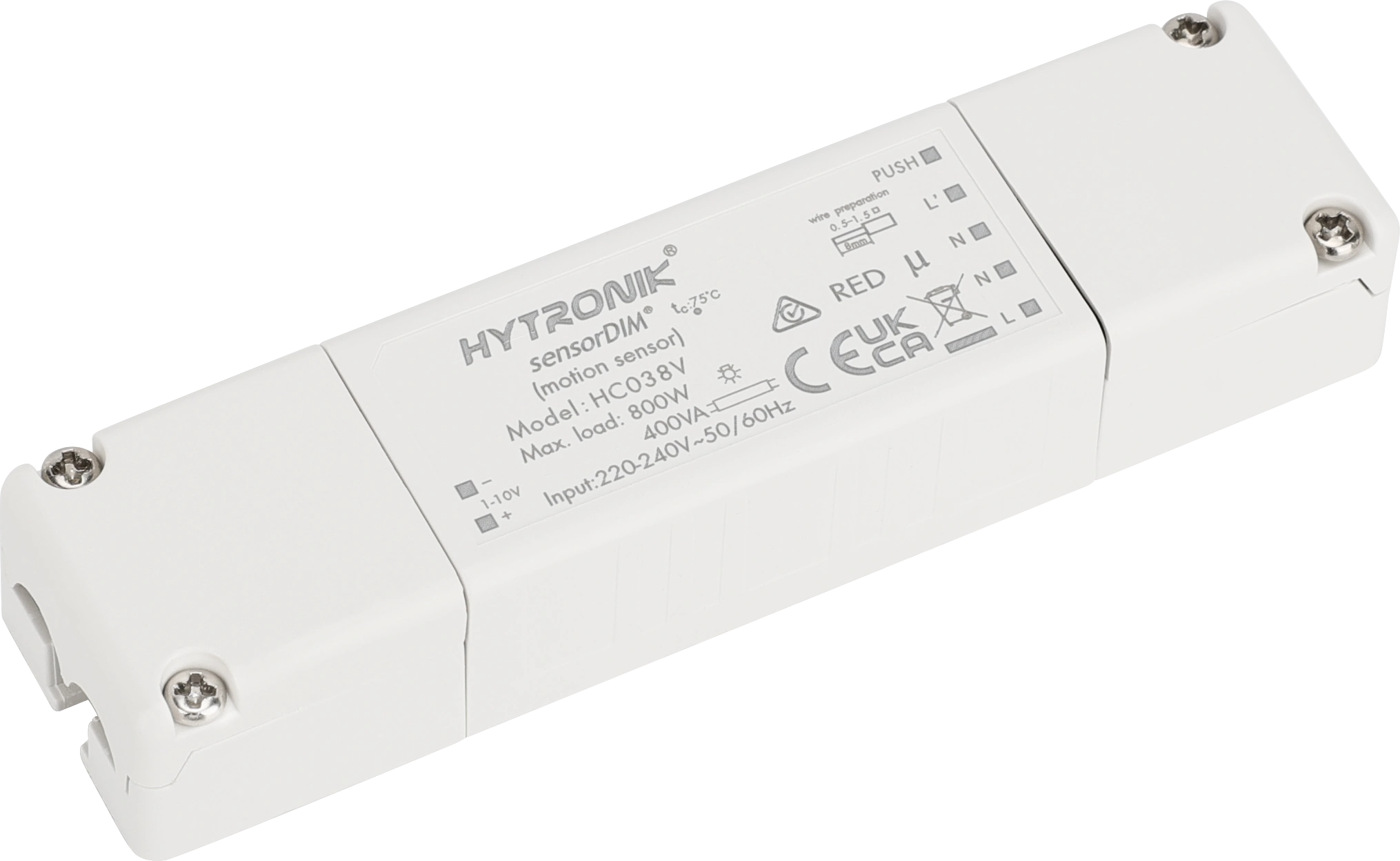

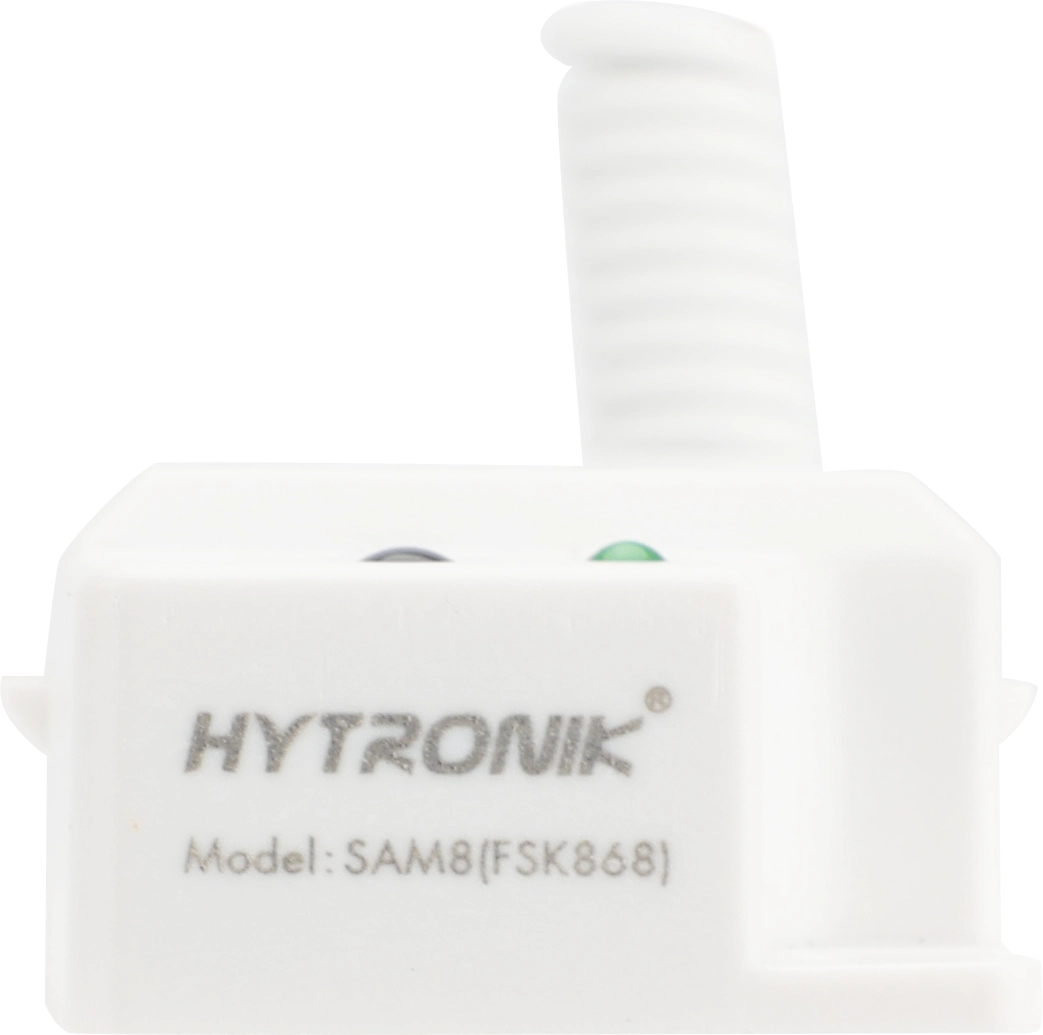

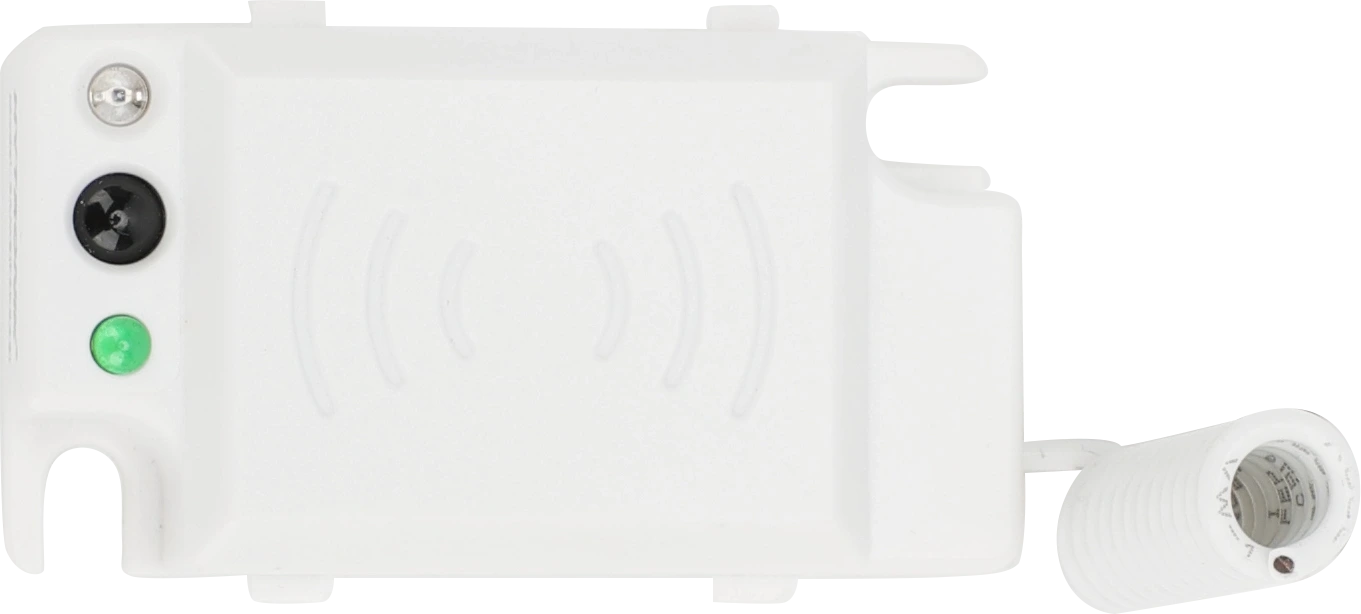

SAM8 is a HF sensor head and compatible with the Tri-level Dimming. It can work with the linear shaped control base such as HCD038Vand HCD038 It offers powerful number of Plug’n’Play feature options to expand the flexibility of luminaires design. This product has been replaced by SAM8/RC11.
| Ambient temperature max.: | 80 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | IR Remote Controller |
| Connector Type: | Standard 2 cables |
| Detection Methods: | Microwave (MW) |
| Detection angle: | 30° - 150° |
| Detection range (Diameter): | 12x6 |
| Features: | Tri-level (Corridor Function) |
| HF operating frequency (Ghz): | 5.8Ghz+/-75MHz |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 0 % |
| IP Rate: | IP20 |
| Installation Type: | Built-in, Plug & Play Sensor Heads |
| Maximum Mounting Height: | 6.0000 m |
| Mounting Height: | Low-bay |
| Operating voltage range: | 5 VDC |
| Product Status: | Phase-Out / Limited Availability or last orders |
| Product height: | 16.0000 mm |
| Product length: | 52.2000 mm |
| Product weight: | 26.0000 g |
| Product width: | 31.2000 mm |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | DC |
| Warming-up: | 20 s |
| Zhaga: | No |
Installation Manual
User manual: installation-manual-sam8.pdf
