Discontinued / Obsolete
HEM09
Emergency Driver Max.30w | Constant Current | Attachable sensor heads
BENEFITS
- Compact: Emergency driver with self-test optional remote
- 3 in 1: LED Driver + Emergency control + Sensor heads
- Flexible: Multiple current selection/Emergency power via DIP-Swiches
APPLICATIONS

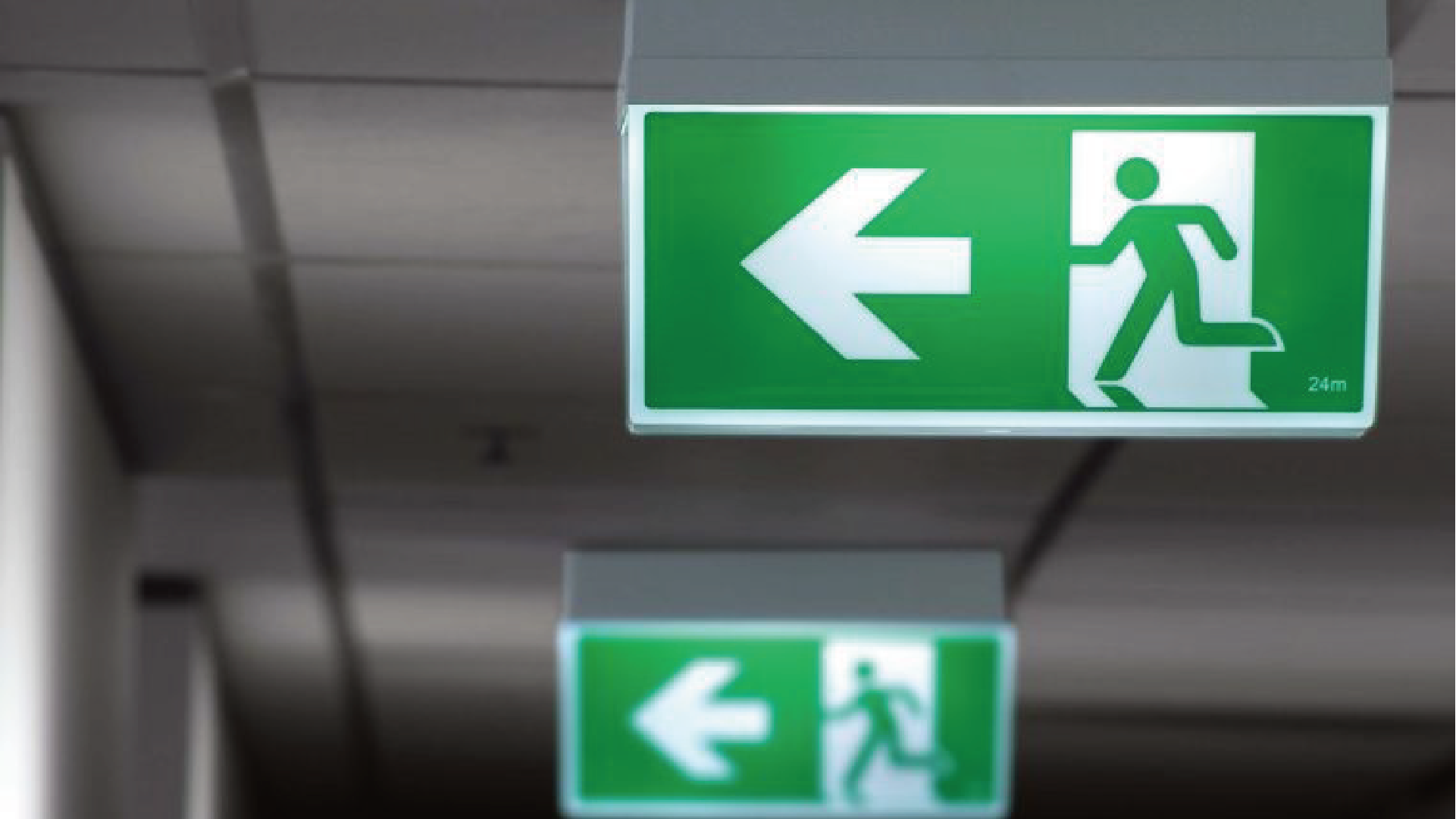

- Luminaire Built-in Emergency integration
- Utility / Back of house (Bulkhead)
- Offices, Classrooms
Product information "HEM09"

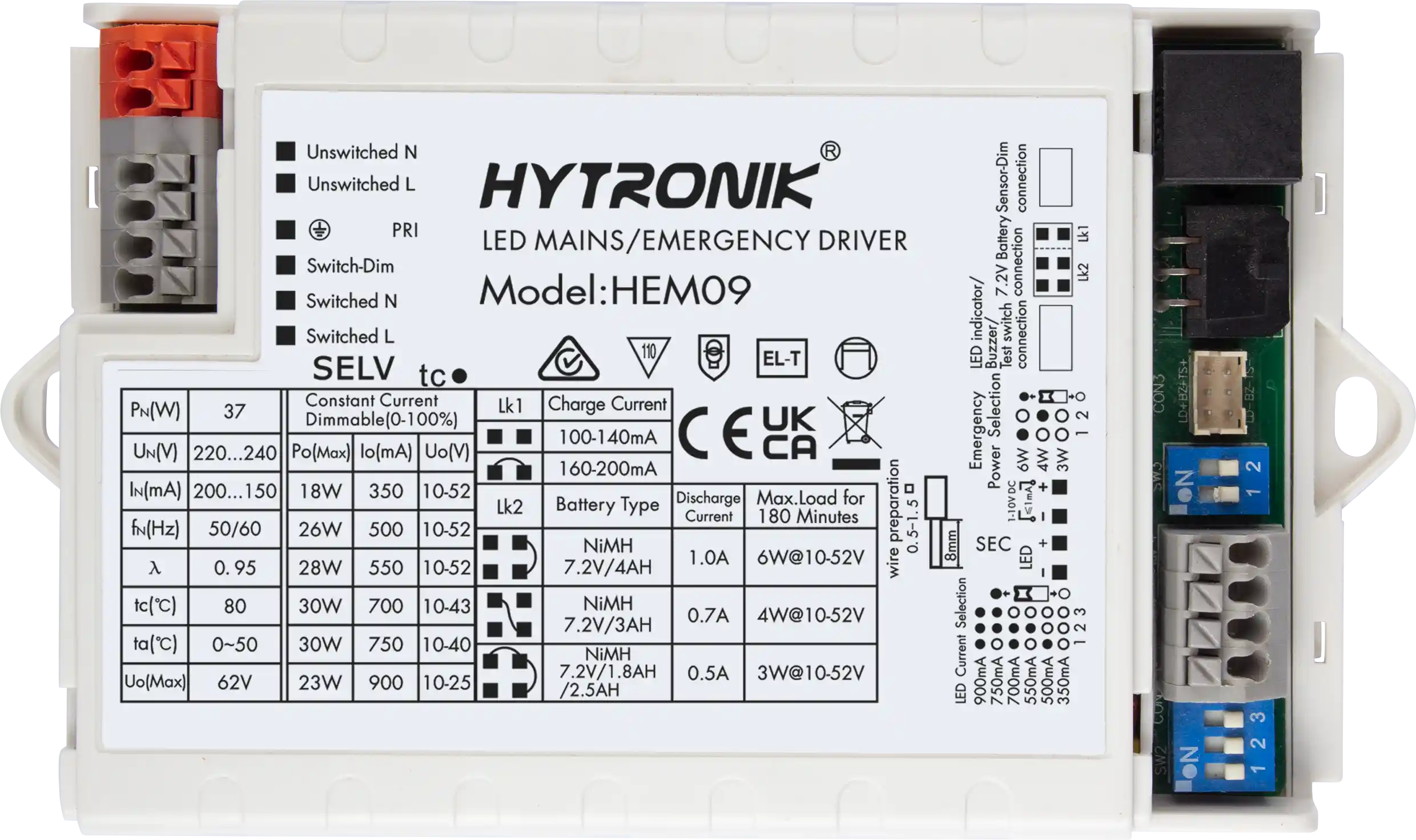

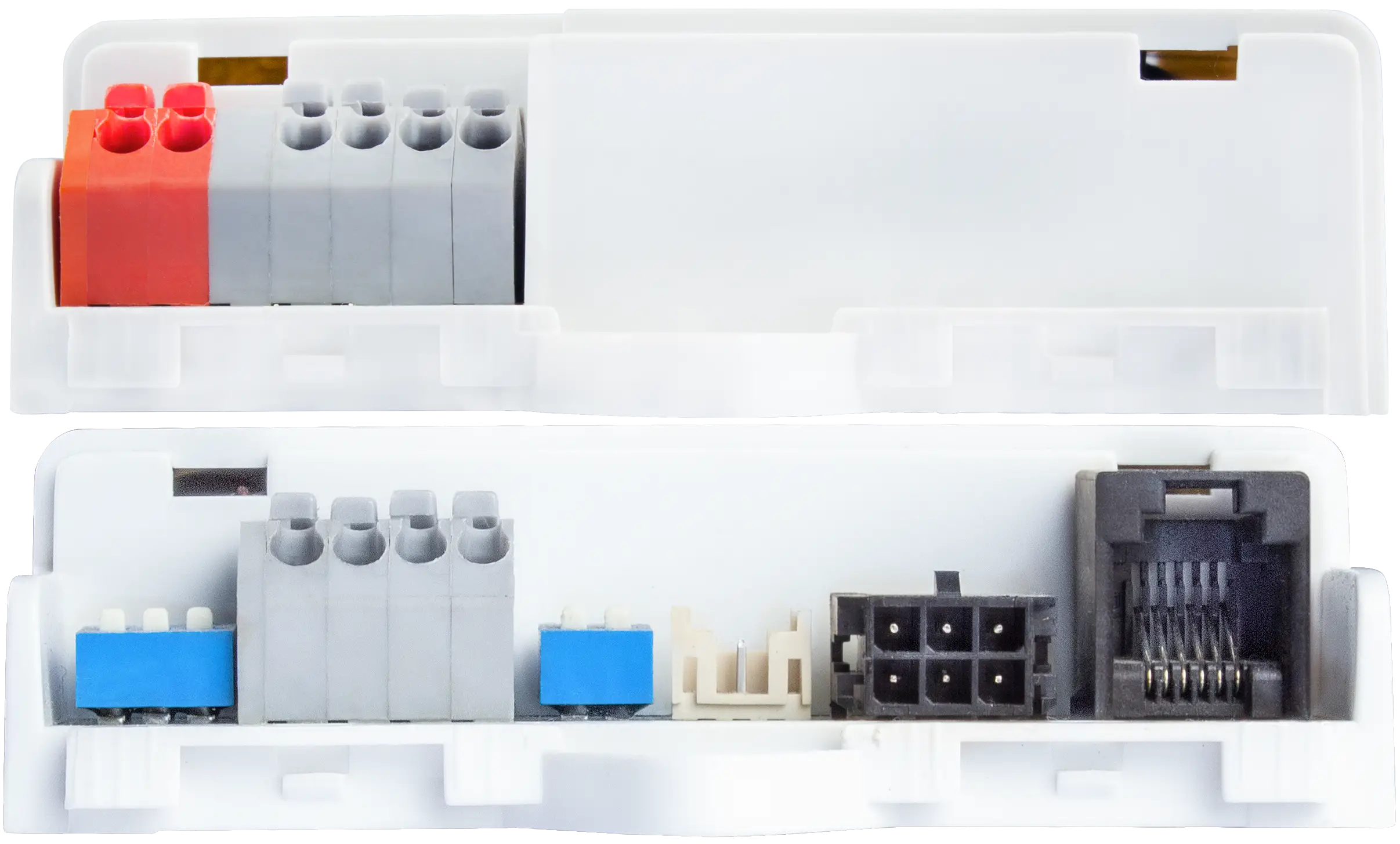

HEM09 is a self-contained Emergency & LED driver with a maximum of 30W main power and a maximum of 6W EM output. It supports 1–10V and Switch-Dim control, and when connected the sensor head it enables daylight and motion detection.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | 0 °C |
| Bluetooth system: | Koolmesh |
| Category - Emergency LED Drivers & Inverters: | LED Driver & Inverter Combo (Non-Bluetoooth) |
| Commissioning Methods: | DIP-switch, IR Remote Controller |
| Dimming (Output) Interface: | 1-10V, Switch-Dim |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Mounting hole: | 4.1000 mm |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Product Status: | Discontinued / Obsolete |
| Product height: | 23.0000 mm |
| Product length: | 140.6000 mm |
| Product weight: | 134.0000 g |
| Product width: | 79.2000 mm |
| Push Button Input: | 1 |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -20 °C |
Datasheets
Product datasheet: hem09.pdf
