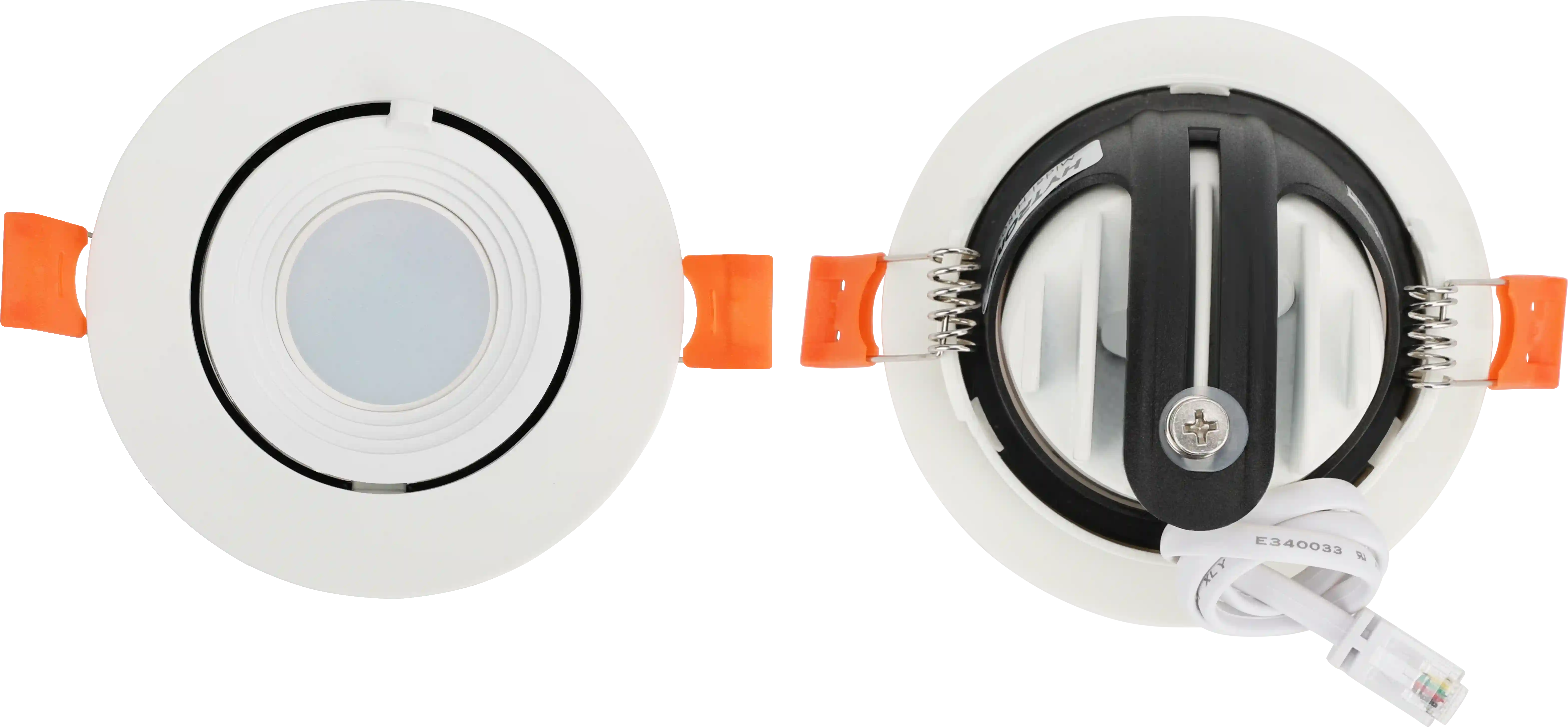

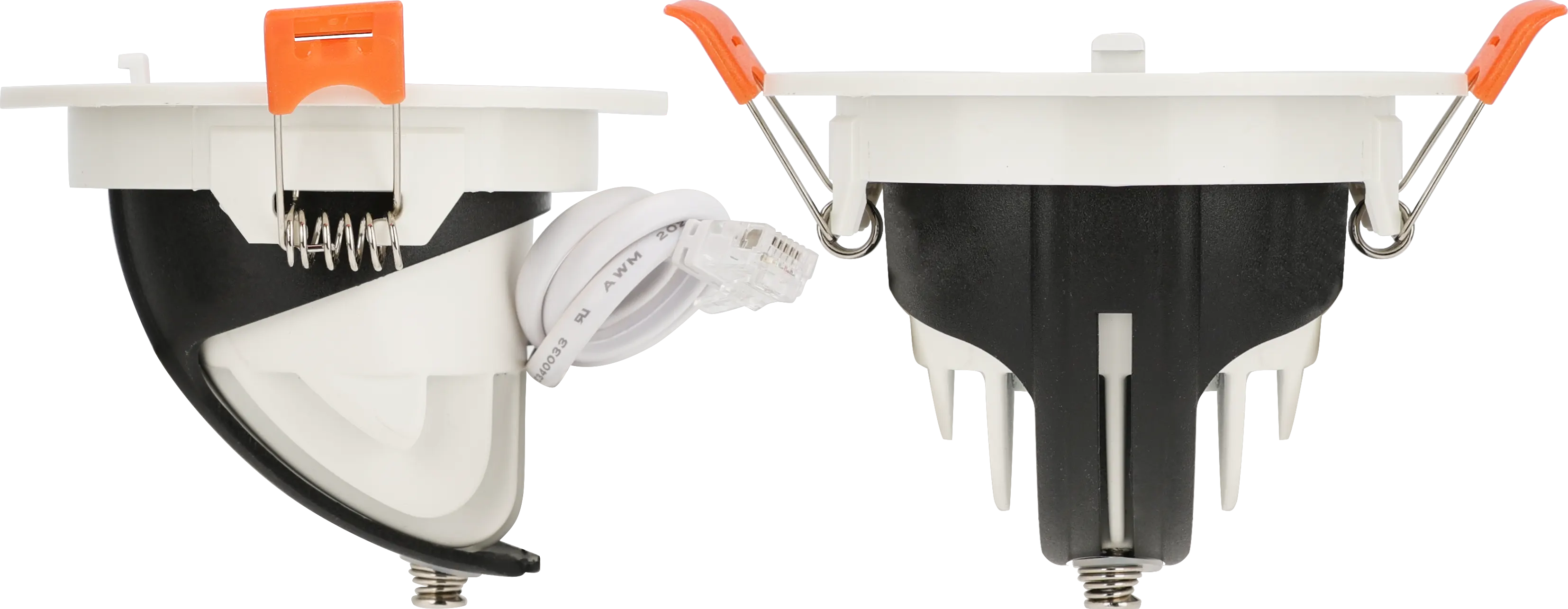

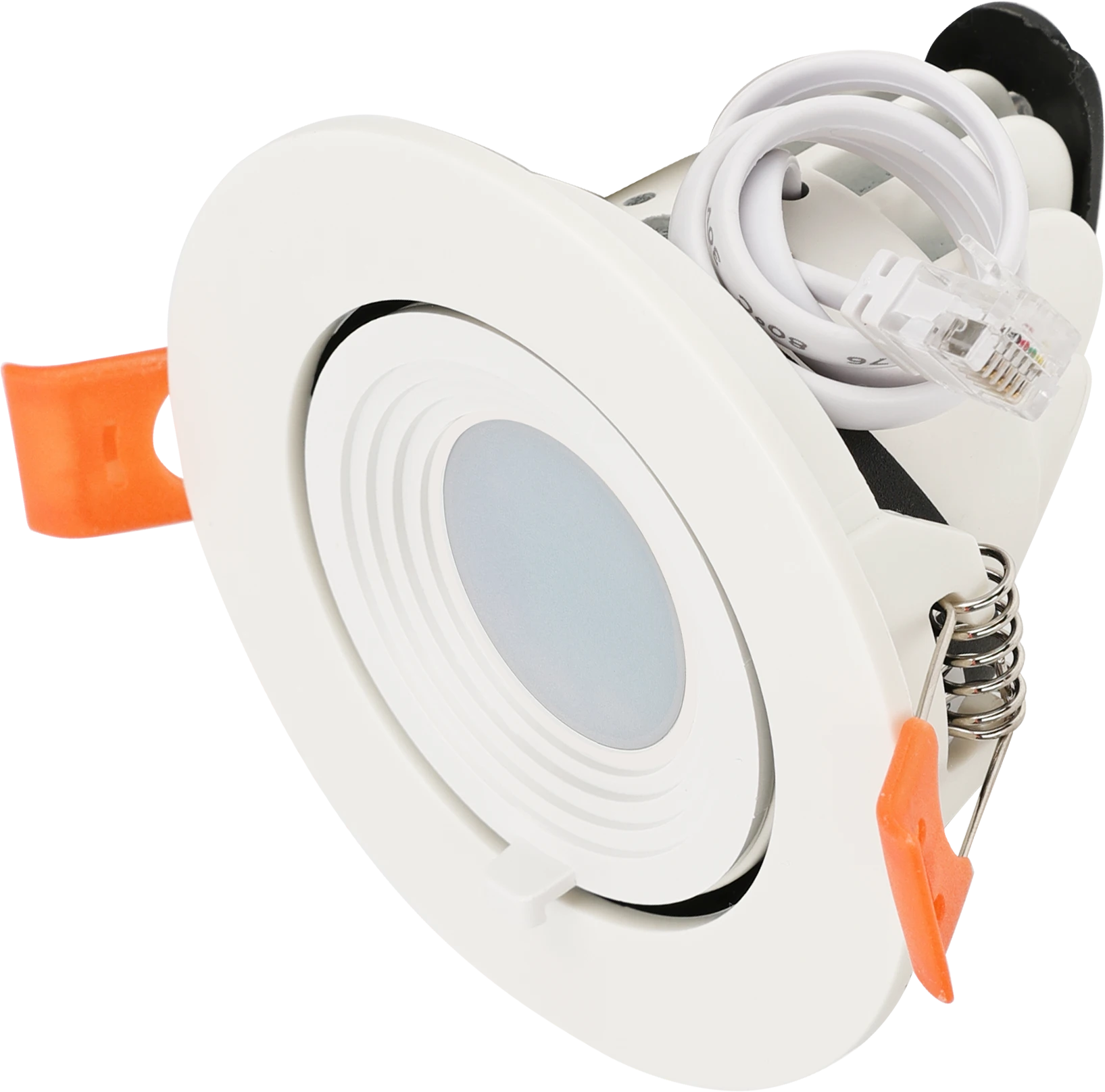

SAM7/AA
HF Lowbay | Tri-level & Adjustable Angle | RJ12 connector to control body
BENEFITS
- Compact: Standard rectangular Plug&Play sensor design
- Innovative: Robus HF antenna design against wireless interface
- User-Friendly: With one-key commissioning with IR controller
APPLICATIONS
- Adjustable angle detection
- Corridor, Hallway
- Classrooms, Offices
Product information "SAM7/AA"
SAM7/AA is a HF sensor head and compatible with the Tri-level Dimming. It can work with the linear shaped control base such as HCD038/P and HCD038. It offers powerful number of Plug’n’Play feature options to expand the flexibility of luminaires design.
| Ambient temperature max.: | 55 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | IR Remote Controller |
| Connector Type: | RJ12 |
| Daylight Harvest: | No |
| Daylight Sensor Option: | Ordinary Photodiode/Photocell |
| Detection Methods: | Microwave (MW) |
| Detection angle: | 360° |
| Detection range (DxH): | 12x6 |
| Features: | Adjustable Angle, Tri-level (Corridor Function) |
| HF operating frequency (Ghz): | 5.8Ghz+/-75MHz |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 990 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Plug & Play Sensor Heads |
| Maximum Mounting Height: | 6.0000 m |
| Mounting Height: | Low-bay |
| Mounting hole: | 90.0000 mm |
| Operating Voltage: | 5 VDC |
| Product height: | 75.0000 mm |
| Product length: | 90.0000 mm |
| Product width: | 90.0000 mm |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | DC |
| Warming-up: | 20 s |
| Zhaga: | No |
