Active / Make to Stock

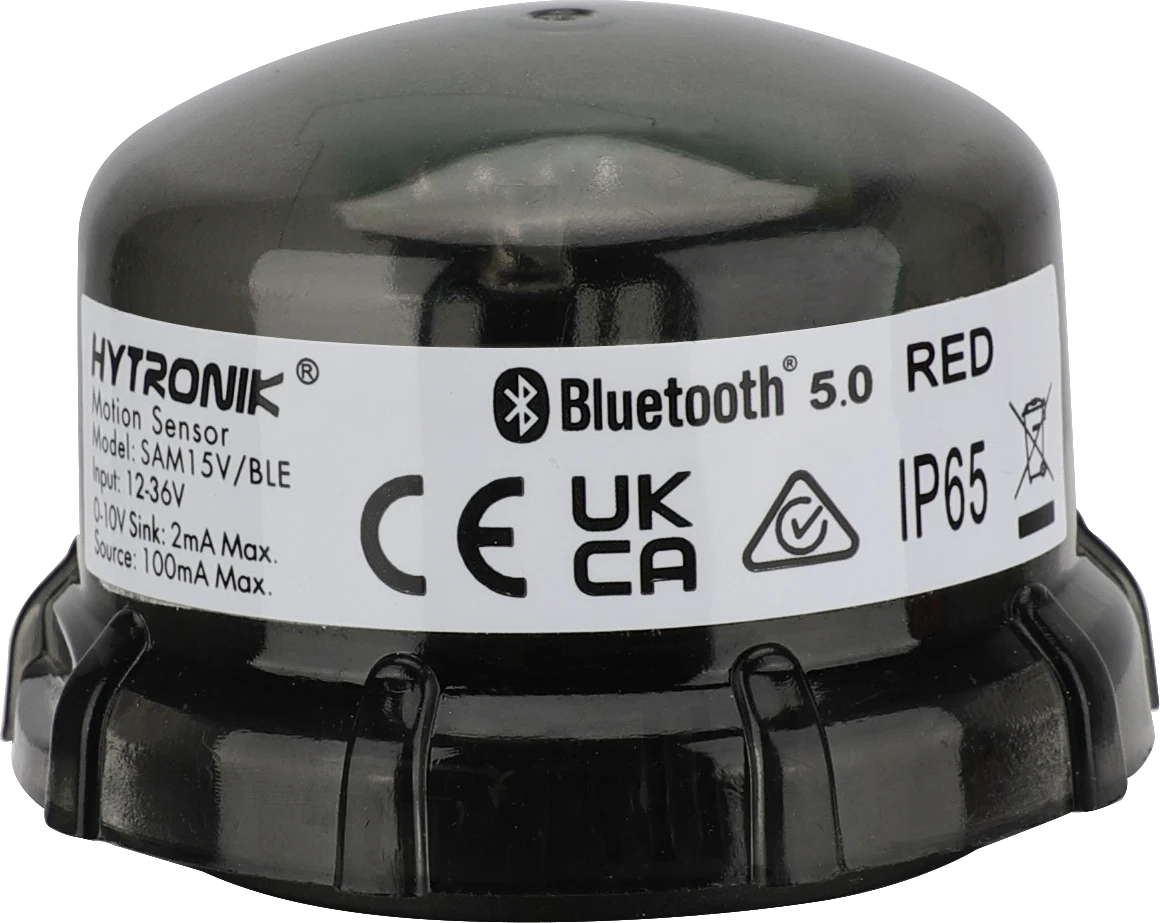

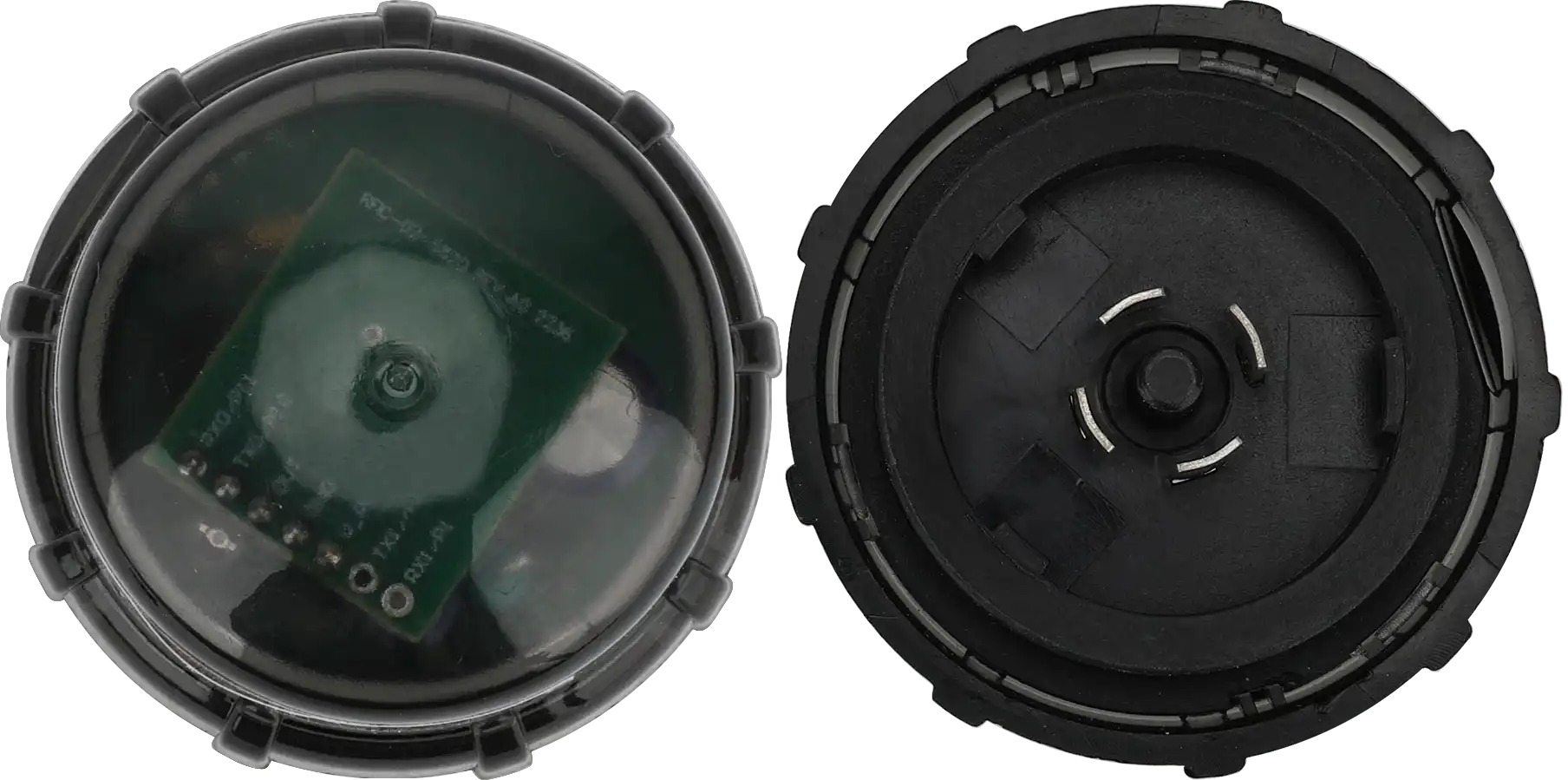

SAM15V/BLE
Bluetooth HF Highbay Sensor | 0–10V Dimming | Zhaga Book 18 Standard
BENEFITS
- Standardized: Zhaga Book 18 with IP65 for reliable highbay integration
- All-in-one: Occupancy, Daylight and Circadiam Rhythm, Photocell Advance
- Wireless: Bluetooth Mesh enabling flexible wireless commissioning
APPLICATIONS

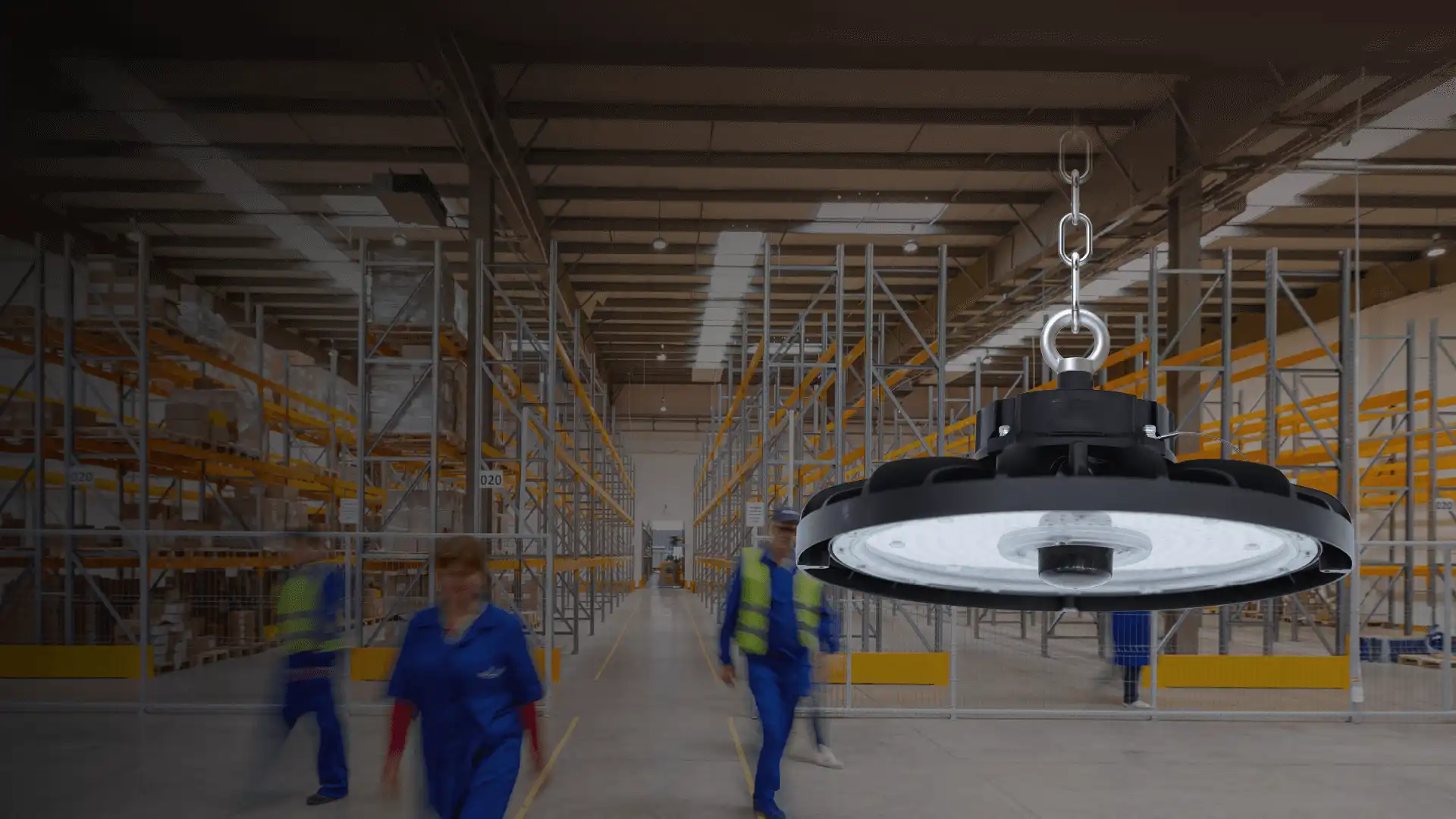

- For highbay luminaire up to 15m height
- Warehouse/ Logistic
- Outdoor/Street lights
Product information "SAM15V/BLE"
SAM15V/BLE is a Bluetooth highbay HF motion sensor with 0–10V output, supporting dimming and daylight control for industrial and outdoor lighting applications. Featuring dual photocell technology, it can differentiate natural and artificial light for more accurate daylight sensing. Compliant with Zhaga Book 18 and rated IP65, it supports a typical mounting height of up to 15 m. Bluetooth Mesh enables wireless communication between luminaires without additional control wiring, reducing installation complexity while improving system flexibility. All configuration and commissioning can be completed easily via the app.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Bluetooth Platform: | Nordic nRF52832 |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range (Phone to Device) : | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth transmit power: | 4 dBm |
| Commissioning Methods: | App & Web (Bluetooth) |
| Connector Type: | Zhaga book 18 |
| Daylight Harvest: | Yes |
| Daylight Sensor Option: | Photocell Advance |
| Detection Methods: | Microwave (MW) |
| Detection angle: | 360° |
| Detection range (Diameter): | 20×15 |
| Dimming (Output) Interface: | 0-10V |
| Features: | Daylight Harvest, Tri-level (Corridor Function) |
| HF operating frequency (Ghz): | 5.8Ghz+/-75MHz |
| Human Centric Lightning (HCL): | Yes |
| Humidity max: | 90 % |
| Humidity min: | 20 % |
| IP Rate: | IP65 |
| Installation Type: | Built-in, Zhaga |
| Maximum Mounting Height: | 15.0000 m |
| Mounting Height: | Mid & High-bay |
| Operating voltage range: | 12-36 VDC |
| Output Voltage: | 0~10 V |
| Product Status: | Active / Make to Stock |
| Product height: | 35.0000 mm |
| Product length: | 50.8000 mm |
| Product weight: | 40.0000 g |
| Product width: | 43.5000 mm |
| Sensitivity: | 10%/ 30% /50% /75%/ 100% |
| Storage temperature max.: | 55 °C |
| Storage temperature min.: | -25 °C |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | DC |
| Zhaga: | Yes |
Datasheets
Product datasheet: sam15v-ble.pdf
Login
Bluetooth Network Components

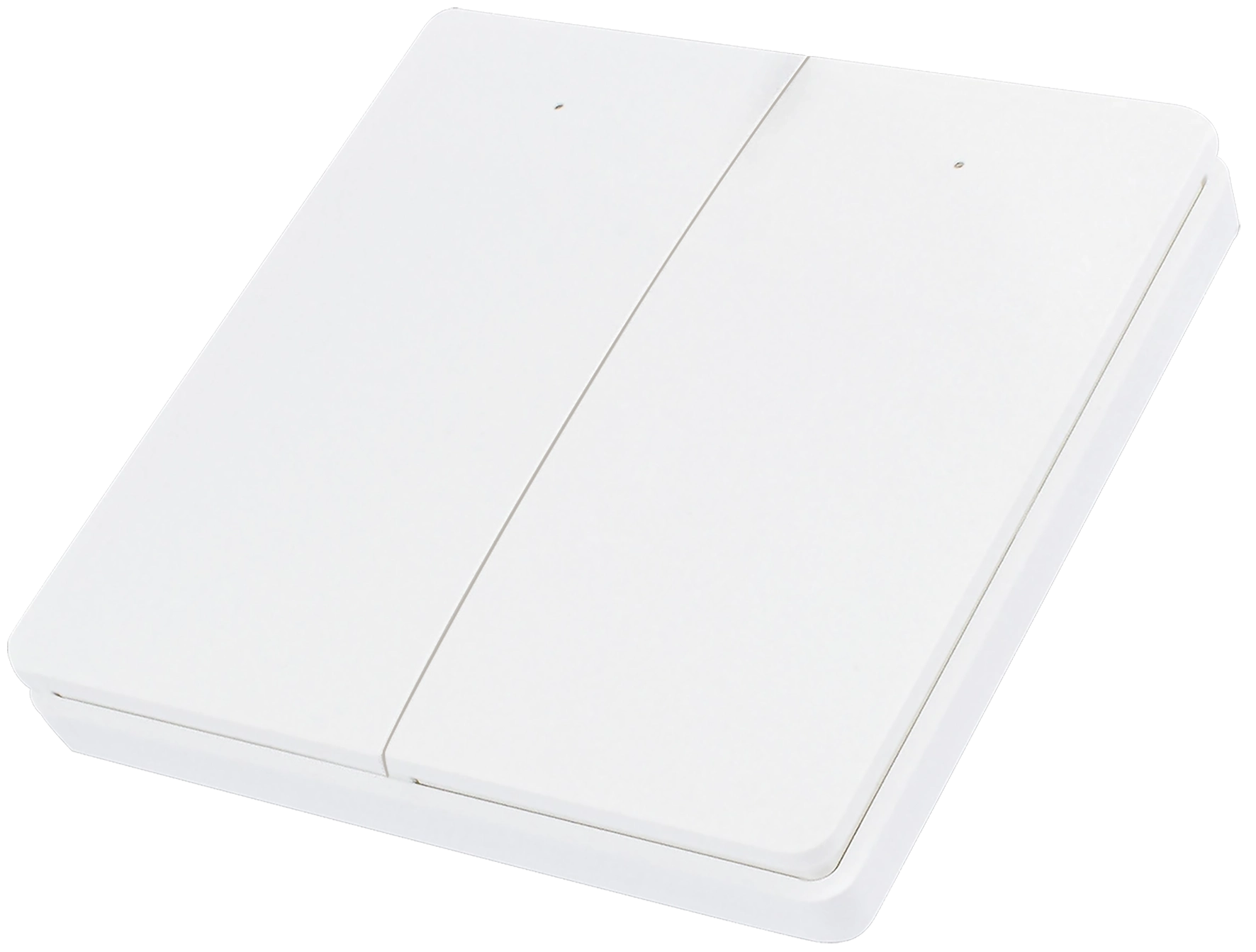

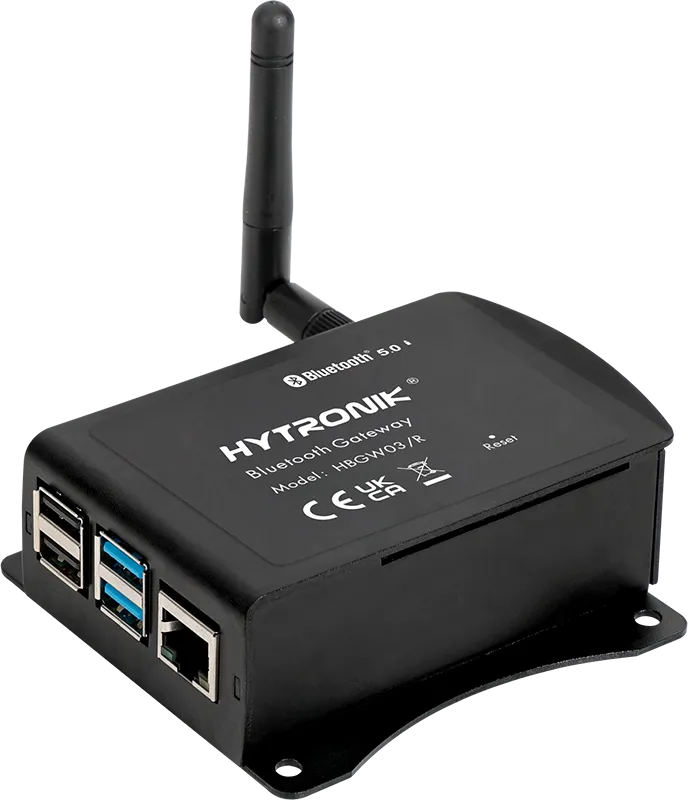

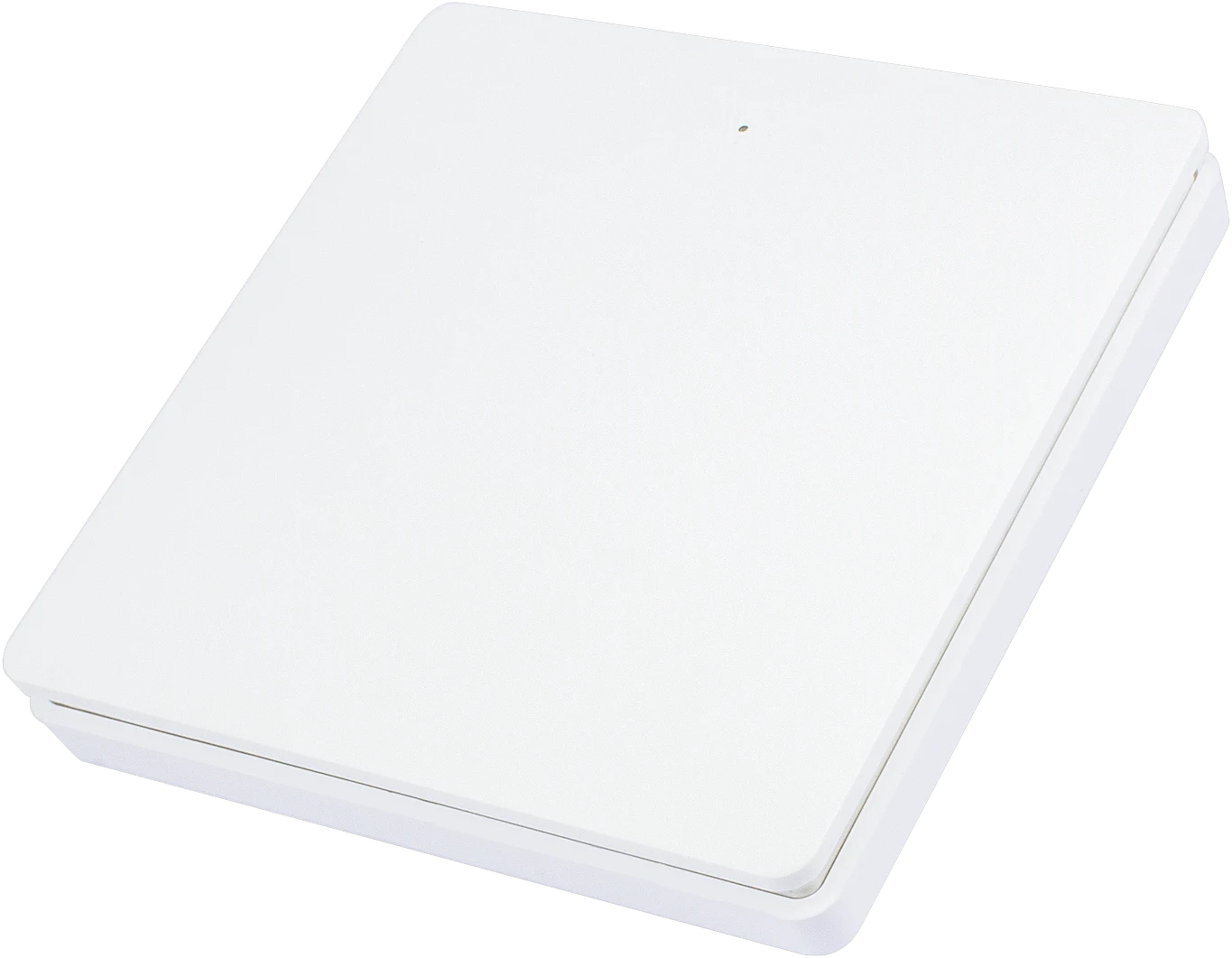

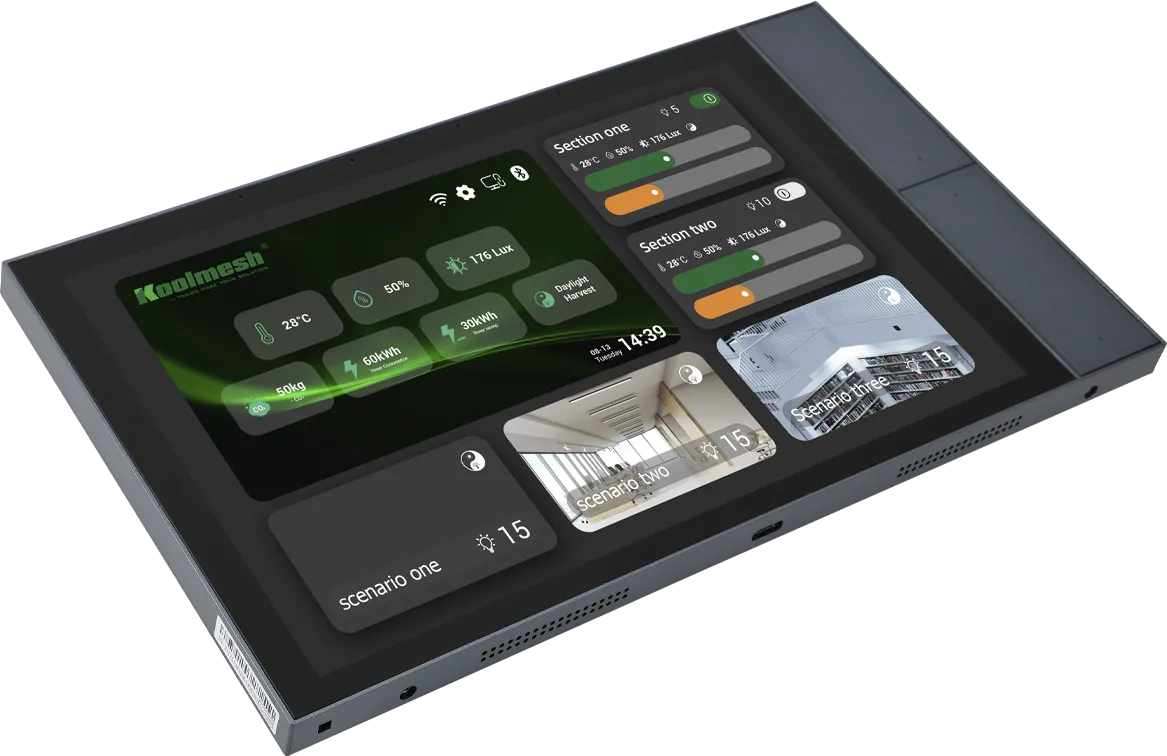

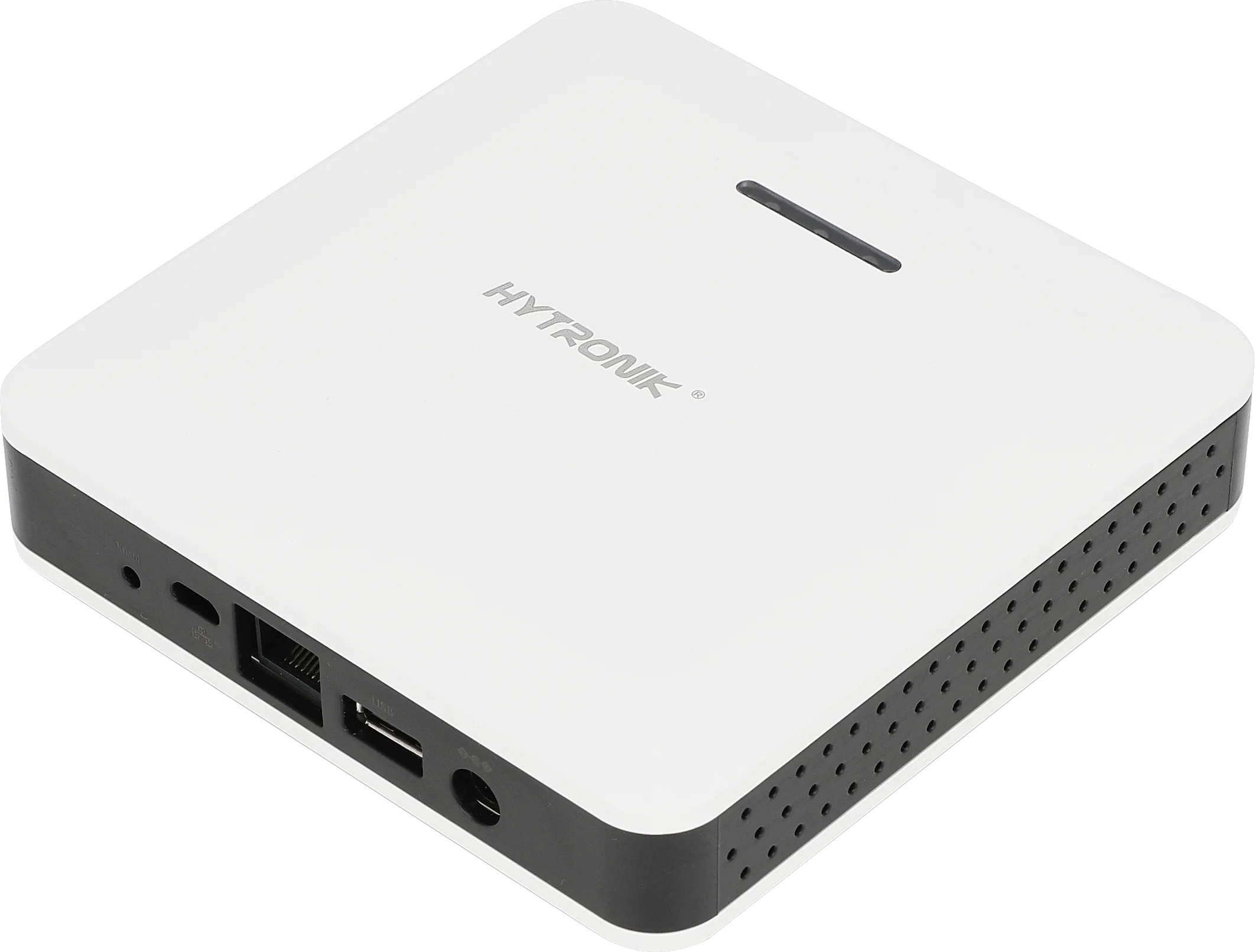

Compatible products (for full functionality)
