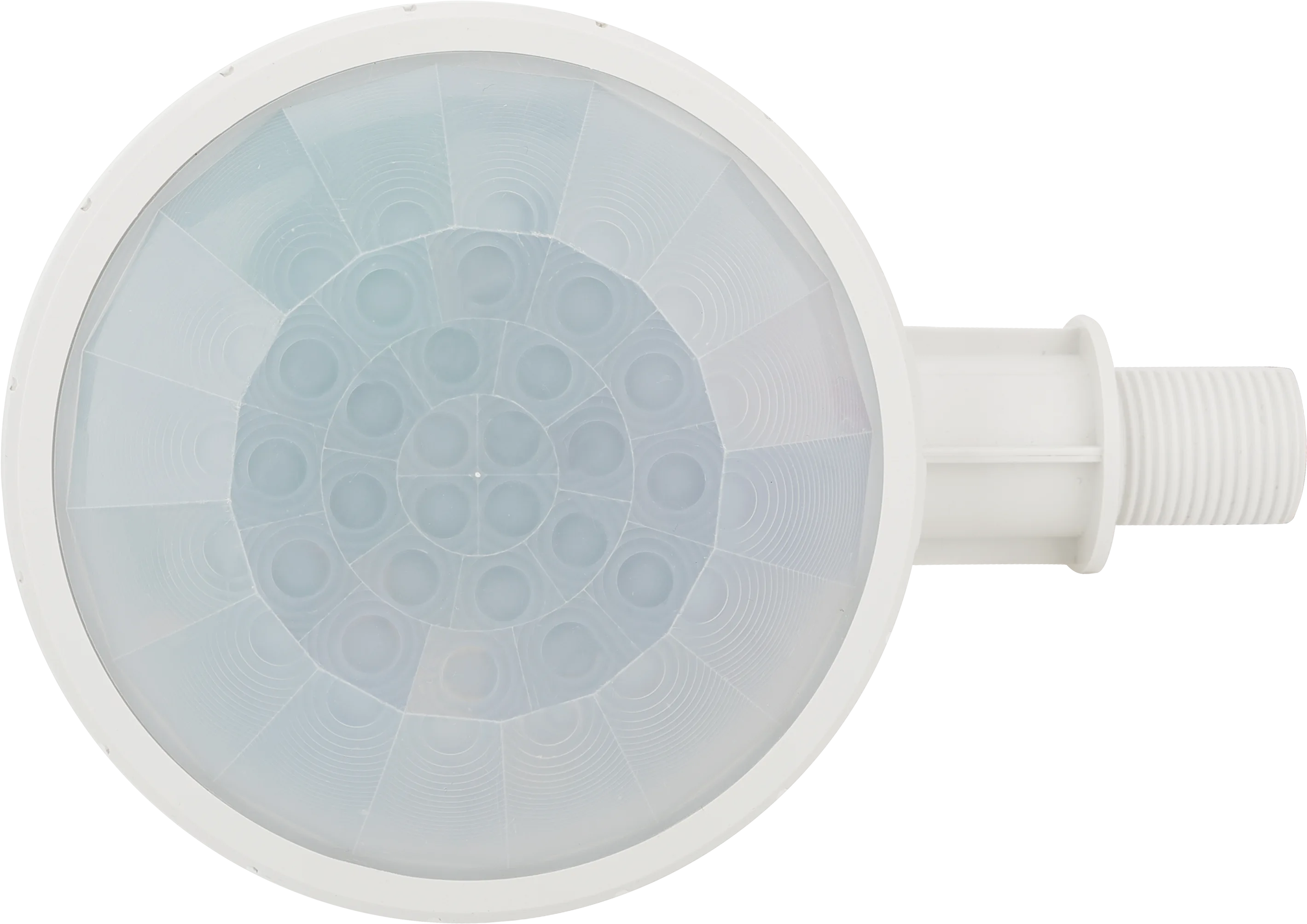

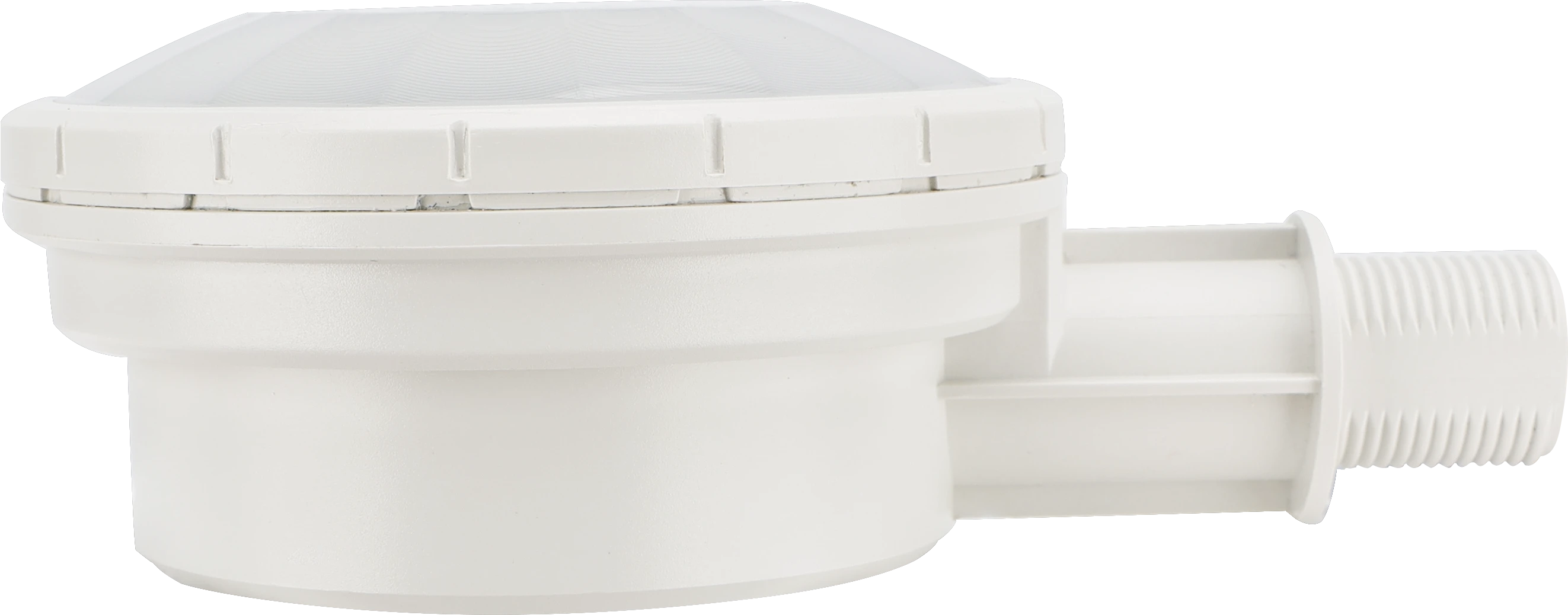

HIM049D/BT
HF+PIR Ultra HighBay | Bluetooth DALI with PSU | IP65/Batten-fit/Bolt-on mount
BENEFITS
- High accuracy: DUAL Sense with HF and PIR technology
- Innovative: Bluetooth PIR sensor with built-in DALI PSU
- Easy: Motion and Daylight harvest configuration via Koolmesh app

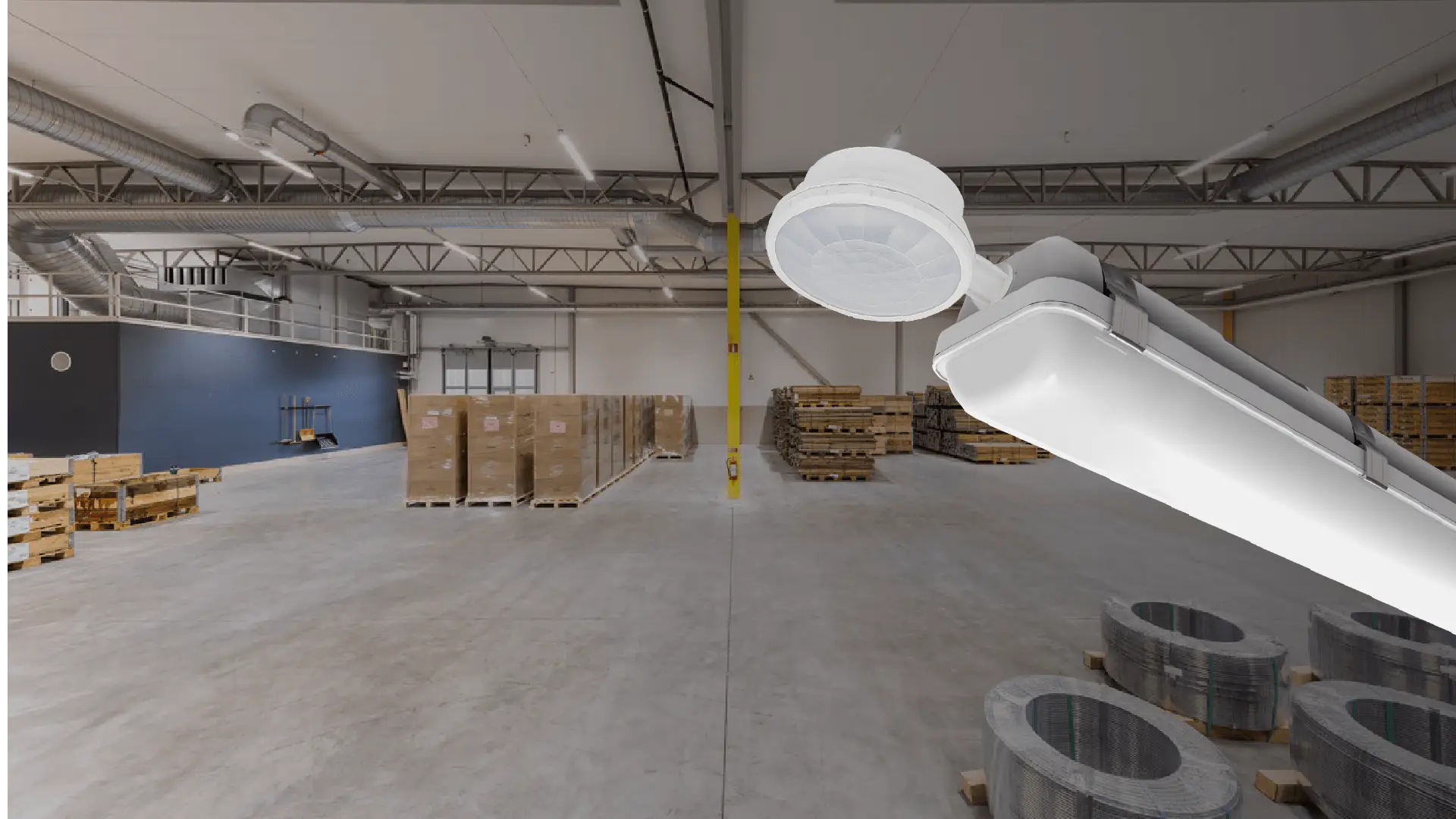

APPLICATIONS
- Batten-fit/Bolt-on mount style
- Wireless control integration
- Industry , Warehouses
Product information "HIM049D/BT"
HIM049D/BT is a Bluetooth DALI / DALI2 ultra high-bay Dual-sense (Microwave + PIR) motion sensor, with capability of up to 21m installation
height. HIM049D/BT has a daylight sensor built-in and is specifically
designed for mounting onto a batten-style luminaire. It is also designed for
professional lighting manufacturers who want to incorporate wireless control into their luminaires. Moreover, since HIM049D/BT is designed with a robust IP65 structure, it is suitable for any typical applications such as Industry, warehouses, and other commercial/industrial areas.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Bluetooth Platform: | Nordic nRF52832 |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range (Phone to Device) : | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth transmit power: | 4 dBm |
| Commissioning Methods: | App & Web (Bluetooth) |
| Connector Type: | Standard 2 cables |
| DALI Bus Current Consumption: | 80.0000 mA |
| Daylight Harvest: | Yes |
| Daylight Sensor Option: | Photodiode/Photocell |
| Detection Methods: | Dual-Sense (MW+PIR) |
| Detection angle: | 360° |
| Detection range (Diameter): | 28×21 |
| Dimming (Output) Interface: | DALI/DALI-2 |
| Features: | Daylight Harvest |
| Human Centric Lightning (HCL): | Yes |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP65 |
| Installation Type: | Batten Mount |
| Lens type: | Ultra high-bay |
| Maximum Mounting Height: | 21.0000 m |
| Mounting Height: | Ultra High-bay |
| Mounting hole: | 75.0000 mm |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Product height: | 48.3000 mm |
| Product length: | 138.0000 mm |
| Product weight: | 142.0000 g |
| Product width: | 94.0000 mm |
| Push Button Input: | 0 |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | AC |
| Warming-up: | 20 s |
| Zhaga: | No |
Datasheets
Product datasheet: him049d-bt.pdf
