HED5040/BT
Bluetooth LED Driver 40W (CC) Dimmable | 6 Wires 3 Circuits | Track System Stucci
BENEFITS
- Standardized: 3-phase dial for phase selection
- Professional: Bluetooth dimming interface via Koolmesh app
- Easy configuration: via Dip-switch/Wireless Bluetooth 5.0 SIG-Mesh
APPLICATIONS
- Designed to fit into stucci track system
- Offices, Retail stores, Warehouse
- Museums, Galleries

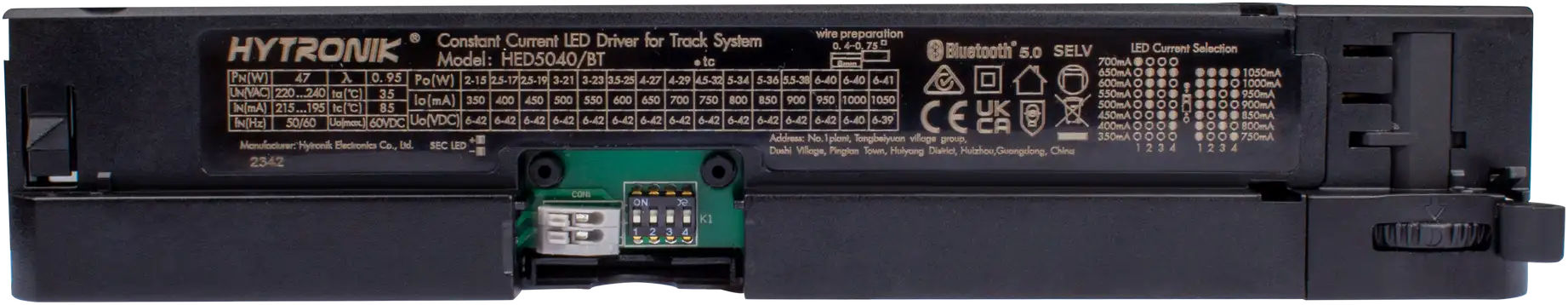

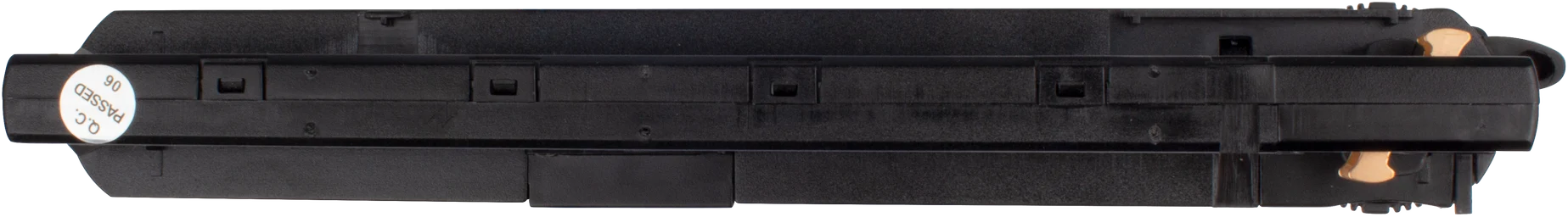

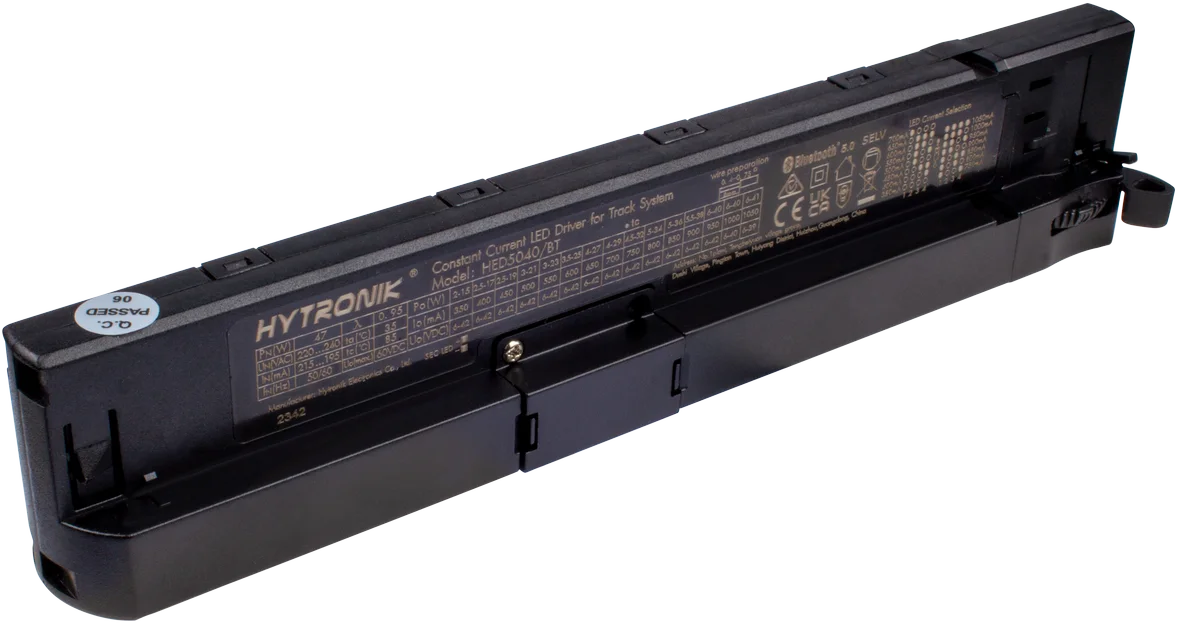

Product information "HED5040/BT"
HED5040/BT is a Bluetooth LED driver, with 3-phase dial and maximum
power output of 40W. The installation only requires simple insertion into the track. HED5040/BT has a Bluetooth dimming interface, is ideal for both
direct track light projects and new luminaires designed for lighting manufacturers. With Bluetooth wireless mesh networking, it makes communication between luminaires much easier without time-consuming hardwiring, which eventually saves costs for projects. Meanwhile, all simple device setup and commissioning can be done via Koolmesh app.
| Ambient temperature max.: | 35 °C |
|---|---|
| Ambient temperature min.: | -10 °C |
| Bluetooth Platform: | Nordic nRF52832 |
| Bluetooth frequency: | 2.4 GHz |
| Bluetooth range (Phone to Device) : | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth transmit power: | 4 dBm |
| Dimming (Output) Interface: | DALI |
| Driver Type: | Dimming Only |
| Efficiency: | 88 % |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Track Light |
| Operating Mode: | Constant Current |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Output Power: | 26 - 44W |
| Output Voltage: | 6~42V |
| Product height: | 43.4000 mm |
| Product length: | 230.5200 mm |
| Product weight: | 165.0000 g |
| Product width: | 31.0000 mm |
| Push Button Input: | 0 |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
Datasheets
Product datasheet: hed5040-bt.pdf
