Active / Make to Stock

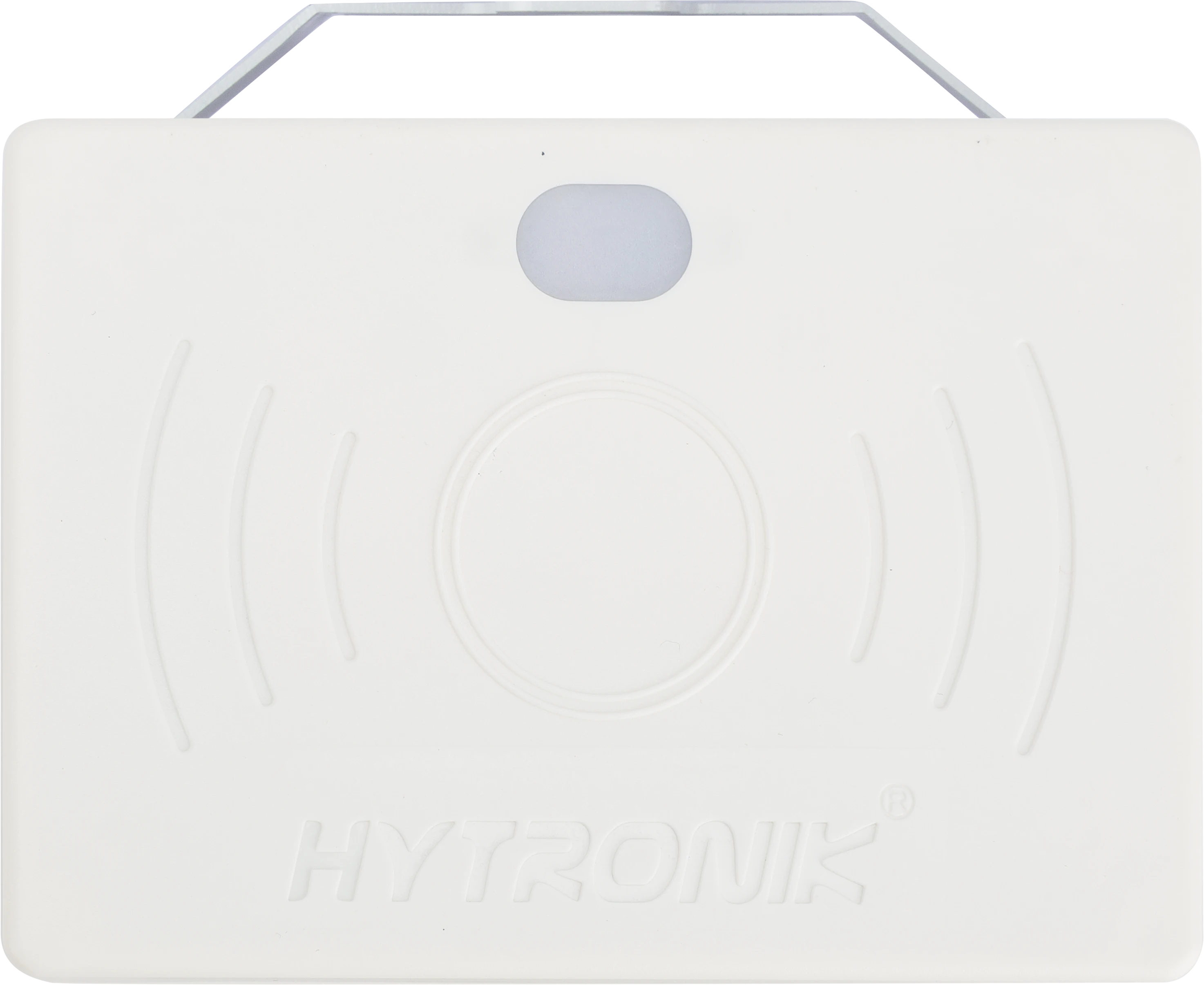

HCD450VDS/BT
HF Highbay | DALI & 0/1-10V Output | Wall/Surface mounting
BENEFITS
- Durable: IP65 rated boosts reliability & extends lifespan
- Versatile: Multiple output options for flexible lighting system integration
- Streamlined: Wireless setup and commissioning via Koolmesh App
APPLICATIONS
- Standalone installation for ceiling up to 20m

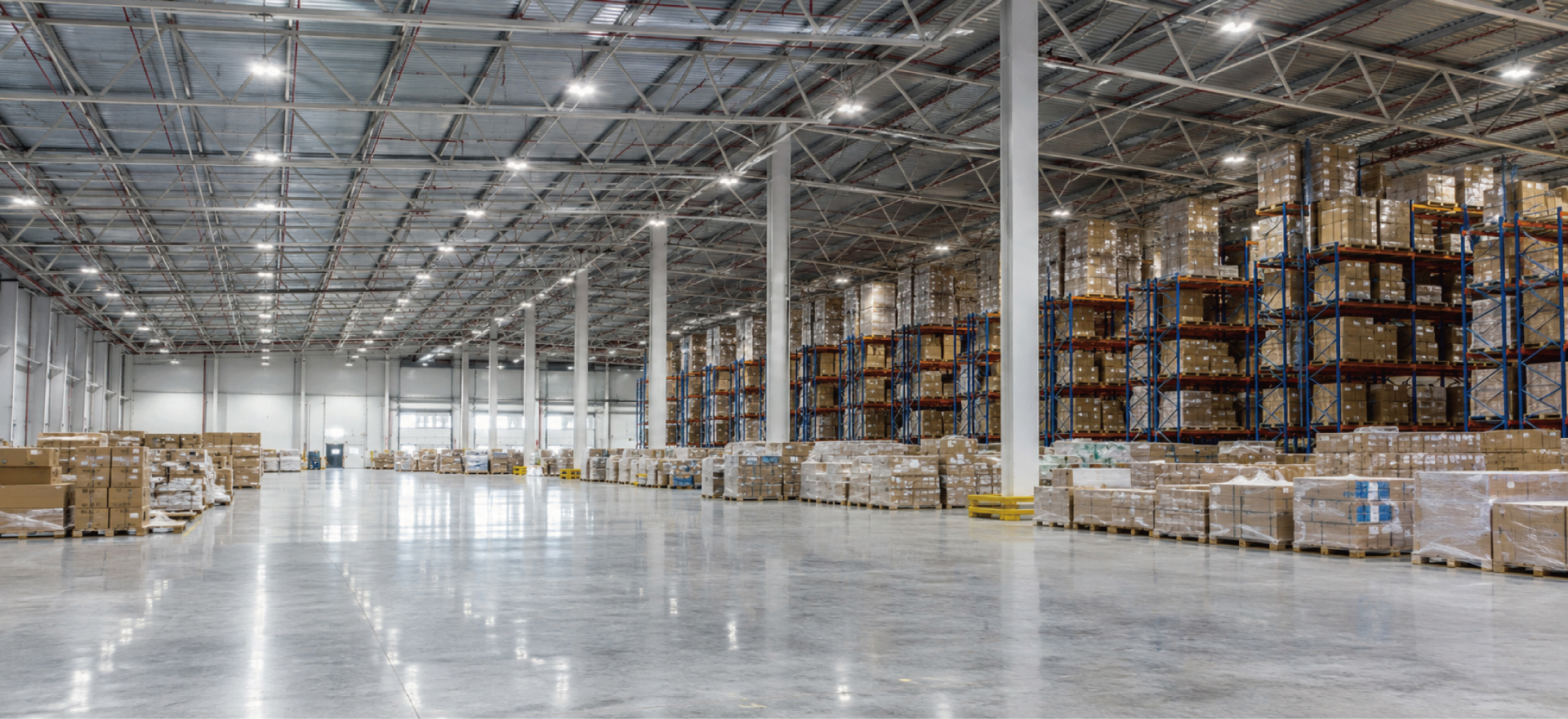

- Warehouse, Large storage room
- Production
Product information "HCD450VDS/BT"
HCD450VDS/BT is a Bluetooth DALI high-bay HF motion sensor designed for warehouses and other high-ceiling lighting applications. It supports DALI output, 0/1–10V dimming, relay output, and 2-channel on/off control (Switched L + VFC), enabling flexible lighting control for a wide range of installations. With a built-in daylight sensor, it supports daylight harvesting, tri-level dimming, and Human Centric Lighting (HCL) to improve energy efficiency and visual comfort. Bluetooth Mesh enables wireless communication between luminaires without additional control wiring, reducing installation costs while increasing system flexibility. With a mounting height of up to 20m, it delivers reliable performance for demanding high-bay environments. All configuration and commissioning can be completed easily via the Koolmesh App.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Bluetooth Platform: | Nordic nRF52832 |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range (Phone to Device) : | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth transmit power: | 4 dBm |
| Commissioning Methods: | App & Web (Bluetooth) |
| Daylight Harvest: | Yes |
| Detection Methods: | Microwave (MW) |
| Detection angle: | 30° - 150° |
| Detection range (Diameter): | 25×15 |

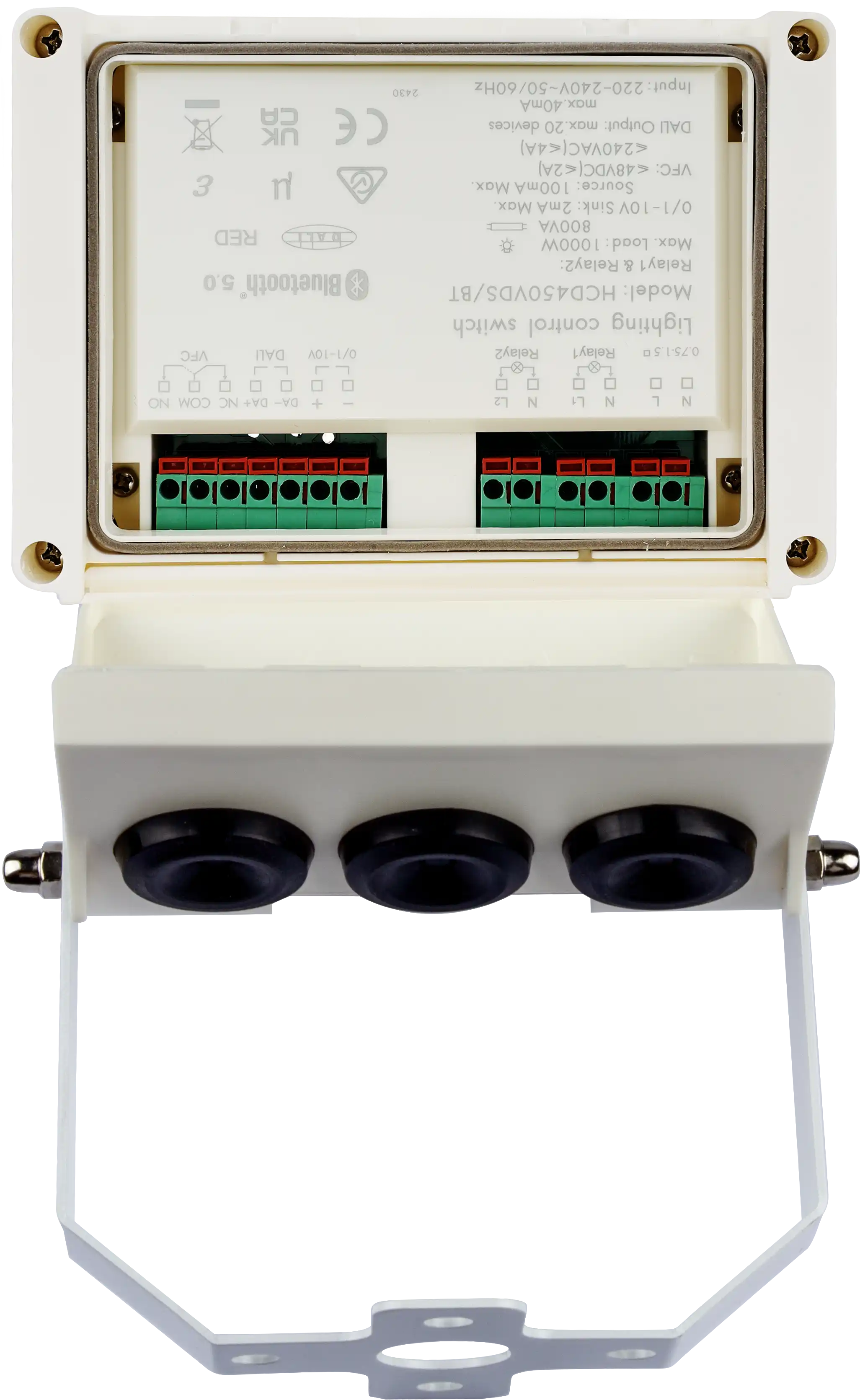

| Dimming (Output) Interface: | 0/1-10V, DALI, Relay On/Off, Volt-free Contact (VFC) |
| Features: | Daylight Harvest, Tri-level (Corridor Function) |
| HF operating frequency (Ghz): | 10.525GHz +/- 75MHz |
| Human Centric Lightning (HCL): | Yes |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP65 |
| Installation Type: | Stand-alone |
| Lens type: | High-bay |
| Load capacitive: | 800.0000 VA |
| Load resistive: | 1000.0000 W |
| Maximum Mounting Height: | 27.0000 m |
| Max withstandable in-rush current: | 120A@160μs |
| Mounting Height: | Mid & High-bay |
| Mounting hole: | 7.0000 mm |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Product Status: | Active / Make to Stock |
| Product height: | 126.5000 mm |
| Product length: | 135.0000 mm |
| Product weight: | 450.0000 g |
| Product width: | 113.2000 mm |
| Push Button Input: | 1 |
| Required DALI Current: | 2.0000 mA |
| Sensitivity: | 10%/ 30% /50% /75%/ 100% |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | AC |
| Warming-up: | 20 s |
| Zhaga: | No |
Datasheets
Product datasheet: hcd450vds-bt.pdf
