HC419S/BT
HF Lowbay | ON/OFF | Photocell Advance
BENEFITS
- Compact: Super compact size - On/Off Sensor
- Autonomous: On/Off occupancy control for up to 500W
- Easy configuration: Wireless Bluetooth 5.0 SIG-Mesh
APPLICATIONS
- For round shape luminaire up to 6m height
- Offices/Meeting rooms
- School/Classrooms

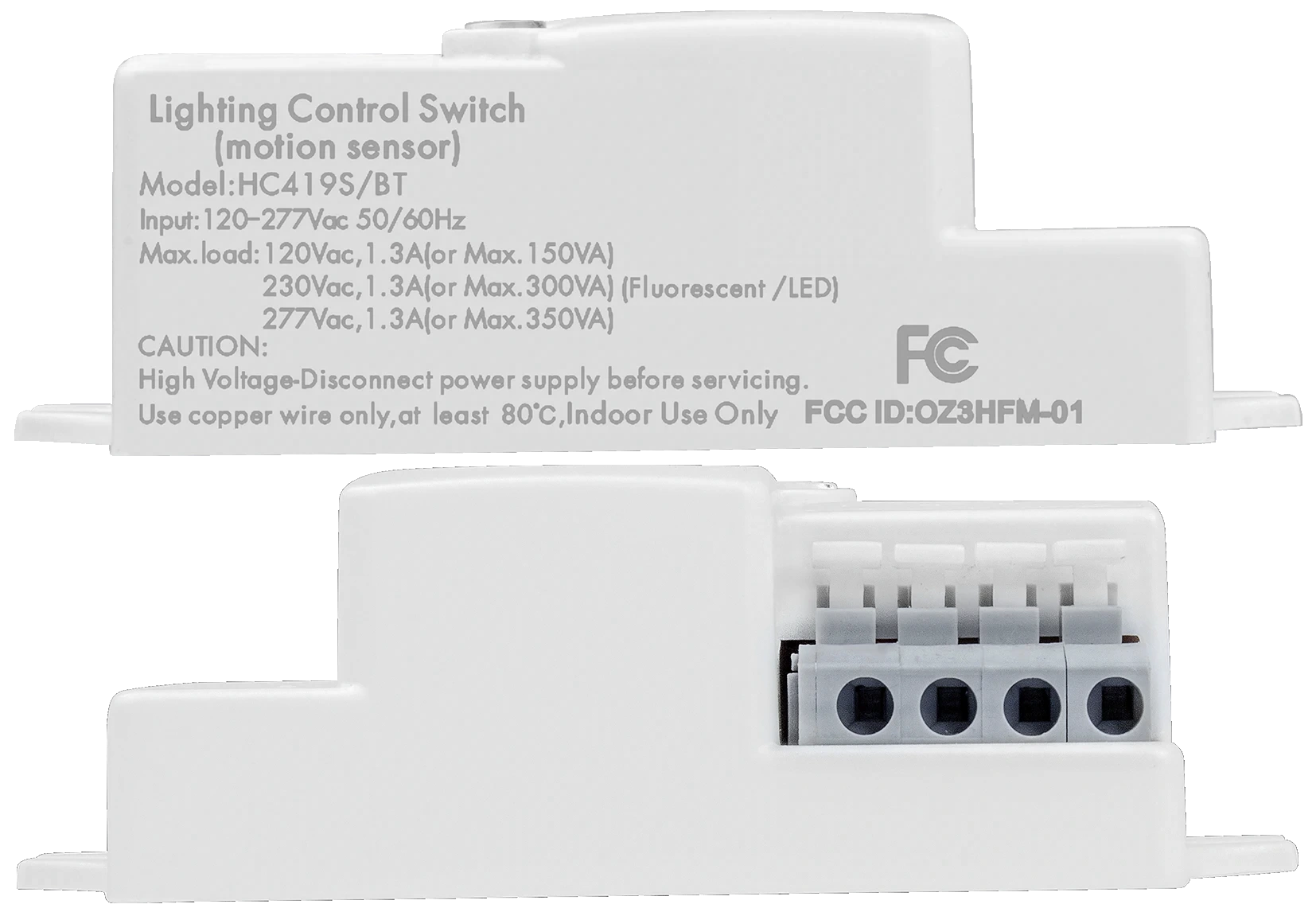

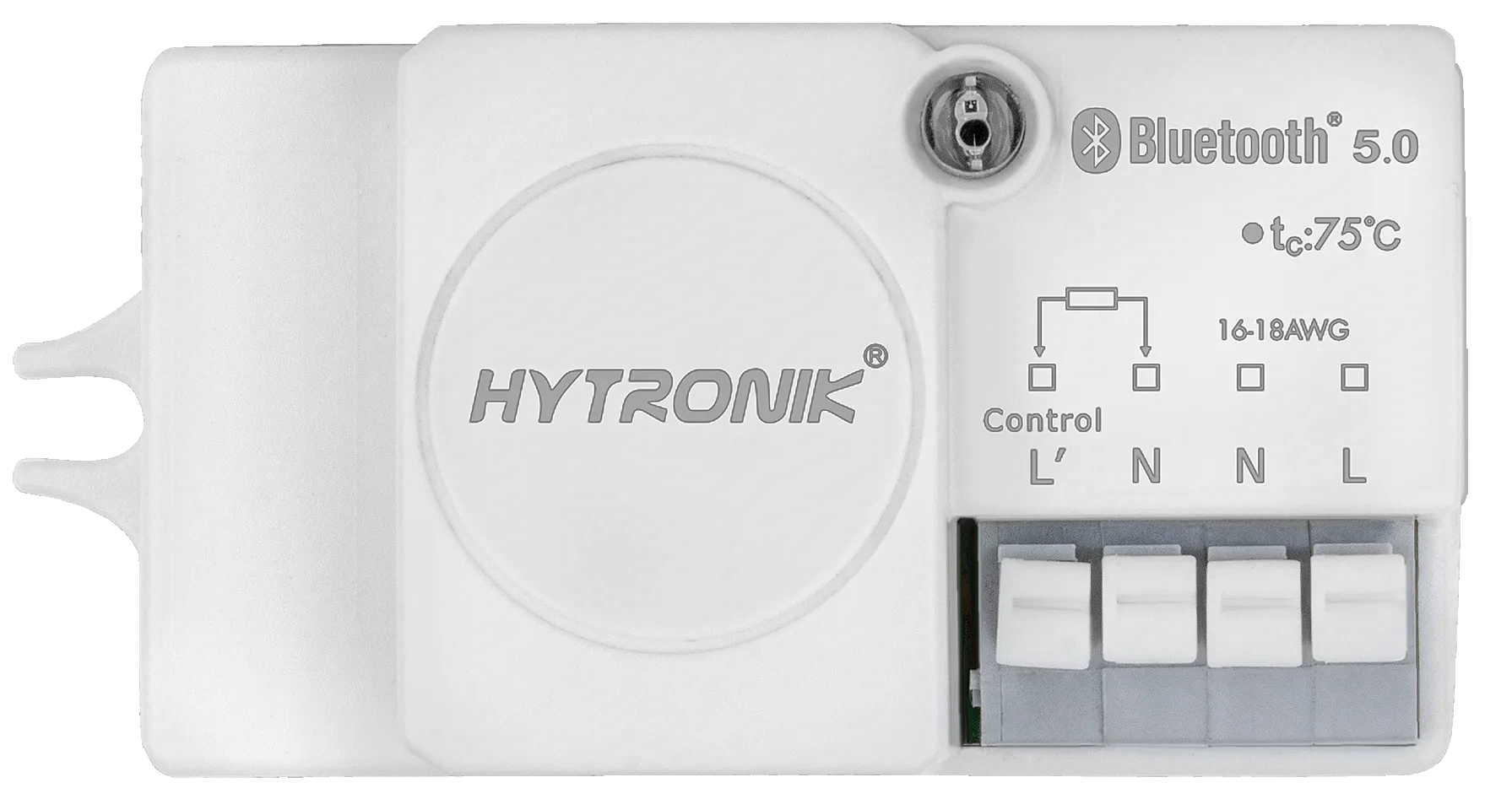

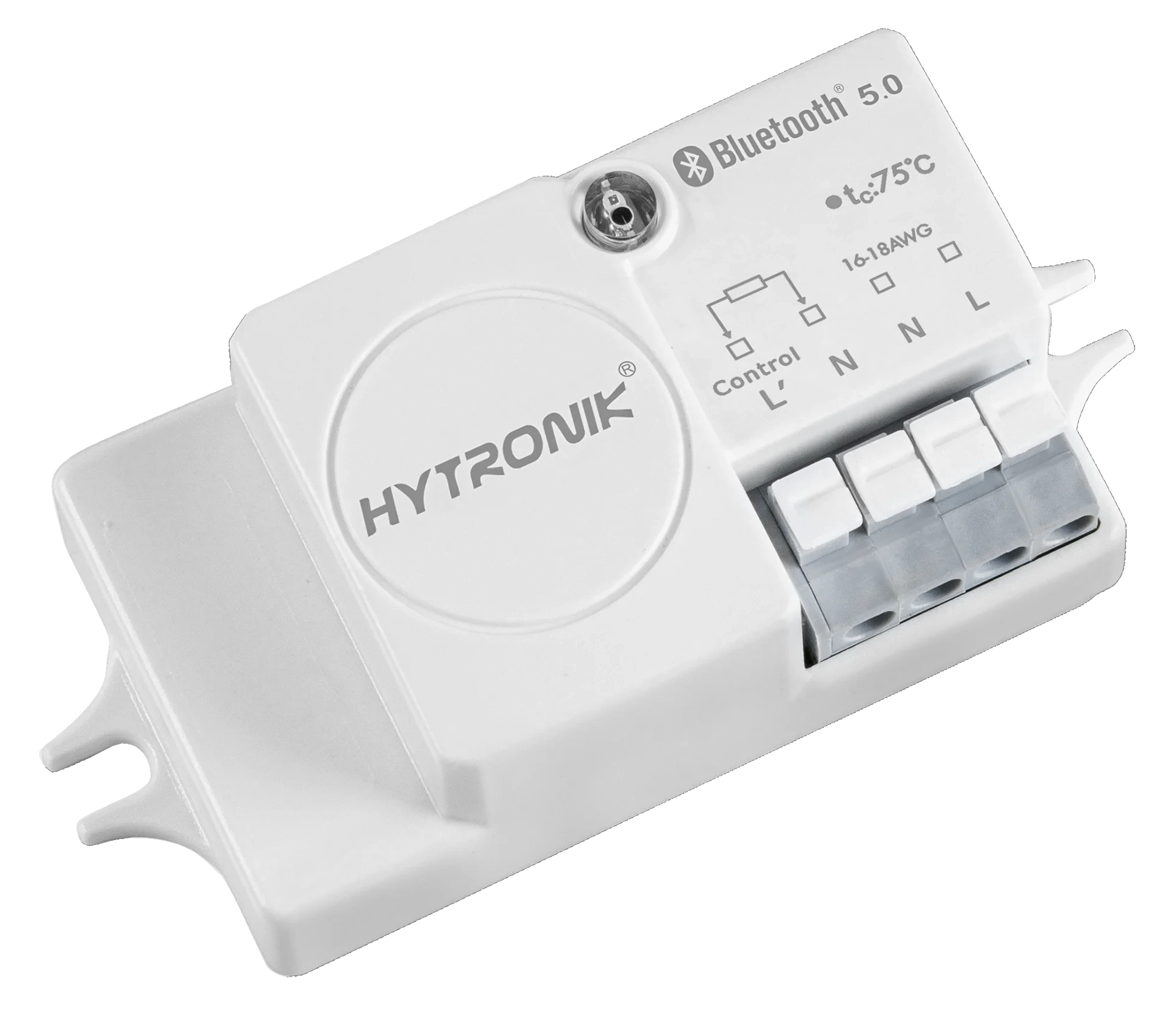

Product information "HC419S/BT"
HC419S/BT is a Bluetooth built-inmicrowave motion sensor with ON/OFF
control. It is designed for professional lighting manufacturs who would like
to incorporate wireless control into their luminaires. HC419S/BT is suitable
for any typical indoor applications such as office, classroom, car park,
warehouse and other commercial/industrial areas.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range: | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth technology: | Nordic nRF52832 |
| Bluetooth transmit power: | 4 dBm |
| Commissioning Methods: | App & Web (Bluetooth) |
| Connector Type: | Standard 2 cables |
| Daylight Sensor Option: | Photocell Advance |
| Detection Methods: | Microwave (MW) |
| Detection angle: | 30° - 150° |
| Detection range (DxH): | 10x6 |
| Dimming (Output) Interface: | Relay On/Off |
| HF operating frequency (Ghz): | 5.8Ghz+/-75MHz |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Built-in |
| Mounting Height: | Low-bay |
| Mounting hole: | 4.2000 mm |
| Operating Voltage: | 120-277 VAC |
| Product height: | 24.9000 mm |
| Product length: | 65.0000 mm |
| Product width: | 50.0000 mm |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | 40 °C |
| Voltage Type: | AC |
| Warming-up: | 20 s |
| Zhaga: | No |
