HBTD8200T
Bluetooth Receiver | Trailing Edge | Wall Junction Box
BENEFITS
- Compact: Designed to fit into Wall Junction Box
- Professional: Trailing edge output with 150VA (capacitive)
- Easy configuration: Wireless Bluetooth 5.0 SIG-Mesh
APPLICATIONS
- Built-in luminaries
- Bluetooth receiver node
- Offices, Classrooms, Industry and Healthcare Spaces
Product information "HBTD8200T"

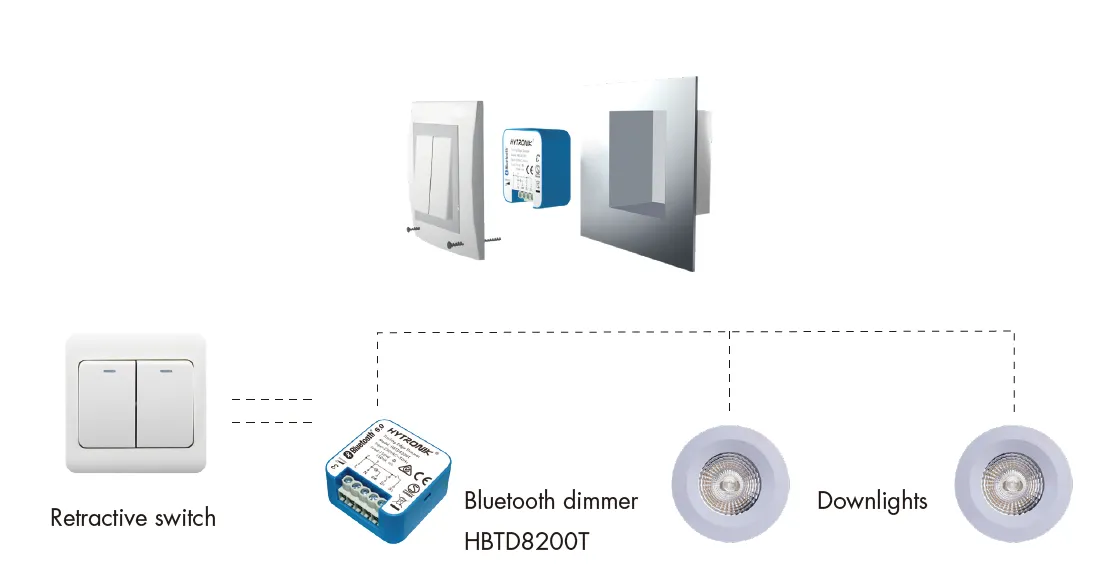

HBTD8200T is designed to fit into a junction box or electrical box to make a Push switch (retractive switch) to achieve on/off control, dimming control, color tuning, and even scene recall. It has trailing edge output with 150VA (capacitive). Whether used for new build or retrofit projects to add intelligent control to standard lighting fixtures, HBTD8200T does it all. Simple device setup and commissioning can be done via the Koolmesh app.
| Ambient temperature max.: | 45 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Application Type: | Dimmers for Wall Junction Box |
| Bluetooth frequency: | 2.4 GHz |
| Bluetooth range: | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth technology: | Nordic nRF52832 |
| Bluetooth transmit power: | 4 dBm |
| Commissioning Methods: | App & Web (Bluetooth) |
| Dimming (Output) Interface: | Trailing edge (Phase control) |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 20 % |
| IP Rate: | IP20 |
| Operating Voltage: | 230 VAC 50 Hz |
| Product height: | 22.0000 mm |
| Product length: | 46.0000 mm |
| Product width: | 46.0000 mm |
| Push Button Input: | 2 |
| Storage temperature max.: | 60 °C |
| Storage temperature min.: | -20 °C |
| Tri-level (Corridor function): | No |
| Zhaga: | No |
