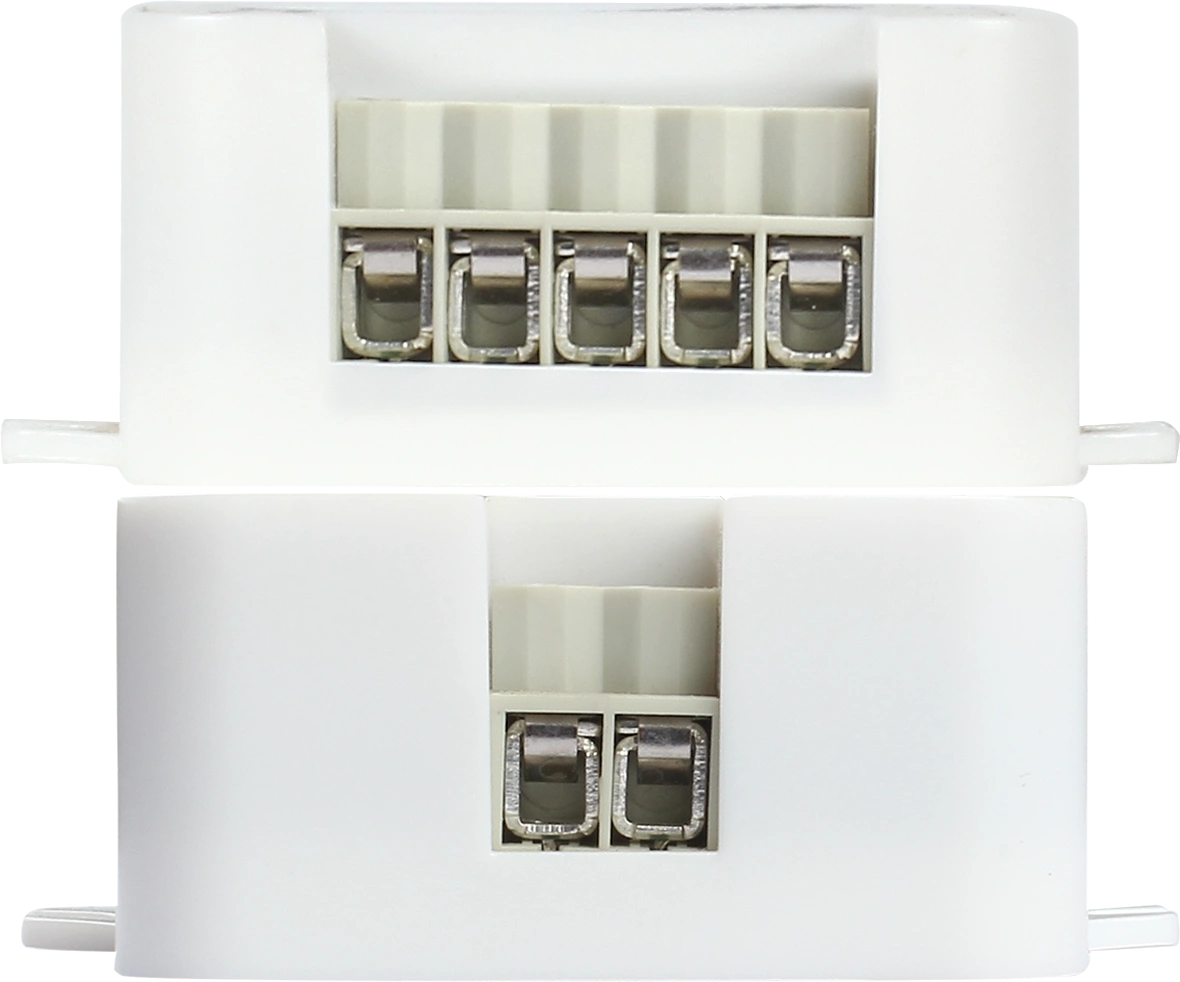

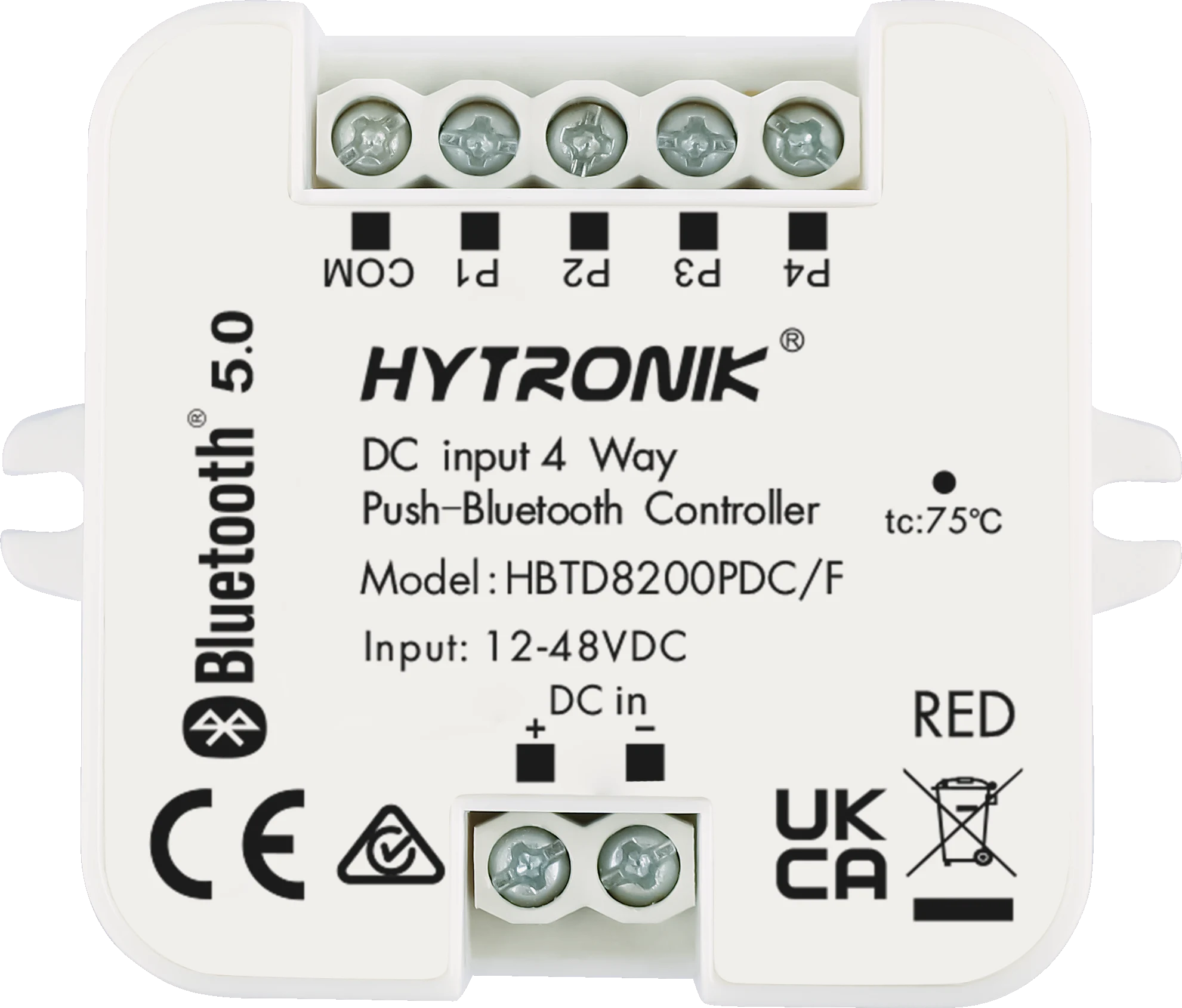

HBTD8200PDC/F
Bluetooth Receiver | SELV PUSH Switch | Screw Mounting
BENEFITS
- Compact: Two screw holes to be built inside luminaires
- Flexible: 4 SELV Push inputs for manual control
- Easy configuration: Wireless Bluetooth 5.0 SIG-Mesh
APPLICATIONS
- Built-in luminaires
- Offices, Classrooms
- Industry, Healthcare Spaces
Product information "HBTD8200PDC/F"
HBTD8200PDC/F has 4 SELV Push inputs, the control
signal is sent by Bluetooth to achieve on/off control, dimming control, color tuning, and even scene recall. It is designed to fit into a junction box or
electrical box. Whether used for new builds or retro-fit projects to add
intelligent control to standard lighting fixtures, HBTD8200PDC/F does it all.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Application Type: | Controller for Built-in Luminaire |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range (Phone to Device) : | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth transmit power: | 4 dBm |
| Commissioning Methods: | App & Web (Bluetooth) |
| Dimming (Output) Interface: | No Output (Bluetooth Signal Only) |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Operating voltage range: | 12-36 VDC |
| Product height: | 18.0000 mm |
| Product length: | 58.0000 mm |
| Product weight: | 39.0000 g |
| Product width: | 46.0000 mm |
| Push Button Input: | 4 |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Zhaga: | No |
Datasheets
Product datasheet: hbtd8200pdc-f.pdf
