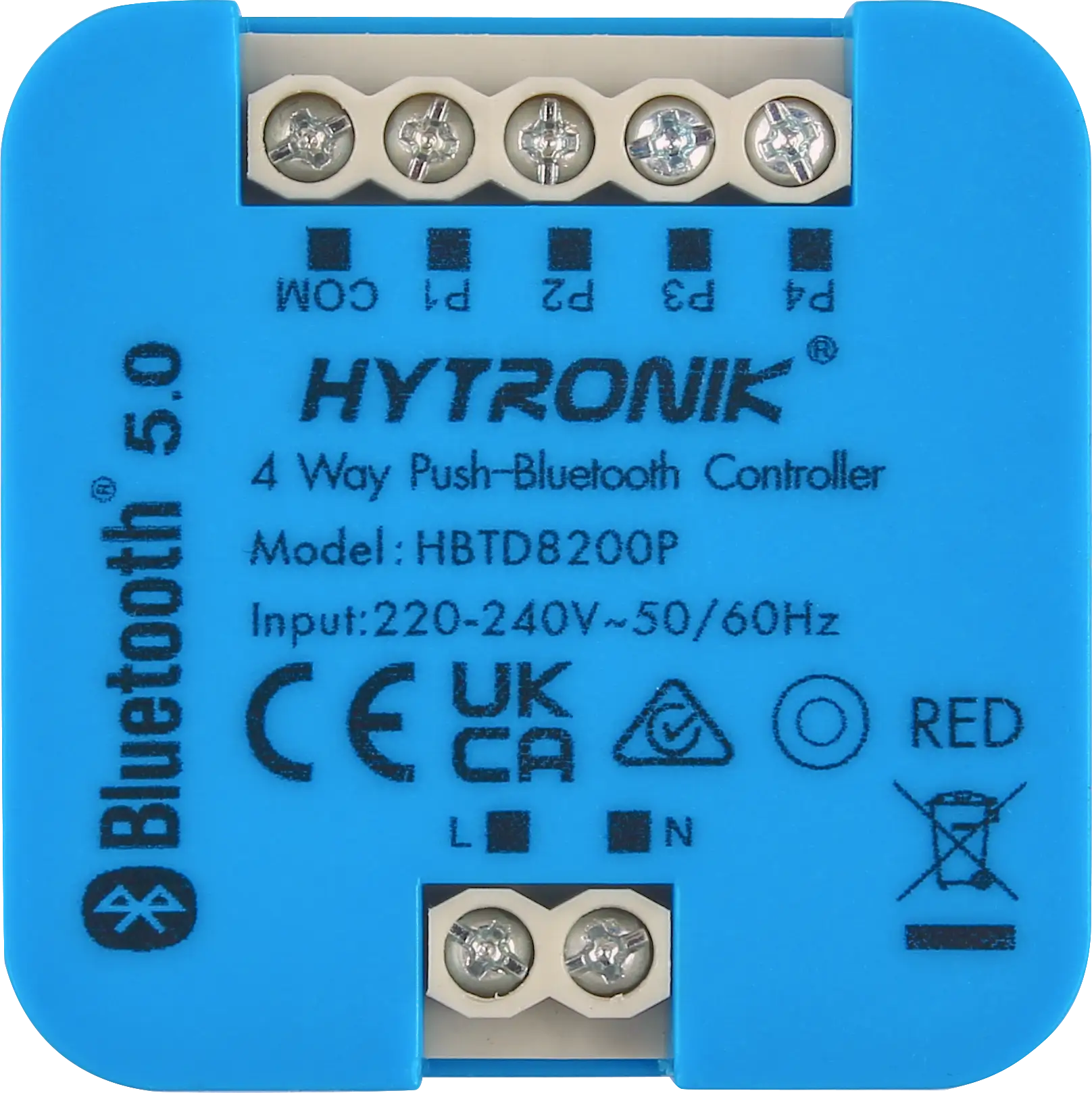

HBTD8200P
Bluetooth Receiver | 4 SELV Push | Wall Junction Box
BENEFITS
- Compact: Designed to fit into Wall Junction Box
- Functional: On/Off + Dimming control + Colour tuning + Scene recall via app
- Flexible: 4 SELV Push switch for manual control
APPLICATIONS
- Bluetooth receiver node
- Offices, Classrooms
- Industry and Healthcare Spaces
Product information "HBTD8200P"
HBTD8200P have 4 SELV Push input, the control signal is sent by Bluetooth to achieve on/off control, dimming control, colour tuning and even scene recall. It is designed to fit into a junction box or electrical box. Whether used for new build or retrofit projects to add intelligent control to standard lighting fixxtures, HBTD8200P does it all. Simple device setup and commissioning can be done via Koolmesh app.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Application Type: | Dimmers for Wall Junction Box |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range (Phone to Device) : | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth transmit power: | 4 dBm |
| Commissioning Methods: | App & Web (Bluetooth) |
| Dimming (Output) Interface: | Relay On/Off |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Product height: | 18.0000 mm |
| Product length: | 46.0000 mm |
| Product weight: | 60.0000 g |
| Product width: | 46.0000 mm |
| Push Button Input: | 4 |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | No |
| Zhaga: | No |
Datasheets
Product datasheet: hbtd8200p.pdf
