Active / New
HBTD8200D
Bluetooth-to-DALI Converter | Integrated 80mA PSU| Wall Junction Box
BENEFITS
- Compact: Enabling easy junction box installation
- Smart: Converting Bluetooth control to DALI lighting
- Flexible: Allowing push switch & app setup
APPLICATIONS
- Upgrading Existing DALI Lighting
- Bluetooth receiver node
- Compact Junction-box Installation

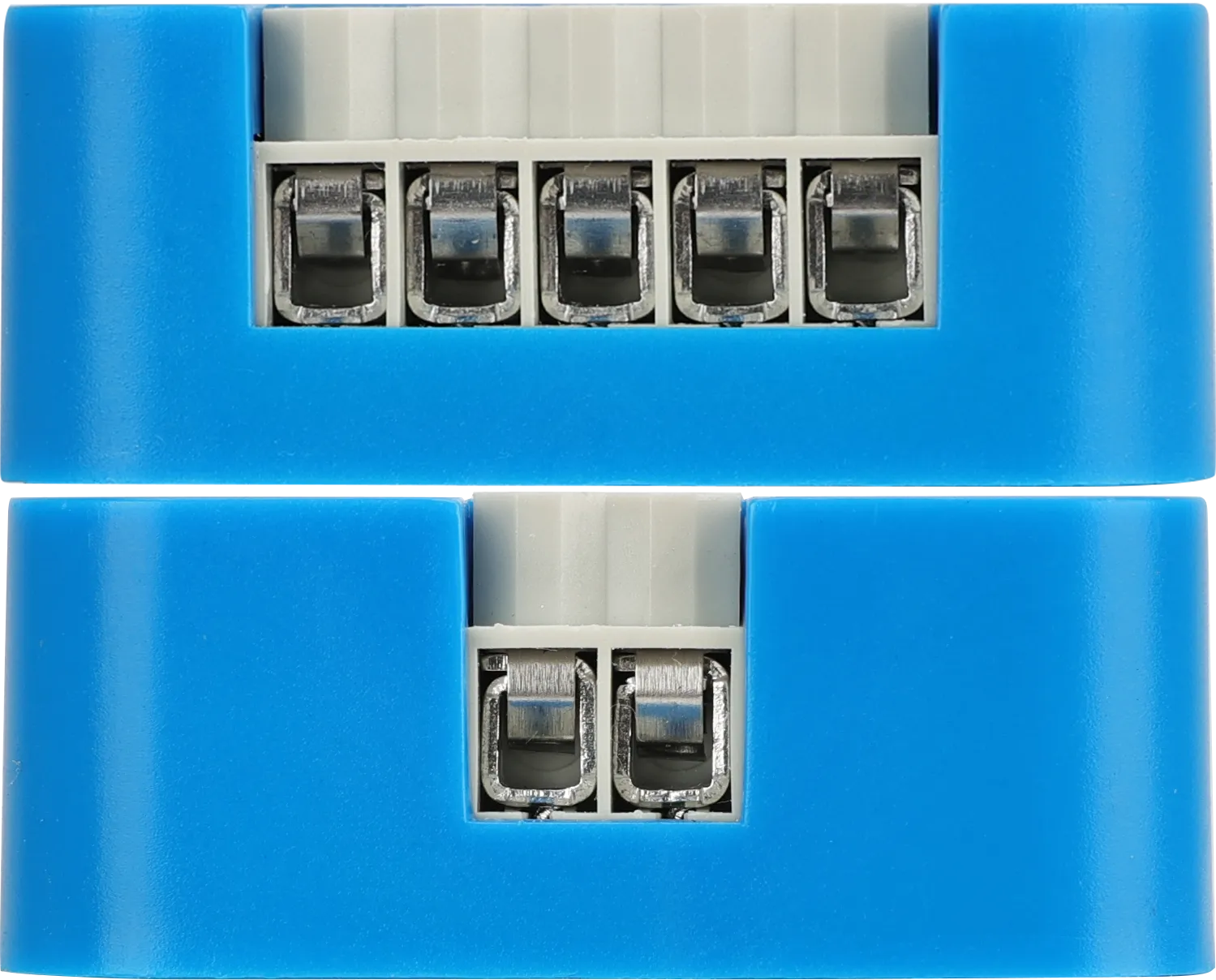

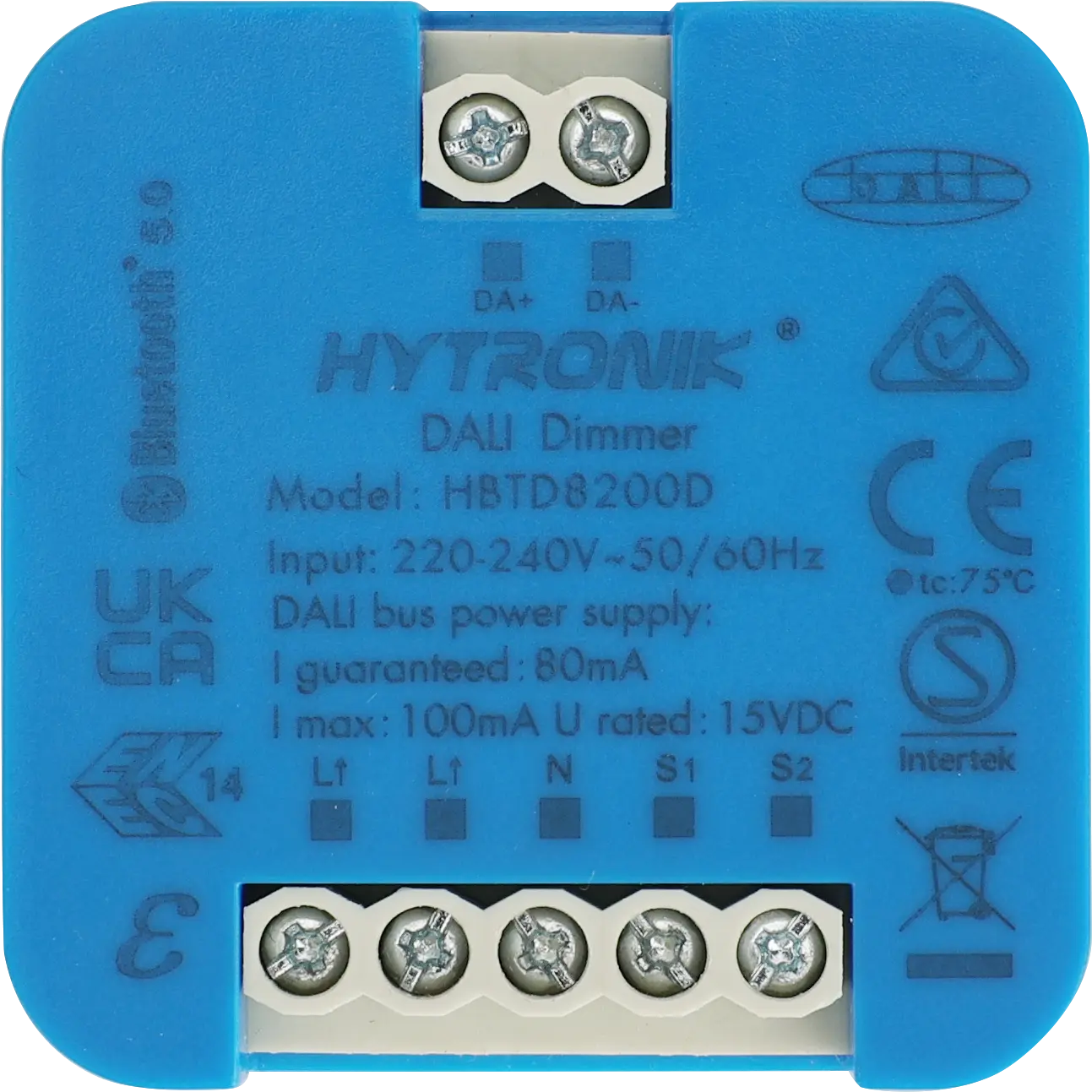

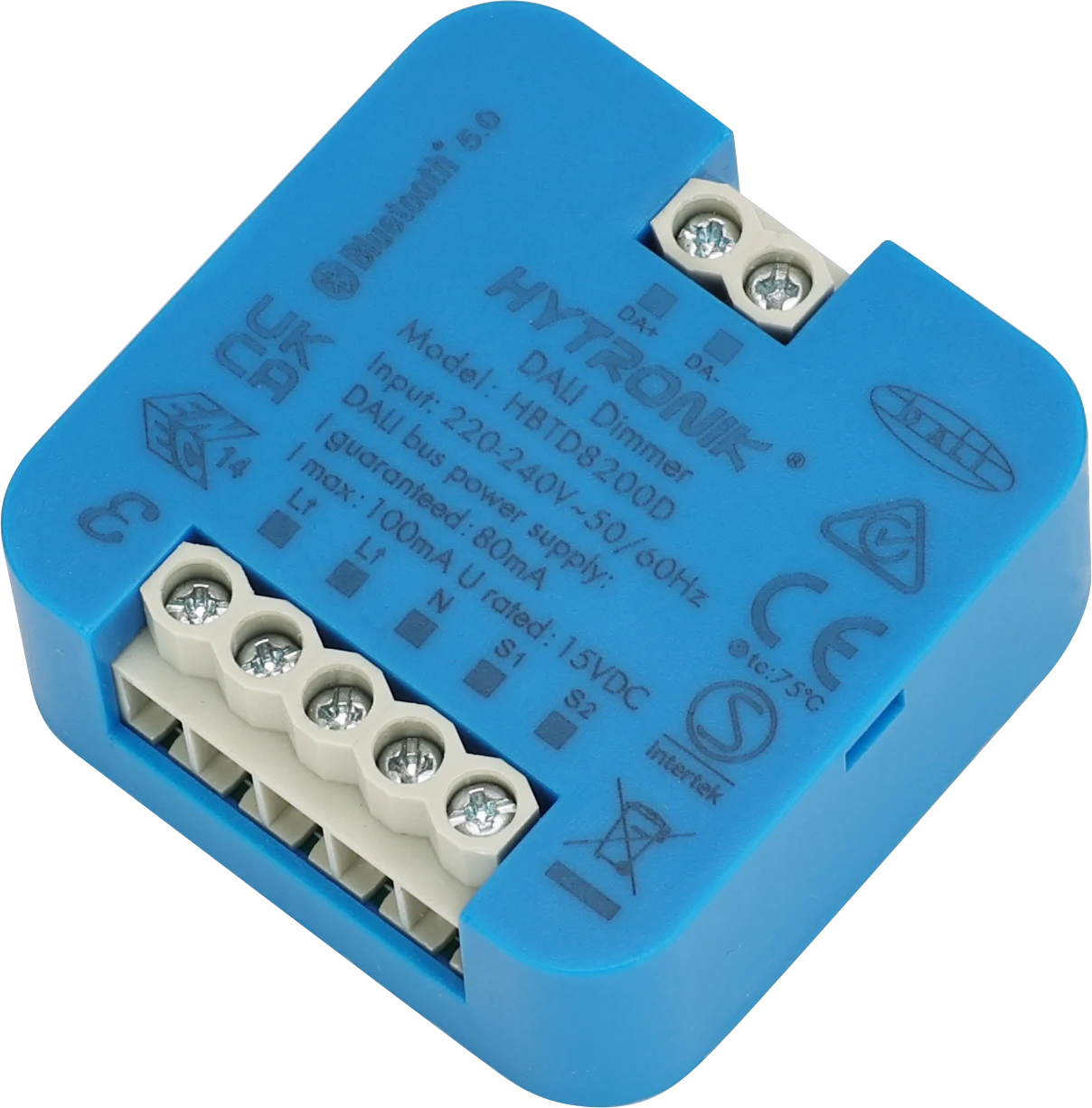

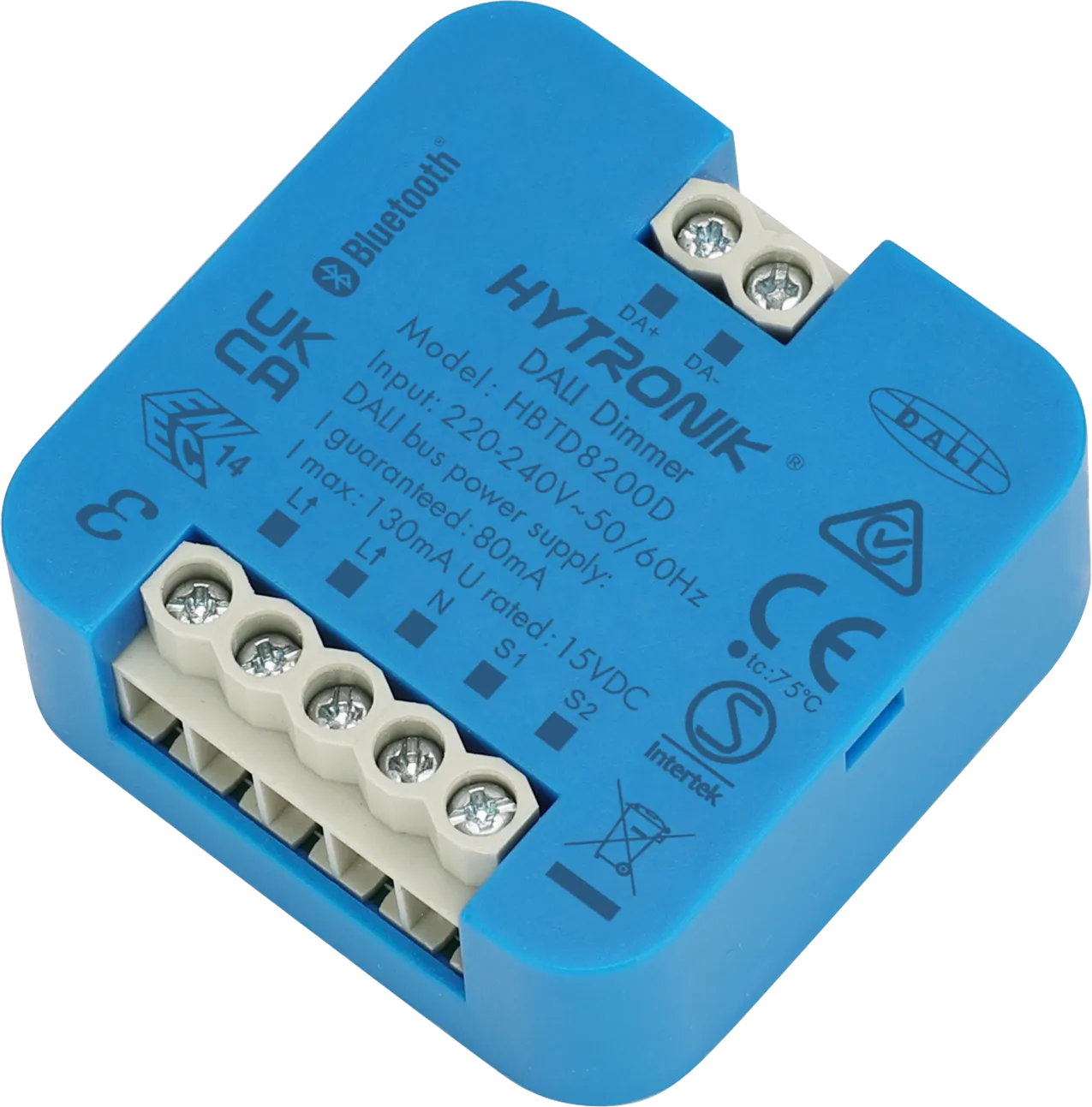

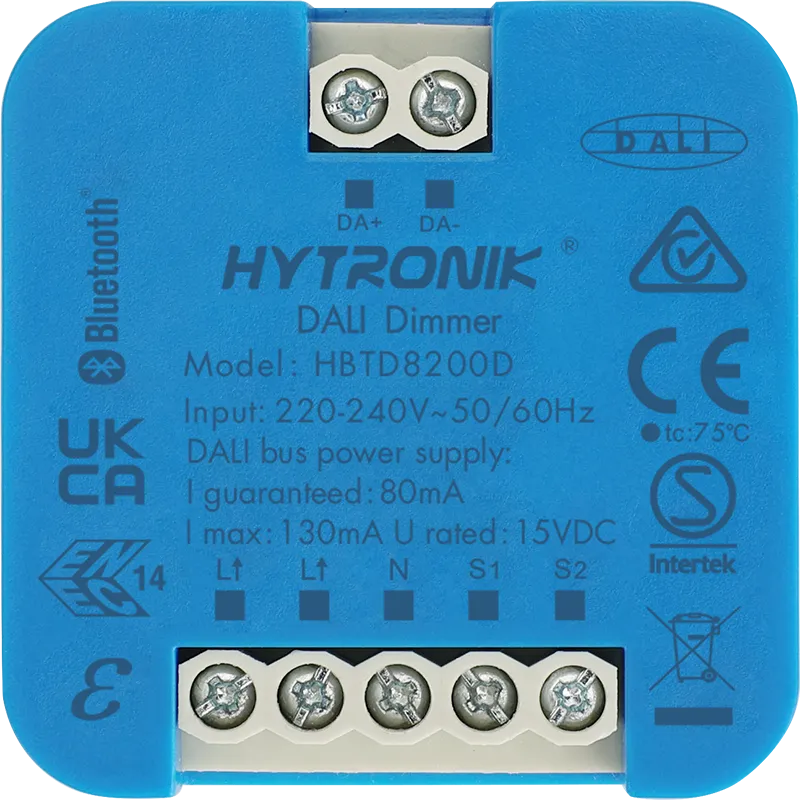

Product information "HBTD8200D"

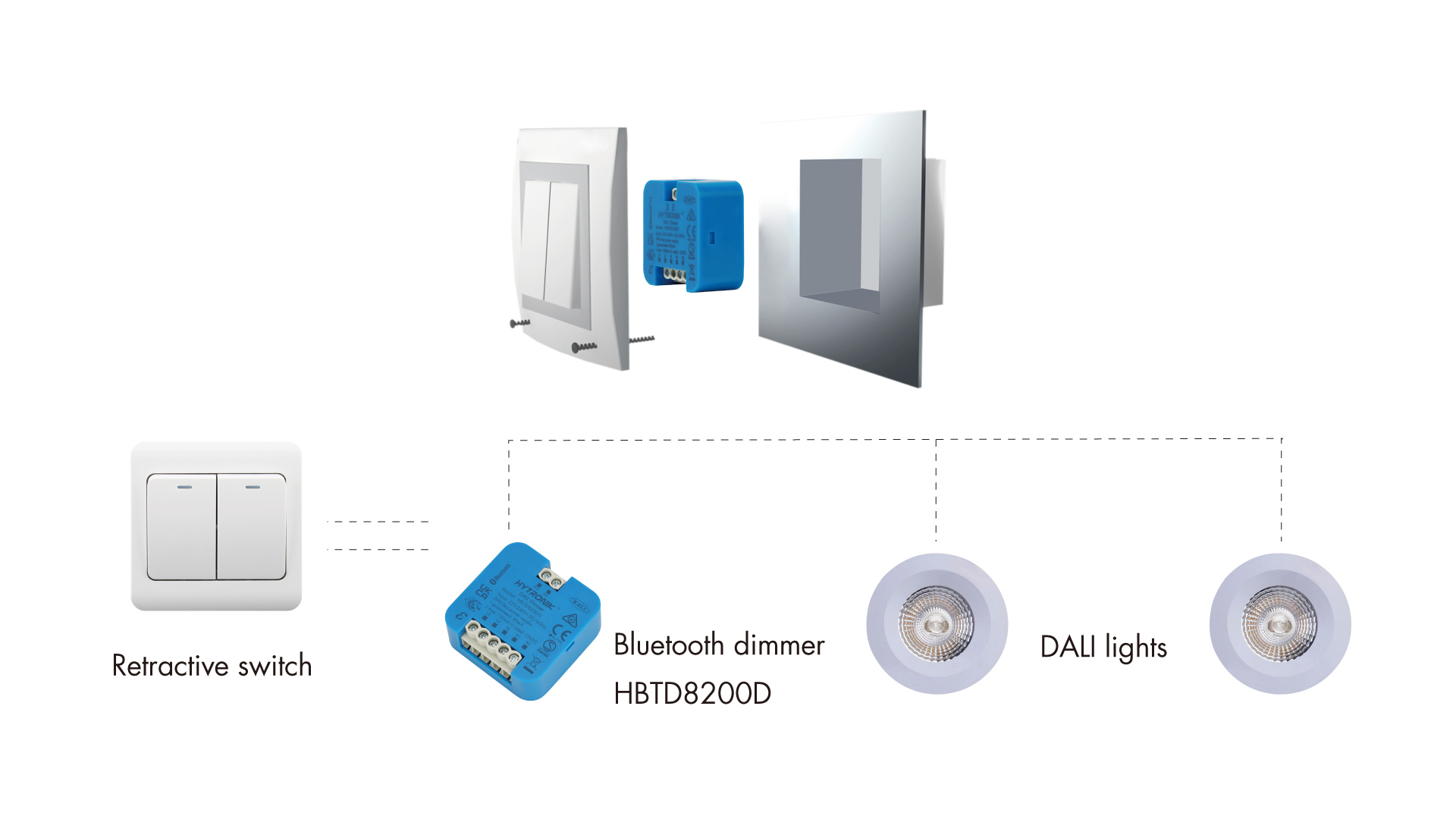

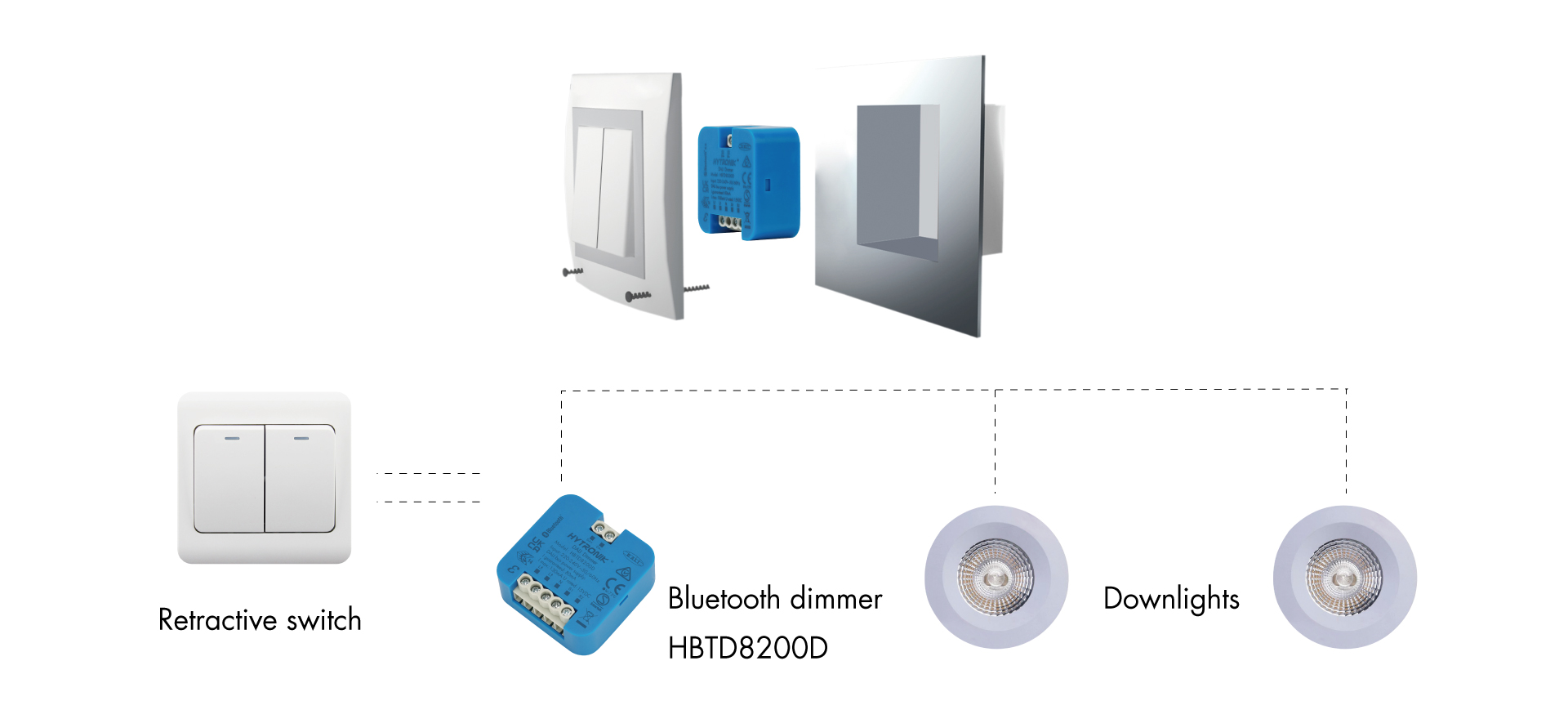

HBTD8200D is a compact Bluetooth-to-DALI control module that brings smart Bluetooth Mesh commissioning and control to DALI luminaires via the Koolmesh system. Designed to fit into a junction box or electrical back box, it allows a standard retractive push switch to interface with a DALI system, enabling functions such as dimming, colour tuning, and scene recall. Suitable for both new-build and retrofit projects, it adds intelligent control to conventional lighting installations without replacing luminaires.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Application Type: | DALI-to Bluetooth Converter/Translator Module |
| Bluetooth Platform: | Nordic nRF52840 |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range (Phone to Device) : | 15-40m |
| Bluetooth system: | Koolmesh |
| Bluetooth transmit power: | 8 dBm |
| Commissioning Methods: | App & Web (Bluetooth) |
| Daylight Harvest: | No |
| Dimming (Output) Interface: | DALI |
| Human Centric Lightning (HCL): | Yes |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Product Status: | Active / New |
| Product height: | 22.0000 mm |
| Product length: | 46.0000 mm |
| Product weight: | 35.0000 g |
| Product width: | 46.0000 mm |
| Push Button Input: | 2 |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | No |
| Zhaga: | No |
Datasheets
Product datasheet: hbtd8200d.pdf
