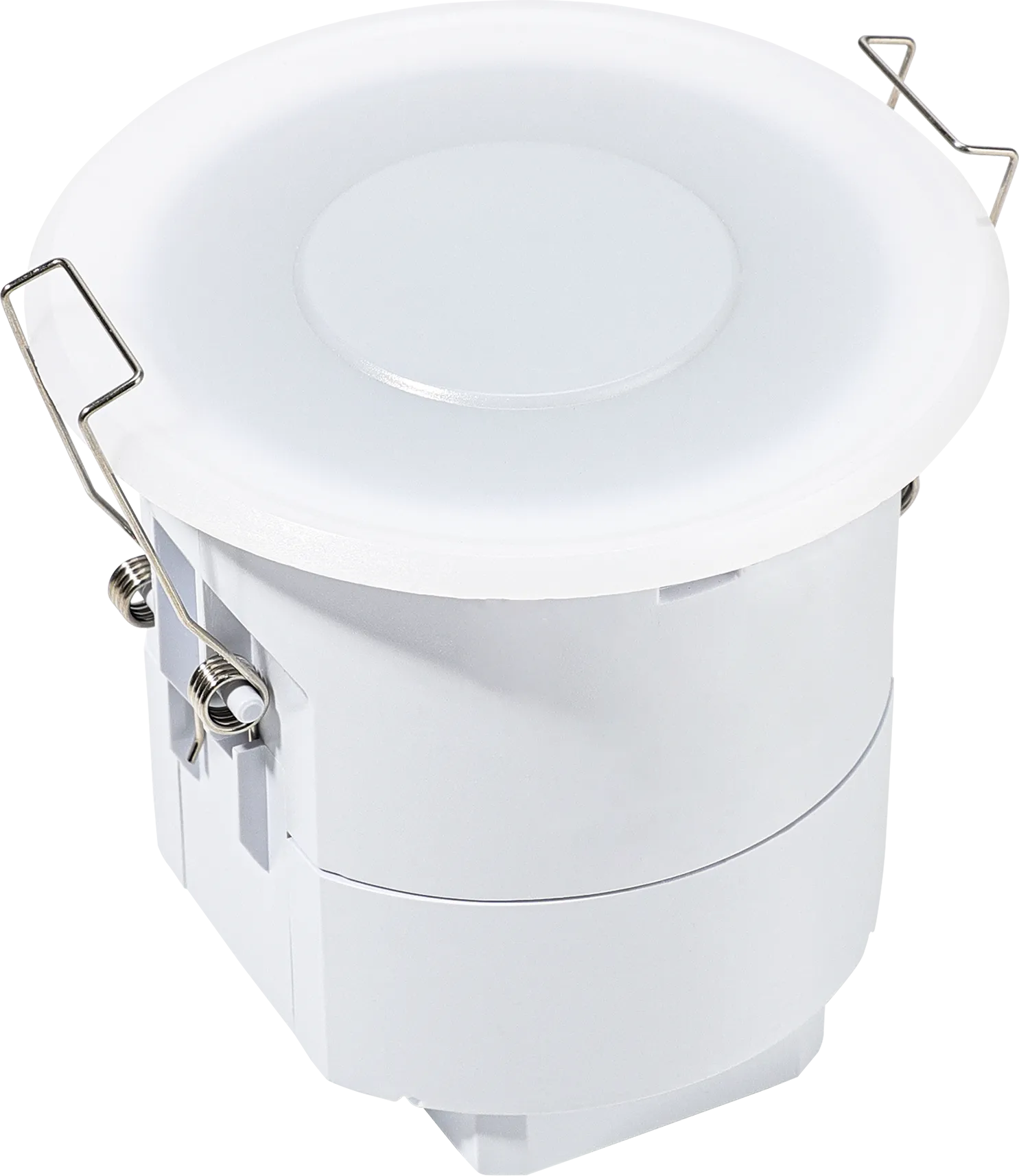

HBMW28/PRO
True Occupancy | ON/OFF | Surface mounting
BENEFITS
- High accuracy: True Presence technology for sensitive detection
- Flexible: Adjustable motion & static sensitivity function
- Easy configuration: Wireless Bluetooth 5.0 SIG-Mesh
APPLICATIONS
- Standalone installation for ceiling up to 3m
- Office/ Meeting rooms
- Schools
Product information "HBMW28/PRO"
It is a Bluetooth Microwave standalone motion sensor with Hytronik True occupancy detection, which detects human breathing rather than mere movements. Bluetooth mesh networking simplifies luminaire communication, saving time and costs, especially for retrofit projects. Setup and commissioning are easy via the Koolmesh app.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range: | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth technology: | Nordic nRF52832 |
| Bluetooth transmit power: | 4 dBm |
| Commissioning Methods: | App & Web (Bluetooth) |
| Connector Type: | Standard 2 cables |
| Daylight Harvest: | No |
| Detection Methods: | Microwave (MW) |
| Detection angle: | 360° |
| Detection range (DxH): | 10x3 |
| Dimming (Output) Interface: | Relay On/Off |
| HF operating frequency (Ghz): | 5.8Ghz+/-75MHz |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Stand-alone |
| Lens type: | Standard Low-bay |
| Maximum Mounting Height: | 3.0000 m |
| Mounting Height: | Low-bay |
| Mounting hole: | 66.0000 mm |
| Operating Voltage: | 220-240 VAC 50/60 Hz |
| Product height: | 73.0000 mm |
| Product length: | 78.0000 mm |
| Product width: | 78.0000 mm |
| Push Button Input: | 1 |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | No |
| Voltage Type: | AC |
| Warming-up: | 20 s |
| Zhaga: | No |
