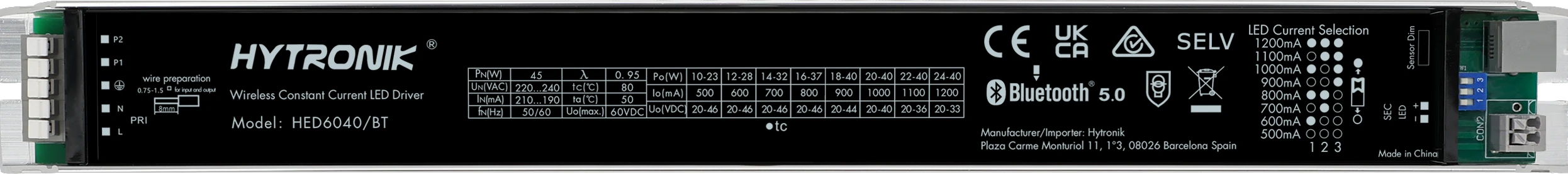

HED6040/BT
Bluetooth LED Driver 40W (CC) | Dimmable | Built-in
CARACTERÍSTICAS
- Compact: Constant current LED Driver with Bluetooth interface
- Innovative: Featuring Switch-Dim and Bluetooth dimming interfaces
- Easy configuration: via Dip-switch & Wireless Bluetooth 5.0 SIG-Mesh
APLICACIONES
- Retrofit projects with no extra wiring for control
- Offices
- Classrooms
Información sobre el producto "HED6040/BT"

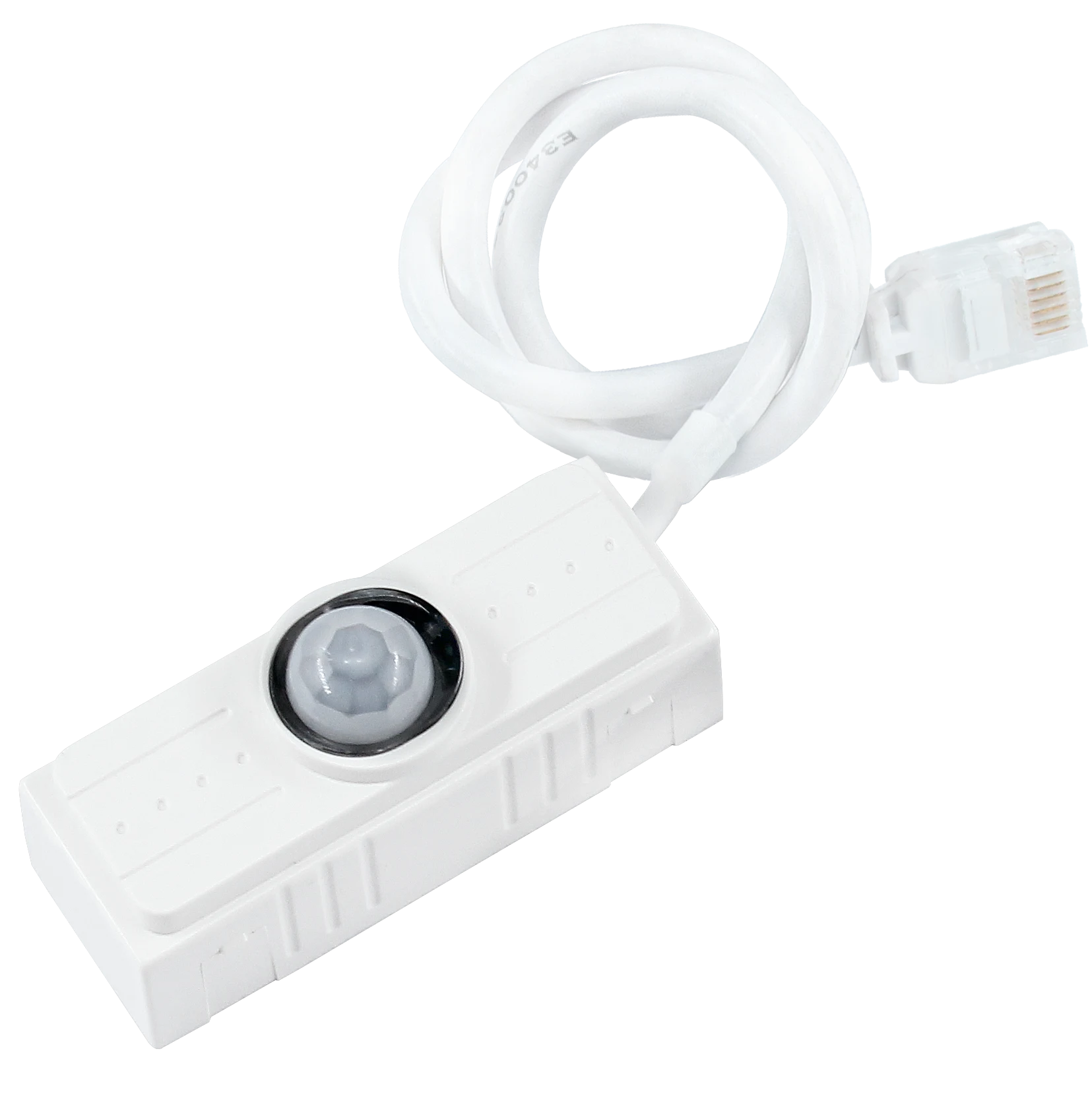

HED6040/BT is a Bluetooth dimming LED driver with 40W max power output. It has a Switch-Dim interface via a Push switch. By connecting sensor heads like HIR05, HIR07, HIR11, HIR12, HIR63, HIR63/R, SAM20, SAM21, SAM22, SAM23 to the driver, it enables motion detection and Bluetooth mesh control.
| Alcance del Bluetooth: | 10-30m |
|---|---|
| Altura del producto: | 21.3000 mm |
| Anchura del producto: | 39.7000 mm |
| Eficiencia: | 88 % |
| Entrada de pulsador: | 2 |
| Frecuencia Bluetooth: | 2.4 GHz - 2.483 GHz |
| Human Centric Lightning (HCL): | No |
| Humedad máx: | 90 % |
| Humedad mín: | 10 % |
| Longitud del producto: | 358.0000 mm |
| Max. Temperatura de almacenaje: | 70 °C |
| Modo de funcionamiento: | Corriente constante |
| Potencia de transmisión de Bluetooth: | 4 dBm |
| Protección IP: | IP20 |
| Puesta en marcha: | App y Web (Bluetooth), Selectores DIP-switch |
| Sistema Bluetooth: | Koolmesh |
| Temperatura ambiente máx.: | 50 °C |
| Temperatura ambiente mín.: | -20 °C |
| Temperatura min. de almacenamiento: | -40 °C |
| Tipo de driver: | Solo regulación de intensidad |
| Tipo de montaje: | Para integrar |
| Tri-nivel (Función pasillo): | No |
| Voltaje de operación: | 220-240 VAC 50/60 Hz |
