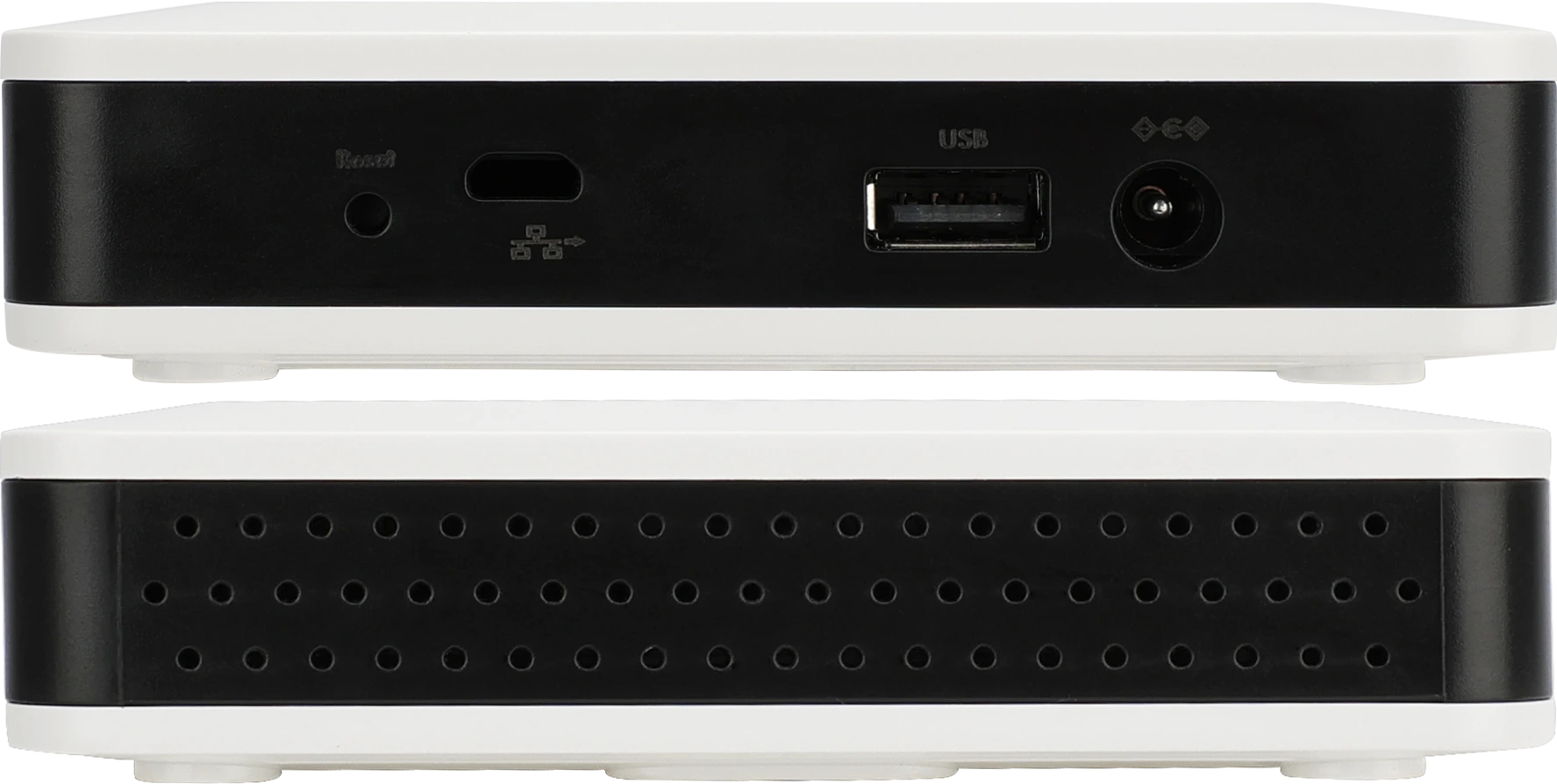

HBGW02/D
Bluetooth Mesh Gateway | Dual-band Wi-Fi | wall/flat surface mounting
CARACTERÍSTICAS
- Design: Compact saving installation space
- Scalable: Supporting up to 200 Bluetooth devices for network expansion
- Flexible: Supporting dual-band Wi-Fi and remote data management
APLICACIONES
- Commercial & Office Lighting
- Industrial & Warehouse Logistics
- All types of applications
Información sobre el producto "HBGW02/D"
HBGW02/D is a Bluetooth Mesh gateway that utilizes frequency-hopping Bluetooth technology to establish stable one-to-many connections, reducing disconnections in typical applications. It supports up to 200 Bluetooth nodes and can connect via 2.4 GHz and 5 GHz Wi-Fi. This gateway enables remote monitoring, control, and data collection for easier network management and maintenance. Its compact design and versatile connectivity make it an ideal solution for smart lighting systems.
| Alcance del Bluetooth: | 10-30m |
|---|---|
| Altura del producto: | 30.0000 mm |
| Anchura del producto: | 120.0000 mm |
| Categoría - Componentes del sistema de control: | Pasarela para el sistema Bluetooth |
| Frecuencia Bluetooth: | 2.4 GHz - 2.483 GHz |
| Human Centric Lightning (HCL): | No |
| Humedad máx: | 80 % |
| Humedad mín: | 20 % |
| Longitud del producto: | 120.0000 mm |
| Max. Temperatura de almacenaje: | 60 °C |
| Peso del producto: | 135.0000 g |
| Potencia de transmisión de Bluetooth: | 19 dBm |
| Protección IP: | IP20 |
| Sistema Bluetooth: | Koolmesh |
| Temperatura ambiente máx.: | 60 °C |
| Temperatura ambiente mín.: | -25 °C |
| Temperatura min. de almacenamiento: | -35 °C |
| Tri-nivel (Función pasillo): | No |
| Voltaje de operación: | 220-240 VAC 50/60 Hz |
Fichas técnicas
Ficha técnica del producto: hbgw02-d.pdf
