HBEM06
Emergency Sign Maintained Max.4w | Bluetooth control | Attachable sensor heads
CARACTERÍSTICAS
- Compact: Max. 4W Main Power EM Power Supply
- All-in-one: Emergency functions with Bluetooth with optional sensor
- Cost-Saving: BLE eliminates the need for time-consuming hardwiring
APLICACIONES
- Built-in Emergency Exit Sign light
- Retrofit upgrades & New luminaire designs
- Offices, Classrooms, Industry and Healthcare Spaces
Información sobre el producto "HBEM06"

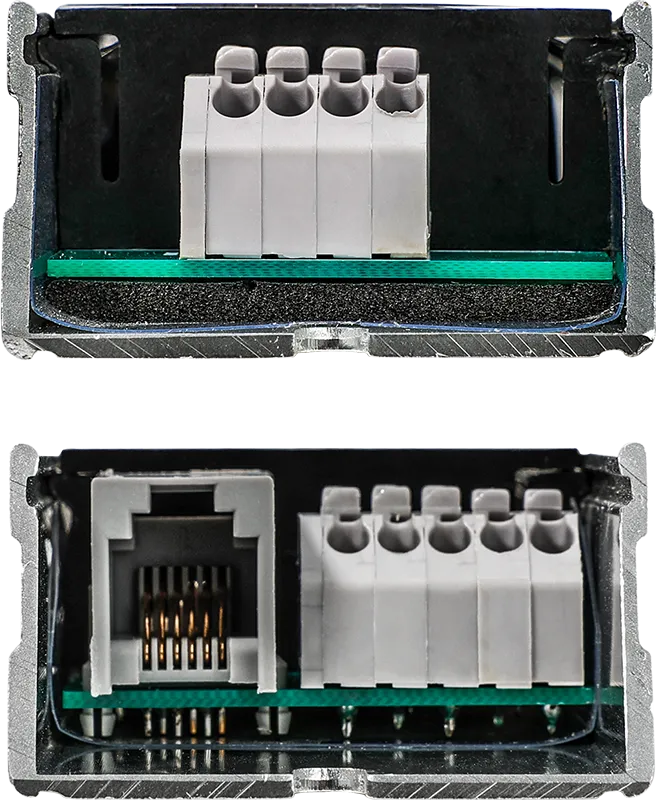

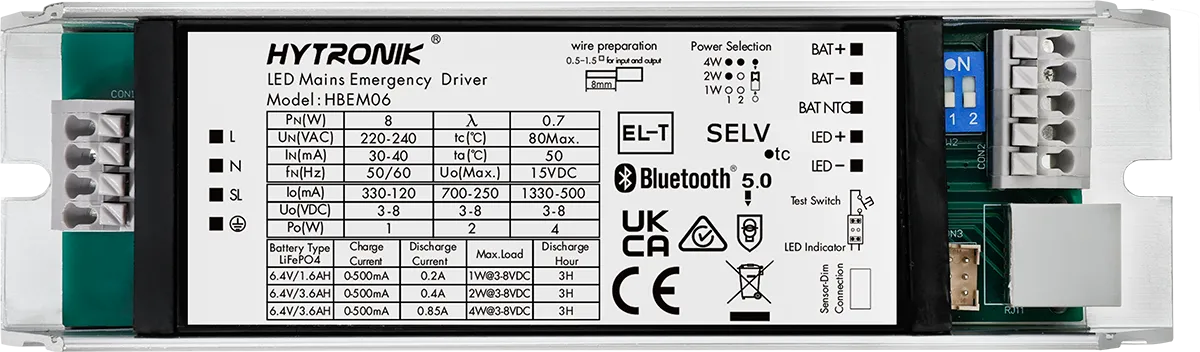

HBEM06 is a low-power, dimmable multifunctional emergency power module specifically designed for exit sign luminaires. Both mains and emergency outputs can be set to 1W, 2W, or 4W via DIP switch.With an RJ11 interface, it supports external sensor head connection.An SL terminal is provided for mains lighting compatibility (by connecting SL to L).Powered by a 6.4V LiFePO4 battery for safe and reliable emergency operation.Meanwhile, simple device setup and commissioning can be done via Koolmesh app.
| Alcance del Bluetooth: | 10-30m |
|---|---|
| Altura del producto: | 21.3000 mm |
| Anchura del producto: | 39.7000 mm |
| Categoría - Emergencia LED: | Combo de driver LED e inversor (Bluetooth) |
| Frecuencia Bluetooth: | 2.4 GHz - 2.483 GHz |
| Human Centric Lightning (HCL): | No |
| Longitud del producto: | 139.0000 mm |
| Max. Temperatura de almacenaje: | 70 °C |
| Plataforma Bluetooth: | Nordic nRF52832 |
| Potencia de transmisión de Bluetooth: | 4 dBm |
| Protección IP: | IP20 |
| Sistema Bluetooth: | Koolmesh |
| Temperatura ambiente máx.: | 50 °C |
| Temperatura ambiente mín.: | 0 °C |
| Temperatura min. de almacenamiento: | -40 °C |
| Tri-nivel (Función pasillo): | No |
| Voltaje de operación: | 220-240 VAC 50/60 Hz |
Fichas técnicas
Ficha técnica del producto: hbem06.pdf
