HBGW03/R

BACnet Gateway | DIN rail/wall/flat surface mounting | Remote access/monitoring

CARACTERÍSTICAS

Compact: Enables flexible installation in various environments.
Seamless: Connects Bluetooth lighting devices to BMS for unified control.
Efficiency: Centralized control speeds up operations and saves energy.

APLICACIONES

Building automation and lighting systems
Network cabinets or enclosures
1 gateway per bluetooth network

Descargar la ficha técnica

Información sobre el producto "HBGW03/R"

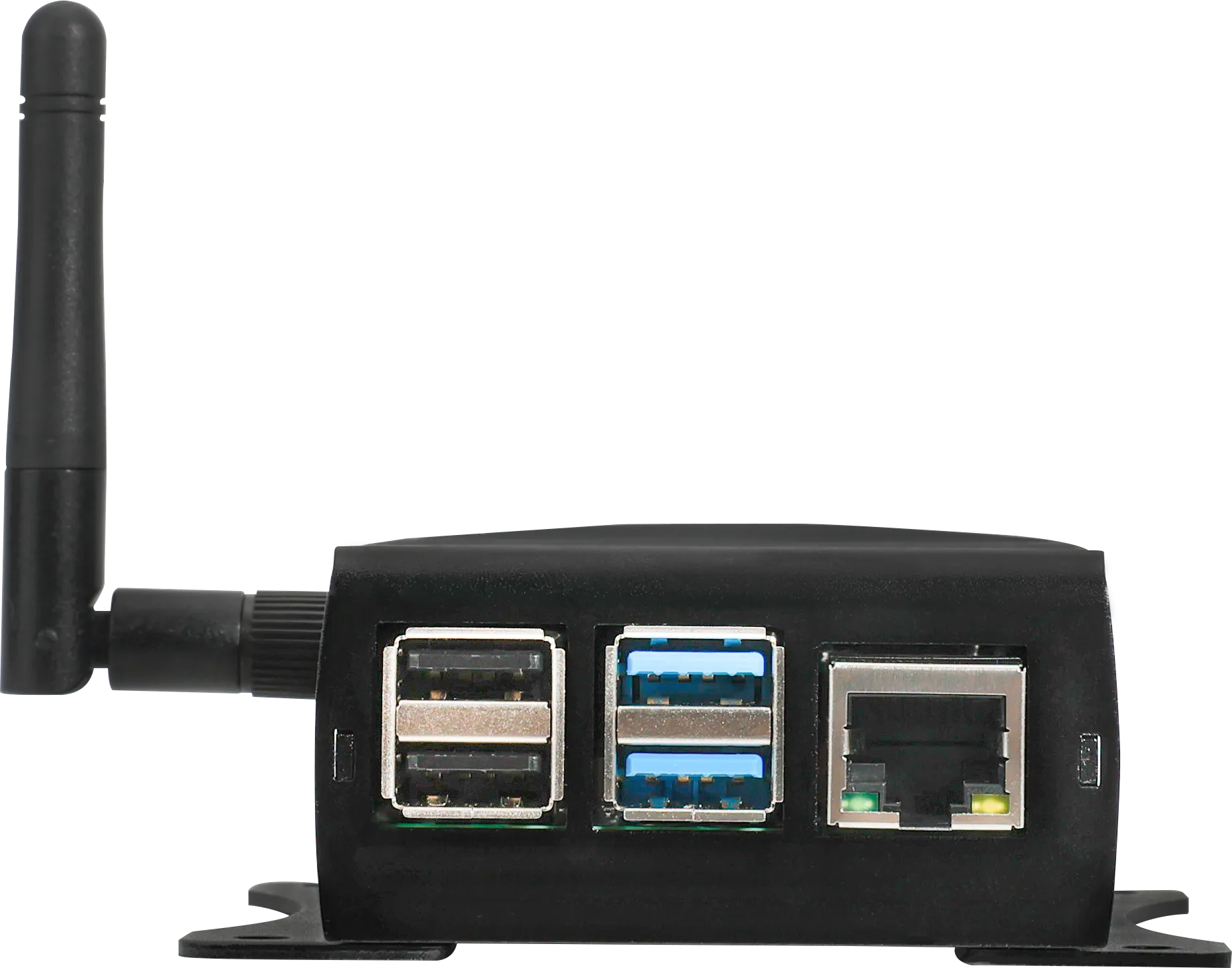

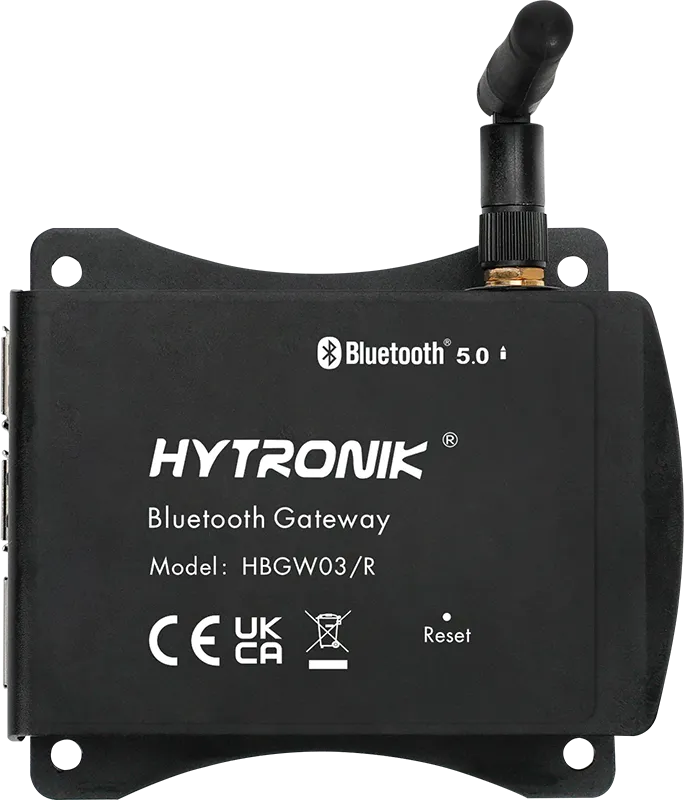

HBGW03/R is an industrial-grade BACnet gateway with a built-in nRF52840 Bluetooth module. It converts Bluetooth device data into BACnet or Ethernet signals, enabling seamless integration of Bluetooth lighting networks with BMS for unified monitoring and control. Designed for flexible installation, the gateway supports DIN rail, wall, or flat surface mounting, and features an external antenna to enhance signal stability and communication range. With its compact footprint (95.7×70×28.7 mm) and robust performance, HBGW03/R ensures reliable operation and easy deployment in diverse industrial and commercial applications.

Alcance del Bluetooth:	10-50m
Altura del producto:	82.8000 mm
Anchura del producto:	85.5000 mm
Categoría - Componentes del sistema de control:	Pasarela para el sistema Bluetooth
Frecuencia Bluetooth:	2.4 GHz - 2.483 GHz
Human Centric Lightning (HCL):	No
Humedad máx:	60 %
Humedad mín:	30 %
Longitud del producto:	96.6000 mm
Max. Temperatura de almacenaje:	60 °C
Potencia de transmisión de Bluetooth:	19 dBm
Protección IP:	IP20
Sistema Bluetooth:	Koolmesh
Temperatura ambiente máx.:	50 °C
Temperatura ambiente mín.:	0 °C
Temperatura min. de almacenamiento:	-10 °C
Tri-nivel (Función pasillo):	No
