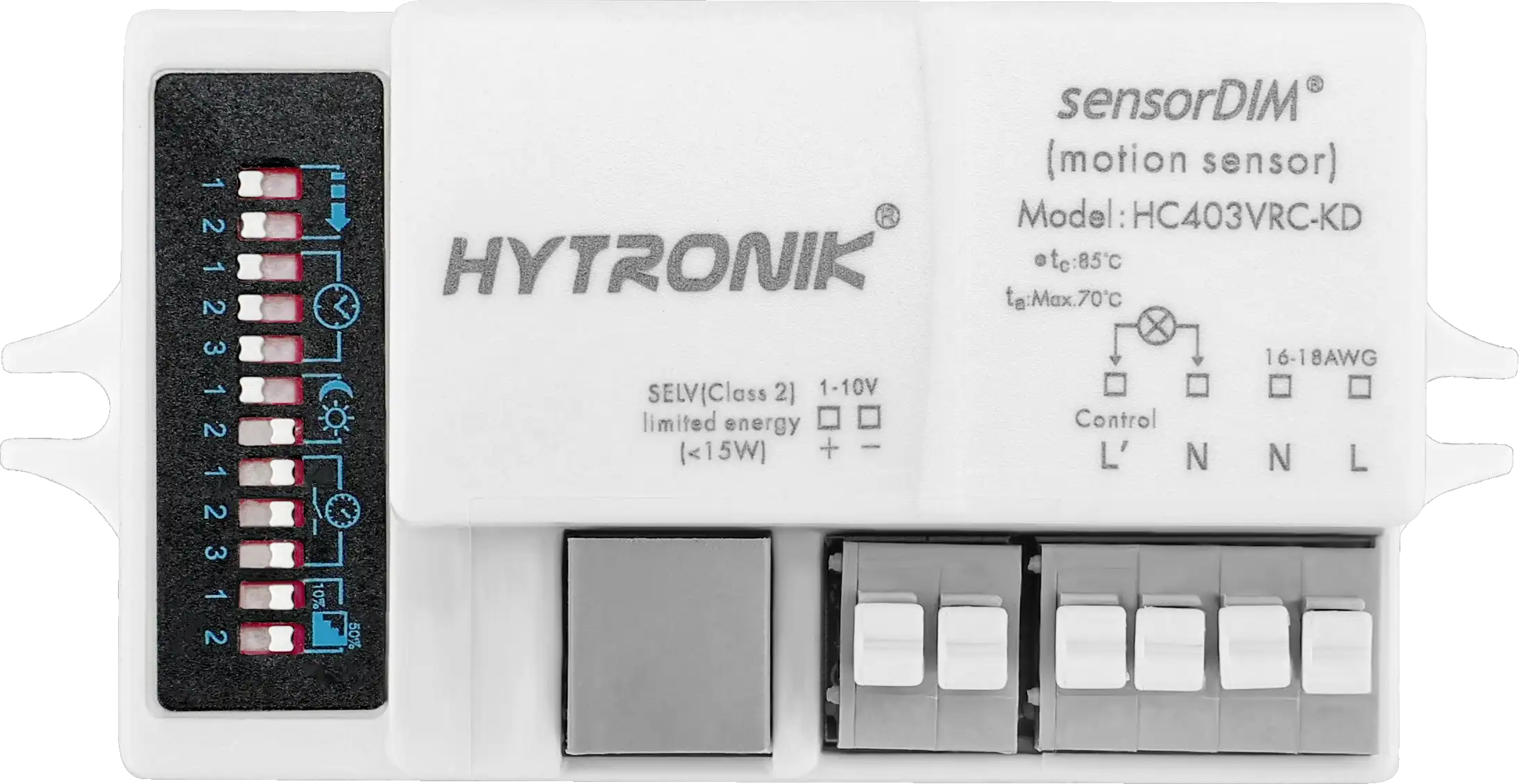

HC403VRC-KD
Control body | Daylight Harvest | Dip-Switch
Vorteile
- Plug&play: Detached Version with daylight harvest
- 3 in 1: Tri-level +daylight harvest + 1-10V output
- Simple: Daylight, detection range and holdtime configuration via Dip-Switch
ANWENDUNGEN
- For round shape luminaire with a height of up to 6m
- Office / Meeting rooms
- Schools / Classroom
Produktinformationen "HC403VRC-KD"

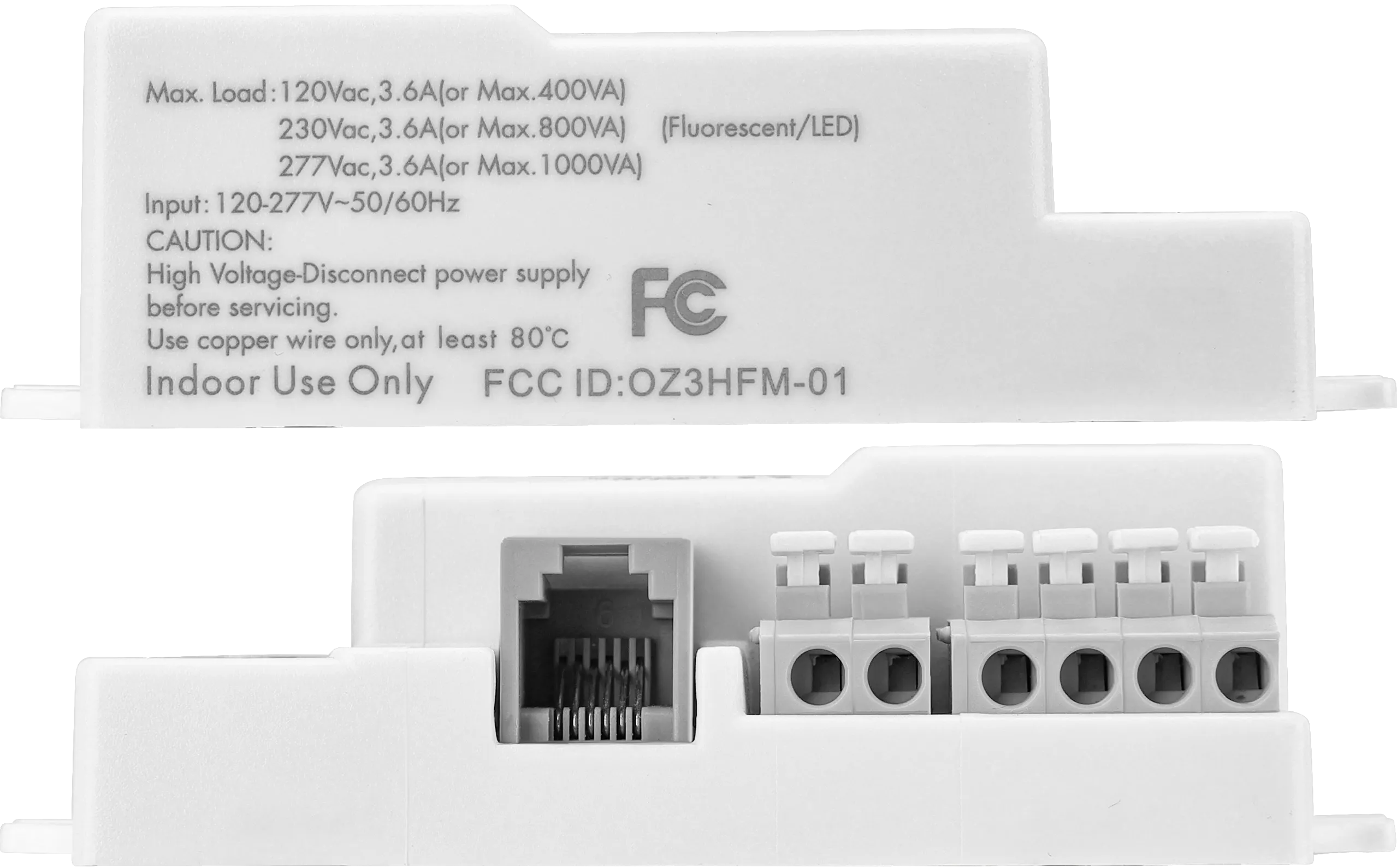

HC403VRC-KD is a control base equipped with tri-level dimming control, featuring daylight monitoring and remote Control capabilities. It supports 1-10V dimming control with relay output and accommodates a maximum loading capacity of 1000VA capacitive.
| Anschlusstyp: | RJ12 |
|---|---|
| Ausgangsschnittstelle: | 1-10V |
| Befestigungsloch: | 4.2000 mm |
| Betriebsspannung: | 120 - 277 VAC |
| Daylight Harvest: | Ja |
| Detection angle: | 30° - 150° |
| Detektionsverfahren: | Microwave (MW) |
| Features: | Daylight Harvest, Tri-level (Corridor Function) |
| Feuchtigkeit max: | 90 % |
| Feuchtigkeit min: | 10 % |
| HF Betriebsfrequenz (Ghz): | 5.8Ghz+/-75MHz |
| Human Centric Lightning (HCL): | Nein |
| Inbetriebnahmemethoden: | DIP-switch |
| Installationstyp: | Built-in |
| Lagertemperatur: | 50 °C |
| Lagertemperatur min.: | -20 °C |
| Lens type: | Standard Low-bay |
| Maximale Montagehöhe: | 6.0000 m |
| Montagehöhe: | Low-bay |
| Product height: | 27.5000 mm |
| Produktlänge: | 95.0000 mm |
| Produkttiefe: | 48.0000 mm |
| Schutzart: | IP20 |
| Tageslicht Sensor Option: | Ordinary Photodiode/Photocell |
| Taster Eingänge: | |
| Tri-level (Korridorfunktion): | Ja |
| Umgebungstemperatur: | 60 °C |
| Umgebungstemperatur min.: | -20 °C |
| Voltage Type: | AC |
| Zhaga: | No |
