Now, seven lighting towers operate like a neural network. Without laying a single cable.
Magic? Not quite. It’s Koolmesh.
A robust, distributed Bluetooth network that connects sensors, control panels and relays with surgical precision.
The range? A confident 150 metres – no sweat.

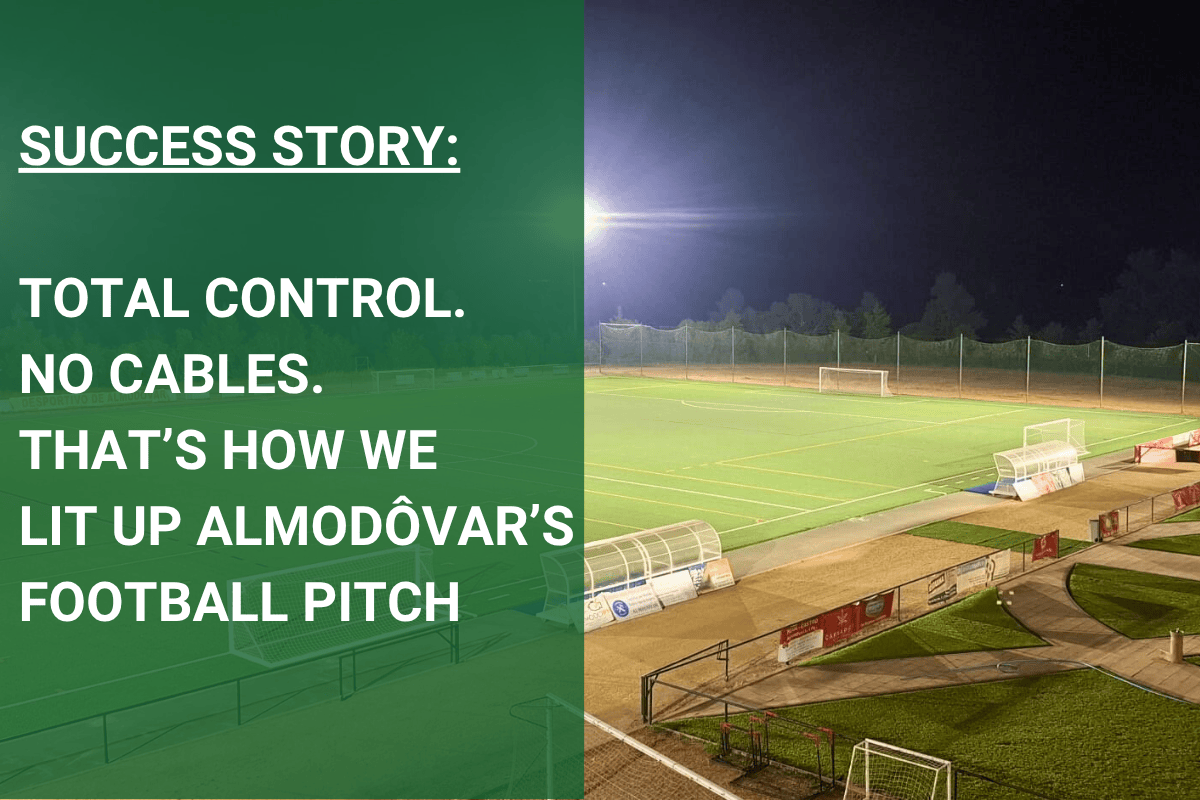

Sistema de controlo de iluminação do campo de futebol do Complexo Desportivo de Almodôvar
THE CHALLENGE
Replace old luminaires with new LED fixtures (LTX)
Control 7 towers with no control cabling
Enable scene management based on event type
Ensure drivers fully disconnect when switched off, per manufacturer requirements
Keep the installation simple, reliable and scalable
THE SOLUTION

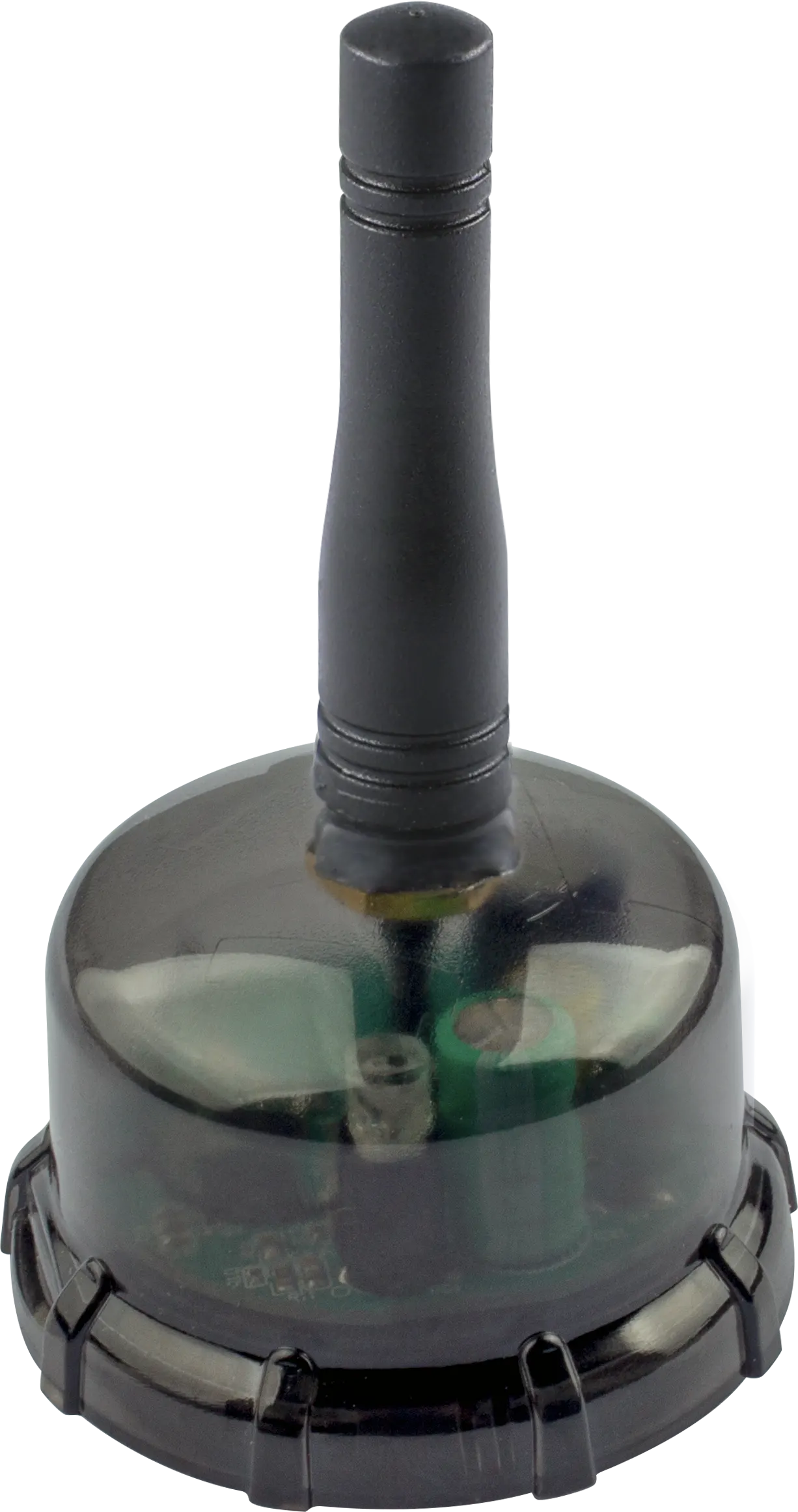

6 HBTD15 antennas, DALI-compatible, Zhaga Book 18 – one per tower as individual controllers
1 HBP02 touch panel with four pre-set scenes for instant lighting control:
Official Match (100 %)
Regular Match (70 %)
Training(50 %)
Maintenance (30 %)
An additional HBTD15 antenna mounted on an external wall acts as a repeater – bridging 150 metres between the HBP02 panel and all towers
Due to high-power luminaires, the lighting supplier required drivers to be fully disconnected when off. Each tower includes an HBTD8200VFC relay for power cut-off.
Hytronik Control Devices -Solution for Football Pitch Project in Almodôvar, Portugal
Lighting Control Project for Football Pitch
Hytronik HBP02 Touch Panel
THE RESULTS
• Full wireless Bluetooth control in a sports venue, with zero ducting
• Stable communication over 150 m between sensors and panel – tested and confirmed
• Intelligent control by tower, zone or site-wide
• Custom scenes for every event type – reconfigurable in seconds, instantly switchable from the panel
• Energy savings above 50% (per LTX data)
• Ready to scale: future add-ons like daylight harvesting or remote control via Gateway are just a step away
Hytronik Products Integrated at Almodôvar Football Pitch
