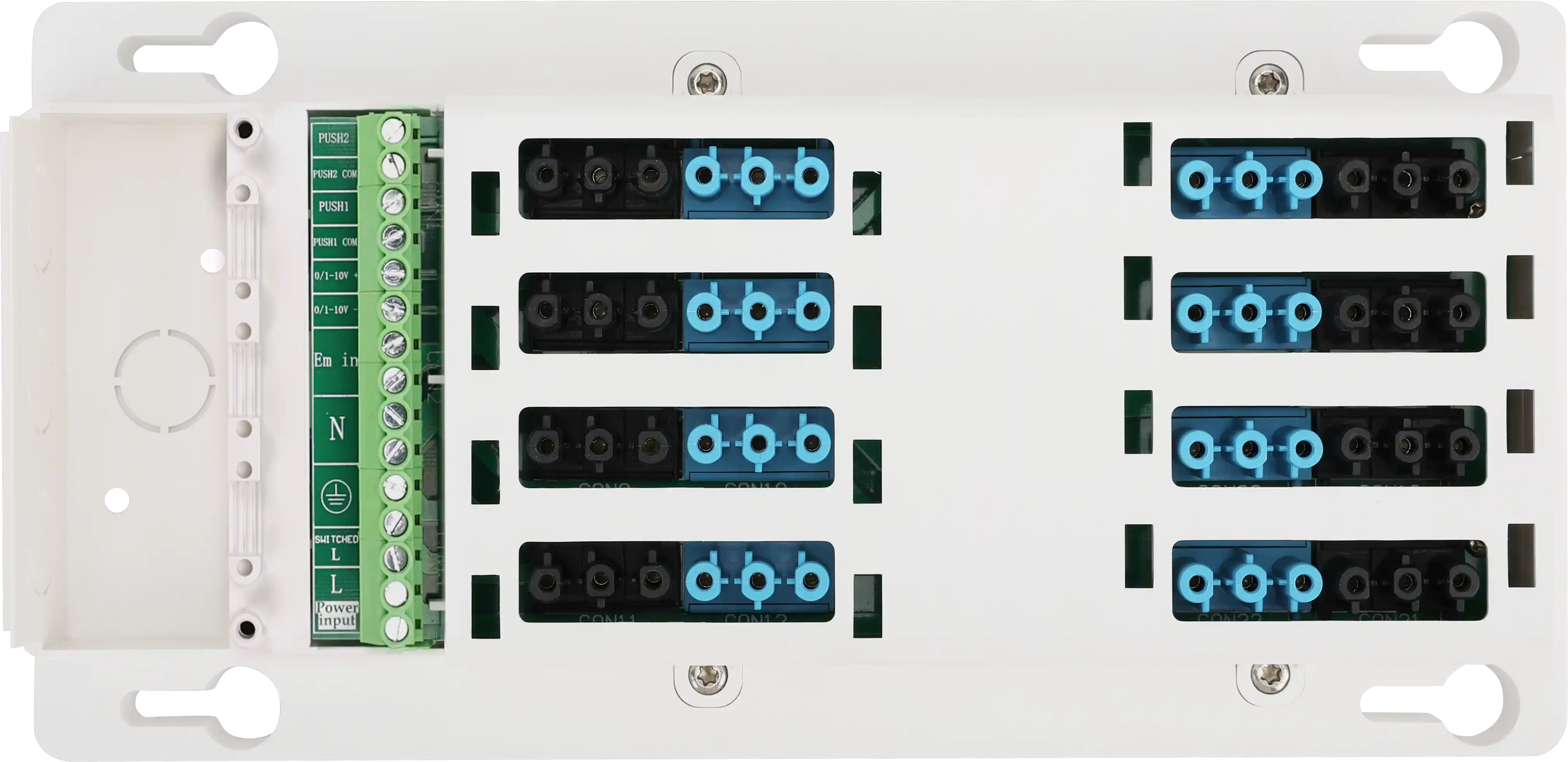

QCB03/BLE-V
Quick Connection Box | 0/1-10V | GST Types 6-poles x 8 lum.
BENEFITS
- Robust: 6-poles terminals with 8 x luminaire outlets
- Clean: Reduce wiring labour hours and improve safety
- Flexible: Built-in Bluetooth 5.0 control module
APPLICATIONS
- Remote wireless control via Koolmesh
- Classrooms
- Offices
Product information "QCB03/BLE-V"
• Dimmable control applications (DALI/DALI-2 or 0/1-10V)
• Intelligent control with Bluetooth 5.0 SIG mesh module built in
• 4 types of built-in Bluetooth 5.0 control module to select from
• Detailed Bluetooth system features can be viewed on page 05-11
• Luminaire outlet: GST type 6-pole terminal base (L’, N, E, Em, Dim+, Dim-)
• Black housing and white housing available to choose from
• Tamper-proof structure design
• Expandable: easy extension to another QCB03/BLE wirelessly
• Rating of system: Default rating is 400VA capacitive & 800W resistive. Max 10A
• Flame-retardant material for safety protection
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range: | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth technology: | Nordic nRF52832 |
| Bluetooth transmit power: | 4 dBm |
| Category - Modular Wiring Systems: | Single-Circuit Connection Boxes |
| Dimming (Output) Interface: | 0/1-10V |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Mounting hole: | 20.0000 mm |
| Operating Voltage: | 220-240 VAC 50/60 Hz |
| Output Voltage: | 220-240VAC 50/60Hz |
| Product height: | 45.0000 mm |
| Product length: | 299.5000 mm |
| Product width: | 143.5000 mm |
| Push Button Input: | 2 |
| Storage temperature max.: | 60 °C |
| Storage temperature min.: | -20 °C |
| Zhaga: | No |
Login

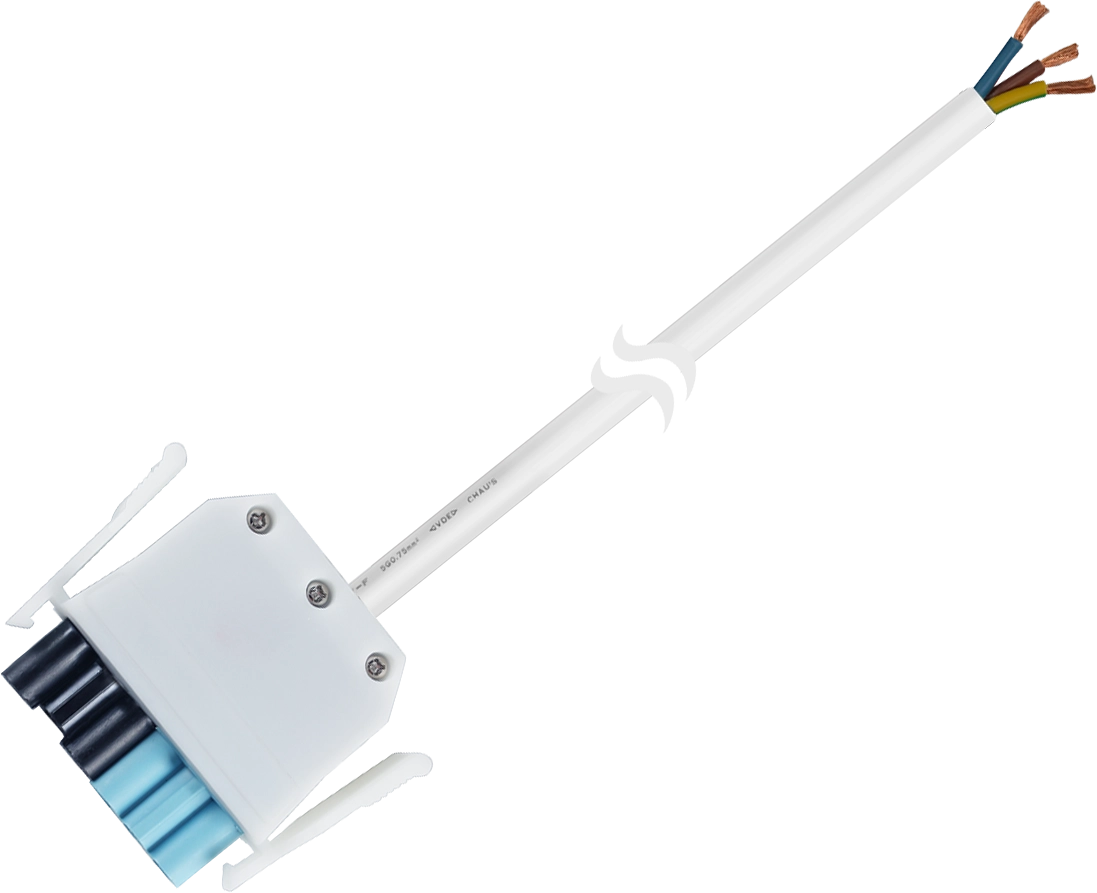

Compatible products (for full functionality)
