HBTD8200S
Bluetooth Receiver | Relay Control | Wall Junction Box
BENEFITS
- Compact: Designed to fit into Wall Junction Box
- Autonomous: On/off occupancy control for up to 800W
- Flexible: 2 Push inputs for manual control
APPLICATIONS
- Bluetooth receiver node
- Offices, Classrooms
- Offices, Classrooms, Industry and Healthcare Spaces
Product information "HBTD8200S"

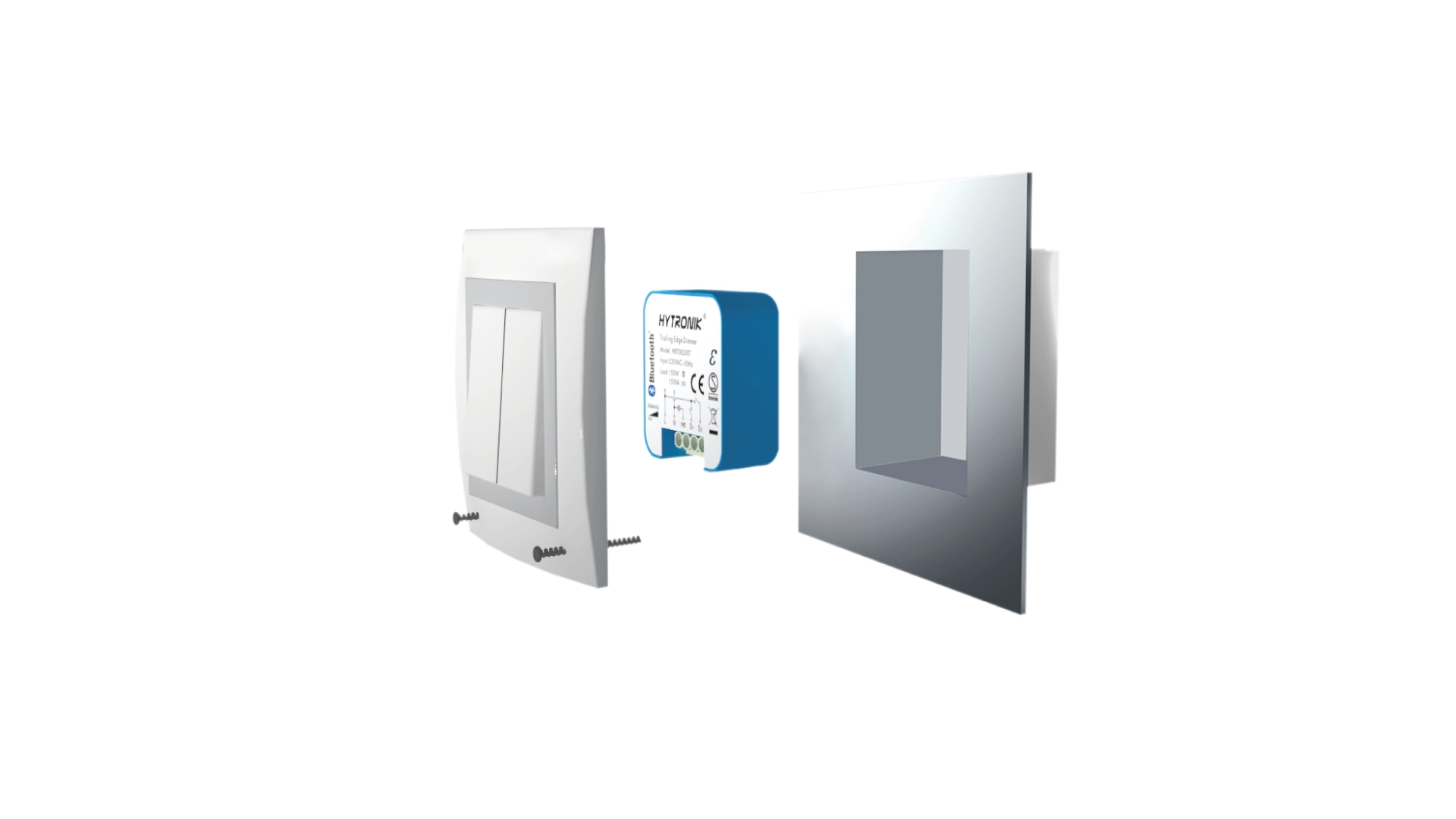

HBTD8200S is designed to fit into a junction box or
electrical box to make Push switch (retractive switch) to achieve
on/off control, dimming control, colour tuning and even scene
recall. Whether used for new build or retro-fit projects to add
intelligent control to standard lighting fixtures, HBTD8200S do it all. Simple device setup and commissioning can be done
via Koolmesh app.
| Ambient temperature max.: | 45 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Application Type: | Dimmers for Wall Junction Box |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range: | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth technology: | Nordic nRF52832 |
| Bluetooth transmit power: | 4 dBm |
| Daylight Harvest: | No |
| Dimming (Output) Interface: | Relay On/Off |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 20 % |
| IP Rate: | IP20 |
| Operating Voltage: | 220-240 VAC 50/60 Hz |
| Product height: | 22.0000 mm |
| Product length: | 46.0000 mm |
| Product weight: | 41.0000 g |
| Product width: | 46.0000 mm |
| Push Button Input: | 2 |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | No |
| Zhaga: | No |
