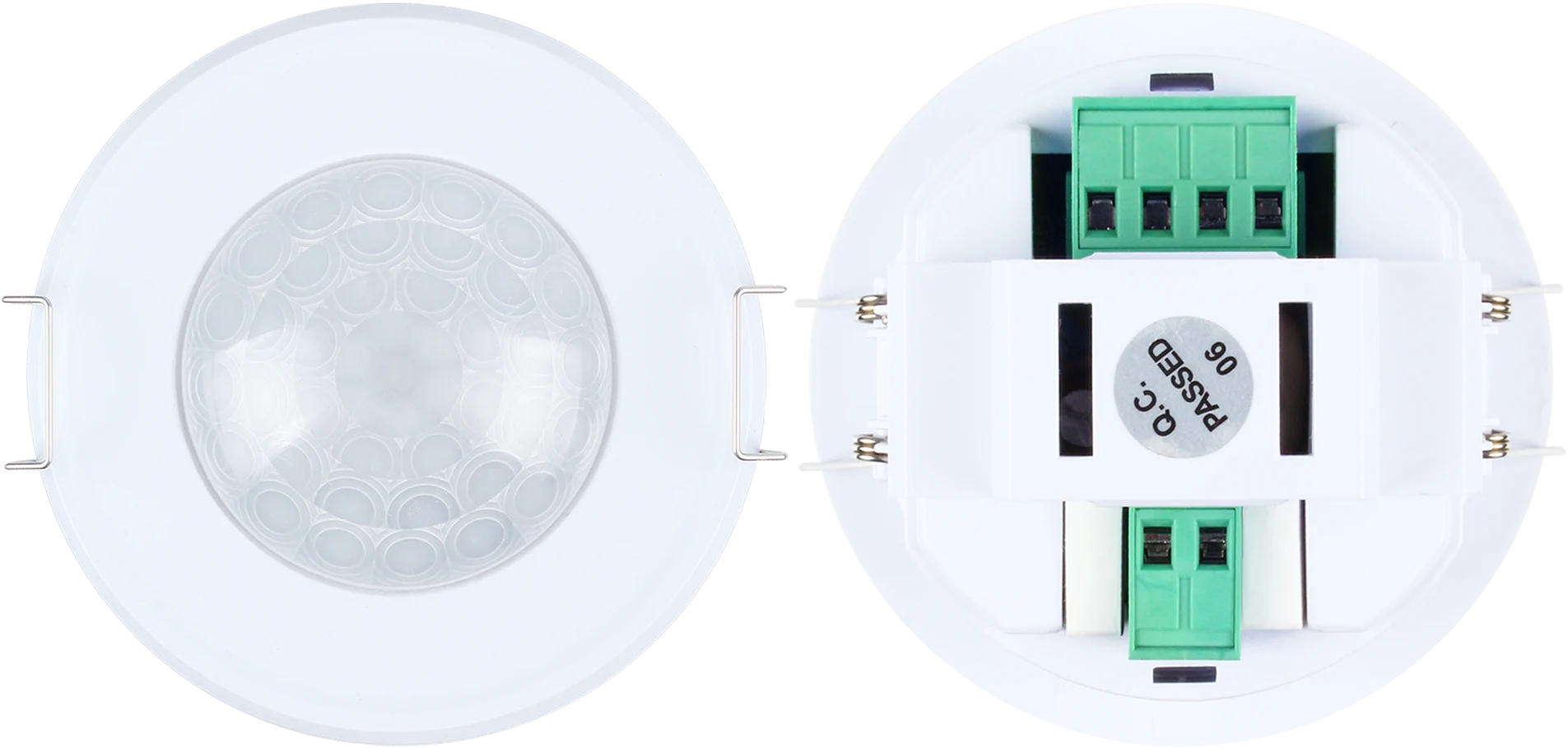

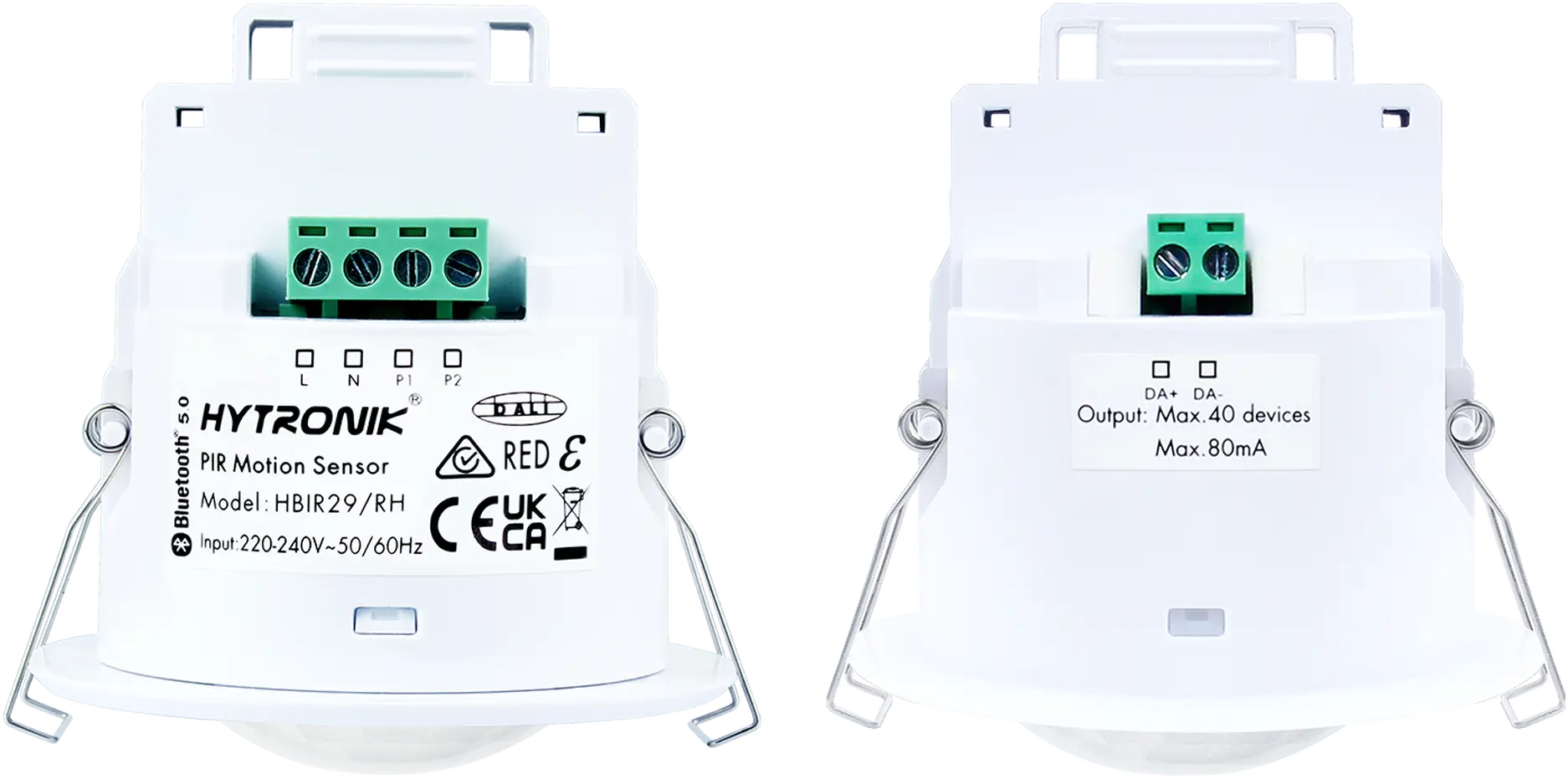

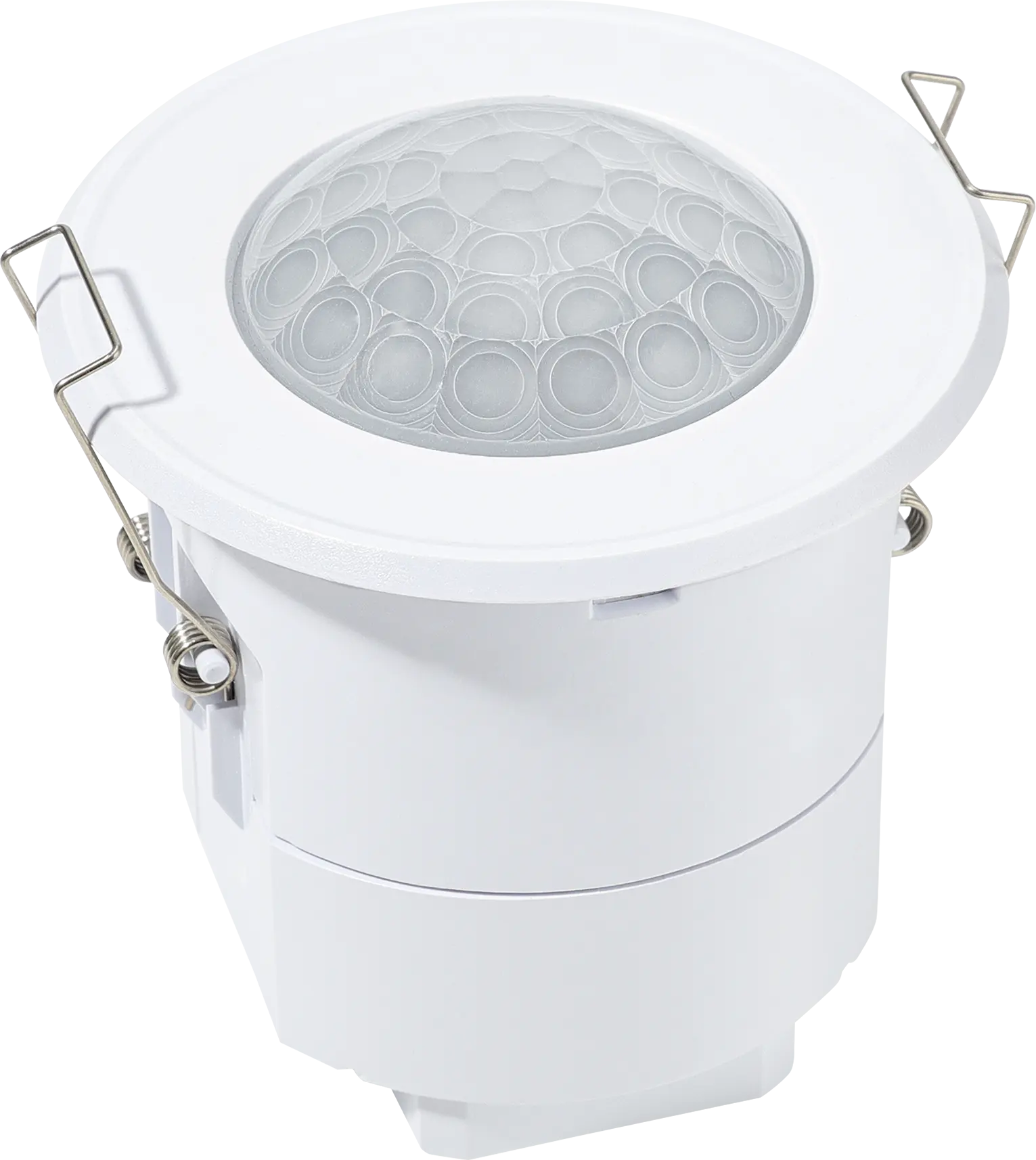

HBIR29/RH
PIR Highbay | Bluetooth DALI + Circadian Rhythm | Ceiling mounting
BENEFITS
- Adaptable: Metal surface mount box options
- Versatile: Tri-level dimming + Daylight harvest + Circadian Rhythm
- Easy: Daylight harvest configuration with Koolmesh app
APPLICATIONS
- Ceiling or surface mounting (with accessory)
- Warehouse
- Logistic
Product information "HBIR29/RH"
It is a 80mA output DALI broadcast and Bluetooth PIR motion sensor with dimming, tunable white, daylight sensing, circadian rhythm, and RTC functionality. It is ideal for retrofit projects, allowing wireless communication between luminaires via Bluetooth mesh without additional wiring, significantly reducing installation time and cost. Meanwhile, simple device setup and commissioning can be done via Koolmesh app.
| Ambient temperature max.: | 55 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Bluetooth Platform: | Nordic nRF52832 |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range (Phone to Device) : | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth transmit power: | 4 dBm |
| Commissioning Methods: | App & Web (Bluetooth) |
| Connector Type: | Standard 2 cables |
| DALI Bus Current Consumption: | 80.0000 mA |
| Daylight Harvest: | Yes |
| Daylight Sensor Option: | Photodiode/Photocell |
| Detection Methods: | Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (Diameter): | 40×20 |
| Dimming (Output) Interface: | DALI |
| Features: | Daylight Harvest, Tri-level (Corridor Function), Tunable White Control / HCL |
| Human Centric Lightning (HCL): | Yes |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Stand-alone |
| Lens type: | Reinforced High-bay with 3-Pyro |
| Maximum Mounting Height: | 20.0000 m |
| Mounting Height: | Mid & High-bay |
| Mounting hole: | 66.0000 mm |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Output Voltage: | 9.5~15VAC |
| Product height: | 86.9000 mm |
| Product length: | 78.0000 mm |
| Product weight: | 130.0000 g |
| Product width: | 78.0000 mm |
| Push Button Input: | 2 |
| Sensitivity: | 10%/ 30% /50% /75%/ 100% |
| Storage temperature max.: | 55 °C |
| Storage temperature min.: | -35 °C |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | AC |
| Warming-up: | 20 s |
| Zhaga: | No |
Datasheets
Product datasheet: hbir29-rh.pdf
