DS02/FM
Daylight Sensor | 1-10V | Flush mount
BENEFITS
- Modern: ceiling-mountable with only 41mm installation holes
- Simple: 1-10v dimming output
- Easy: flush mount installation
APPLICATIONS
- For adjusting target light level application
- Office / Meeting rooms
- Schools / Classroom
Product information "DS02/FM"

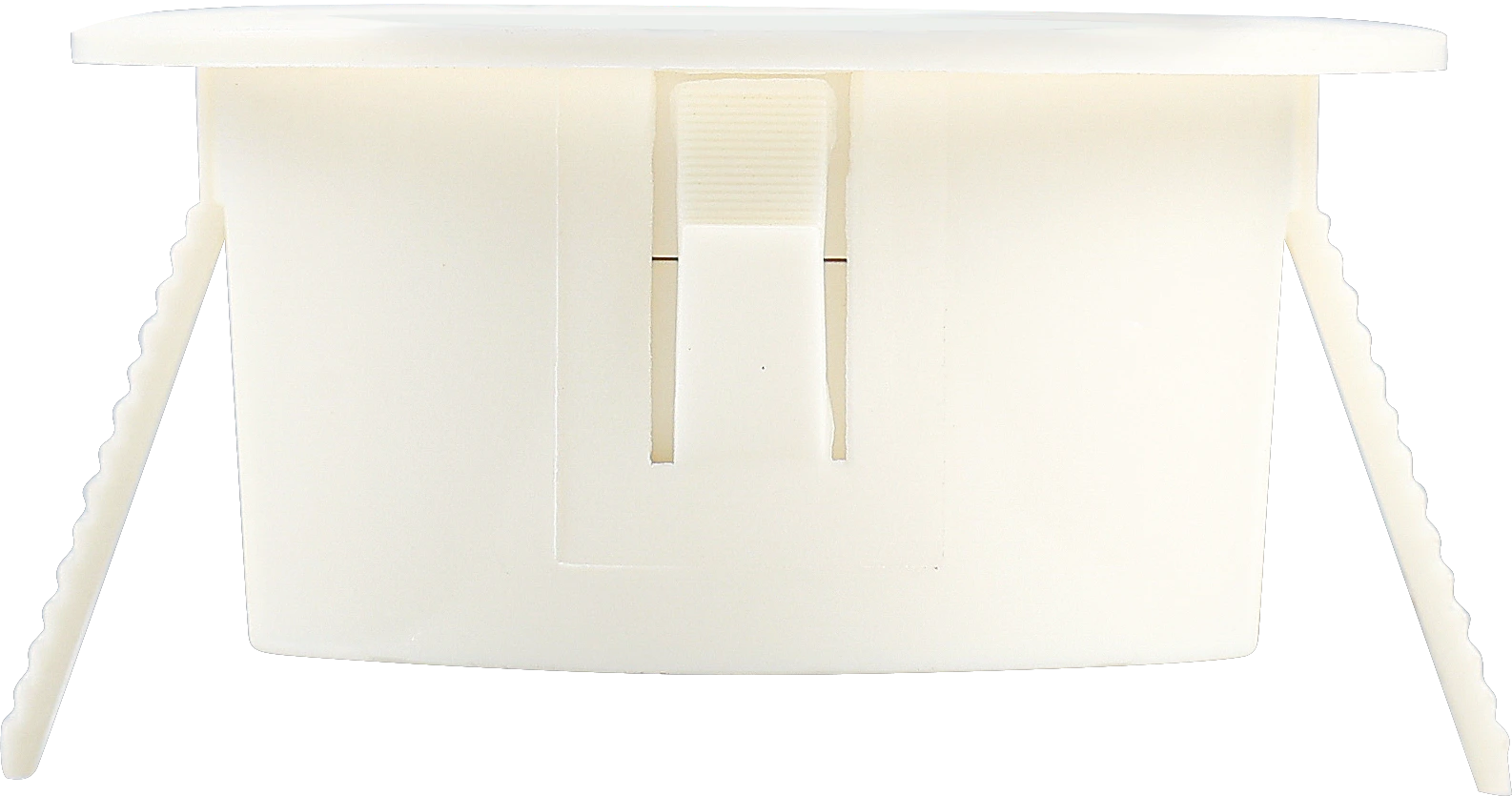

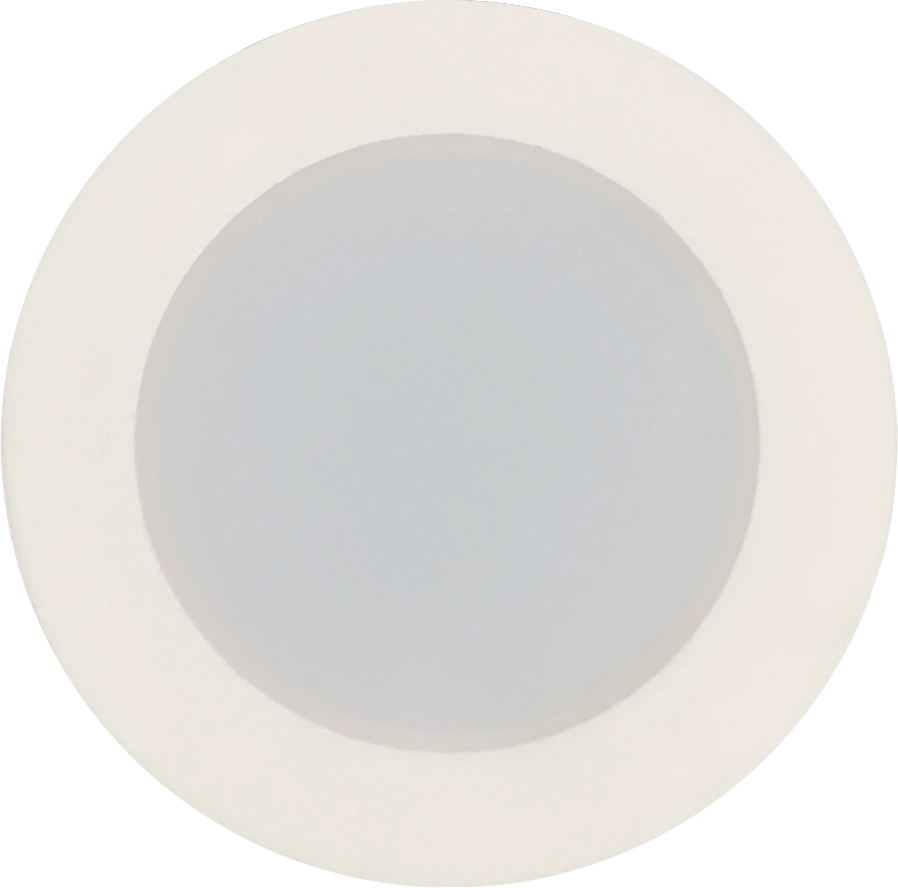

DS02/FM is a flush mount installation photocell daylight sensor that converts ambient light into a 1-10V electronic signal output.
| Ambient temperature max.: | -35 °C |
|---|---|
| Connector Type: | Standard 2 cables |
| Daylight Sensor Option: | Ordinary Photodiode/Photocell |
| Detection Methods: | No motion (Daylight Only) |
| Detection angle: | 90° |
| Dimming (Output) Interface: | 1-10V |
| Features: | Daylight Harvest |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Built-in, Plug & Play Sensor Heads |
| Maximum Mounting Height: | 6.0000 m |
| Mounting Height: | Low-bay |
| Mounting hole: | 41.0000 mm |
| Operating Voltage: | 220-240 VAC 50/60 Hz |
| Product height: | 26.5000 mm |
| Product length: | 38.9000 mm |
| Push Button Input: | |
| Storage temperature min.: | 70 °C |
| Tri-level (Corridor function): | No |
| Voltage Type: | AC |
| Warming-up: | 20 s |
| Zhaga: | No |
