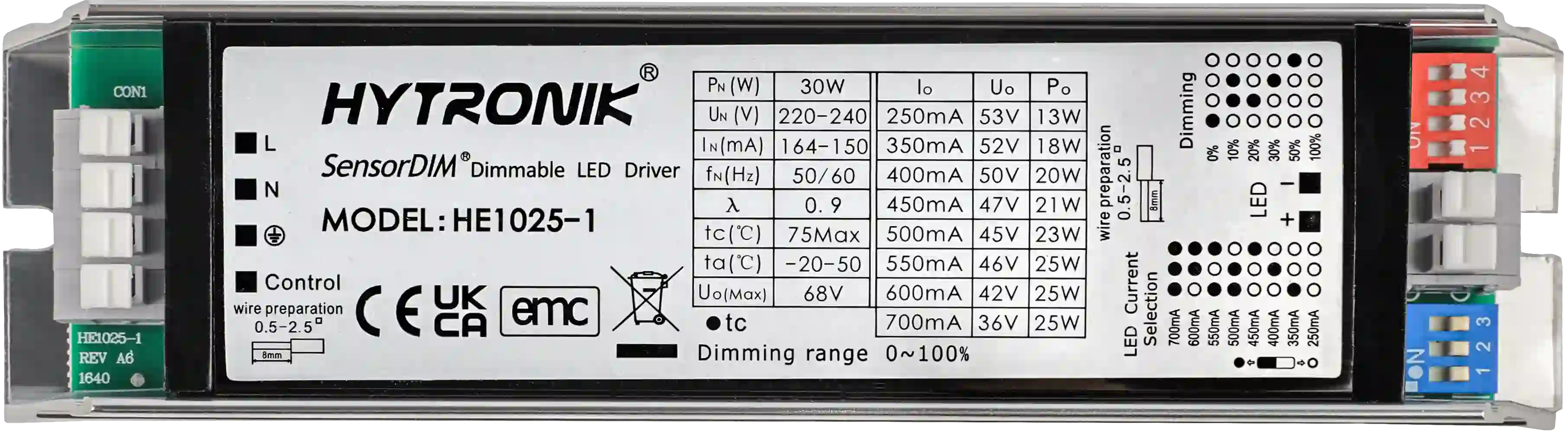

HE1025-1
SensorDim LED Driver 25W | Dimmable | Built-in
Vorteile
- Compact: LED Driver pre-defined brightness levels (0%~100%)
- Flexible: SensorDIM control gear + high voltage output sensors
- Easy: Configurable constant current (CC) output via DIP switches
ANWENDUNGEN
- Linear Luminaire Built-in integration
- Offices
- Classrooms
Produktinformationen "HE1025-1"
This SensorDIM LED driver is designed for sensor-based dimming, operating at full power when a sensor signal is received and at pre-defined brightness levels (0%/10%/20%/30%/50%/100%) when the signal is absent. It features output current selection via 3 DIP switches, offering 8 current levels (250mA to 700mA). Encased in an aluminum profile filled with silicon rubber, it is suitable for heavy-duty tasks and tough climates.
| Ausgangsleistung: | ≤25W |
|---|---|
| Ausgangsspannung: | 68VDC Max. |
| Befestigungsloch: | 4.5000 mm |
| Betriebsspannung: | 220 - 240 VAC 50/60 Hz |
| Feuchtigkeit max: | 90 % |
| Feuchtigkeit min: | 10 % |
| Installationstyp: | Built-in |
| Lagertemperatur: | 70 °C |
| Lagertemperatur min.: | -40 °C |
| Operating Mode: | Constant Voltage |
| Product height: | 22.0000 mm |
| Produktlänge: | 155.0000 mm |
| Produkttiefe: | 40.5000 mm |
| Schutzart: | IP20 |
| Treiber Typ: | Dimming Only |
| Umgebungstemperatur: | 50 °C |
| Umgebungstemperatur min.: | -25 °C |
| Wirkungsgrad: | 85 % |
