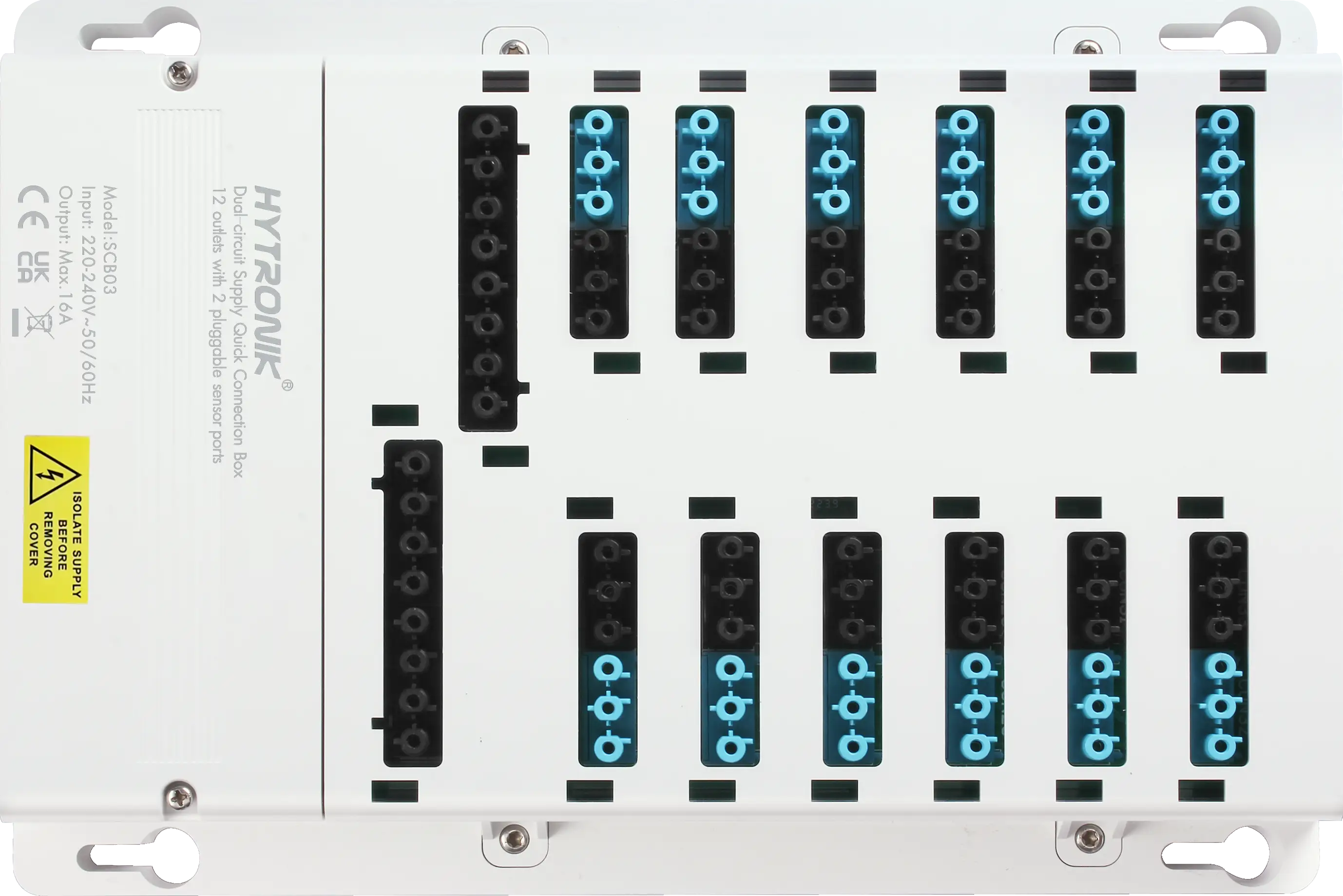

SCB03
Super Connection Box | DALI-2 & 0/1-10V | GST Types 6-poles x 12 lum. + 2 sensor
BENEFITS
- Robust: 6-poles terminals with 2 selectable channels
- Clean: Reduce wiring labour hours and improve safety
- Efficient: Dimming control for 12 luminaires with 2 sensor
APPLICATIONS
- Remote ceiling wiring
- Offices
- Clasrooms
Product information "SCB03"

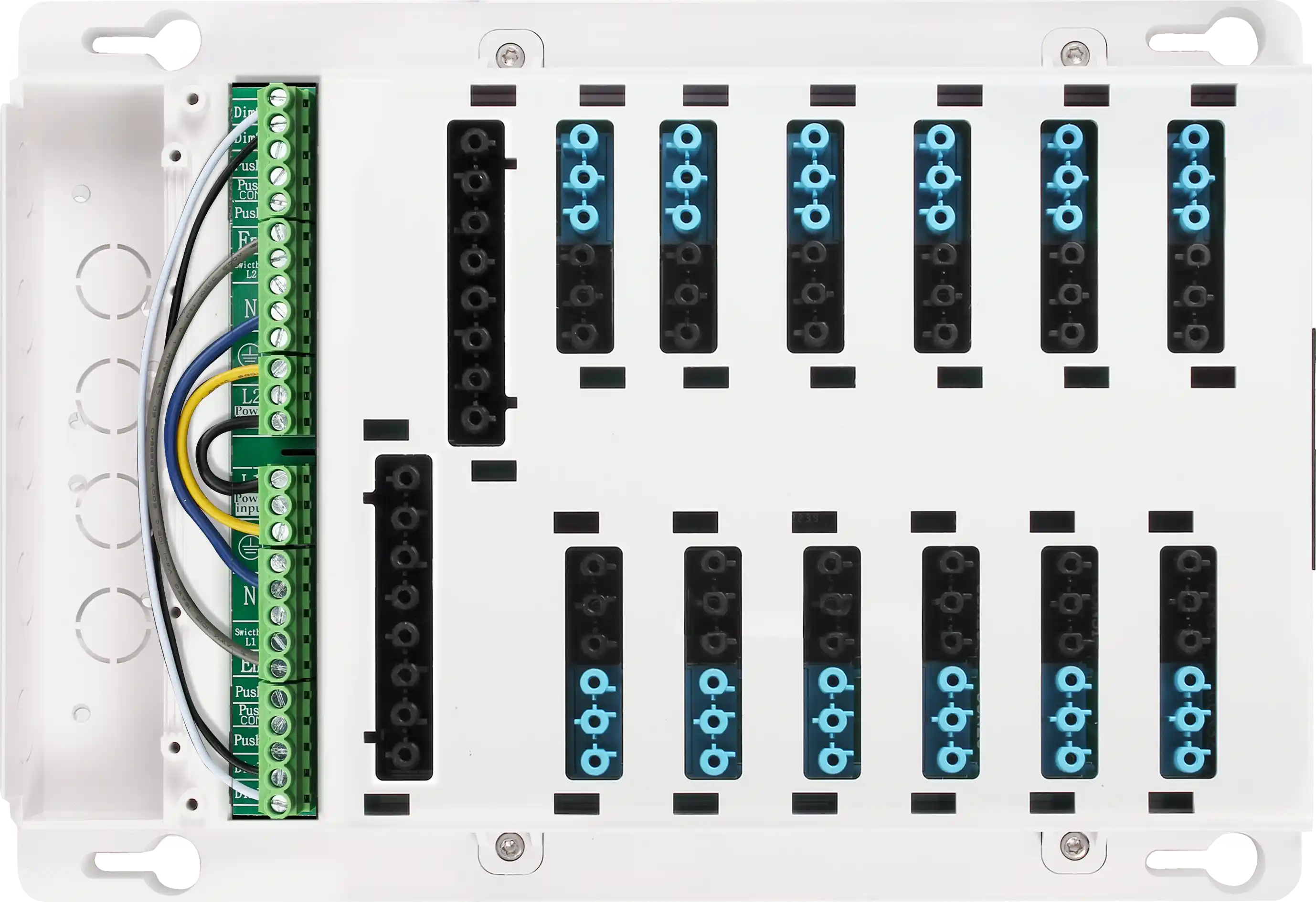

Dual-circuit design for applciations with both essential & non-essential supplies. GST type 6-pole terminal base quick connection box for dimming application, with DALI or 0/1-10V output, 12 luminaire outlets and 2 sensor outlet. Freely switch between1-channel and 2-channel control. Rating of system 16A, rating of each output 10A.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Category - Modular Wiring Systems: | Dual-Circuit Connection Boxes |
| Dimming (Output) Interface: | Multi-channel Outputs |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Mounting hole: | 20.0000 mm |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Output Voltage: | 220~240VAC 50/60Hz |
| Product height: | 47.5000 mm |
| Product length: | 335.0000 mm |
| Product weight: | 1074.0000 g |
| Product width: | 233.0000 mm |
| Storage temperature max.: | 60 °C |
| Storage temperature min.: | -20 °C |
| Zhaga: | No |
Datasheets
Product datasheet: scb03.pdf
Installation Manual
User manual: installation-manual-scb03.pdf
