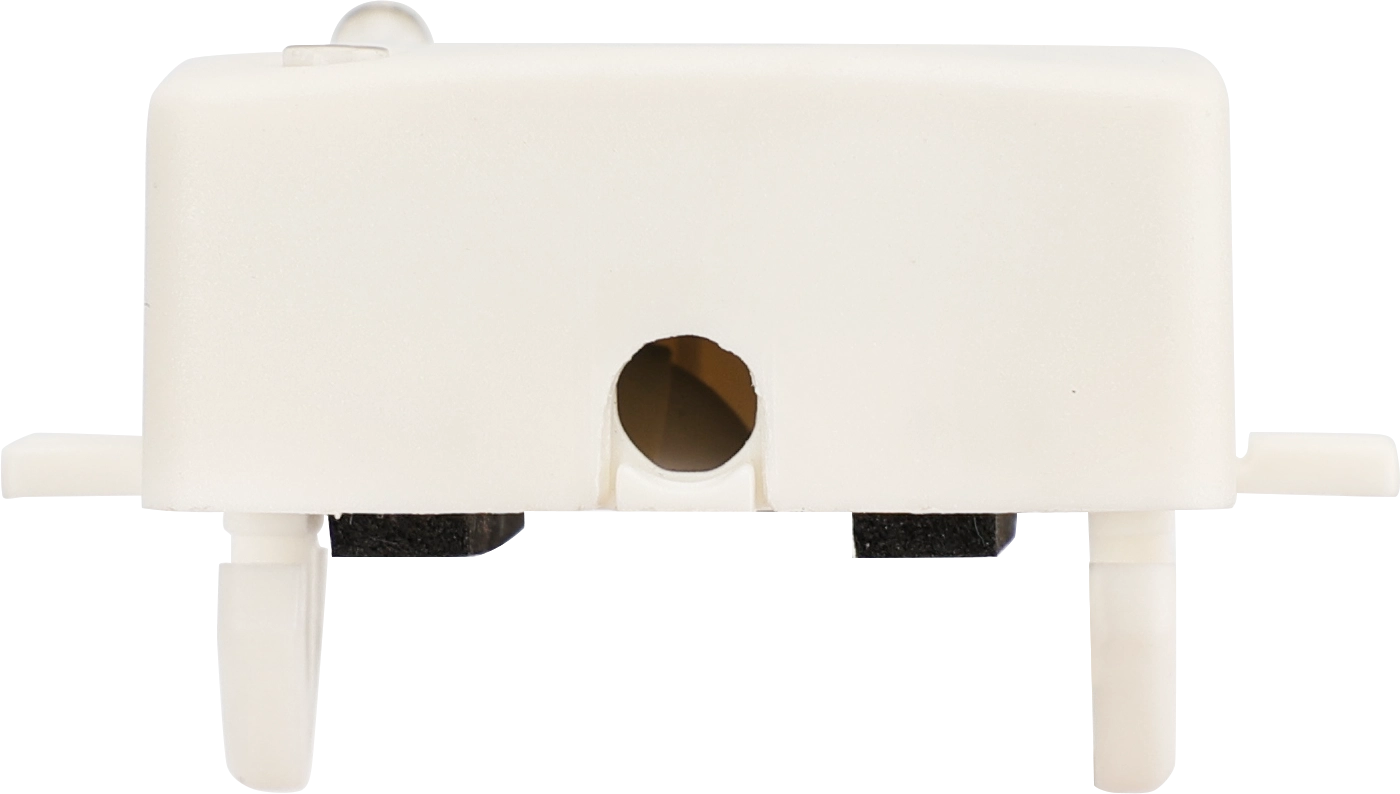

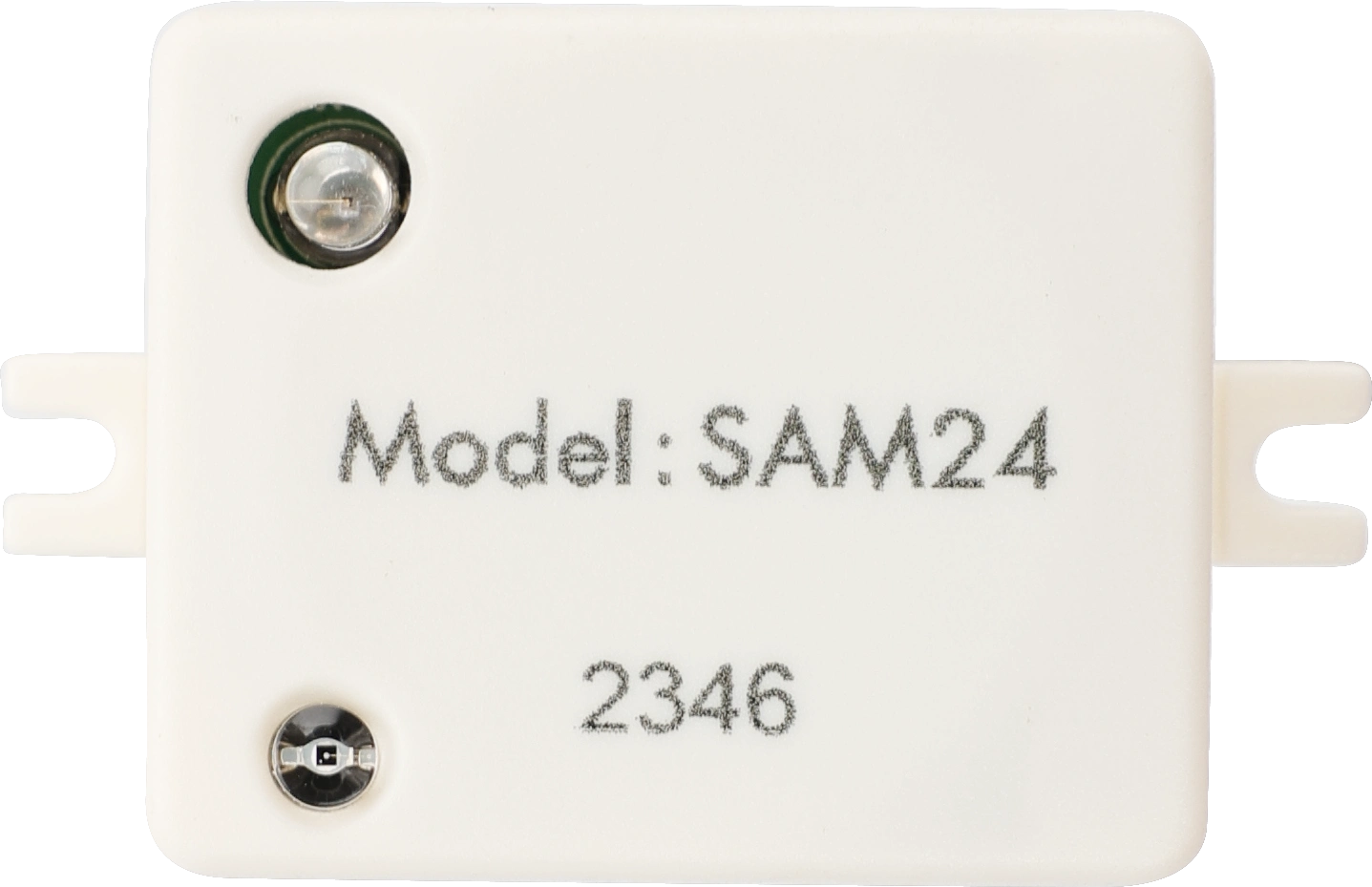

SAM24
HF Lowbay | Daylight harvest | RJ12 connector to control body
BENEFITS
- Compact: Standard rectangular Plug&Play sensor design
- Innovative: Robus HF antenna design against wireless interface
- Intuitive: DALI sensitivity djustment
APPLICATIONS
- Master luminaire with sensor
- Classrooms
- Offices
Product information "SAM24"
This sensor features microwave (HF) detection and daylight harvesting, it utilizes an RJ12 connector to interface with the control body. It offers intuitive DALI sensitivity adjustment and incorporates an innovative robust HF antenna design to mitigate wireless interference. It supports DALI-2 commands for seamless integration and control.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | DALI Master/Application Controller |
| Connector Type: | RJ12 |
| Detection Methods: | Microwave (MW) |
| Detection angle: | 30° - 150° |
| Detection range (Diameter): | 12x8 |
| HF operating frequency (Ghz): | 5.8Ghz+/-75MHz |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Plug & Play Sensor Heads |
| Maximum Mounting Height: | 3.0000 m |
| Mounting Height: | Low-bay |
| Mounting hole: | 2.5000 mm |
| Operating voltage range: | 5 VDC |
| Product height: | 13.0000 mm |
| Product length: | 40.4000 mm |
| Product weight: | 24.0000 g |
| Product width: | 25.2000 mm |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | DC |
Datasheets
Product datasheet: sam24.pdf
