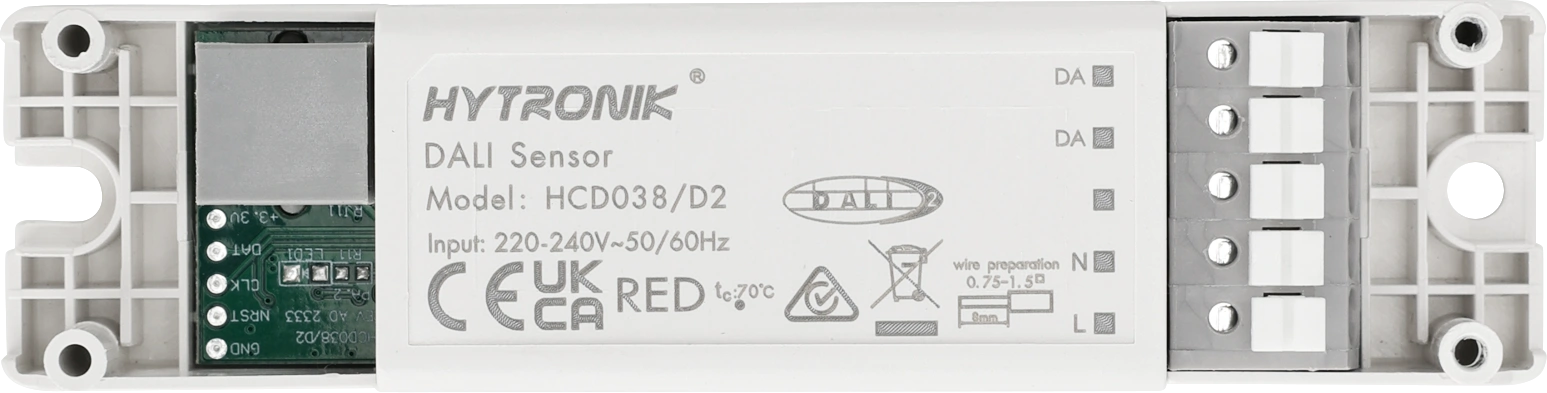

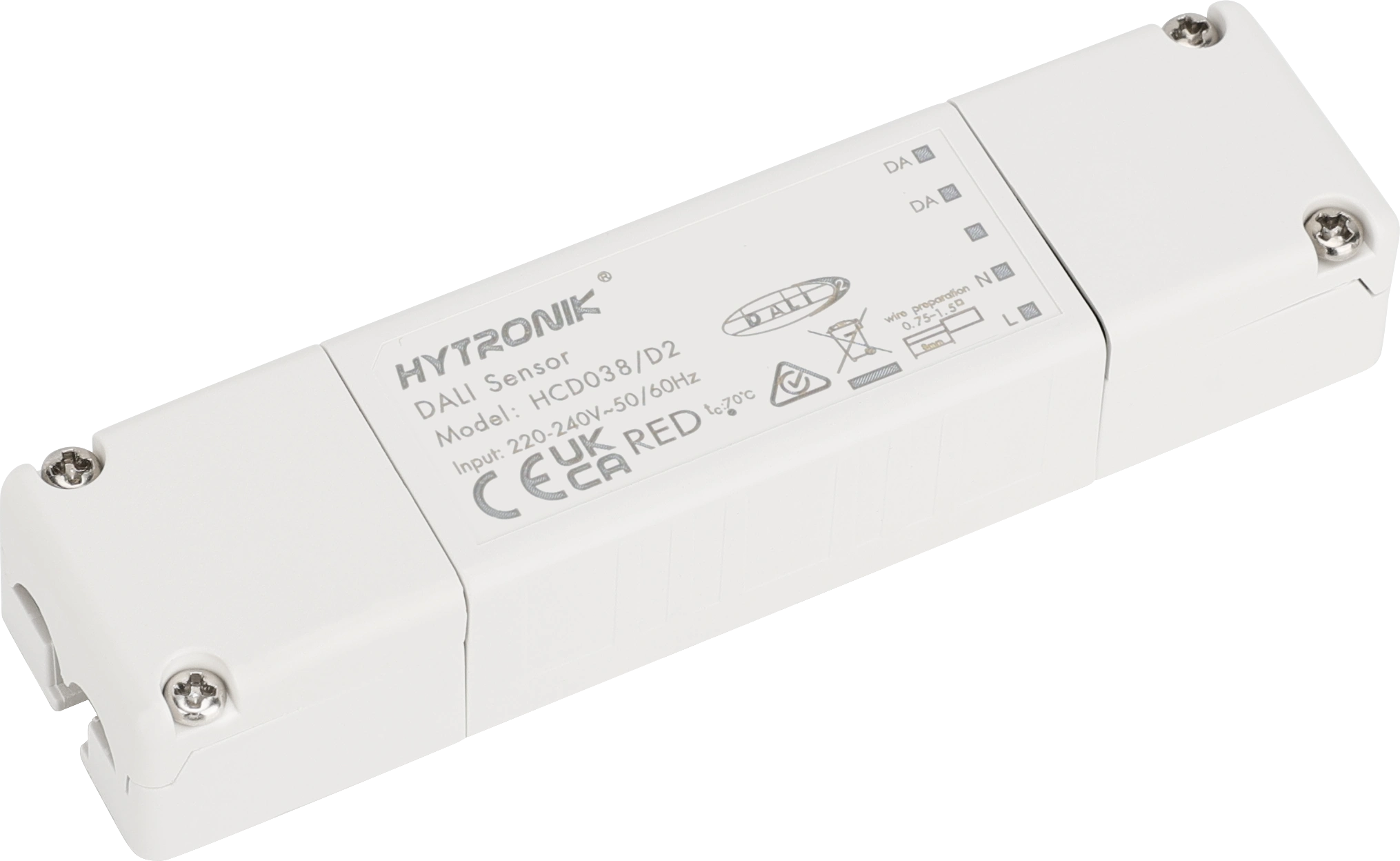

HCD038/D2
Control unit | DALI-2 Command | Attachable sensor heads
BENEFITS
- Adaptable: Small control unit with strain relief
- Versatile: HF sensors option via plug&play
- Intuitive: DALI-2 multi-sensor input device
APPLICATIONS
- Master luminaire with sensor
- Classrooms
- Offices
Product information "HCD038/D2"

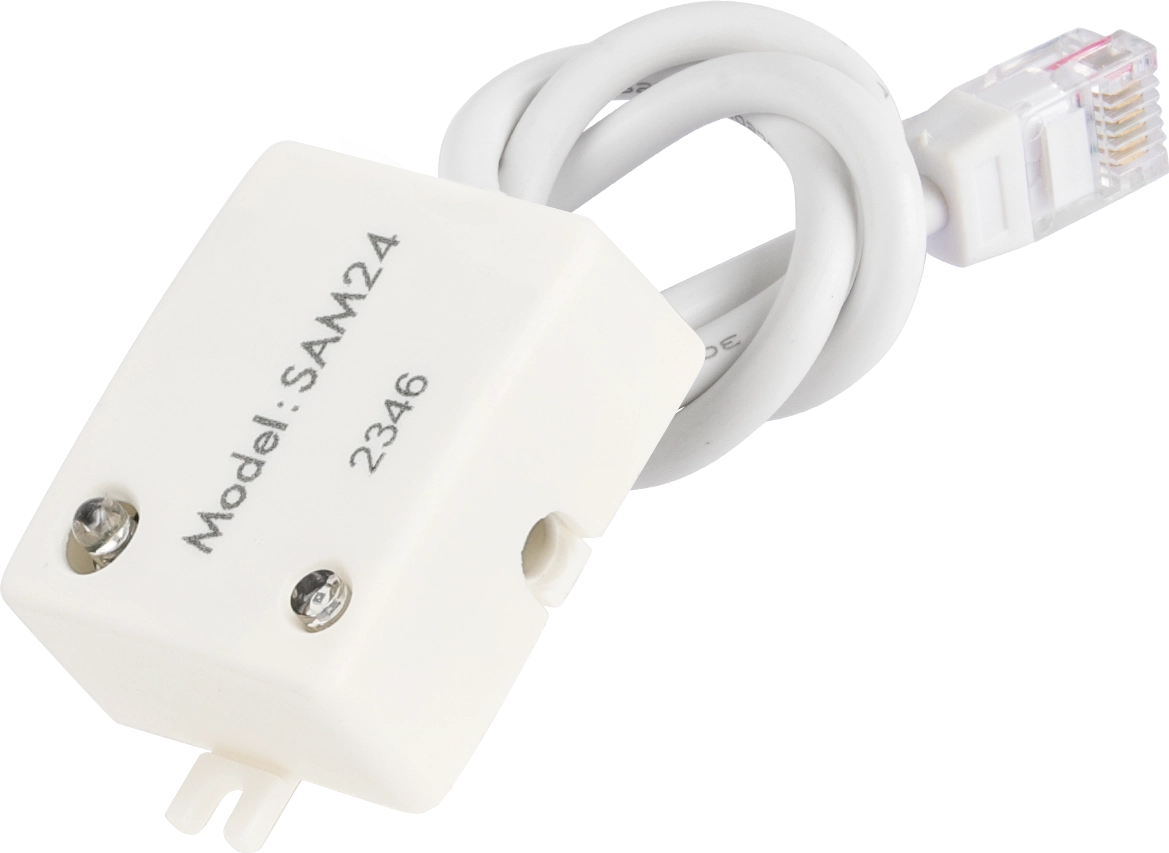

The HCD038/D2 is an advanced DALI-2 control unit that has been specially developed as a multi-sensor input device. It seamlessly integrates with the SAM24 microwave sensor head and enables comprehensive control and monitoring functions in DALI-2 lighting systems.
| Ambient temperature max.: | 60 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | DALI Master/Application Controller |

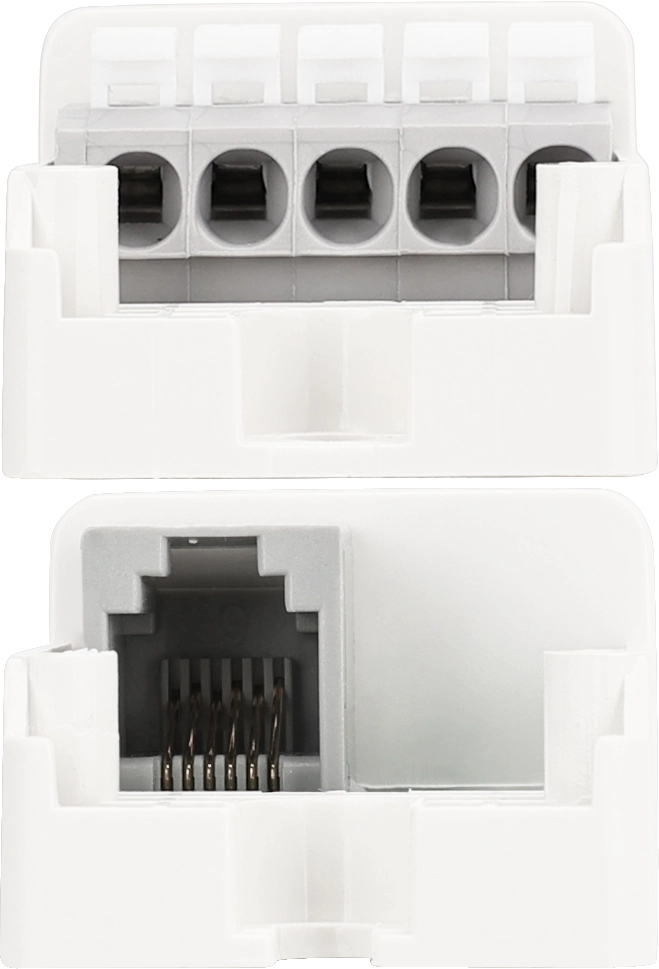

| Connector Type: | Standard 2 cables |
| Detection Methods: | Microwave (MW) |
| Dimming (Output) Interface: | DALI/DALI-2 |
| Features: | Daylight Harvest, Tri-level (Corridor Function) |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 20 % |
| IP Rate: | IP20 |
| Installation Type: | Built-in |
| Operating voltage range: | 9.5-22.5 VDC |
| Product height: | 21.0000 mm |
| Product length: | 120.0000 mm |
| Product weight: | 46.0000 g |
| Product width: | 30.0000 mm |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -35 °C |
| Voltage Type: | AC |
| Zhaga: | No |
Datasheets
Product datasheet: hcd038-d2.pdf
